Высокое качество 8 комплектов в партии слоев тверд-гибких печатных плат HDI PCB програмная панель Жесткая гибкая печатная

Высокое качество 8 комплектов в партии слоев тверд-гибких печатных плат HDI PCB програмная панель Жесткая гибкая печатная

Цена:*

Количество:

Product Description

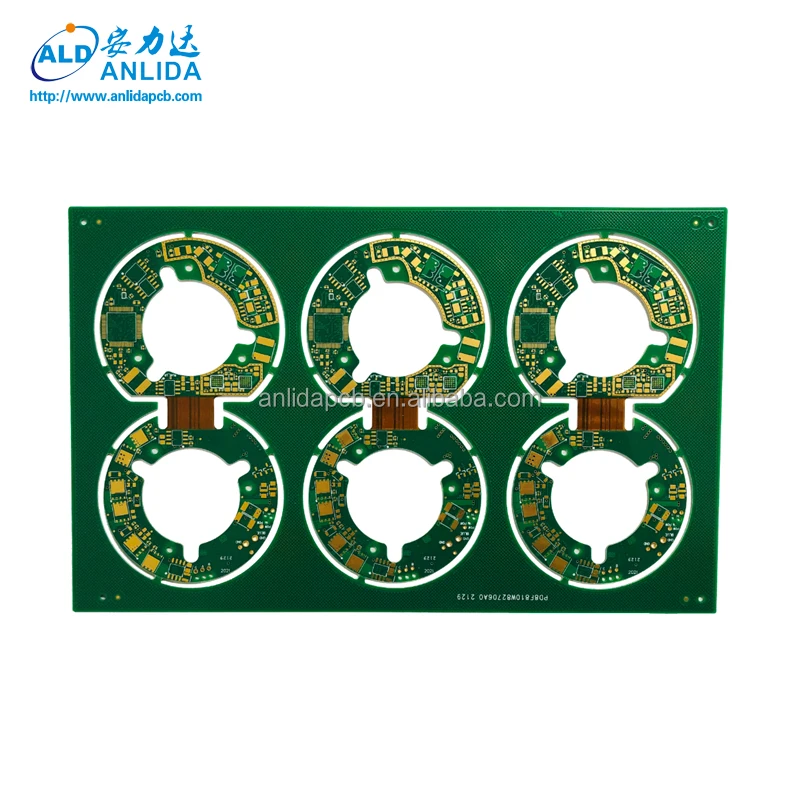

High quality 8 layers rigid flexible HDI PCB Circuit Board rigid-flex PCB

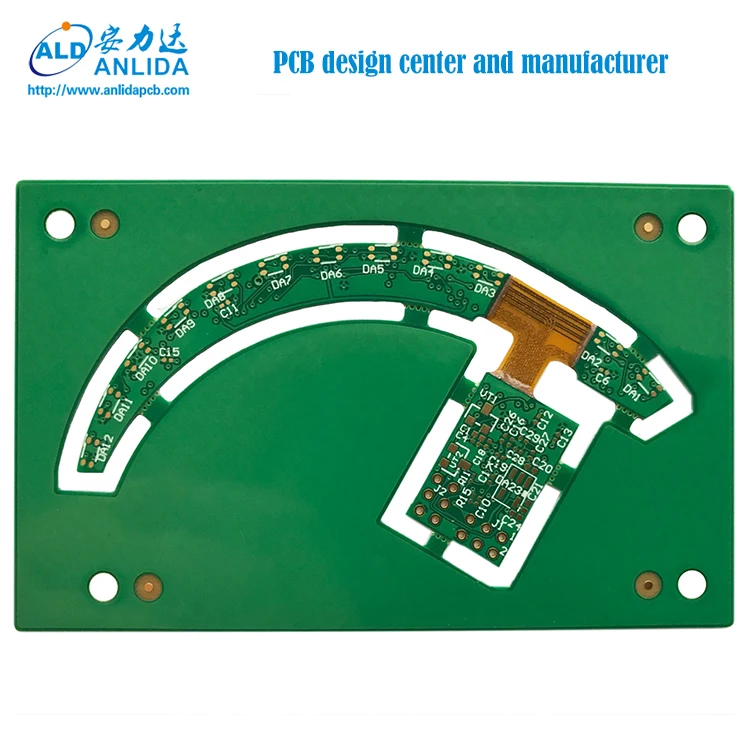

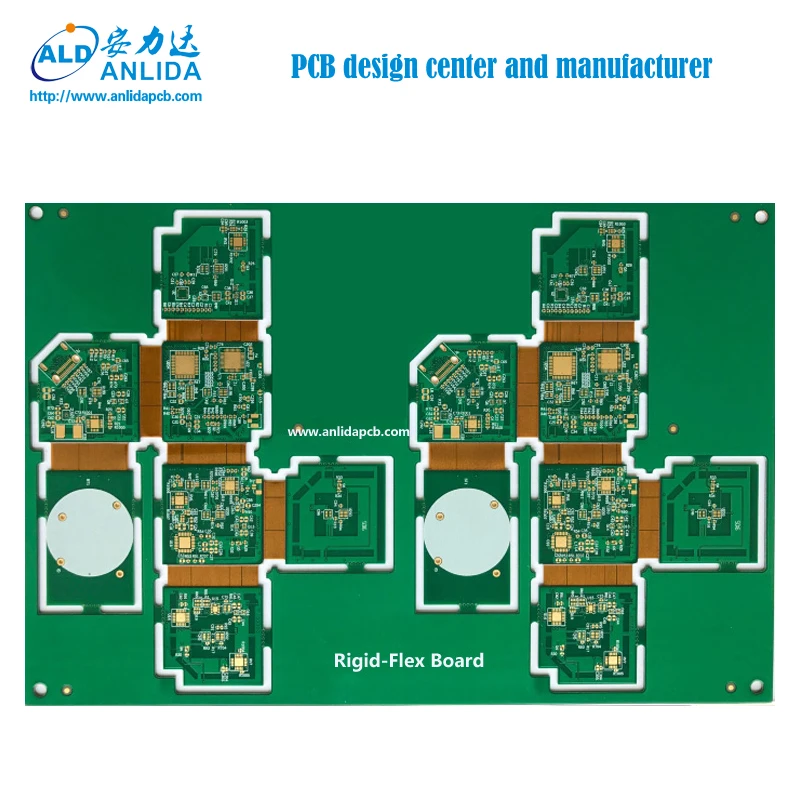

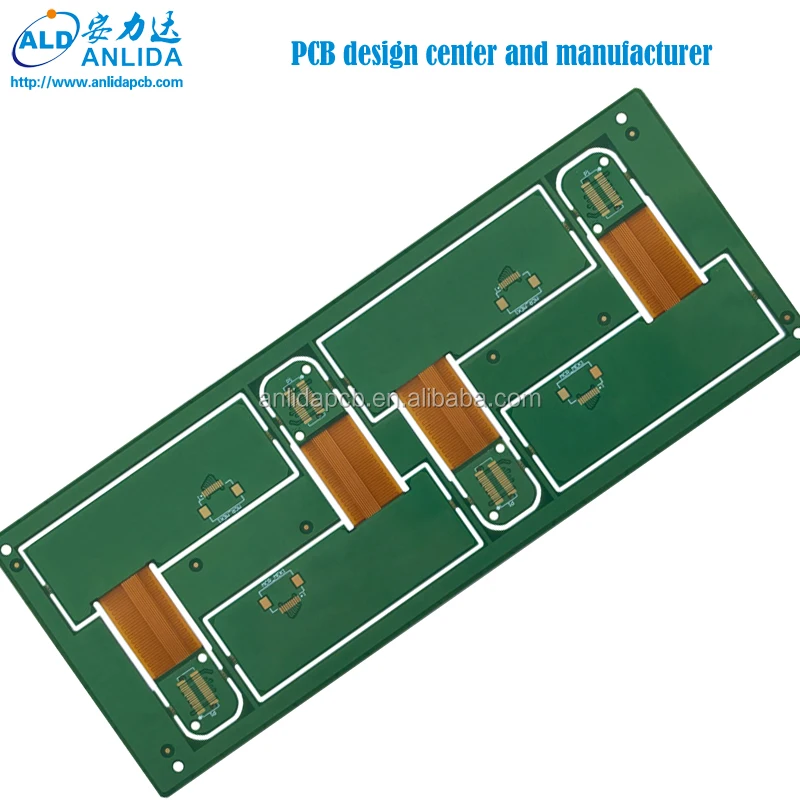

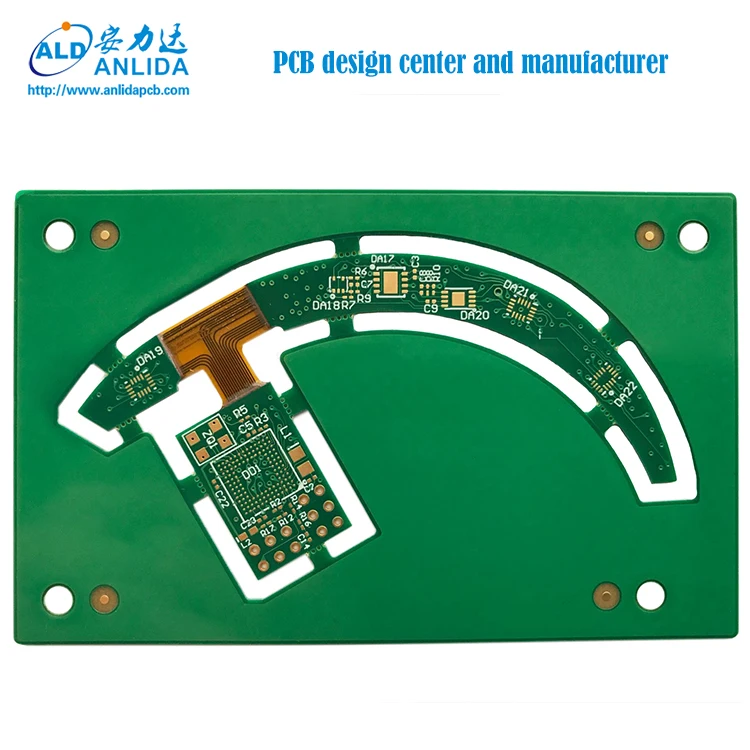

PCB product show:

PCB-parameters:

Printed Circuit Board Production:

NO.	Item	Prototype	Mass Production
1	Layer Count	Flex Board:1-6 L,Flex-Rigid Board: 2-12 L	Flex Board:1-6 L,Flex-Rigid Board: 2-12 L
2	Max Panel Size	≤500X500mm	≤500X500mm
3	Base Material Type	FR-4,Pl,,CCL,PET, PEN	FR-4,Pl,,CCL,PET, PEN
4	Max Board Thickness	Flex Board≤2.0mm, Flex-Rigid Board≤4.0mm	Flex Board≤2.0mm, Flex-Rigid Board≤3.0mm
5	Min Board Thickness	Flex Board≥0.05mm, Flex-Rigid Board≥0.3mm	Flex Board≥0.05mm, Flex-Rigid Board≥0.4mm
6	Min Line Width	≥ 0.05mm(2mil)	≥0.075mm(3mil)
7	Min Line Space	≥ 0.064mm(2.5mil)	≥0.075mm(3mil)
8	Min Through hole	0.15mm(6mil)	0.15mm(6mil)
9	Min Blind hole	0.1mm(4mil)	0.1mm(4mil)
10	Min Buried Hole	0.2mm(8mil)	0.2mm(8mil)
11	Min Plated Hole Thickness	20µm(0.8mil)	20µm(0.8mil)
12	Surface coating	HASL,ENIG, OSP,ENIG+OSP	HASL,ENIG, OSP,ENIG+OSP
13	Solder Mask color	Green,Blue,Black,White,Yellow,Red	Green,Blue,Black,White,Yellow,Red
14	Silkscreen color	White,Black,Red	White,Black,Red
15	Thick Copper	1/3oz - 2oz (12-70µm)	1/3oz - 2oz (12-70µm)
16	PTH Dia Tolerance	±0.076mm(±3mil)	±0.076mm(±3mil)
17	NPTH Dia Tolerance	±0.05mm(±2mil)	±0.05mm(±2mil)
18	Outline Tolerance	±0.15mm (±6mil)	±0.15mm (±6mil)
19	Test Voltage	50-330V	50-330V
20	Other Inspection item	IPC-6012 / A-600H	IPC-6012 / A-600H

Production Delivery Time:

flow diagram:

Rigid-Flex Board-Process
