ZS7045-H3500 микроскоп мобильного ремонта электронный для ЖК-экрана Lcd
- Категория: Optical Instruments >>>
- Поставщик: Shenzhen,Silman,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 400.25 $* | 408.53 $* |
| Jul-18-2025 | 324.43 $* | 330.75 $* |
| Jun-18-2025 | 394.60 $* | 402.99 $* |
| May-18-2025 | 391.90 $* | 399.56 $* |
| Apr-18-2025 | 312.57 $* | 318.84 $* |
| Mar-18-2025 | 384.86 $* | 392.58 $* |
| Feb-18-2025 | 381.26 $* | 389.57 $* |
| Jan-18-2025 | 378.89 $* | 386.31 $* |
Характеристики
Product Description

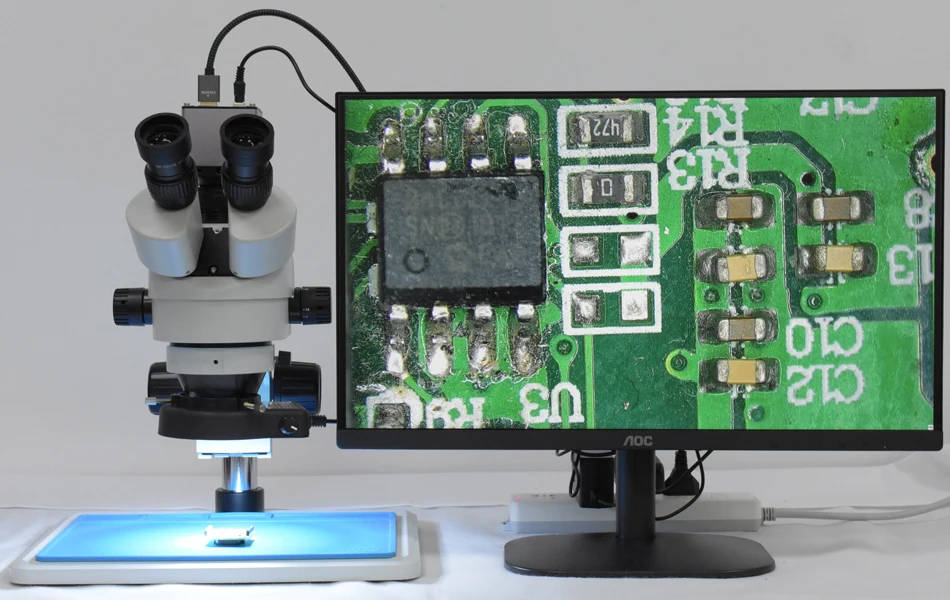

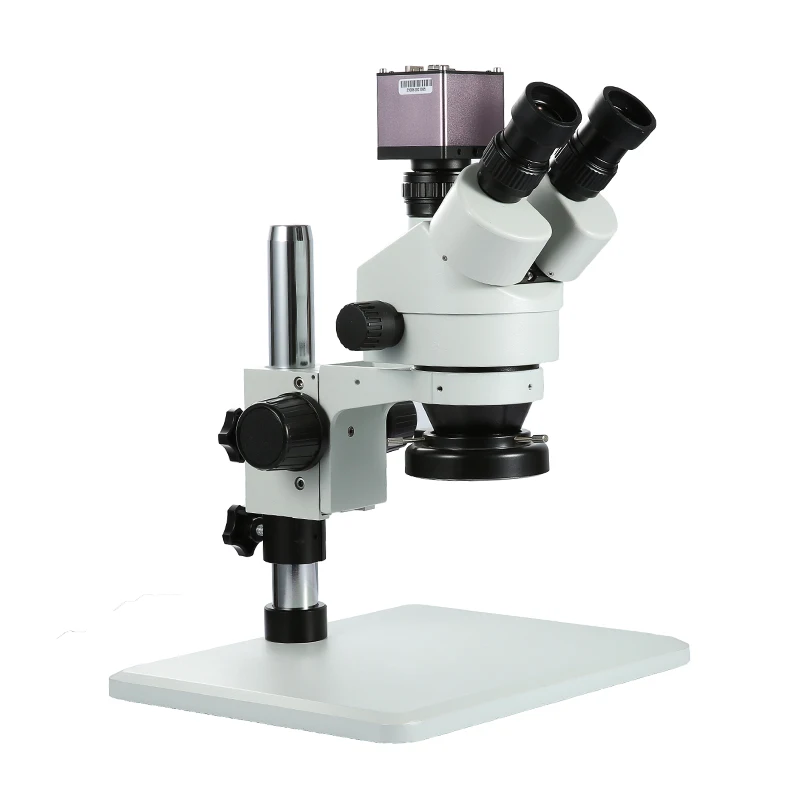

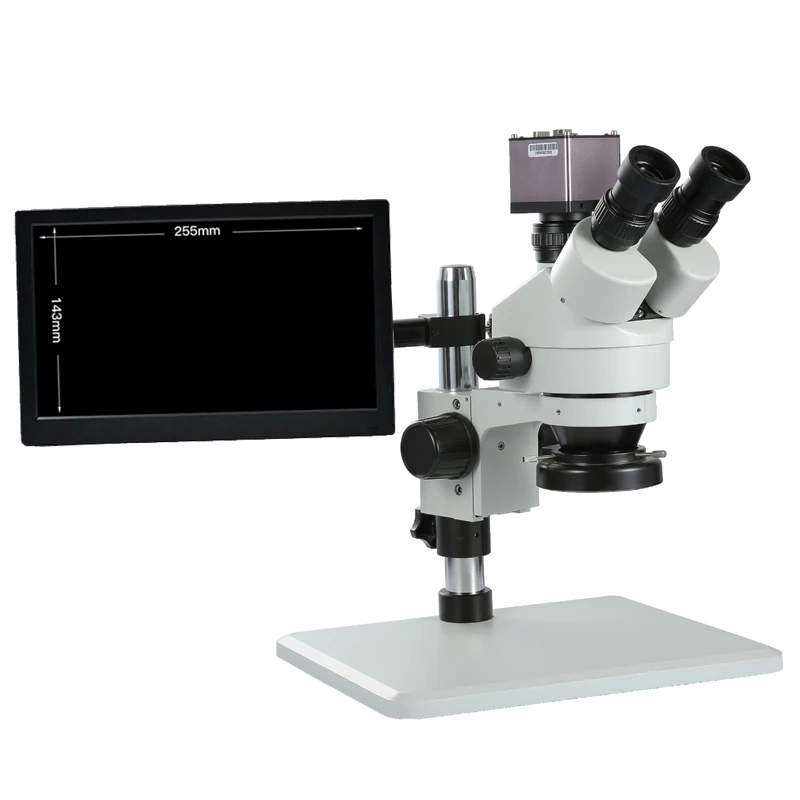

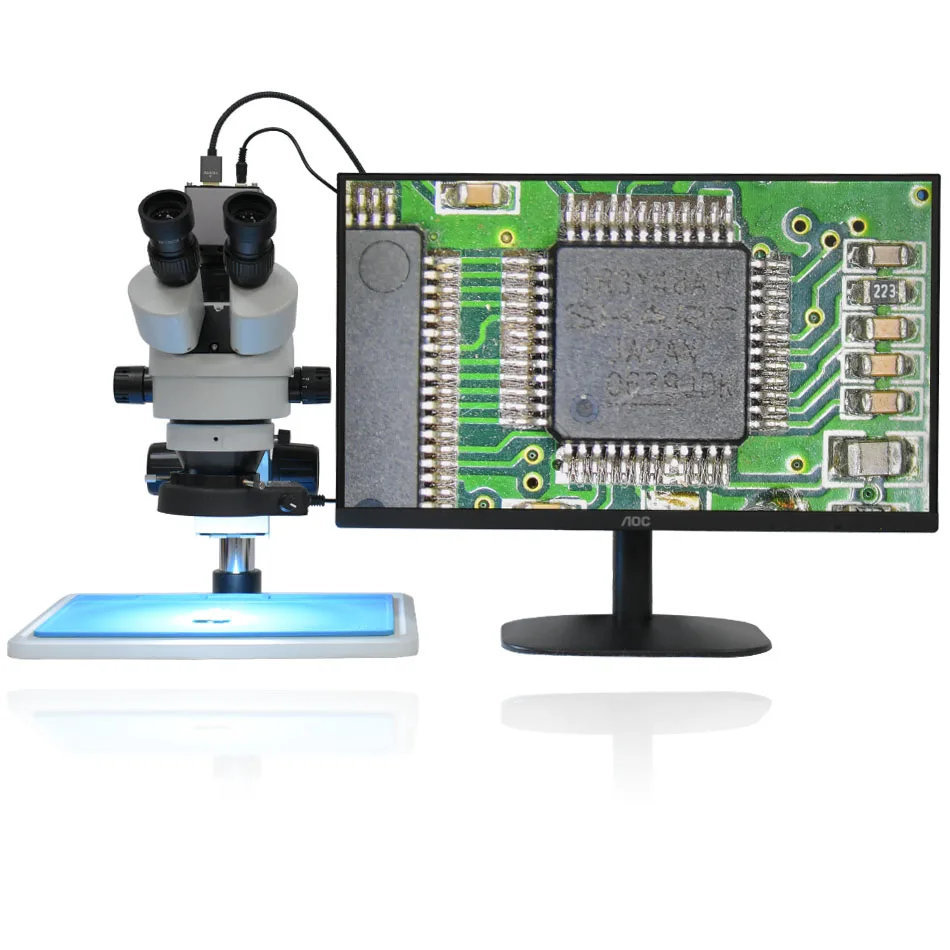

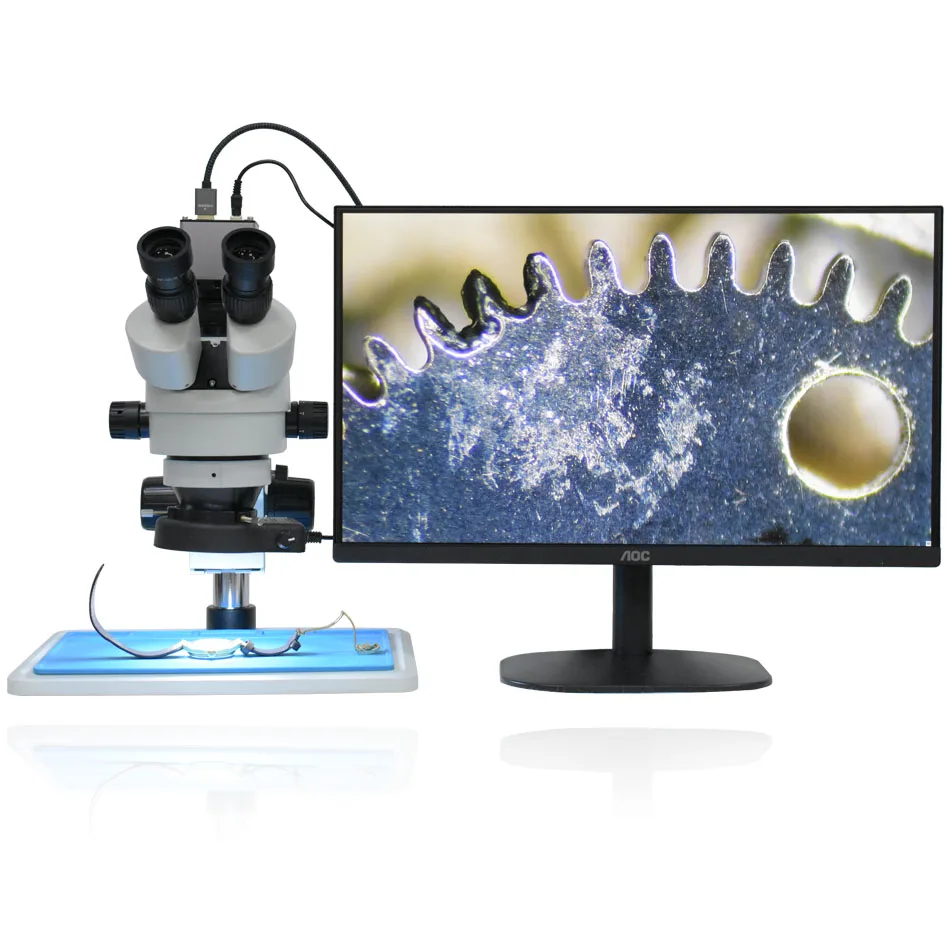

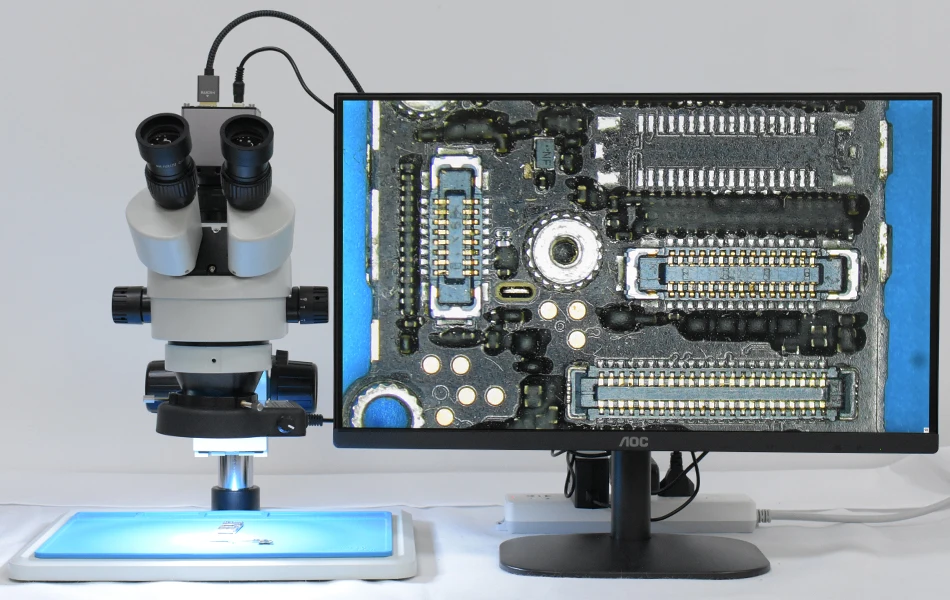

SZ7D-H3500 industrial camera Microscope Mobile Usb Repair Electronic
For Lcd Tv Phone
The packaging includes:
1 x Trinocular or binocular stereo zoom head
1 x pair of super wide-angle 10X20MM eyepieces
1 x 56-LED ring light
1 x microscope stand
1 x Goggles
1 x dust cover
1 x32mm limit ring
1 x pair of super wide-angle 10X20MM eyepieces
1 x 56-LED ring light
1 x microscope stand
1 x Goggles
1 x dust cover
1 x32mm limit ring
1 x blue anti-static rubber pad
1 x Microscope HDMI camera
1 x power supply (US/EU)
1 x 1.0X microscope auxiliary objective
1 x 0.5X microscope auxiliary objective lens (working distance
165 mm) (optionally purchased)
1 x 0.7X microscope auxiliary objective (working distance 130
1. mm) (optionally purchased)
1 x 2X microscope auxiliary objective (working distance
30mm) (optionally purchased)
1 x Microscope HDMI camera
1 x power supply (US/EU)
1 x 1.0X microscope auxiliary objective
1 x 0.5X microscope auxiliary objective lens (working distance
165 mm) (optionally purchased)
1 x 0.7X microscope auxiliary objective (working distance 130
1. mm) (optionally purchased)
1 x 2X microscope auxiliary objective (working distance
30mm) (optionally purchased)
Specification
Name | ZS7045-H3500 industrial camera | ||||||
Binocular head: | 45 ° tilt, 360 ° rotation | ||||||
Trinocular head: | Trinocular synchronized focus, 45 ° tilt, 360 ° rotation | ||||||
Eyepieces: | Fine-adjustable eyepiece WF10X/20MM | ||||||
Objective Zoom Range: | 0.7X-4.5X | ||||||
Magnification: | 7X-45X | ||||||
Zoom Ratio: | 1:6.4 | ||||||
Working Distance: | 100mm | ||||||
Field Size: | 28.6mm-4.4mm | ||||||
Interpupillary Distance: | 54mm-76mm | ||||||
Head Barrel Diameter: | 76mm | ||||||
Bracket Stop Ring Diameter: | 32mm | ||||||
Auxiliary objective lens: | 0.5X (165mm), 0.7X (135mm), 2X (30mm) | ||||||
Bracket size: | bottom plate 320*260*17mm, column height 280mm, column diameter 32mm, lens hole diameter 76mm | ||||||
Image specifications: | 1920x1080 * 24Bit | ||||||
Frame rate: | 60 frames / second @ 1920x1080 | ||||||
Optical size: | 1/3 " | ||||||
Color adjustment: | R, G, B are independently adjustable | ||||||
Crosshair function: | superimpose or cancel | ||||||
