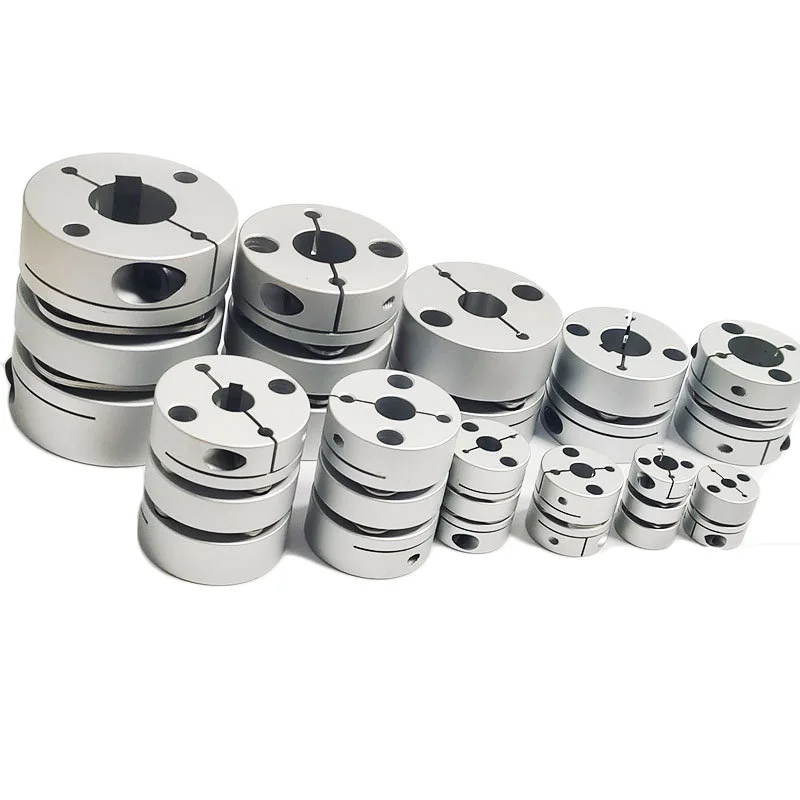

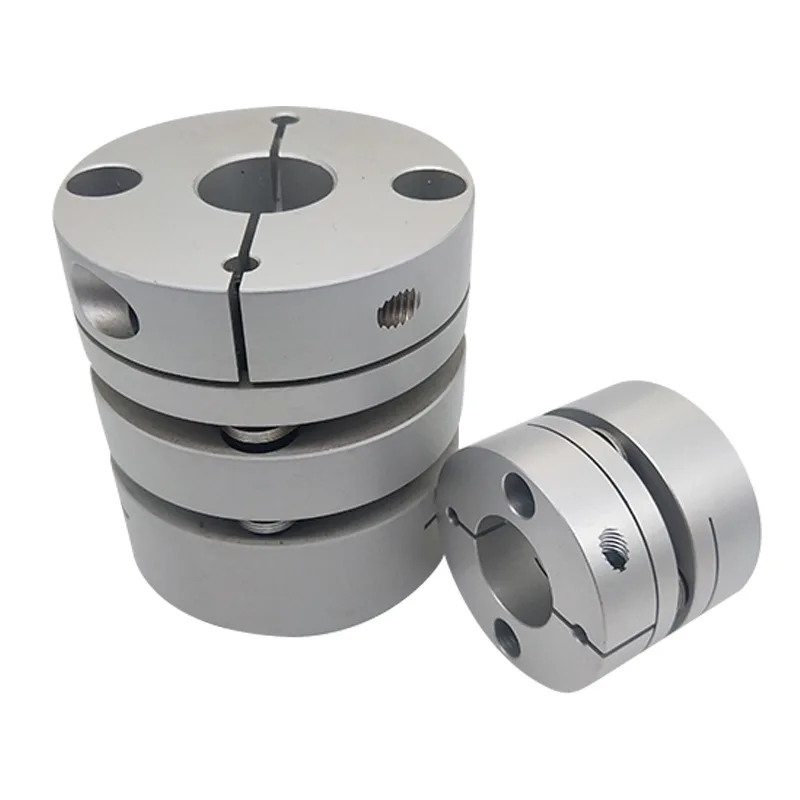

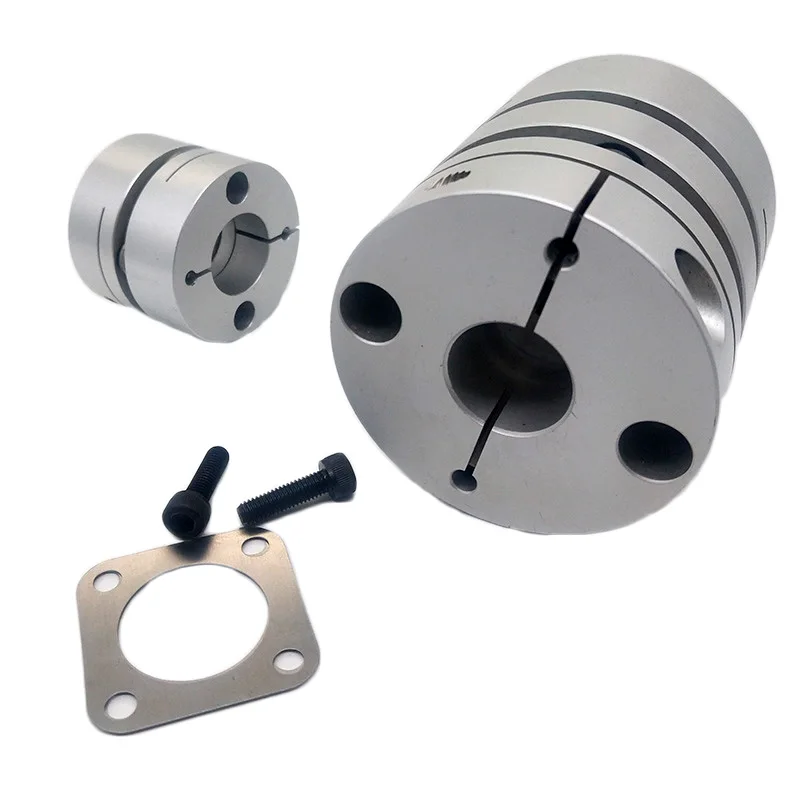

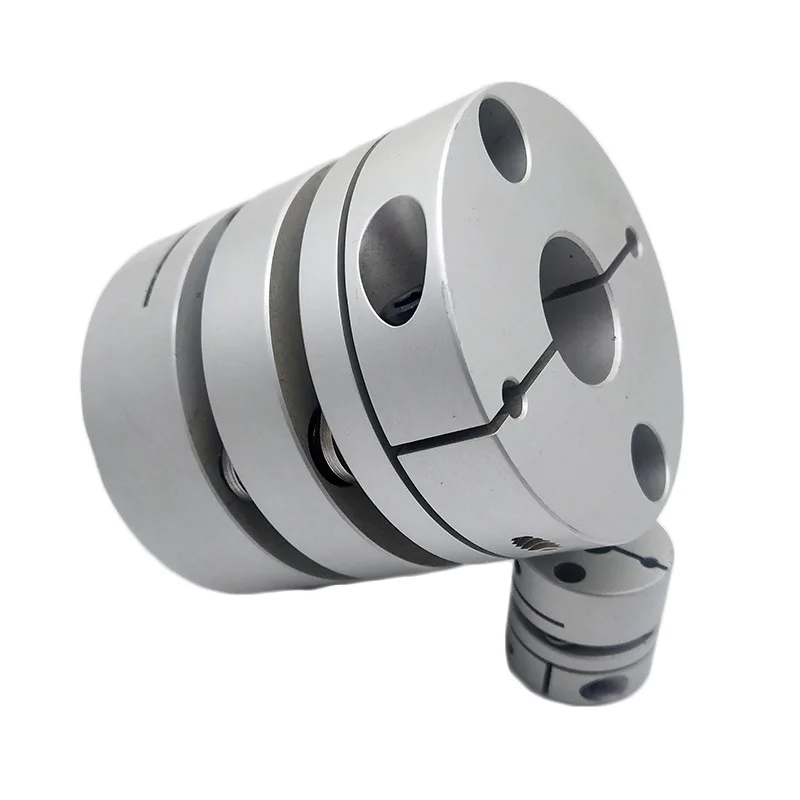

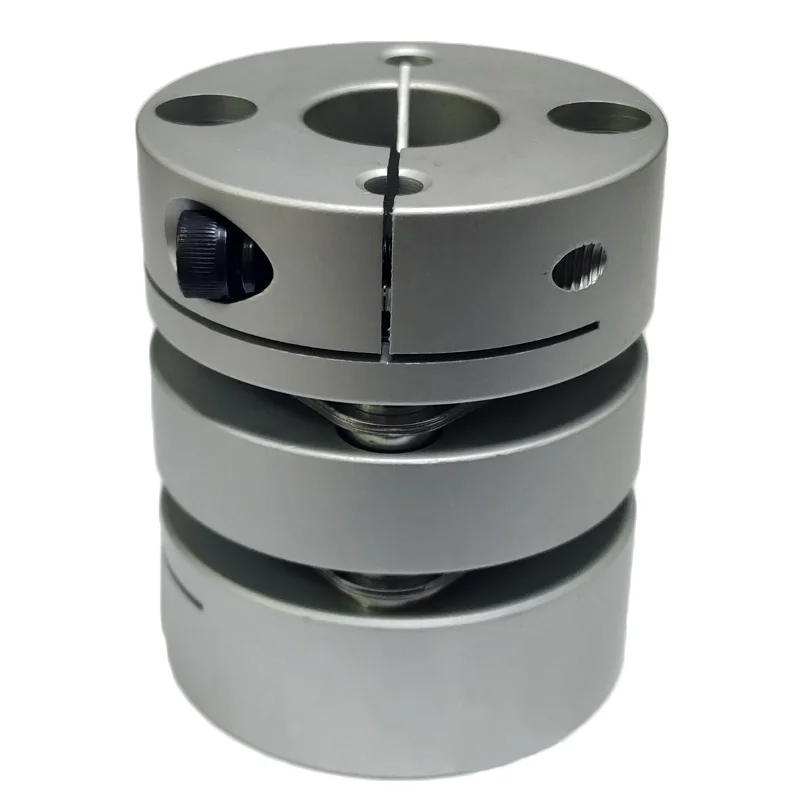

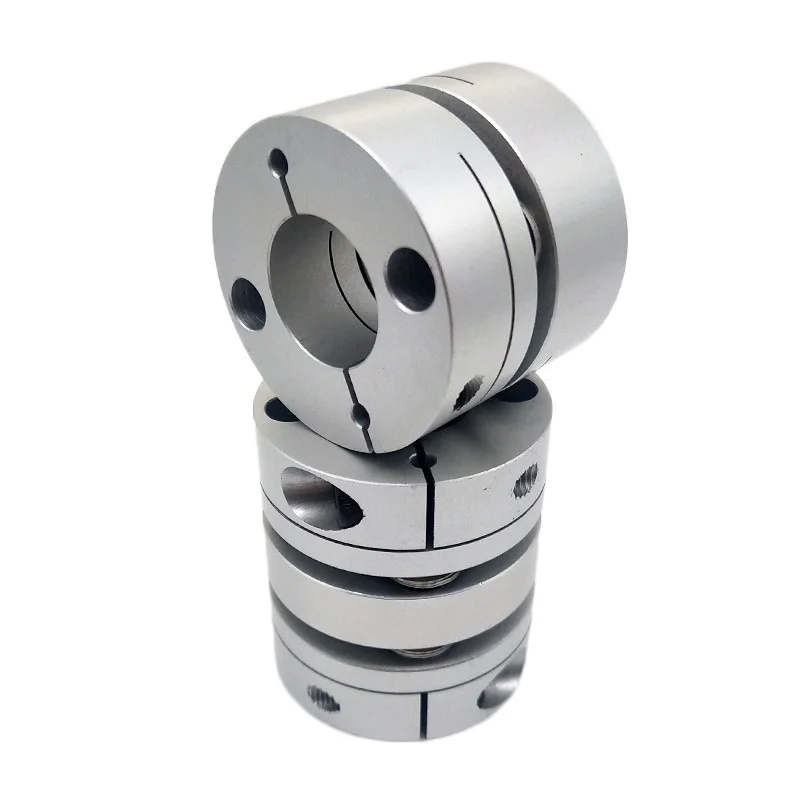

Высококачественная диафрагменная муфта HOKIN односекционный высококачественный материал из алюминиевого сплава для лазерной
- Категория: Shaft Couplings >>>
- Поставщик: Shenzhen,Fujian,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 2.21 $* | 2.33 $* |
| Aug-17-2025 | 2.94 $* | 2.59 $* |
| Jul-17-2025 | 2.9 $* | 2.51 $* |
| Jun-17-2025 | 2.3 $* | 2.93 $* |
| May-17-2025 | 2.46 $* | 2.84 $* |
| Apr-17-2025 | 2.3 $* | 2.79 $* |
| Mar-17-2025 | 2.88 $* | 2.59 $* |
| Feb-17-2025 | 2.25 $* | 2.88 $* |
| Jan-17-2025 | 2.95 $* | 2.56 $* |
Характеристики
High Quality HOKIN Diaphram Coupling Single Section High-grade Alumium Alloy Material For Laser Machine
Specification
Characteristics:
It adopts high-grade aluminum alloy materia.
Intermediate elastomer connection(polyurethanel).
Small size,light weight and big transmission torque.
It can absorb vibration and compensate radial and angular and axle deviations.
It is wear-resistant,anti-oil,anti-aging and electrically insulated.
Excellent internal buffering.
Convenient instillation.
Application field：
Small-scale processing center
Engraving and milling machine
Natural luster finishing machine
CNC lathe
Testing machine
PCB driller
Packaging and printing machine
Electronic automatic equipment
Products Description
Size(Nonstandard tailor-made parts can be contracted)
Type | Outer diameter | Axis diameter | Length | La | Ls | W | M | ||
Minimum | Maximum | ||||||||
U20 | 20 | 3 | 8 | 18.7 | 8.2 | 0 | 2.3 | M2.5 | |
U26 | 26 | 4 | 11 | 24 | 11.1 | 0 | 1.8 | M3 | |
U26 | 26 | 4 | 10 | 25.6 | 11.5 | 0 | 2.6 | M3 | |
U32 | 32 | 5 | 14 | 29 | 13 | 0 | 2 | M3 | |
U34 | 34.6 | 5 | 15 | 30 | 14.6 | 0 | 2 | M4 | |
U34 | 34.6 | 5 | 14 | 31.9 | 14.2 | 0 | 3.5 | M4 | |
U40 | 39 | 8 | 16 | 34.5 | 15.5 | 0 | 3.5 | M4 | |
U44 | 44 | 8 | 19 | 34.8 | 15.5 | 0 | 3.8 | M4 | |
U54 | 54 | 14 | 24 | 45 | 20 | 0 | 5 | M5 | |
U64 | 64 | 16 | 35 | 54 | 24 | 0 | 6 | M6 | |
U82 | 82 | 24 | 38 | 68 | 27 | 0 | 8 | M8 | |
U95 | 95 | 24 | 48 | 75 | 32 | 0 | 8 | M8 | |
Type | Axial direction(K2a) | Radial (Kr) | Agular (a) | Static (Nm/rad) | Radial (NM/rad) | Allowable ratational speed | Rated torque (Nm) | Maximumtorque (Nm) | Inertia (Kgm2) |
U20 | ±0.1 | 0.05 | 1.1 | 850 | 680 | 10000 | 1.2 | 2.4 | 0.58x10-6 |
U26 | ±0.15 | 0.075 | 1.1 | 960 | 700 | 10000 | 2.2 | 4.4 | 2.4x10-6 |
U32/34 | ±0.2 | 0.09 | 1.1 | 2000 | 3500 | 10000 | 5.5 | 11 | 8.2x10-6 |
U40 | ±0.25 | 0.11 | 1.1 | 4650 | 9000 | 10000 | 8.5 | 17 | 18.5x10-6 |
U44 | ±0.3 | 0.12 | 1.1 | 5200 | 10000 | 10000 | 10.5 | 21 | 29.5x10-6 |
U54 | ±0.4 | 0.13 | 1.1 | 1100 | 20000 | 10000 | 25 | 50 | 199x10-6 |
U64 | ±0.45 | 0.15 | 1.1 | 1950 | 38000 | 8000 | 60 | 120 | 268x10-6 |
U82 | ±0.5 | 0.17 | 1.1 | 2100 | 40000 | 8000 | 65 | 130 | 750x10-6 |
U95 | ±1.65 | 0.18 | 1.1 | 3200 | 60000 | 8000 | 125 | 250 | 1520x10-6 |
