Sinbosen 5 жильный силовой компонентов LAS4 + 8 аудио распределения электропитания контроллер дистрибутив
- Категория: Power Distribution Equipment >>>
- Поставщик: GUANGZHOU,XINBAOSHENG,AUDIO,EQUIPMENT,COMPANY,LIMITED
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.20 $* | 0.90 $* |
| Aug-16-2025 | 0.23 $* | 0.85 $* |
| Jul-16-2025 | 0.81 $* | 0.75 $* |
| Jun-16-2025 | 0.8 $* | 0.6 $* |
| May-16-2025 | 0.70 $* | 0.38 $* |
| Apr-16-2025 | 0.58 $* | 0.2 $* |
| Mar-16-2025 | 0.2 $* | 0.86 $* |
| Feb-16-2025 | 0.42 $* | 0.48 $* |
| Jan-16-2025 | 0.59 $* | 0.2 $* |
Характеристики
Product Description
Feature
(Single-phase 3-wire): AC90-260V 50-60HZ

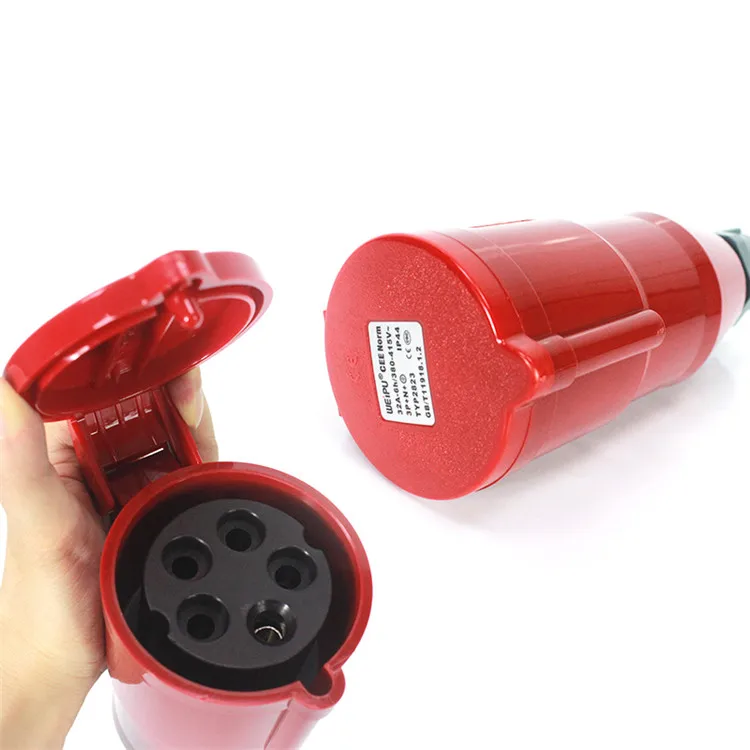

Two-phase: equipped with Weipu 32A European waterproof plug
2. Number of power output channels: 6 groups (3 sets of Weipu 16A universal socket output 3 sets of Weipu 16A European socket output)
3. Number of full-frequency signal inputs: 4 groups
Number of full-frequency signal outputs: 4 groups
4. Number of speaker load inputs: 16 groups
Number of outputs: 16 groups
5. Maximum output of single power / total power (reactive power): 5000W / 10000W maximum reactive power
6. Specifications of output power socket: flame retardant ABS material, can bear 16A current phosphor copper material, standard
universal socket (3) and European socket (3)
7. Protection function: Each channel is equipped with an independent air switch. In the event of a short circuit or overcurrent, the air switch automatically powers off to protect the audio equipment from damage.
8. Features: Manually control on / off of each channel. One switch control for 1-2 channels, one switch control for 3-4 channels, one switch control for 5-6 channels.
9. power supply specifications: applicable to global voltage AC90-260V 50-60HZ
10. Specification of main cable: external connection to Weipu European waterproof plug
11. Open type: air switch open and close

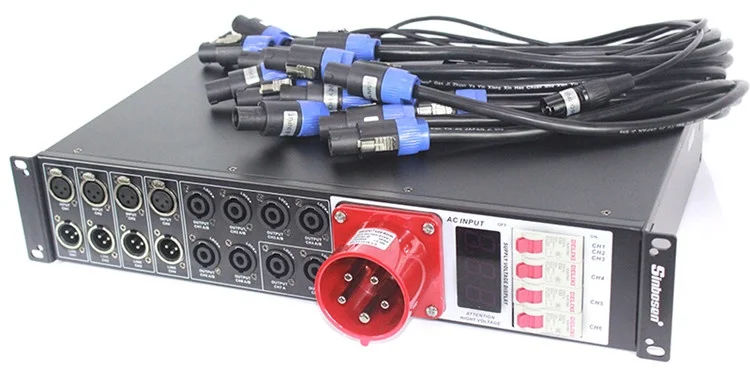

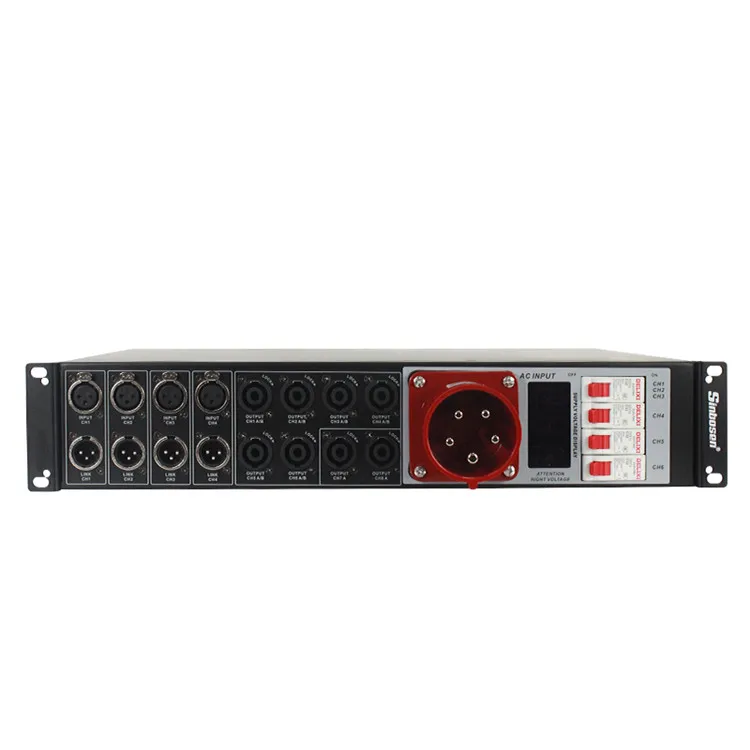

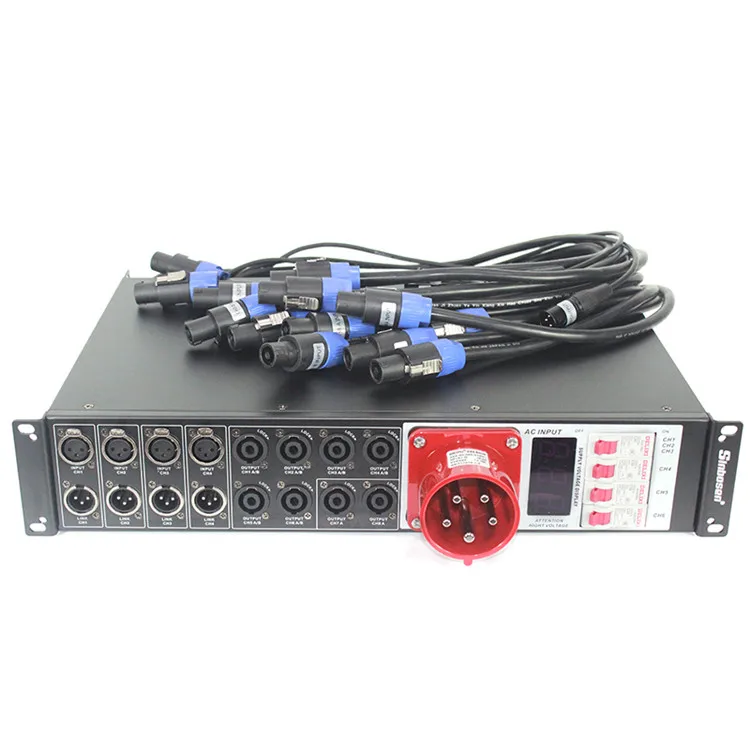

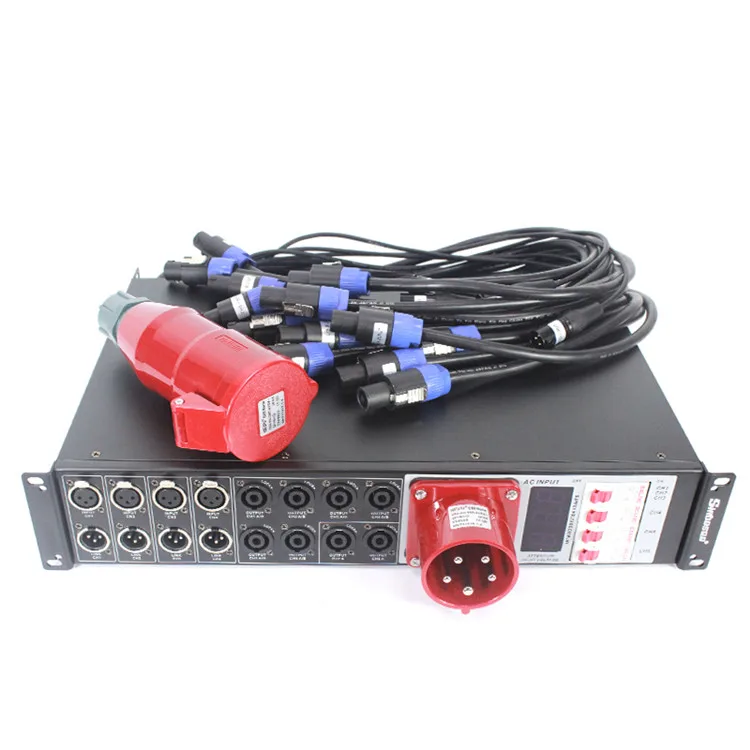

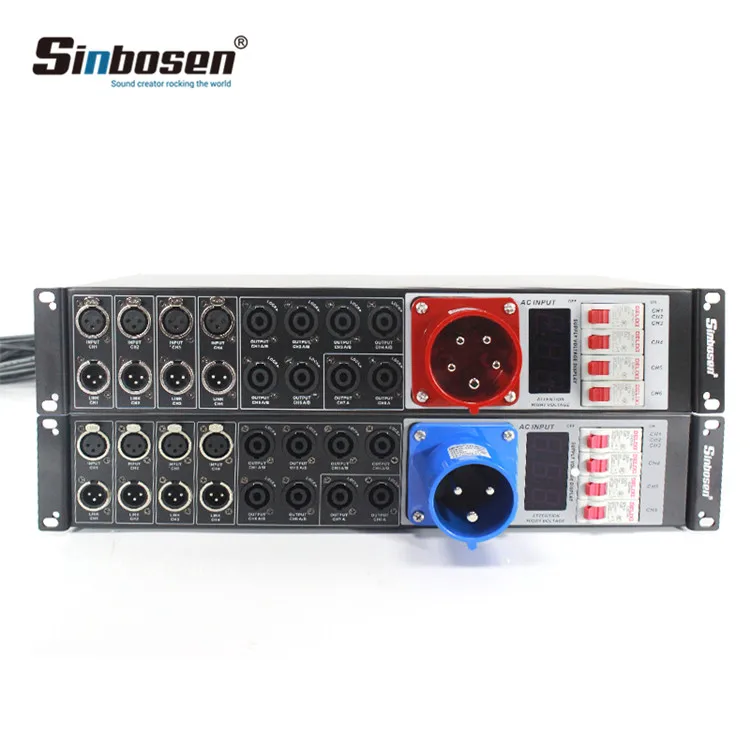

Front panel instruction
1.The input and parallel output of the signal are output to the amplifier through the rear-panel XLR plug
2. 8 channel amplifier signal output.
3. AC Power input.
4. AC power output switch.
5. The output voltage display.
2. 8 channel amplifier signal output.
3. AC Power input.
4. AC power output switch.
5. The output voltage display.
Rear panel instruction
7. AC Power output connector.
8. Channel SUB OUTPUT.
9. Channel amplifier signal input.
8. Channel SUB OUTPUT.
9. Channel amplifier signal input.
