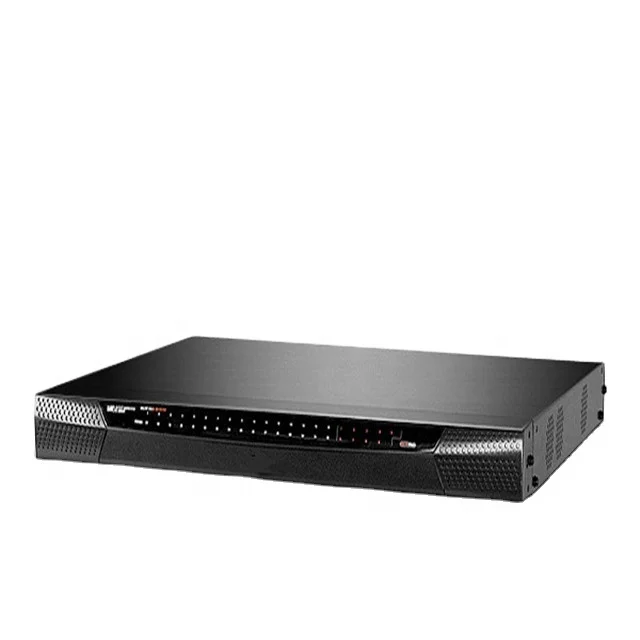

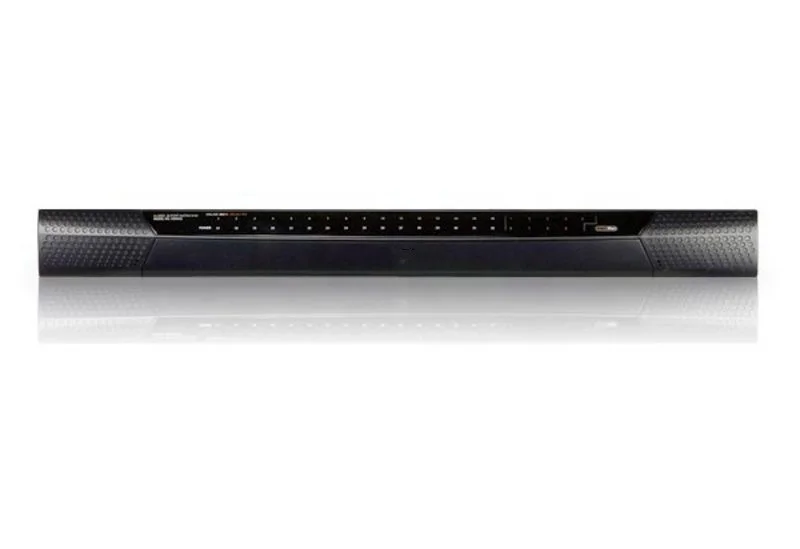

9-Console 32-Port Cat 5 Matrix KVM Switch with Daisy-Chain Port
Product Description
- Flexible expansion - the installation can grow as you need
- Console expansion support - allows up to 18 consoles to access the servers by connecting Dual Output KVM Adapter Cables
- Auto Signal Compensation (ASC) assures optimum video resolution for distances up to 300 m between computers and consoles – no DIP switch setting required
- RS-232 port login support permits an administrator to control the KVM port access for all consoles connected to switch – any console can be assigned to access any KVM port from a single interface point
CARATAR Matrix KVM Switches are designed for modern data centers that require reliable, high security access and control of multiple servers. With non-blocked access and flexible expansion support, Matrix KVM switches offer high quality video sessions for secure, real-time control of your entire data center devices.
With automatic skew compensation and Auto Signal Compensation (ASC) techniques, Matrix KVM switches provide greatly enhanced video quality via Cat 5e/6 cabling - 1280x1024 @60Hz for up to 300 meters. The industry’s first full screen Graphical User Interface offers a tree view list of installed devices - providing smooth navigation and convenient access and control - not only saving on training time and costs; but increasing user efficiency, as well.
Package Contents
- 1x KM0932 Matrix KVM Switch
- 2x Power Cords
- 1x Mounting Kit
- 1x Foot Pad Set (4 pcs.)
- 1x User Intructions
| Computer Connections | |
| Direct | 32 |
| Console Connections | 9 |
| Port Selection | GUI, Hotkey |

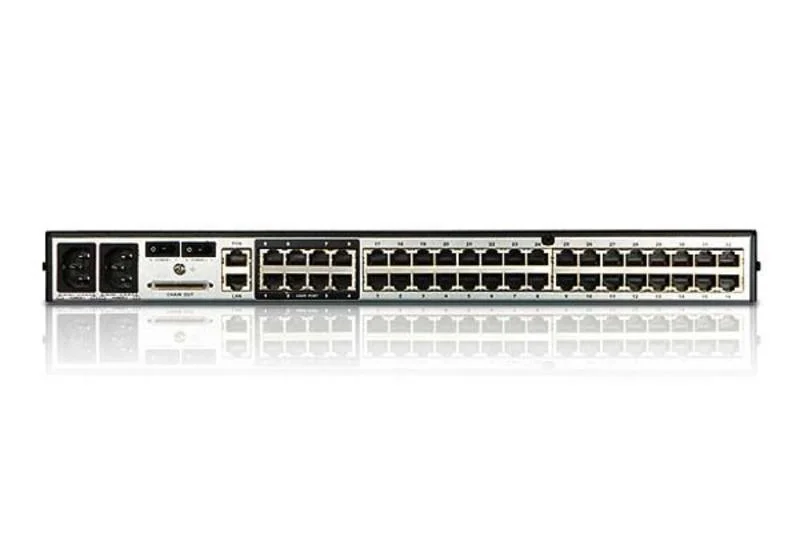

| Connectors | |
| Console Ports | 9 x RJ-45 Female |
| KVM Ports | 32 x RJ-45 Female |
| Daisy Chain Ports | 1 x VHDCI 68 Female (Black) |
| LAN Ports | 1 x RJ-45 Female |
| PON | 1 x RJ-45 Female |
| Power | 2 x IEC 60320/C14 |
| Switches | |
| Reset | 1 x Semi-recessed Pushbutton |
| Power | 2 x Rocker |
| Firmware Upgrade | 1 x Slide |
| LEDs | |
| KVM Port (On Line /Selected) | 32 Dual-colored (Green / Orange or Red) |
| Console | 9 (Green) |
| Power | 1 (Blue) |
| Maximum Input Power Rating | 100–240V~, 50/60 Hz; 1A |
| Power Consumption | AC110V:50.61W:237BTU AC220V:53.87W:253BTU |
| Emulation | |
| Keyboard / Mouse | PS/2; USB |
| Scan Interval | 1-240 Seconds |
| Video | To work with KA7230S or KA7240S, 1920x1200@60Hz (150 m), 1280x1024@60Hz (200 m); To work with KA7230 or KA7240, 1920x1200@60Hz (200 m); 1280x1024@60Hz (300 m) |
| Environmental | |
| Operating Temperature | 0 - 50°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 0-80% RH, Non-condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 6.08 kg ( 13.39 lb ) |
| Dimensions (L x W x H) | 43.84 x 41.09 x 4.40 cm (17.26 x 16.18 x 1.73 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
welcome back our sales for more quotation detail , ODM and OEM or customization according for you, that be great too.
