Aishengke 2085 смесительное оборудование пробка реактор потока с однослойной стеклянной
- Категория: Reactors >>>
- Поставщик: Aishengke,(Jiangsu),Chemical,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 3739.63 $* | 3926.76 $* |
| Aug-16-2025 | 3708.61 $* | 3893.57 $* |
| Jul-16-2025 | 3111.74 $* | 3267.14 $* |
| Jun-16-2025 | 3645.45 $* | 3827.86 $* |
| May-16-2025 | 3173.50 $* | 3332.72 $* |
| Apr-16-2025 | 3582.4 $* | 3761.47 $* |
| Mar-16-2025 | 3550.51 $* | 3728.97 $* |
| Feb-16-2025 | 3519.9 $* | 3695.98 $* |
| Jan-16-2025 | 3488.71 $* | 3662.67 $* |
Характеристики
Products Description
GR-1 Jacketed Pilot Plant Reactors
● All glass components are high borosilicate glass 3.3, with excellent physical and chemical properties.
● It can be used in the range of high temperature (200 ℃) to low temperature (- 80 ℃).
● It can work under the pressure of - 0.1 MPa ~ 0.0 MPa.

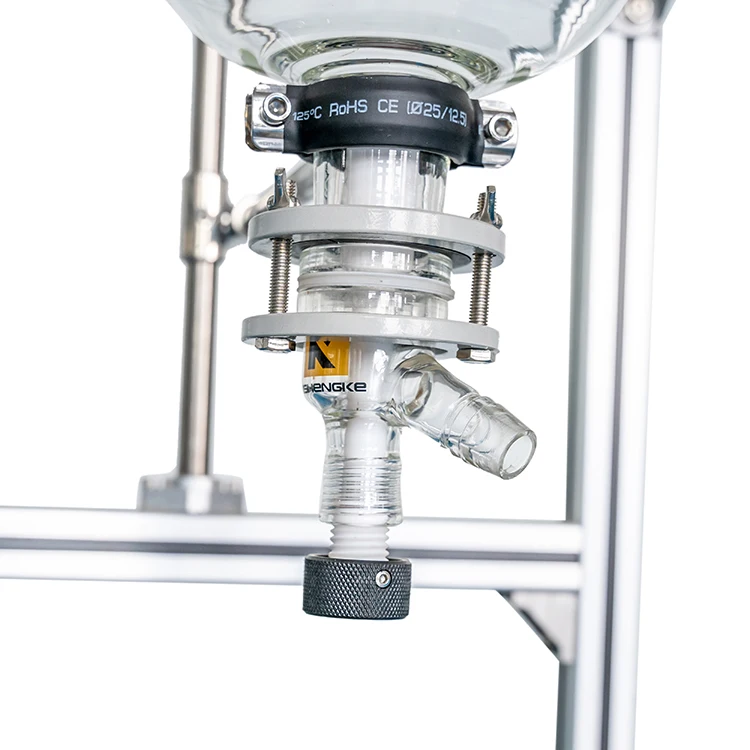

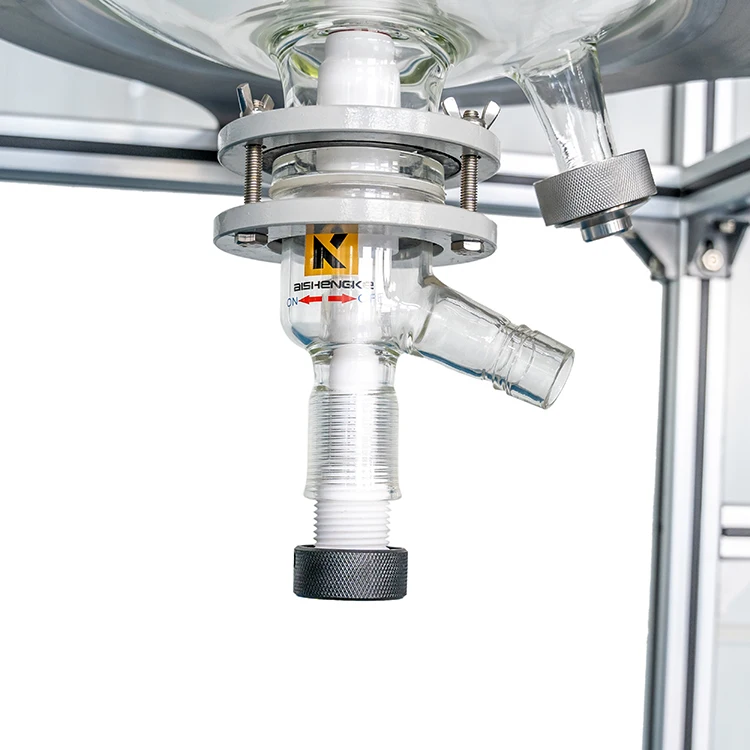

● Anti corrosion discharge valve designed for discharge at the side without effusion.
● The main frame is made of SUS304 with strong corrosion resistance.
● Equipped with SUS304 material tray to prevent environmental pollution.
● Imported mixer head, LED digital display of mixing speed, high control precision and stable operation.
● The imported mixing bearing can prevent the mixing rod from wearing and scraping, with good sealing effect and long service life.
● It adopts PT100 temperature sensor with high temperature control precision, made of SUS304 material, coated with PTFE tube, double anti-corrosion.
● Impeller type agitator, Teflon agitator blade; The mixing rod is made of SUS304, which is wrapped with polytetrafluoroethylene, with high strength and strong corrosion resistance.
● It can work under the pressure of - 0.1 MPa ~ 0.0 MPa.
● Anti corrosion discharge valve designed for discharge at the side without effusion.
● The main frame is made of SUS304 with strong corrosion resistance.
● Equipped with SUS304 material tray to prevent environmental pollution.
● Imported mixer head, LED digital display of mixing speed, high control precision and stable operation.
● The imported mixing bearing can prevent the mixing rod from wearing and scraping, with good sealing effect and long service life.
● It adopts PT100 temperature sensor with high temperature control precision, made of SUS304 material, coated with PTFE tube, double anti-corrosion.
● Impeller type agitator, Teflon agitator blade; The mixing rod is made of SUS304, which is wrapped with polytetrafluoroethylene, with high strength and strong corrosion resistance.
Product Parameters
Effective volume in kettle (ml) | 500 | ||
Jacket volume of kettle body (L) | About 0.3 | ||
Condensing area of condenser（㎡） | About 0.025 | ||
Constant pressure funnel volume（ml） | 200 | ||
Mixing insertion hole | 24# Standard grinding | ||
Temperature sensor insertion hole | 24# Standard grinding | ||
Condenser connection | 24# Standard grinding | ||
Liquid feeding port | 19# Standard grinding | ||
Constant pressure funnel interface | 24# Standard grinding | ||
Glass components | High borosilicate glass 3.3 | ||
working temperature (℃) | -80～200 | ||
Temperature difference limit inside and outside the kettle（℃） | ≤80 | ||
Pressure in kettle（MPa） | -0.1～0.0 | ||
Jacket pressure（MPa） | ≤+0.03 | ||
Pressure rise rate of vacuum system | ≤2kPa/h | ||
Stirring power (W) | 70 | ||
Speed regulation mode | Stepless speed regulation | ||
Stirring speed (rpm) | 50～500 | ||
Maximum torqueN ·cm | 70 | ||
Type of temperature sensor | Pt100 | ||
Temperature display accuracy（℃） | ±0.1 | ||
Specification of inlet and outlet circulation interface | Rc 1/2 or Rc 3/4 | ||
Seal material | teflon | ||
Installation height of discharge valve（mm） | 100-210(Adjustable) | ||
Agitator | Paddle agitator | ||
Power Supply | 110V～，60HZ or 220-240V～,50/60HZ | ||
Operating ambient temperature (℃) | 5～35 | ||
Environmental relative humidity (%) | ≤ 70 | ||
machine overall size (mm) | About 480W×420D×1100H | ||
