Китайский завод OEM дешевая ручная система для лазерной сварки Lightweld


Поделиться:


Цена:9 408,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-20-2025 11196.85 $* 11756.76 $*
Aug-20-2025 11101.69 $* 11656.62 $*
Jul-20-2025 9314.16 $* 9780.11 $*
Jun-20-2025 10913.21 $* 11459.57 $*
May-20-2025 9502.99 $* 9977.30 $*
Apr-20-2025 10725.63 $* 11261.24 $*
Mar-20-2025 10631.15 $* 11163.11 $*
Feb-20-2025 10537.11 $* 11064.27 $*
Jan-20-2025 10443.69 $* 10965.95 $*

Характеристики



ABOUT DOWELL







DOWELL WOLEI Laser is a Chinese manufacturer specializing in the R&D, production, sales and service of laser cutting machines, laser tube cutting machines, fiber laser cleaning machines and laser welding machines. The company was established in April 2010, with more than 200 square meters of R&D and office space, and more than 10,000 square meters of laser equipment production plant. All machines, certified by EU CE, US certificate, etc.

Now, our company has 2 international brands, DOWELL ,WOLEI, our products support support OEM, ODM, our laser equipment sold to the United States, Canada, Australia, Europe, Southeast Asia, Russia, Poland and other more than 60 countries and regions, for more than 30 manufacturers to provide OEM services.



Why Choose Us


10,000 square meters production plant
12 years focus on laser equipment manufacturing
Customized equipment available


Full range of models and specifications
Professional technical team
Free samples, free plant visit


Products Description

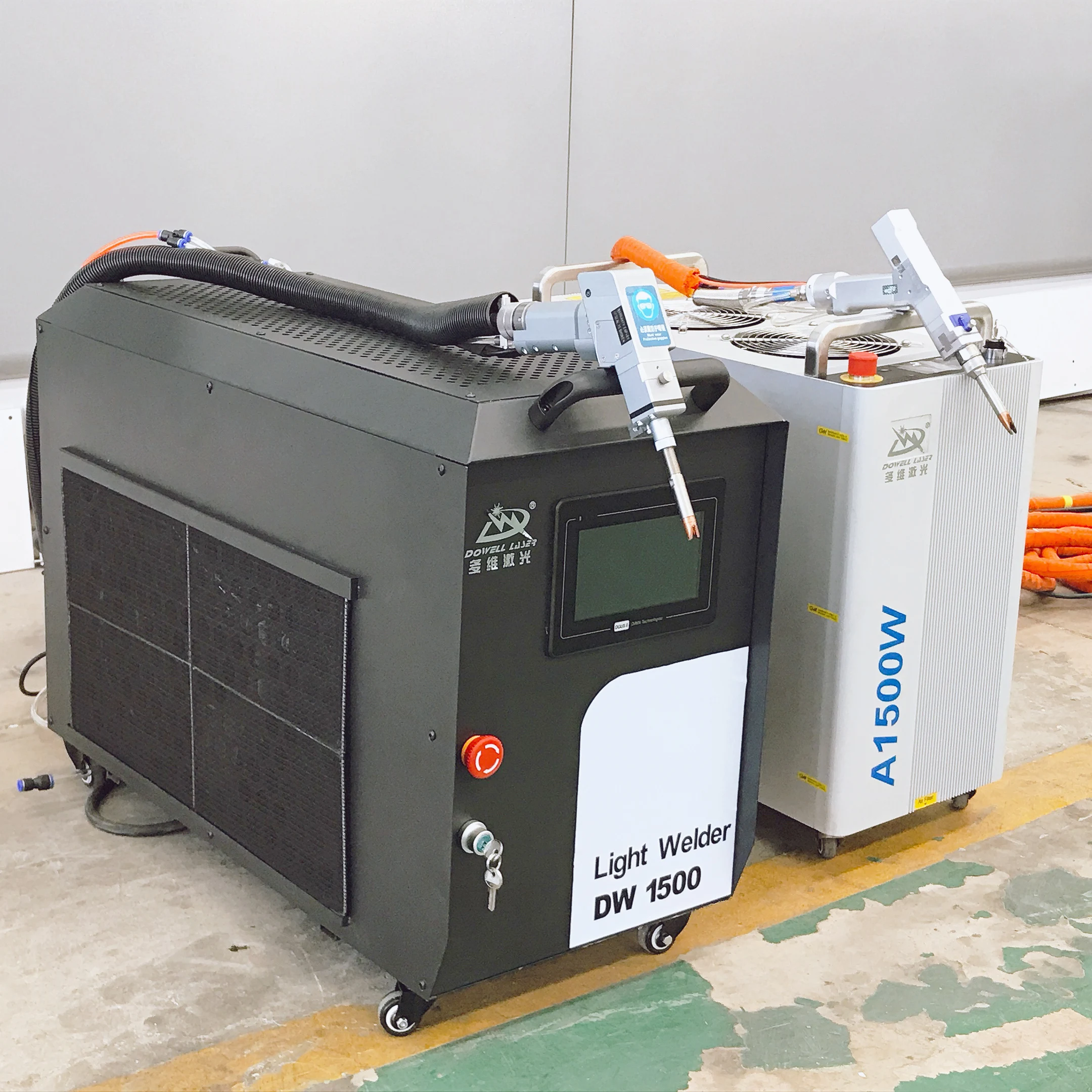

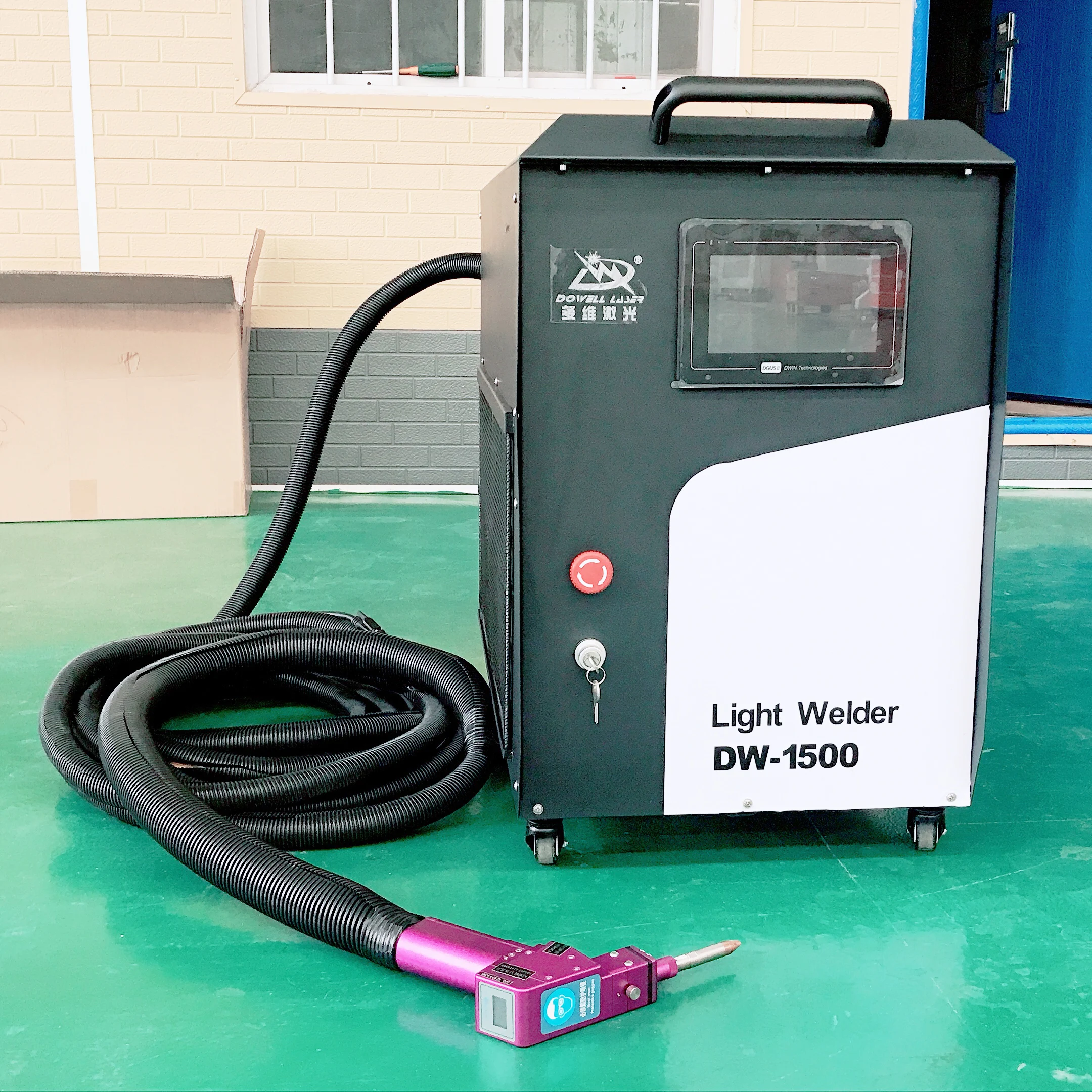

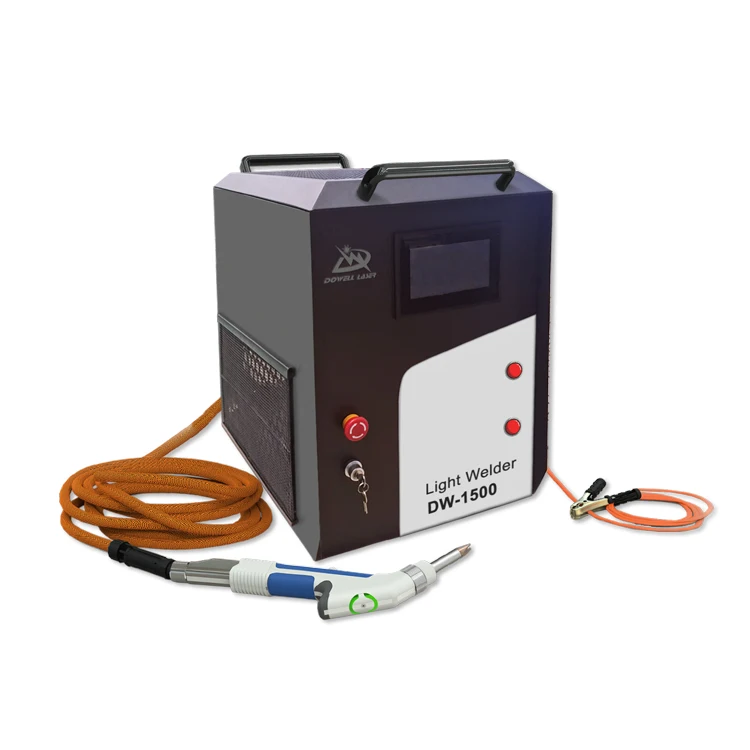

What is a lightweld 1500w laser welding machine:
DOWELL lightweight portable handheld laser welding machine is simple to operate, easy to carry, greatly accelerates the welding speed, easy to learn and operate, and provides higher quality consistent results in a wider range of materials and thicknesses without deformation or undercut Or burn through.


Advantages of lightweld 1500w laser welding machine:
1. Compared with MIG or TIG, LightWeld can greatly accelerate the welding speed compared with MIG or TIG, and it is easy to learn and operate;

2. A wider range of materials and thicknesses provide consistent results with higher quality without deformation, undercut or burn through.

3. Reduce the heat of the affected area, traditional post-processing grinding or polishing, improve productivity, reduce waste and reduce cost per piece


Product Paramenters


Model
DW-1500
DW-1500Laser power
1500W
Center wavelength
1070+-5nm
Laser frequency
50Hz-5KHz
Work patterns
Continuous
Electricity demand
AC220V
Output fiber length
5/10/15m (Optional)
Cooling method
Water Cooling
Dimensions
1150*760*1370mm
Weight
275kg(About)
Cooling water temperature
5-45℃
Average consumed power
2500/2800/3500/4000W
Laser Energy Stability
<2%
Air humidity
10-90%
The above data is for reference only, the actual product shall prevail


Details Images

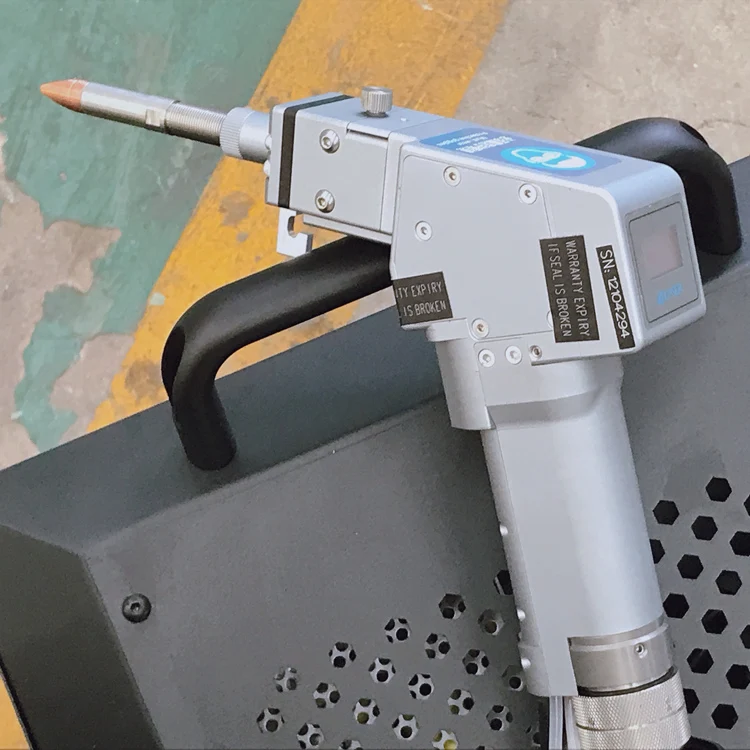

QILIN double hundred welding torch head
With strong penetrating power, it can be used for penetration welding, stitch welding, or thicker materials.
The direction width can be adjusted, and it has a certain penetration force to the thick plate. It is used for the tailor welding of fillet resistance welding.
Optional: QILIN/WSX/HW

Laser
The beam quality is good, with very good monochromaticity, directionality and stability; small size, simple structure, small and flexible design, easy to use
Optional: GW/Recipe/Raycus


Cold water system
The imported compressor, water tank and pump are made of stainless steel, and the heat transfer coil is made of stainless steel to ensure the working stability of the chiller and good cooling effect
Automatic wire feeder
The system adopts microcomputer control, step reduction motor drive, high wire feeding precision and good repeatability

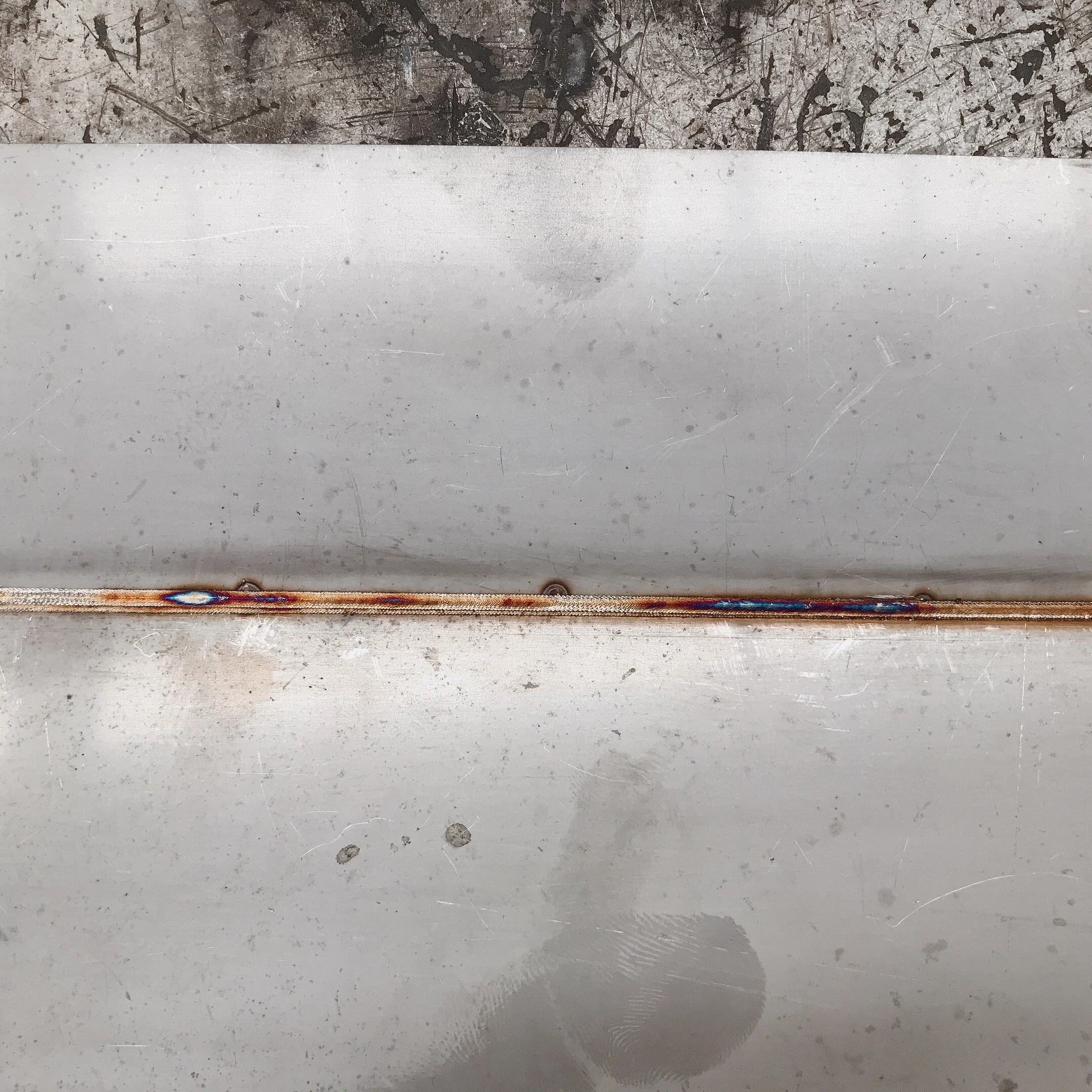

Lightweld 1500w laser welding machine product effect:

Lightweld 1500w laser welding machine is suitable for welding gold, silver, titanium, nickel, tin, copper, aluminum and other metals and their alloy materials. It can achieve the same precision welding of metals and dissimilar metals. It has been widely used in aerospace equipment, shipbuilding, and instruments Instrumentation, electromechanical products, automobile and other industries.






Lightweld 1500w laser welding machine product effect:


Certifications

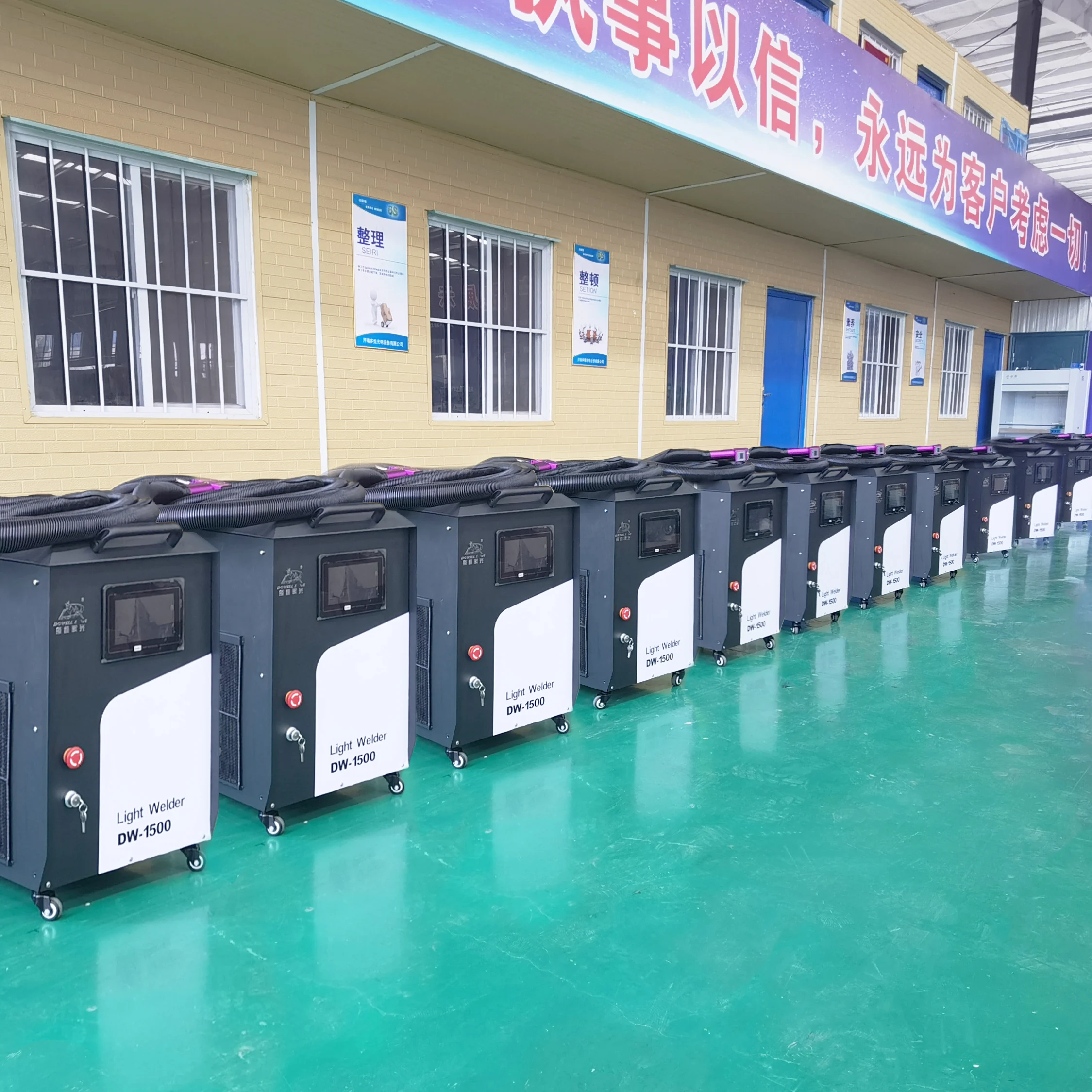

Company Profile








FAQ


Q: What materials can be welded by your laser welding machine?
A: Please provide the material you want to weld
Welding thickness

Q: How to choose the most suitable laser welding machine?
Answer: In order to recommend the most suitable machine model to you, please tell us the following information.
1. What material is your welding plate made of
2. What is the thickness of the plate you want to weld?

Q: How can I quickly obtain information and quotations for this product?
Answer: Please leave your email, WhatsApp or WeChat, and we will arrange for the sales manager to contact you as soon as possible.

Q: What operations can the laser welding machine perform on the plate?
Answer: Welding, cutting, etc. on the plate, tailor welding, stitch welding, internal fillet welding, external fillet welding, etc. are all possible

Q: What materials can the fiber welding machine cut?
Answer: All kinds of metal plates, such as stainless steel, carbon steel, low carbon steel, chemical steel, aluminum, copper, etc.

Q: Do you provide after-sales service?
A: The whole machine is guaranteed for 1 year, and door-to-door service is provided.

Q: What payment methods are supported?
A: Alibaba Trade Guarantee/TT/Western Union/Payple/LC/Cash/DA/DP.

Q: Do you support customization?
A: Yes, we will customize the service for you according to different cutting materials and thickness.

Q: I don't know how to use it after receiving it, or I have encountered a problem in the process of using it. what do I do?
A: We have detailed user manuals and video materials for you to learn. In addition, we provide door-to-door service.
