8-80 В 50 А 100 350 водонепроницаемый кулометр TK15 прецизионный индикатор емкости аккумулятора
- Категория: Battery Testers >>>
- Поставщик: Shenzhen,Thriver,Digital,Tech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.70 $* | 0.23 $* |
| Aug-19-2025 | 0.51 $* | 0.73 $* |
| Jul-19-2025 | 0.62 $* | 0.88 $* |
| Jun-19-2025 | 0.69 $* | 0.72 $* |
| May-19-2025 | 0.35 $* | 0.37 $* |
| Apr-19-2025 | 0.25 $* | 0.94 $* |
| Mar-19-2025 | 0.96 $* | 0.72 $* |
| Feb-19-2025 | 0.83 $* | 0.20 $* |
| Jan-19-2025 | 0.13 $* | 0.86 $* |
Характеристики

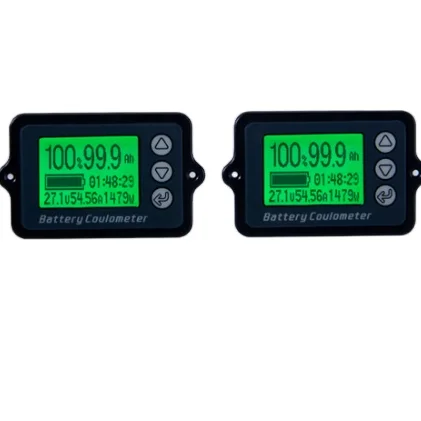

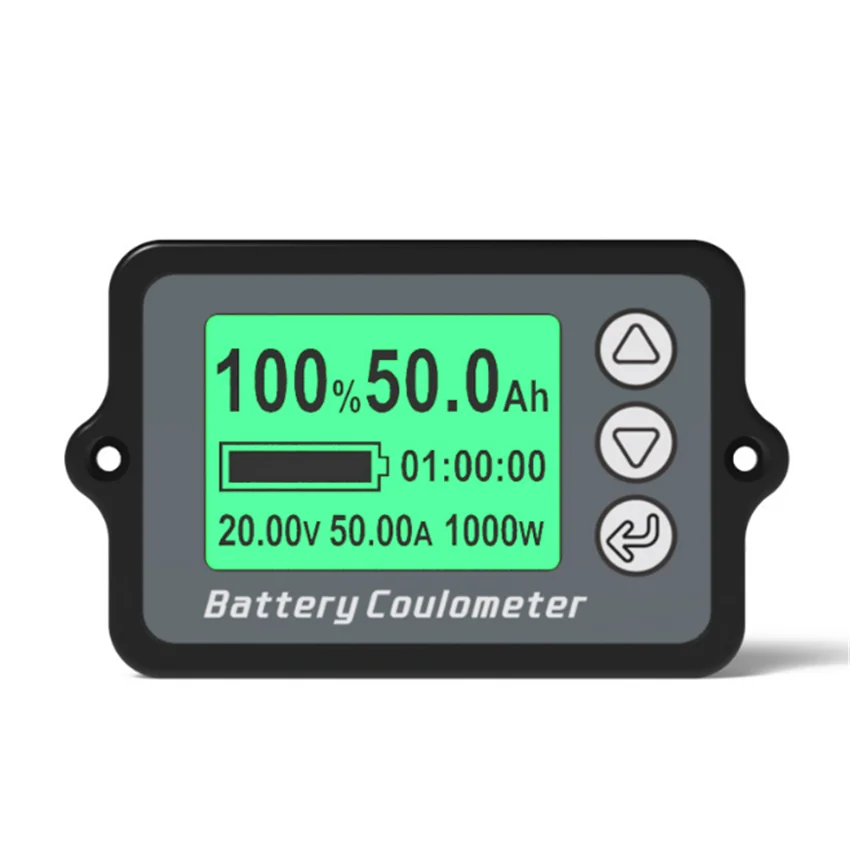

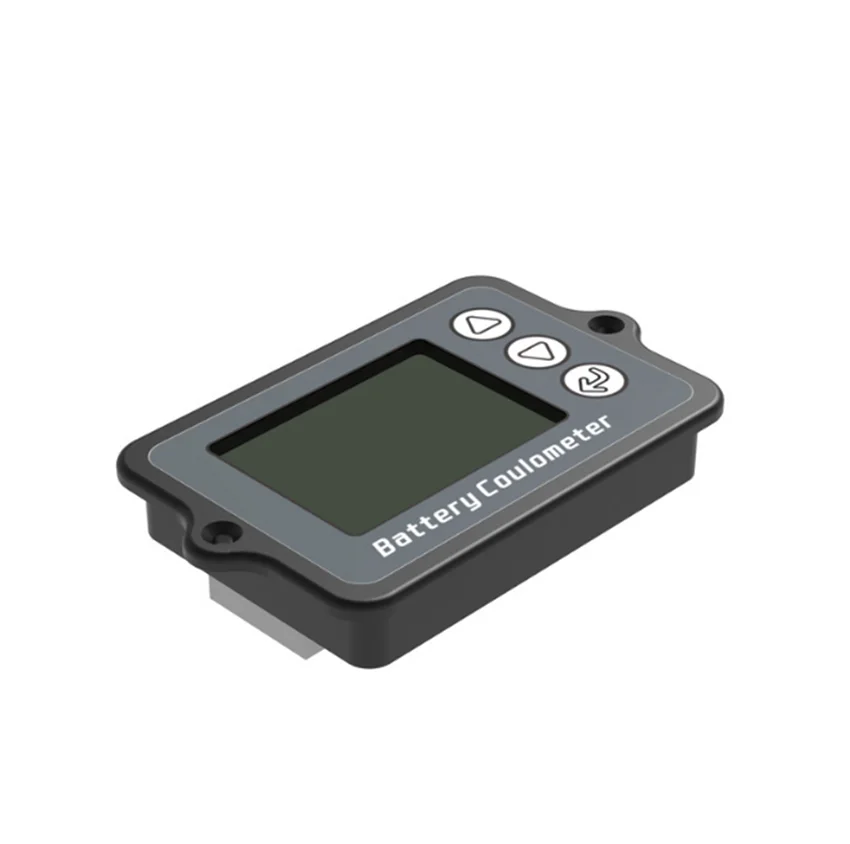

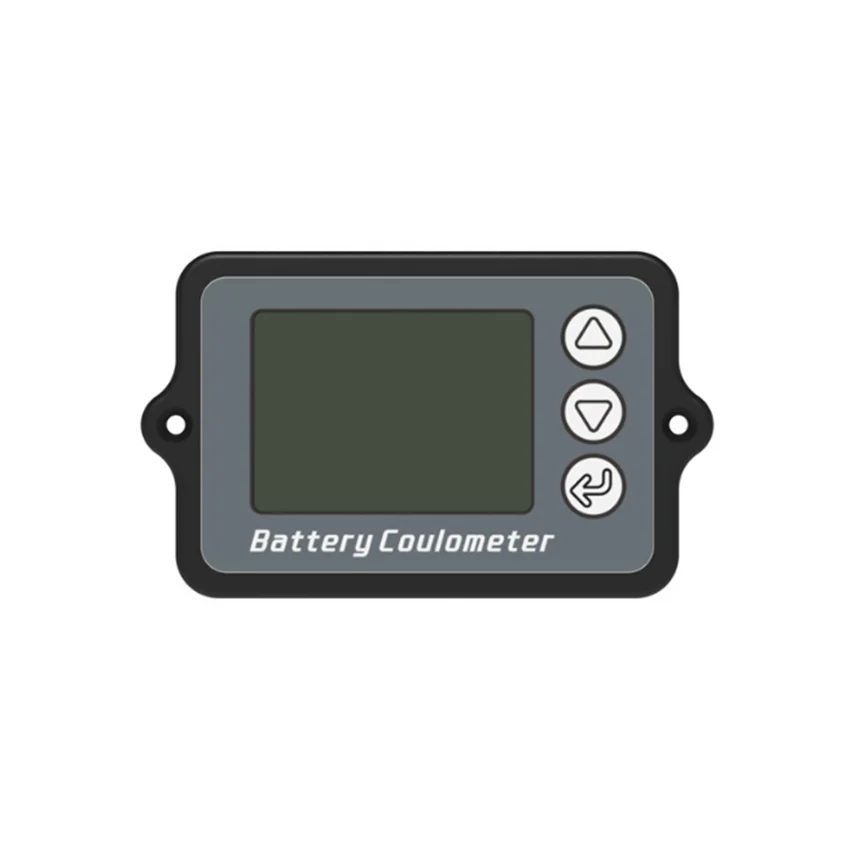

Waterproof TK15 battery coulometer precision battery capacity voltage indicator 8-80V 50A 100A 350A current

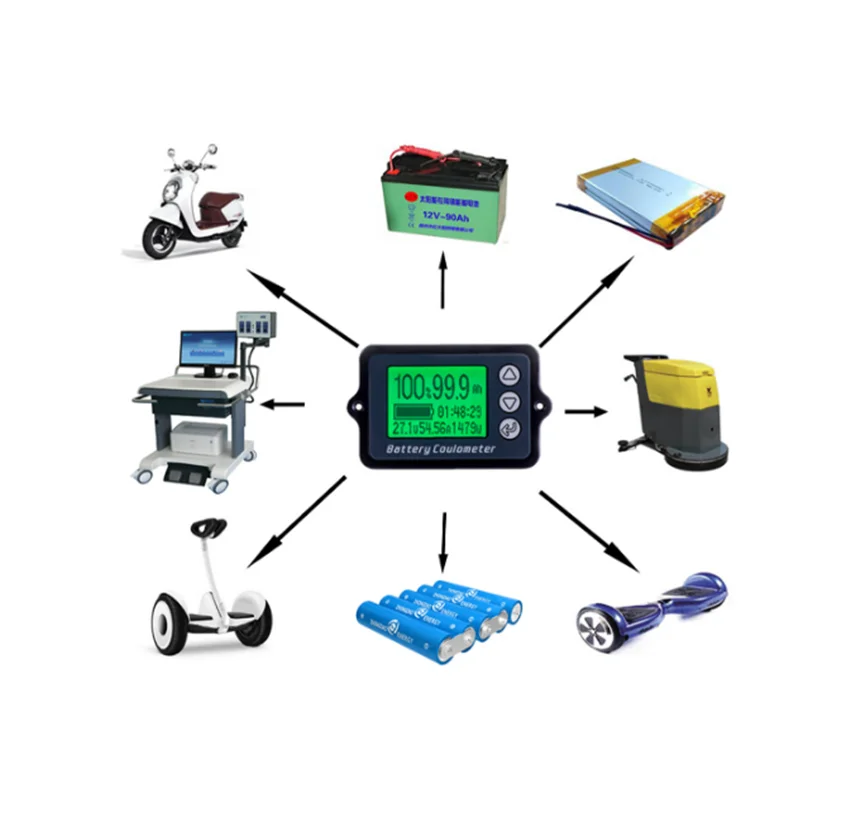

TK15 is a kind of high precision current type battery capacity tester(also known as coulometer),which can test the voltage,current and capacity of battery to help users know the state of battery in time. TK15 has memory function. It is suitable for mobile and portable equipment,e-bike,balance car,cleaning machine,instrument,ups and so on.
Application:
TK15 is suitable for lithium battery,lithium iron phosphate battery,lead-acid battery and nickel-metal hydride battery which
working voltage is from 8V to 100V.
TK15 is suitable for lithium battery,lithium iron phosphate battery,lead-acid battery and nickel-metal hydride battery which
working voltage is from 8V to 100V.
We need a shielding wire and a ordinary wire (0.3-0.75 mm²).One end of the ordinary wire connects to positive of battery, another end connects to B+ of sampler (any one is ok). The B- of sampler connects to B- of battery. P- of sampler connect to P- of output.
Finally connect sampler to Coulometer by the shielded wire.(Notice: The diagram is not equal proportion)
Attention: Please connect as shown strictly. The sampler must be connected to the negative circuit, it is forbidden to connect to the positive circuit. If you want to extend the shielded wire, you must use 4 lines of same specification.
Note:The default length of shielding cable is 0.5M,(1m, 2m, 3m, 4m, 5m, 8m, 10m can select,Please contact us in advance). The price is according to the length.
Finally connect sampler to Coulometer by the shielded wire.(Notice: The diagram is not equal proportion)
Attention: Please connect as shown strictly. The sampler must be connected to the negative circuit, it is forbidden to connect to the positive circuit. If you want to extend the shielded wire, you must use 4 lines of same specification.
Note:The default length of shielding cable is 0.5M,(1m, 2m, 3m, 4m, 5m, 8m, 10m can select,Please contact us in advance). The price is according to the length.
We have 50A 100A 350A current for option, different current The price is different !
