Concrete Batching Plant
25m3 до 180m3 бетонный завод с водяными насосами и pld дозировочная машина

25m3 до 180m3 бетонный завод с водяными насосами и pld дозировочная машина

Категория: Concrete Batching Plant >>>
Поставщик: Zhengzhou,Zhenzhong,Machinery,Co.,Ltd.

Цена:15 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	17850.26 $*	18743.75 $*
Aug-15-2025	17700.7 $*	18585.35 $*
Jul-15-2025	14850.47 $*	15593.18 $*
Jun-15-2025	17400.19 $*	18270.20 $*
May-15-2025	15150.6 $*	15908.13 $*
Apr-15-2025	17100.85 $*	17955.37 $*
Mar-15-2025	16950.47 $*	17798.82 $*
Feb-15-2025	16800.56 $*	17640.26 $*
Jan-15-2025	16650.38 $*	17483.47 $*

Характеристики

Product Overview

25m3 to 180m3 concrete batching plant with water pumps and pld batching machine

The concrete mixing plant is mainly composed of 5 major systems including mixing host,material weighing system, material conveying system, material storage system and control system and other auxiliary facilities.The concrete mixing station is mainly divided into four parts: sand and gravel feeding, powder feeding, water and admixture feeding, transmission and mixing and storage. The material weighing system is vertical feeding and measurement, which saves measurement time and greatly improves Productivity.

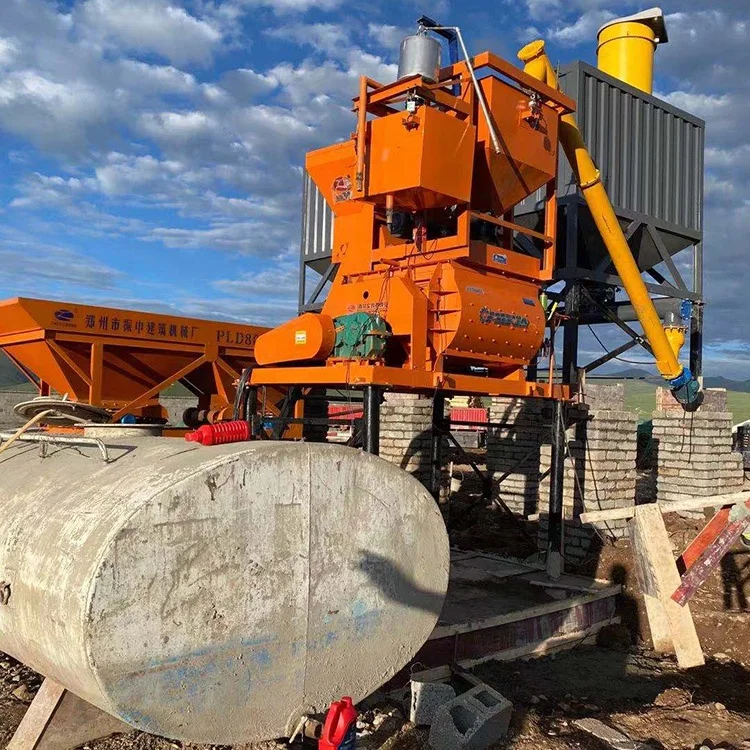

Detailed Images

Concrete mixer

The mixer is equipped with multiple shaft end sealing protection devices and wind pressure sealing protection devices, which can effectively prevent the occurrence of slurry phenomenon, heavy design, and stable operation.And have high single-time mixing capacity.

Title goes here.

Batching machine for concrete machinery transport stones, sand, stone and other raw materials, the raw material through the belt,said transported to the host, and cement to form concrete mixing. Applicable to general construction sites, roads, bridges and other projects.

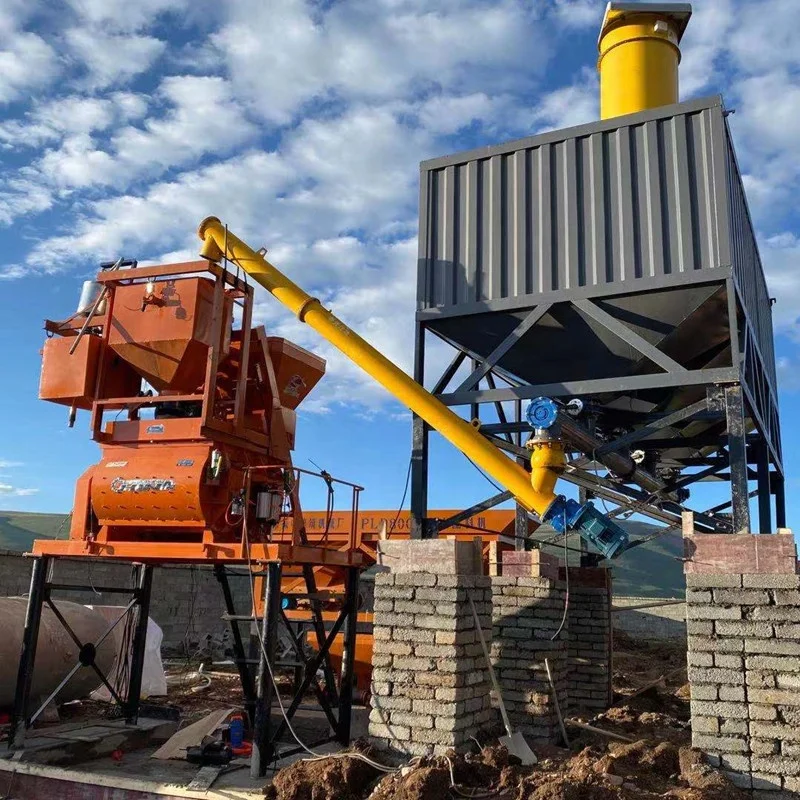

Cement Silo

The capacity of the cement silo is 30-300t. Our uniquely designed flake cement silo is easy to install and greatly saves transportation costs.

Electric control cabinet

Fully automatic control system, easy to operate, can effectively save manpower and material resources, fast and efficient.

Parameters

Composition name	Model	HZS25
Complete plant part	Maximum capacity	25m^3/h
	2	Discharging height	1.5-3.8m
	3	Working cycle time	72s
	4	Overall dimension	178431143013000mm
	5	Total power	50.25kw
Concrete mixer	Model	JS500
Aggregate batching machine	Model	PLD1200
Pneumatic system	Max. torque	500N.m
		Rated discharge pressure	0.8MPa
		Air discharge quantity	0.36m^3/min
		Motor power	2.2kw
Weighing system	Weighing precision of aggregate	-2%/+2%
		Weighing precision of cement	-1%/+1%
		Weighing precision of water	-1%/+1%
