3 кВт 5 6 U/W/I-образная электрическая трубчатая нагревательная трубка для нагрузочного
- Категория: Industrial Heater >>>
- Поставщик: Yancheng,Honleader,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.46 $* | 0.30 $* |
| Aug-17-2025 | 0.40 $* | 0.13 $* |
| Jul-17-2025 | 0.43 $* | 0.71 $* |
| Jun-17-2025 | 0.11 $* | 0.49 $* |
| May-17-2025 | 0.98 $* | 0.92 $* |
| Apr-17-2025 | 0.24 $* | 0.60 $* |
| Mar-17-2025 | 0.38 $* | 0.72 $* |
| Feb-17-2025 | 0.22 $* | 0.74 $* |
| Jan-17-2025 | 0.11 $* | 0.16 $* |
Характеристики
Product Description

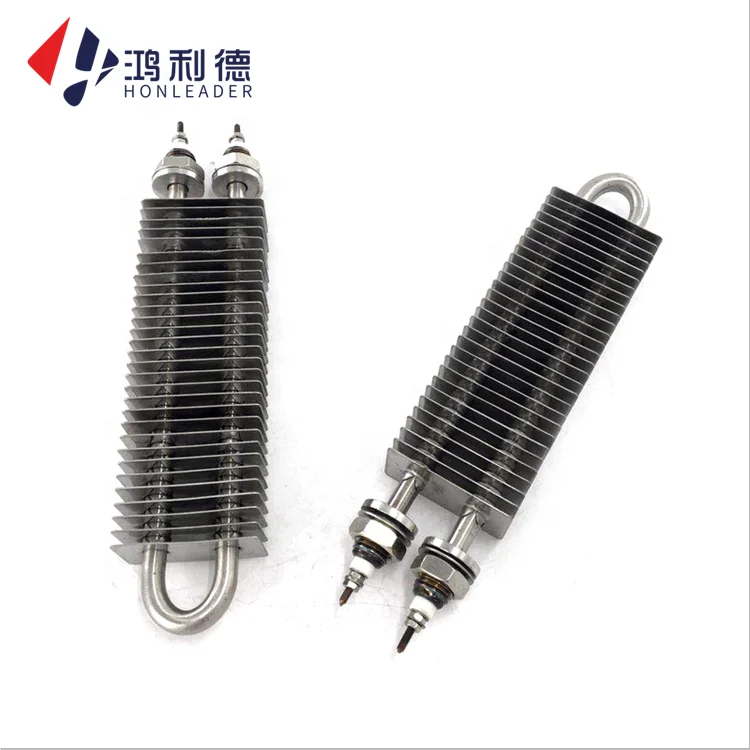

Finned tubular heater is wound with metal fins on the surface of the common heating element. Compared with the common element, the heat dissipation area is enlarged by 2 to 3 times, that is, the allowable surface power load of the fin element is 3 to 4 times that of the common element. Because the length of the element is shortened, the heat loss is reduced. Under the same power condition, it has the advantages of fast temperature rise, uniform heat generation, good heat dissipation performance, high thermal efficiency, long service life, small heating device, and low cost. Reasonable design according to user requirements, easy to install. Products are widely used in machinery manufacturing, automobiles, textiles, food, home appliances and other industries, especially in the air-conditioner air curtain industry.
Moreover, the finned tubular heater is particularly good at heating petroleum and fluid. Finned tubular heaters are also widely used in industry and chemical industry, which is obvious to all. The choice of finned tubular heater is also very necessary. It is more important for buyers to choose a good supplier!
Specification
Product name | I/U/W/L/Round tubular fin heating element |
Rated voltage | 110V/220V/380V/Customizable |
Leakage current | ＜0.5MA |
Power tolerance | ±3% |
Insulation resistance | 30 Ω |
Electric strength | Cold state withstand voltage AC working at 1500V 50Hz for 1 minute without breakdown |
Thermal insulation | AC work 1000V 50Hz for 1 minute without breakdown |
Voltage/Power | Tube Diameter | Thread Diameter | Tube Length(L) | Center Distance(D) | Fin outer Diameter |
220V/500W | 10mm | 16*25 | 250mm | 55mm (Adjustable) | 24mm |
220V/1000W | 10mm | 16*25 | 270mm | 55mm (Adjustable) | 24mm |
220V/1200W | 12mm | 18*25 | 350mm | 55mm (Adjustable) | 28mm |
220V/1500W | 12mm | 18*25 | 400mm | 55mm (Adjustable) | 28mm |
220V/2000W | 12mm | 18*25 | 450mm | 55mm (Adjustable) | 28mm |
380V/1500W | 12mm | 18*25 | 400mm | 55mm (Adjustable) | 28mm |
380V/2000W | 12mm | 18*25 | 450mm | 55mm (Adjustable) | 28mm |
Voltage/Power | Tube Diameter | Thread Diameter | Tube Length(L) | Center Distance(D) | Fin outer Diameter |
220V/1500W | 10mm | 16*25 | 280mm | 150mm (Adjustable) | 24mm |
220V/2000W | 12mm | 18*25 | 320mm | 160mm (Adjustable) | 28mm |
220V/2500W | 12mm | 18*25 | 400mm | 160mm (Adjustable) | 28mm |
220V/3000W | 12mm | 18*25 | 400mm | 170mm (Adjustable) | 28mm |
220V/3500W | 12mm | 18*25 | 550mm | 170mm (Adjustable) | 28mm |
380V/2500W | 12mm | 18*25 | 400mm | 160mm (Adjustable) | 28mm |
380V/3000W | 12mm | 18*25 | 400mm | 170mm (Adjustable) | 28mm |
380V/3500W | 12mm | 18*25 | 550mm | 170mm (Adjustable) | 28mm |
Application
1. The heating of chemical materials in the chemical industry, some powder drying under a certain pressure, chemical process and spray drying are all realized through finned electric heating tubes.
2. Hydrocarbon heating, including petroleum crude oil, heavy oil, fuel oil, heat transfer oil, lubricating oil, and paraffin.
3. Process water, superheated steam, molten salt, nitrogen (air) gas, water gas and other fluids that need to be heated up and heated.
4. As the finned tubular heater adopts advanced explosion-proof structure, the equipment can be widely used in explosion-proof places such as chemical industry, military industry, petroleum, natural gas, offshore platforms, ships, and mining areas.
5. Finned tubular heaters also used in the drying drum of water glue and oil glue laminating machines
2. Hydrocarbon heating, including petroleum crude oil, heavy oil, fuel oil, heat transfer oil, lubricating oil, and paraffin.
3. Process water, superheated steam, molten salt, nitrogen (air) gas, water gas and other fluids that need to be heated up and heated.
4. As the finned tubular heater adopts advanced explosion-proof structure, the equipment can be widely used in explosion-proof places such as chemical industry, military industry, petroleum, natural gas, offshore platforms, ships, and mining areas.
5. Finned tubular heaters also used in the drying drum of water glue and oil glue laminating machines
Our Advantages
1.Low MOQ: 1-10 pcs MOQ based on heater type and sizes
2.OEM Accepted: Strong capacity in develop and production under customer drawings
3.Good Service: Instant response, great patience and full consideration
4.Good Quality: With 6S quality control system；CE, ROHS certification
5.Fast & Cheap Delivery: We enjoy great discount from shipping forwarders (Years cooperation)
2.OEM Accepted: Strong capacity in develop and production under customer drawings
3.Good Service: Instant response, great patience and full consideration
4.Good Quality: With 6S quality control system；CE, ROHS certification
5.Fast & Cheap Delivery: We enjoy great discount from shipping forwarders (Years cooperation)
6. We not only supply you with high-quality and inexpensive heaters, our well-trained technical engineers will also provide you with any technical assistance and services.
Details Images
● Use high-quality Copper/SS304 /SS321, /SS316L/Incoloy800，etc
● Good corrosion resistance
● Good corrosion resistance
◆ Long service life
● Under the same power condition
● Fast heating
● High thermal efficiency
● Heat evenly
● Stable performance
Different specifications, different uses and different shaped of heating tubes can be customized according to your drawings or samples
How to choose heating tube material in a right way?
Tube Material | Applicable Environment & Process | Unit Power Load | Operating Temperature | Service Life | |||
PEA/Sheath PTFE/Sheath | Suitable for strong acid, strong alkali and other corrosive liquids, and the process temperature is ≤105℃. It has the characteristics of non-sticking, non-scaling, and uniform surface heat dissipation. | Stainless steel, Titanium, Iron, Copper 1.5W/cm² | 105℃ | 8000h | |||
Titanium | Suitable for chromium plating, acid copper,nickel plating, passivation, filling, oxidation bath, chromic acid anodization,phosphating acid tin plating and other process needs | 4.5~6W/cm² | 140℃ | 8000h | |||
SS304 SS316L 1Cr18Ni9Ti | Suitable for liquids, oils and other liquids with PH>7~14 | 4.5~6W/cm² | 150℃ | 8000h | |||
Quartz | Suitable for use in anti-corrosive liquids (Except hydrofluoric acid) | 1.5W/cm² | 200℃ | 8000h | |||
Stainless steel 1Cr18Ni9Ti 10# steel | Suitable for air heating, component mold casting, embedding and production of heating module components | 1~1.5W/cm² | 300℃ | 8000h | |||

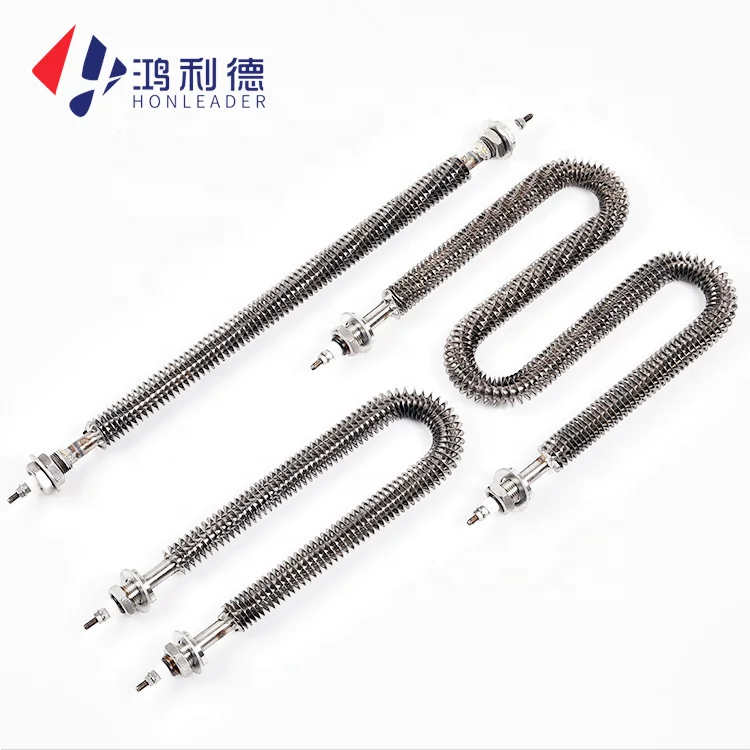

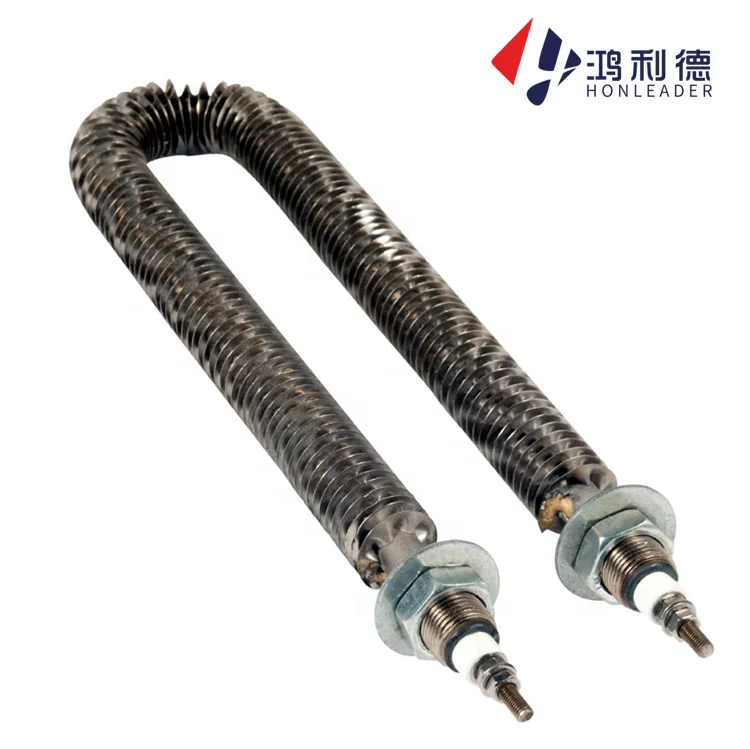

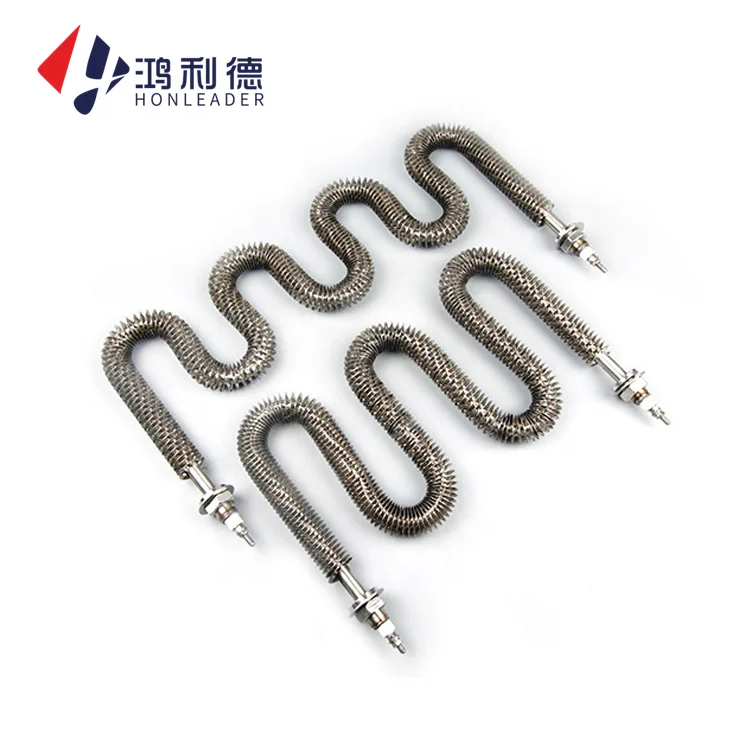

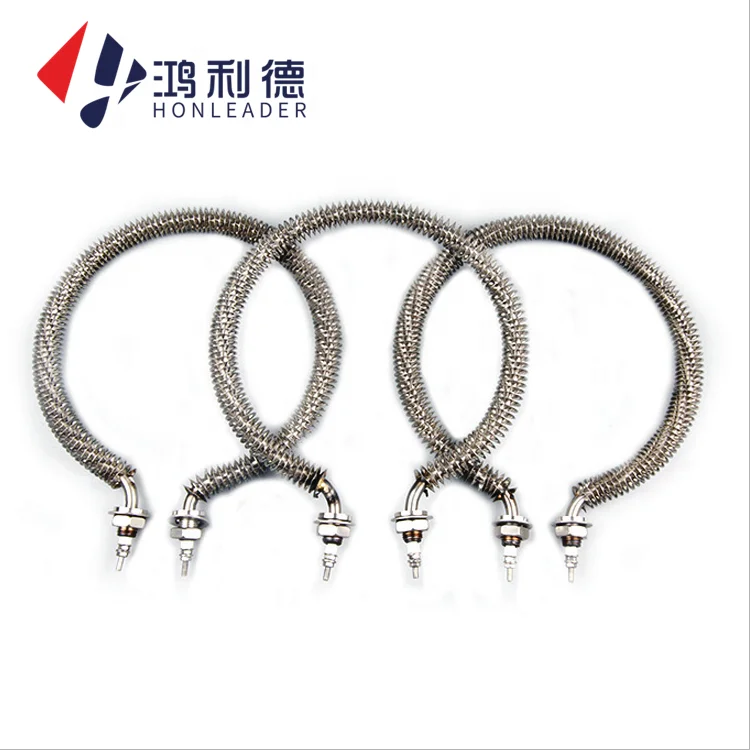

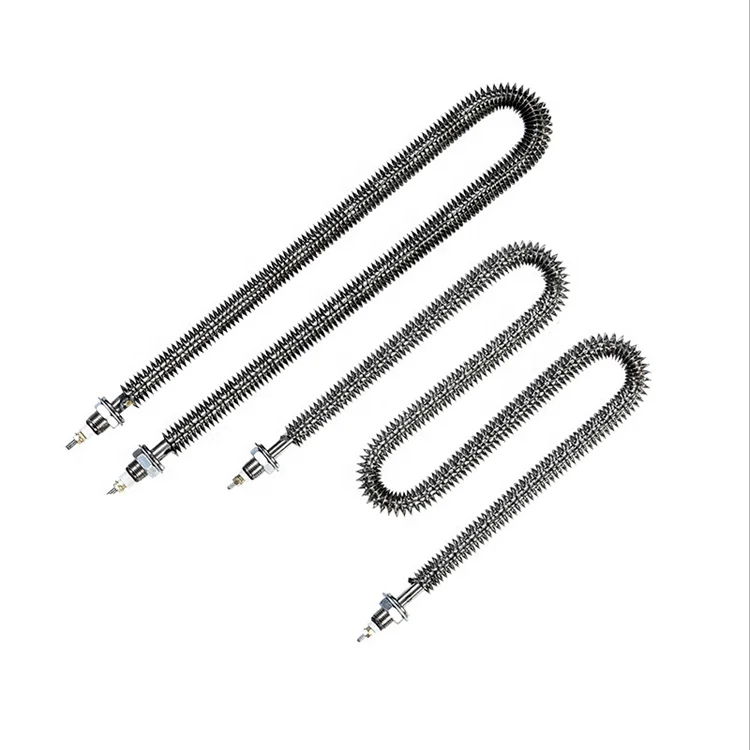

Available shapes are | U-shaped, W-shaped, I-shaped, L-shaped, back-shaped, round and other non-standard shapes | ||||||
When you order, please provied the specifications as following:
1. Drawings,if have
2. Power,Voltage,Shape
3. Working temperature
4. Material requirement
5. Screw size,if have
6. Quantity
2. Power,Voltage,Shape
3. Working temperature
4. Material requirement
5. Screw size,if have
6. Quantity
