Product Description

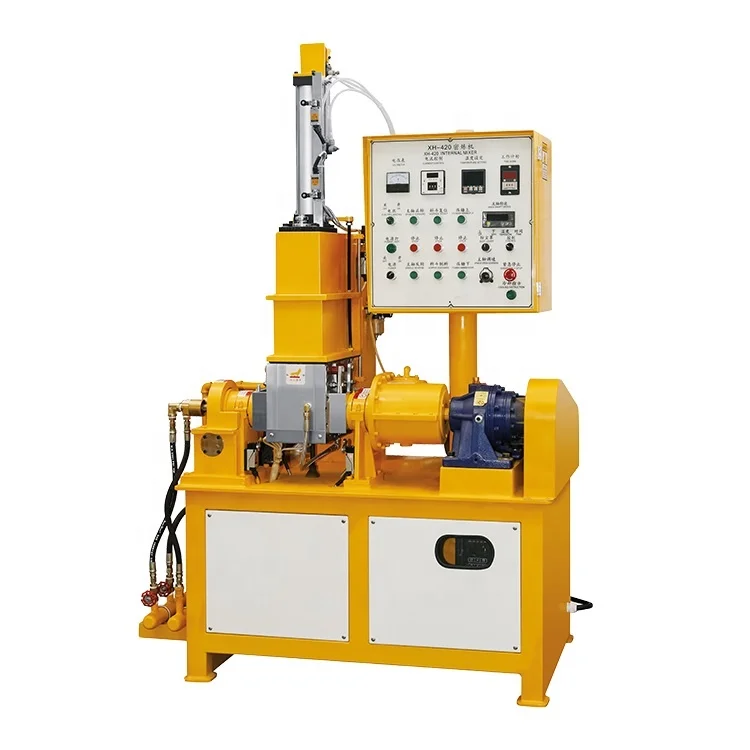

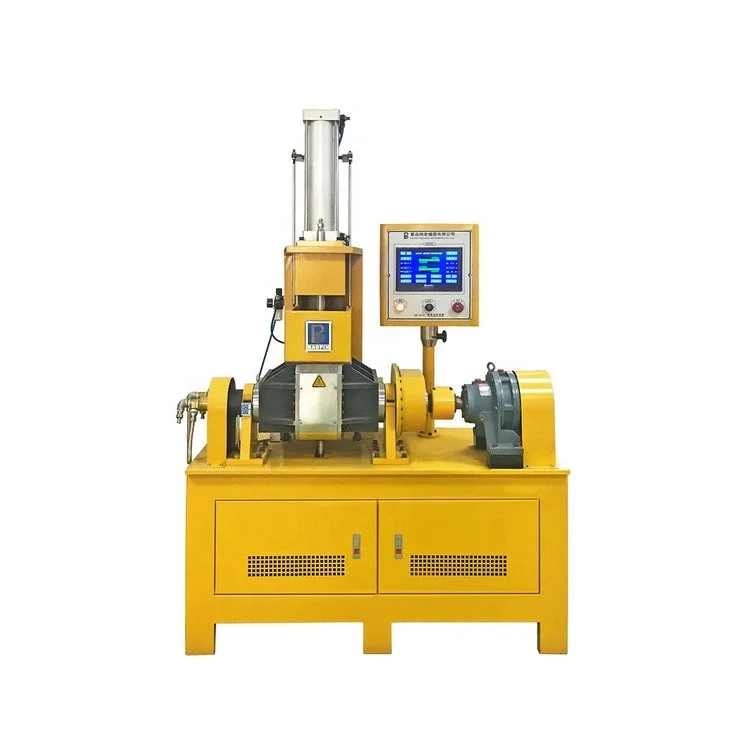

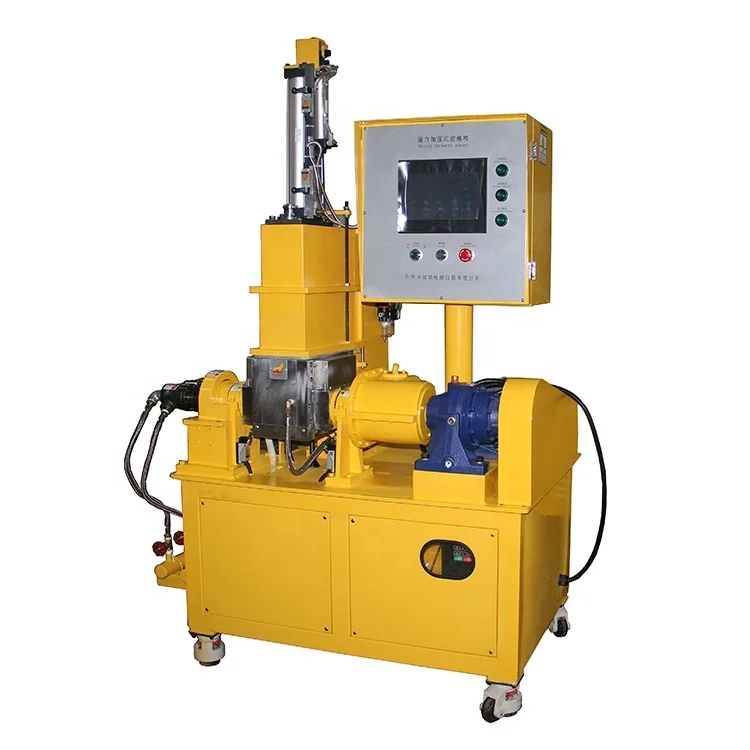

Rubber Lab Banbury Internal Mixer 1L 3L 5L 10L Rubber and Plastic Kneader Mixing Machine Laboratory Mixer Manufacturer

intensive mixer

Summary:

The Lab Internal Banbury Mixing Machine with high technical drawings, advanced technology in China and imported core components, this machine has character itself as environmental-friendly, high-efficiency and good dispersing effect, with human-orientated design and easy to reload and clean, it has been recognized by factory lab, universities and R&D institutions for recipe researching and small-scale production. It can also be used in electric wire, cable, electronics, sole, sports equipment and auto parts industries for rubber, plastic and chemical production mixing and plasticizing.

Working Principle:

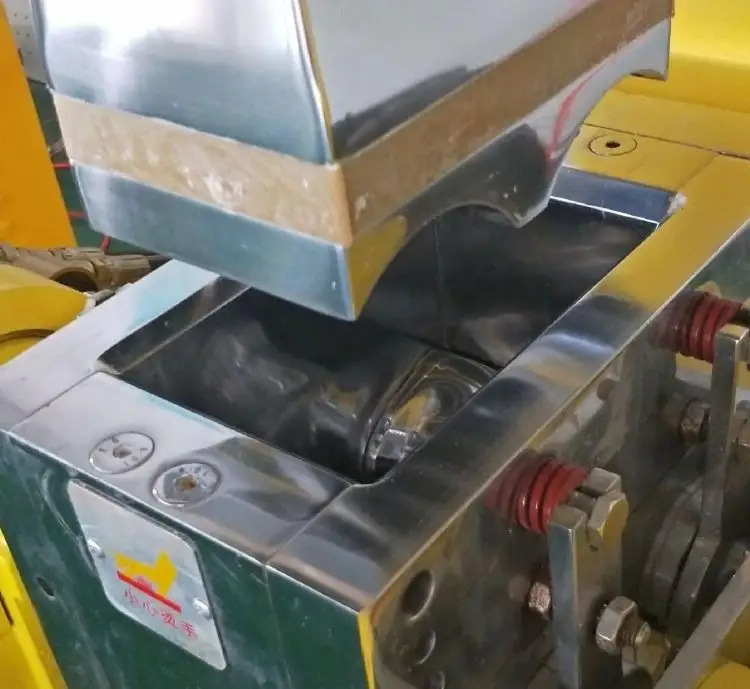

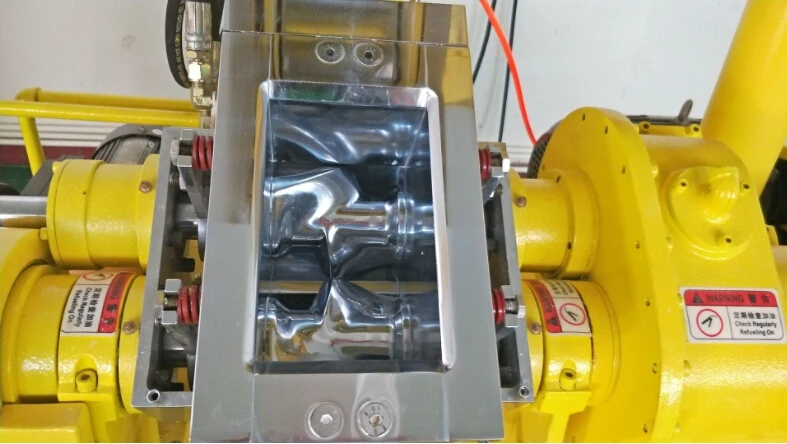

The two rotors in the mixing chamber rotate under a certain speed ratio, and the material from the feeding port is clamped into the roll gap and squeezed and sheared by the rotor. After passing through the roll gap, it hits the "W" sharp edge of the mixing chamber and is divided into two parts. Respectively, along the gap between the front and rear chamber walls and the rotors the material get back to the top. The material is sheared and mixed under a certain pressure and temperature in the closed mixing chamber to make the formula material fully disperse and plasticize, so that the formula can exert the best effect.

Specifications:

Model	ML1 / MLP1	ML3 / MLP3	ML5 / MLP5	ML10 / MLP10
Mixing Capacity	1 L	3 L	5 L	10 L
Drive Motor (Taiwan Speecon)	3.75KW	5.5 KW	7.5KW	11KW
Tilt Motor (Taiwan CPG)	0.75KW	0.75KW	0.75KW	0.75KW
Control Mode	NG-ML Series: Key Control / NG-MLP Series: PLC Touch Screen Control
Rotation Angle	110°
Drive Bearing	Japan NSK
Pressurized Cylinder	Taiwan AirTAC
Rotor Speed	40/31 rpm (Adjustable)
Heating method	Electrical heating
Cooling System	Water cooling
Temperature	NG-ML Series: RT~250℃ / NG-MLP Series: RT~300℃
Air Pressure	0.5~0.8MPa
Control System	Taiwan brand and Japan omelong, the machine is equipped with safety interlock function.
Material	High quality carbon steel, hard chromium plated wear resistant treatment
Colour	Yellow / Blue (or customize)
Power	3Phase AC380V 50HZ
