Цифровой рентгеновский аппарат с плоской панелью 50 кВт
- Категория: Other Radiology Equipment & Accessories >>>
- Поставщик: Jiangsu,Sinowise,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.70 $* | 0.89 $* |
| Aug-18-2025 | 0.48 $* | 0.21 $* |
| Jul-18-2025 | 0.51 $* | 0.1 $* |
| Jun-18-2025 | 0.21 $* | 0.44 $* |
| May-18-2025 | 0.86 $* | 0.69 $* |
| Apr-18-2025 | 0.75 $* | 0.75 $* |
| Mar-18-2025 | 0.71 $* | 0.11 $* |
| Feb-18-2025 | 0.15 $* | 0.14 $* |
| Jan-18-2025 | 0.36 $* | 0.86 $* |
Характеристики
Product Description
Product Description

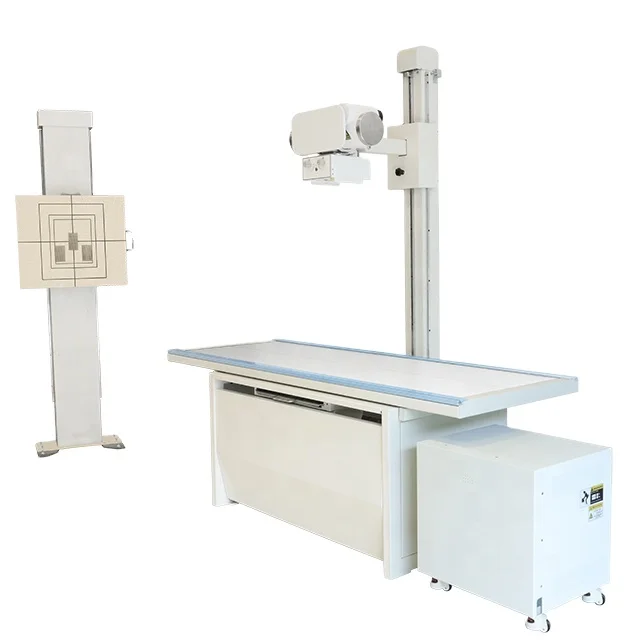

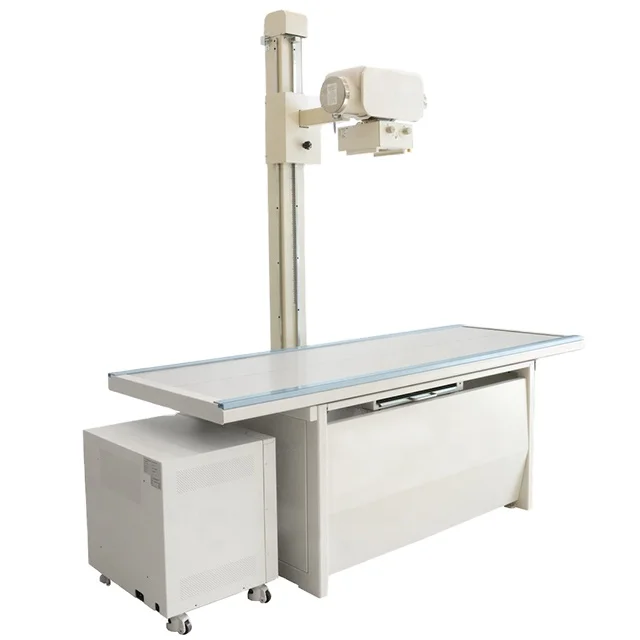

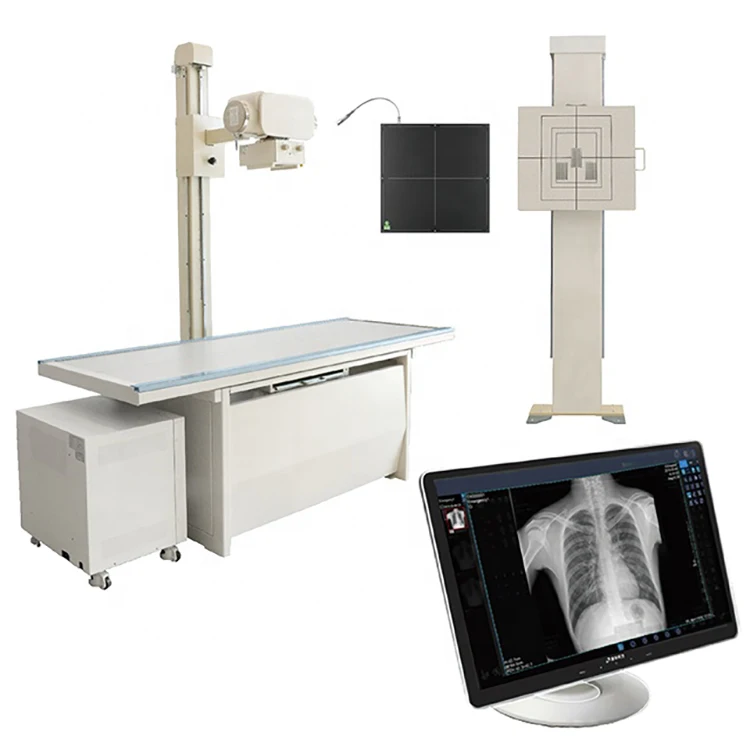

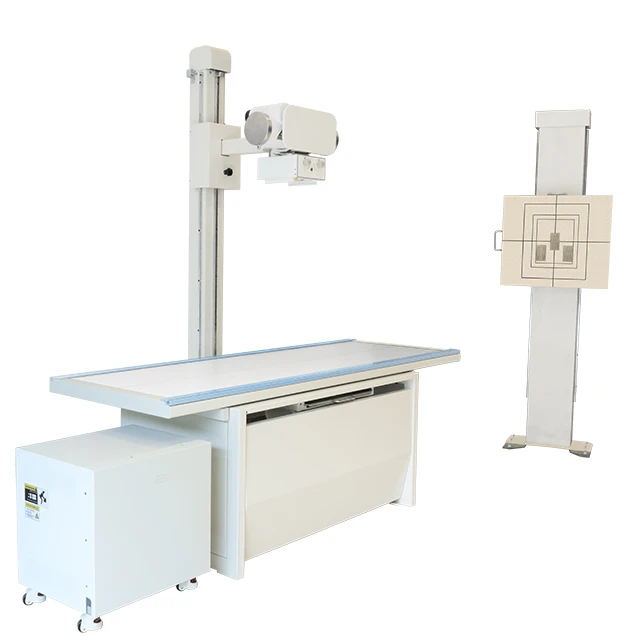

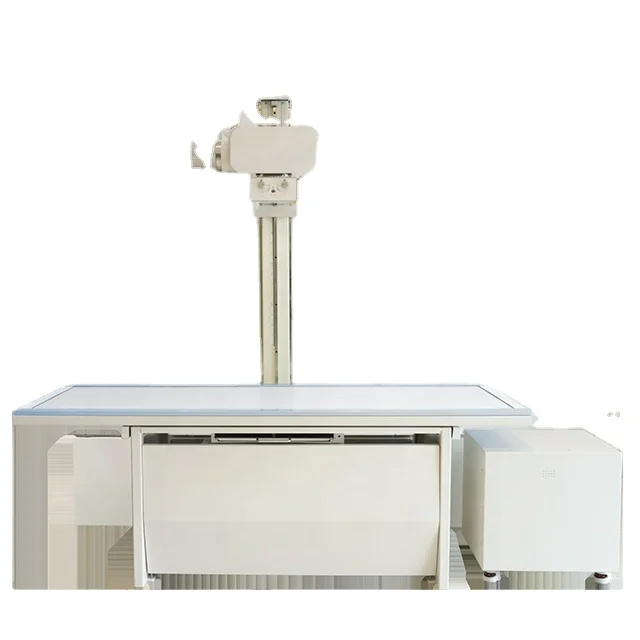

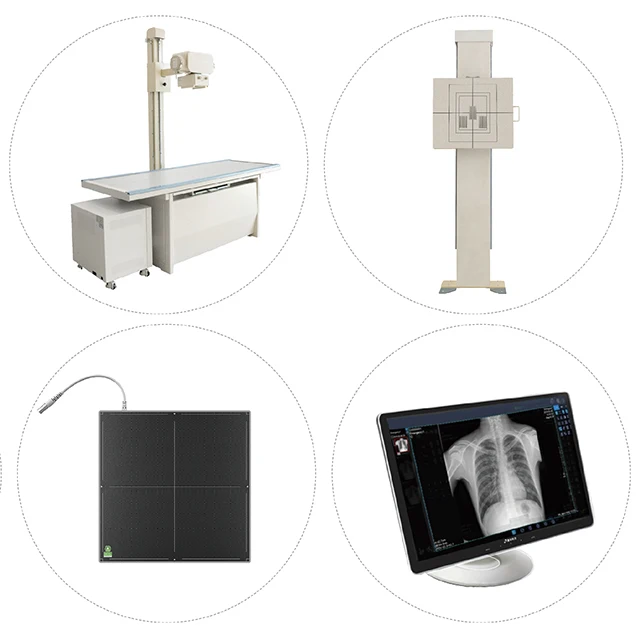

DR X-Ray Imaging System HF-DR50
USE
hospitals, clinics for various kinds of X-ray imaging examination for patients
Application
X-ray photography for bones, chest, abdomen and other parts of various human body
Technical Characteristics
* 50kW,150kV,630mA high frequency x-ray machine
* Equipped with stable-performance high-voltage generator
* Fault self-diagnosis and protection for easy operation
* Automatic calibration of tube current
* Ultra-short exposure time to avoid motion artifacts
* Double focus(0.6/1.2) to obtain clearer image
* 360°rotating tube assembly, flexible and convenient to use
* X-ray tube with function of filament dormancy
* Photography table floats in four directions for easy positioning
* 17 × 17 inch DR imaging, professional image management software, easy to operate, medical record management is simpler and more
intuitive
* Suitable for any digital imaging equipment
hospitals, clinics for various kinds of X-ray imaging examination for patients
Application
X-ray photography for bones, chest, abdomen and other parts of various human body
Technical Characteristics
* 50kW,150kV,630mA high frequency x-ray machine
* Equipped with stable-performance high-voltage generator
* Fault self-diagnosis and protection for easy operation
* Automatic calibration of tube current
* Ultra-short exposure time to avoid motion artifacts
* Double focus(0.6/1.2) to obtain clearer image
* 360°rotating tube assembly, flexible and convenient to use
* X-ray tube with function of filament dormancy
* Photography table floats in four directions for easy positioning
* 17 × 17 inch DR imaging, professional image management software, easy to operate, medical record management is simpler and more
intuitive
* Suitable for any digital imaging equipment
Specification
Specification
Item | Content | Technical Parameter | ||||
Power Supply | Voltage | 380V | ||||
Frequency | 50Hz | |||||
Capacity | ≥50kVA | |||||
internal resistor | ≤0.23Ω | |||||
High voltage Generator | Power Output | 50KW | ||||
Inverter Frequency | 60 KHz | |||||
Tube Voltage | 40kV—150kV | |||||
Tube Current | 10mA—630mA | |||||
Exposure time | 1ms—10000ms | |||||
mAs range | 0.4mAs—1000mAs | |||||
Digital Controlled X-ray Tube | Large Focus/Small Focus | 1.2mm /0.6mm | ||||
Input Power | Big focus 50kW / Small Focus 20kW | |||||
thermal capacity | 240kHU(161kJ) | |||||
Anode target surface inclination | 12° | |||||
Rotary anode speed | 2700rpm-50Hz,3200rpm-60Hz | |||||
thermal capacity of x-ray tube assembly | 900KJ | |||||
continuous heat dissipation power of tube assembly(without fan) | 180W | |||||
Collimator | Inherent filtration | 1.0mm AI | ||||
Light Source | LED | |||||
Radiography Table | Table size(L×W) | 2000cm×710cm | ||||
Grid Size | 17×17inch | |||||
Table longitudinal movement | ≥130cm | |||||
Table transverse movement | ≥20cm | |||||
Cassette longitudinal Movement Distance | 108cm | |||||
Tube assembly up-down movement | 1000mm | |||||
Bucky Stand | Vertical moving range | ≥1200mm | ||||
Bucky size | 17×17inch | |||||
Ratio | 10:1 | |||||
Wire Flat Panel Detector | Vision size | 434mm×434 mm | ||||
Pixel gap: | 154 μm | |||||
Imaging time | less than 2~6s | |||||
Limiting resolution | 3.3 linepair/mm | |||||
A / D conversion: | 16 bit | |||||
Computer | CPU System | 2.9GHz | ||||
Memory | 8GB | |||||
Disk Capacity | 1000GB | |||||
Size of LCD Screen | 24 inch | |||||
Packing | Case 1 | 244cm×113cm×102cm,2.81m³ | ||||
G.W. 650KG N.W.650KG | ||||||
Case 2 | 208cm×65cm×43cm,0.58m³ | |||||
G.W. 200KG N.W.180KG | ||||||
Packing & Delivery
Packing & Delivery
Inner packing: vacuum plastic bag Outside packing:wooden case
