Гибкий Корпус из нержавеющей стали Проволочный Трос сетка для
- Категория: Stainless Steel Wire Mesh >>>
- Поставщик: Anping,County,Jianyang,Metal,Wire,Mesh,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 10.19 $* | 11.12 $* |
| Aug-19-2025 | 9.43 $* | 9.76 $* |
| Jul-19-2025 | 8.69 $* | 8.55 $* |
| Jun-19-2025 | 9.5 $* | 9.69 $* |
| May-19-2025 | 8.41 $* | 8.63 $* |
| Apr-19-2025 | 9.74 $* | 9.6 $* |
| Mar-19-2025 | 9.23 $* | 9.76 $* |
| Feb-19-2025 | 9.25 $* | 9.46 $* |
| Jan-19-2025 | 9.79 $* | 9.59 $* |
Характеристики
Product Description

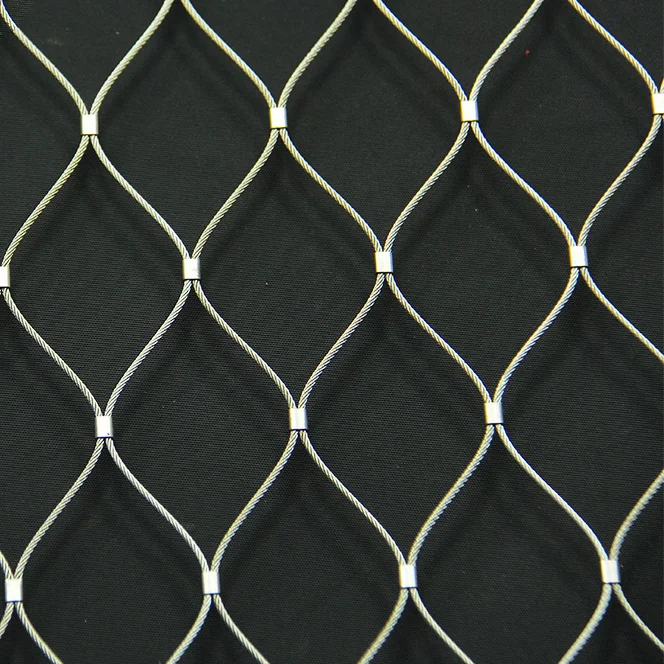

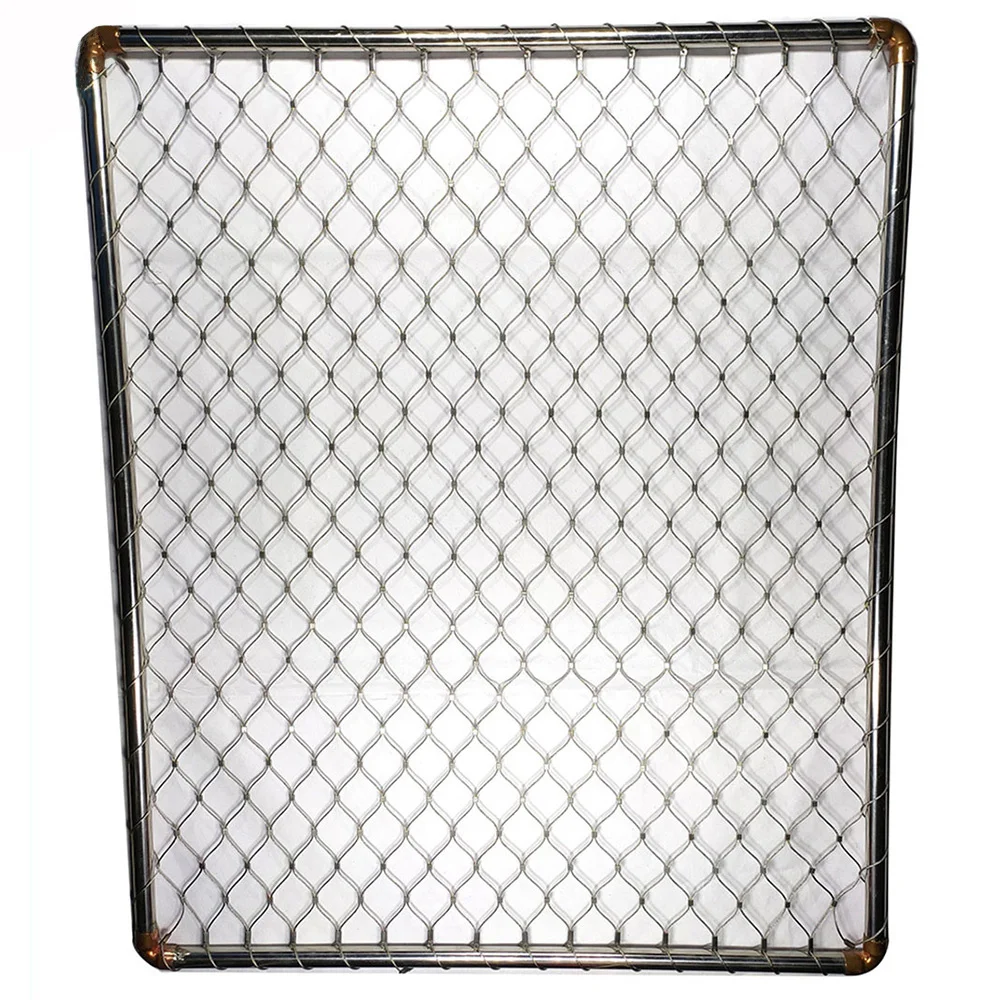

From the perspective of safety, the stainless steel wire mesh railing is strong and firm, which can effectively prevent people from falling. It can be designed like a railing in a traditional way, or it can also be designed as a protective wall extending from the ceiling to the ground. The excellent visibility of stainless steel rope mesh can not only create a magnificent and transparent space effect, but also make designer’s diverse inspiration translated into reality.

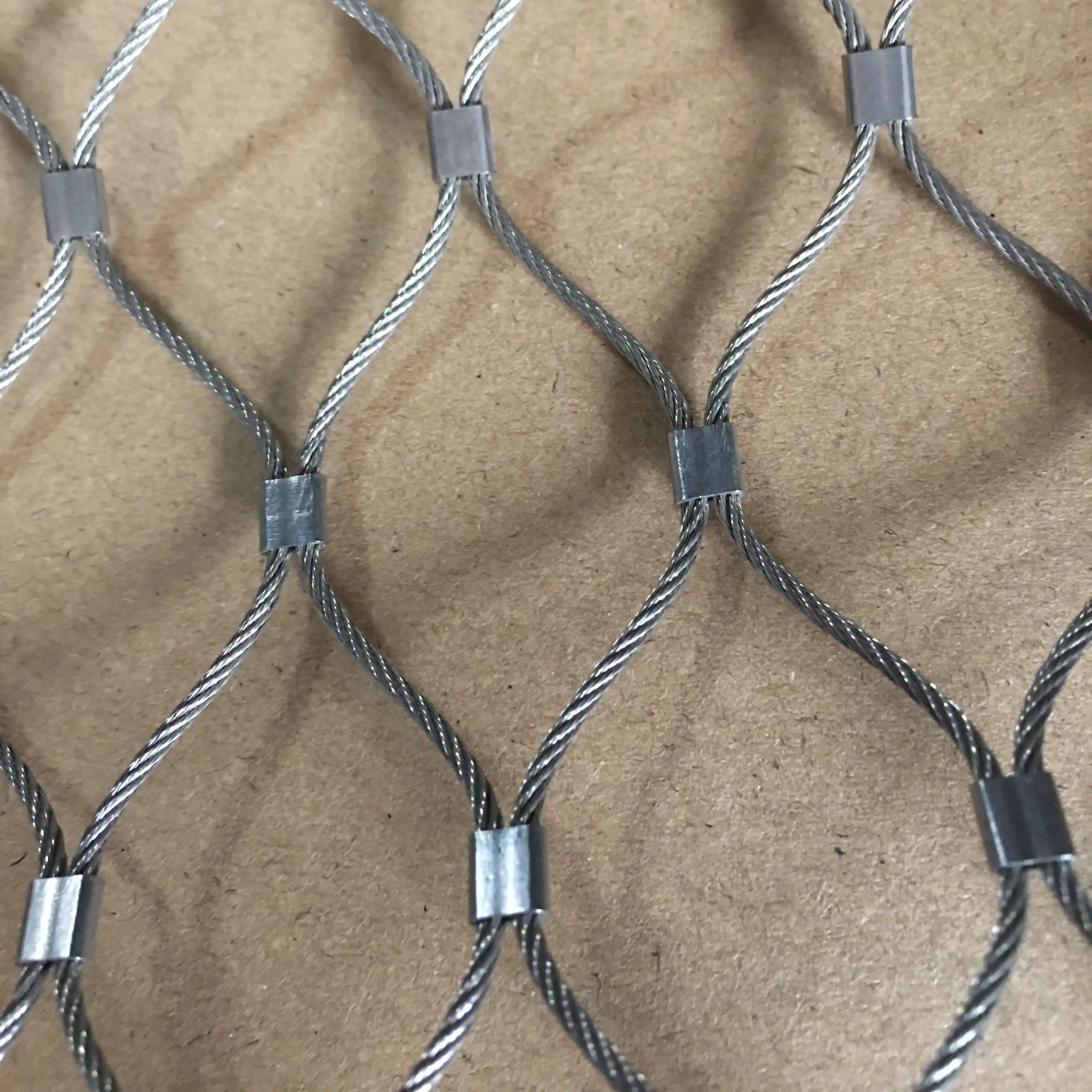

The stainless steel rope net is hand-made with high quality stainless steel rope.
The main materials for processing stainless steel rope are 304, 304L, 316, 316L and so on. Common specifications for stainless steel rope: wire diameter:
1.2 mm, 1.5 mm, 2 mm, 3 mm, 4 m sides: 25 mm, 30 mm, 40 mm, 50 mm,
60 mm, 70 mm, 80 mm, 90 mm, 100 mm, 120 mm, 150 mm, etc.
Special specifications can be customized.
The specification of stainless steel ferrule rope mesh | |||||
| Code | Rope Construction | Rope Diameter | Aperture | Break Force | |
| JY01 | 7*19 | INCH | MM | MM | KN |
| JY02 | 7*19 | 1/8 | 3.2 | 120*208 | 7.38 |
| JY03 | 7*19 | 1/8 | 3.2 | 100*173 | 7.38 |
| JY04 | 7*7 | 1/8 | 3.2 | 90*156 | 7.38 |
| JY05 | 7*7 | 3/32 | 2.4 | 100*173 | 4.18 |
| JY06 | 7*7 | 3/32 | 2.4 | 90*156 | 4.18 |
| JY07 | 7*7 | 3/32 | 2.4 | 80*139 | 4.18 |
| JY08 | 7*7 | 3/32 | 2.4 | 70*121 | 4.18 |
| JY09 | 7*7 | 5/64 | 2.0 | 100*173 | 3.17 |
| JY010 | 7*7 | 5/64 | 2.0 | 90*156 | 3.17 |
| JY011 | 7*7 | 5/64 | 2.0 | 801*39 | 3.17 |
| JY011 | 7*7 | 5/64 | 2.0 | 70*121 | 3.17 |
| JY012 | 7*7 | 1/16 | 1.6 | 80*139 | 2.17 |
| JY013 | 7*7 | 1/16 | 1.6 | 70*121 | 2.17 |
| JY014 | 7*7 | 1/16 | 1.6 | 60*104 | 2.17 |
| JY015 | 7*7 | 1/16 | 1.6 | 518*7 | 2.17 |
| JY016 | 7*7 | 3/64 | 1.2 | 80*139 | 1.22 |
| JY017 | 7*7 | 3/64 | 1.2 | 60*104 | 1.22 |
| JY018 | 7*7 | 3/64 | 1.2 | 50*87 | 1.22 |
| JY019 | 7*7 | 3/64 | 1.2 | 40*69 | 1.22 |
Detailed Images
Related Products

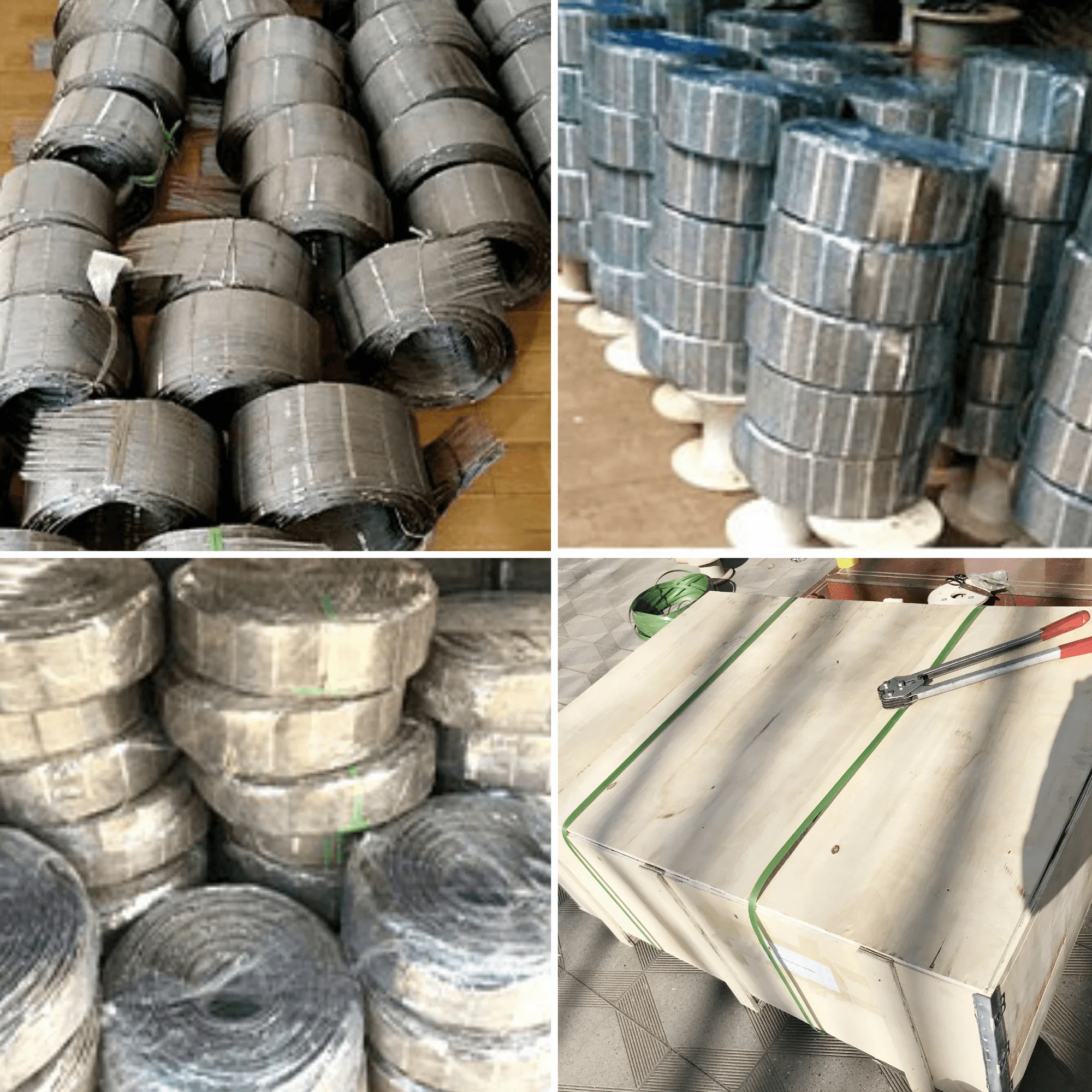

Packaging & Shipping
Our Customers
Company Information
Company profile:Anping County Jianyang Metal Wire Mesh Co.,Ltd located in Anping,which is home to wire mesh.It is a comprehensive factory of manufacturing,marketing,importing and exporting With more than 8 years’ history.Our products are exported to Europe, American, Asia and in many other countries and regions.
Main products: Woven wire mesh for filtration and series products based on wire mesh.
FAQ
1. Are you factory/manufacturer or trader?
We are direct factory who owns production lines and workers. Everything is flexible
and there is no need to worry about extra charges by the middle man or trader.
2. Which countries do you export to?
Our goods are mainly exported to Australia, Canada, UK, USA, Germany, Thailand,
South Korea and so on.
3. Can I get free samples?
If the sample is available, yes, can be free. If unavailable, need to customize.
4. What is your minimum order quantity?
Actually there is no MOQ for our products. But usually we recommend a quantity
based on the price which is easy to accept.
5. Which payment method you can accept?
Generally we adopt T/T, LC, Western Union, PayPal, Escrow and Money Gram.
We'd like to listen to your detail requirements, and then give you detail solution, please kindly contact us.
