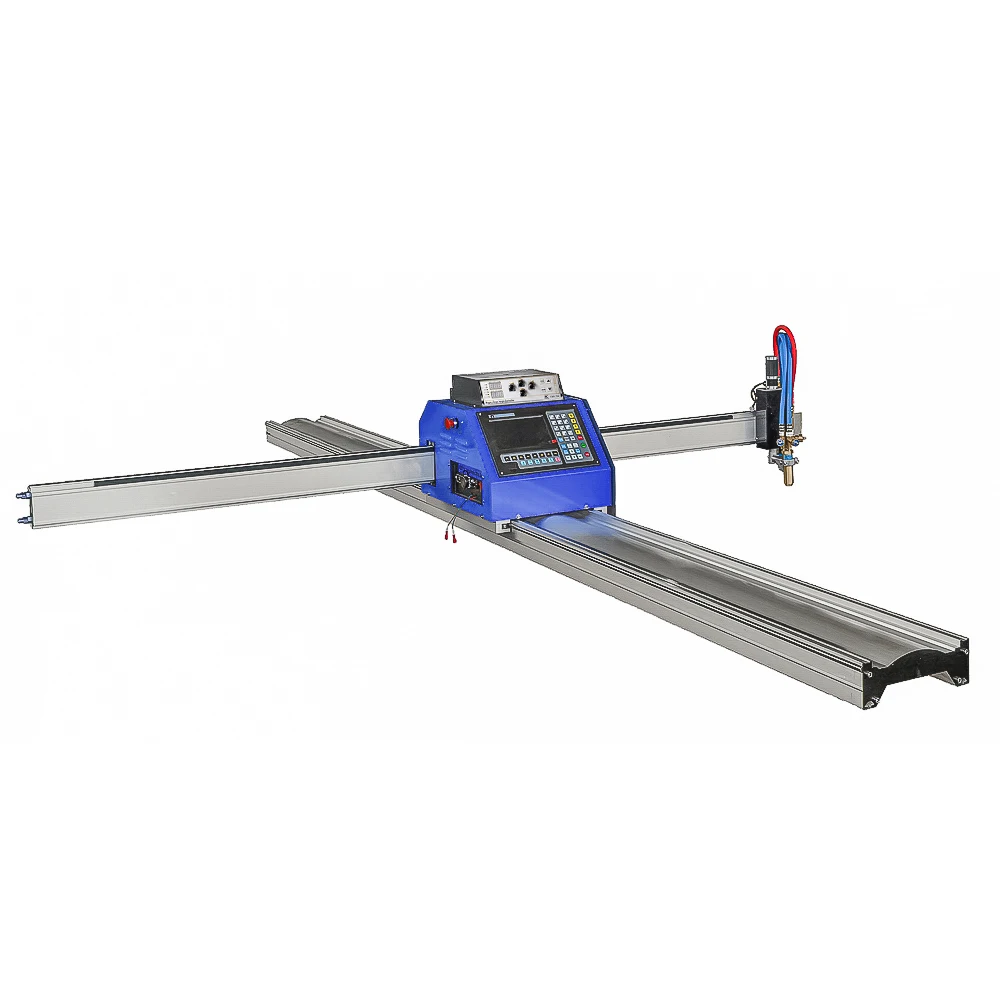

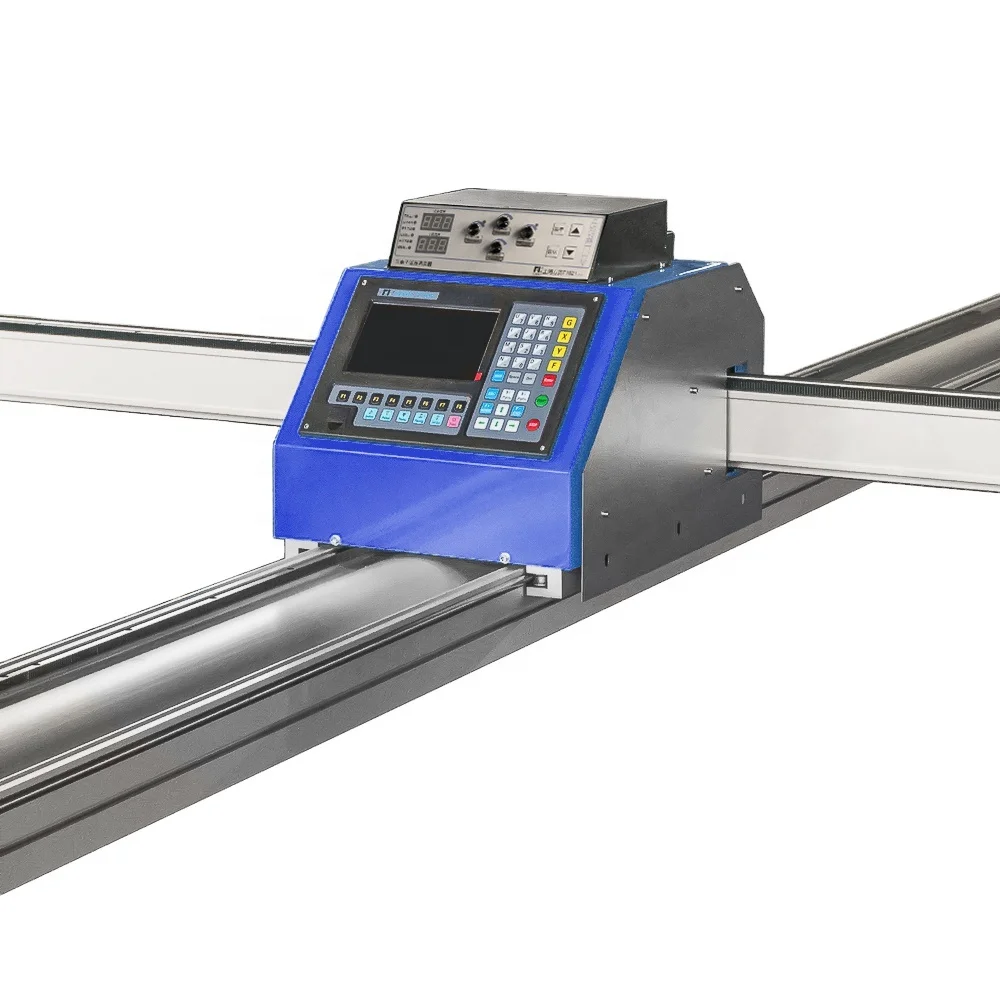

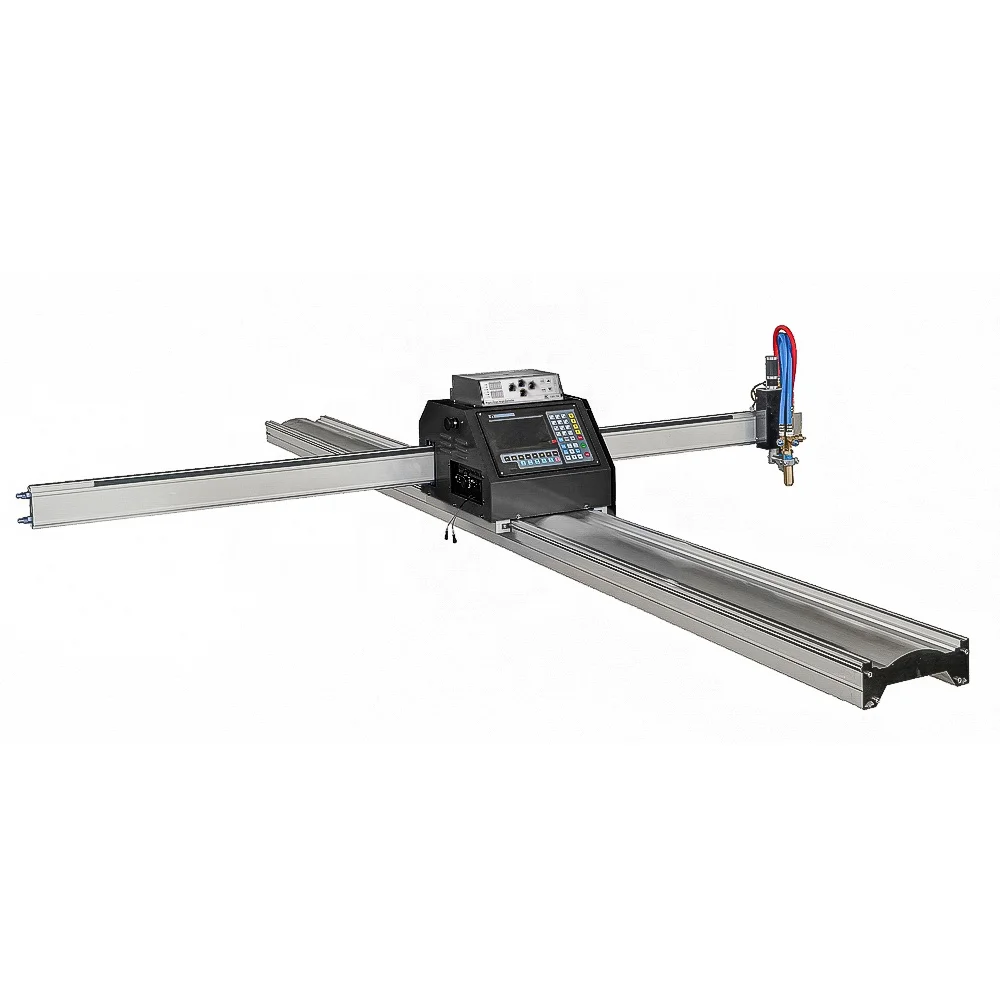

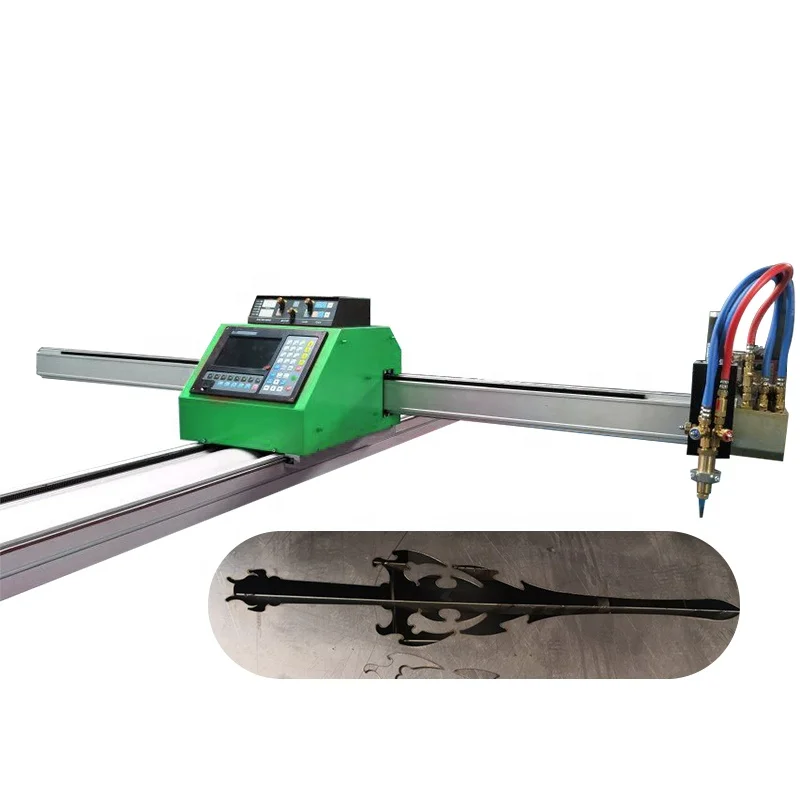

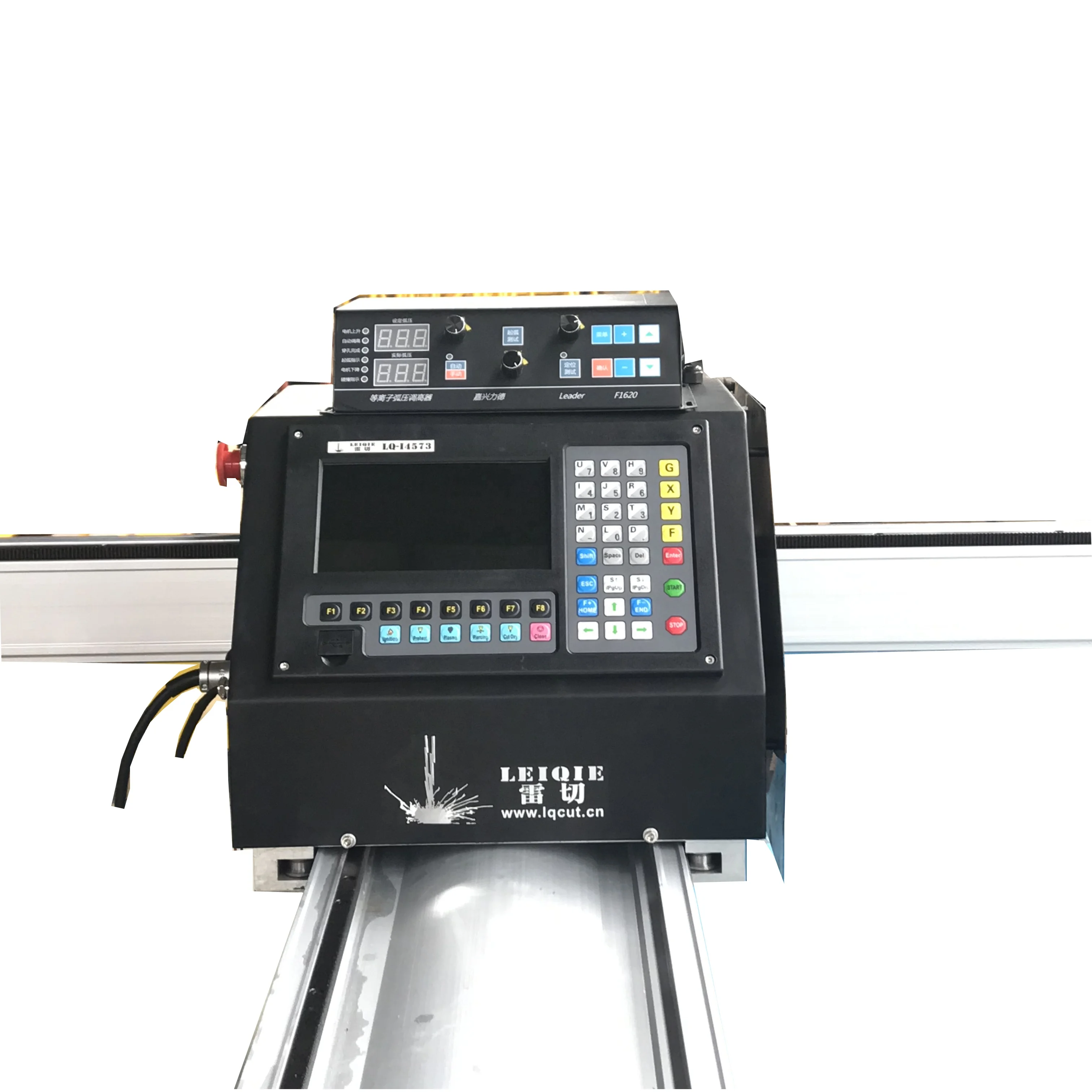

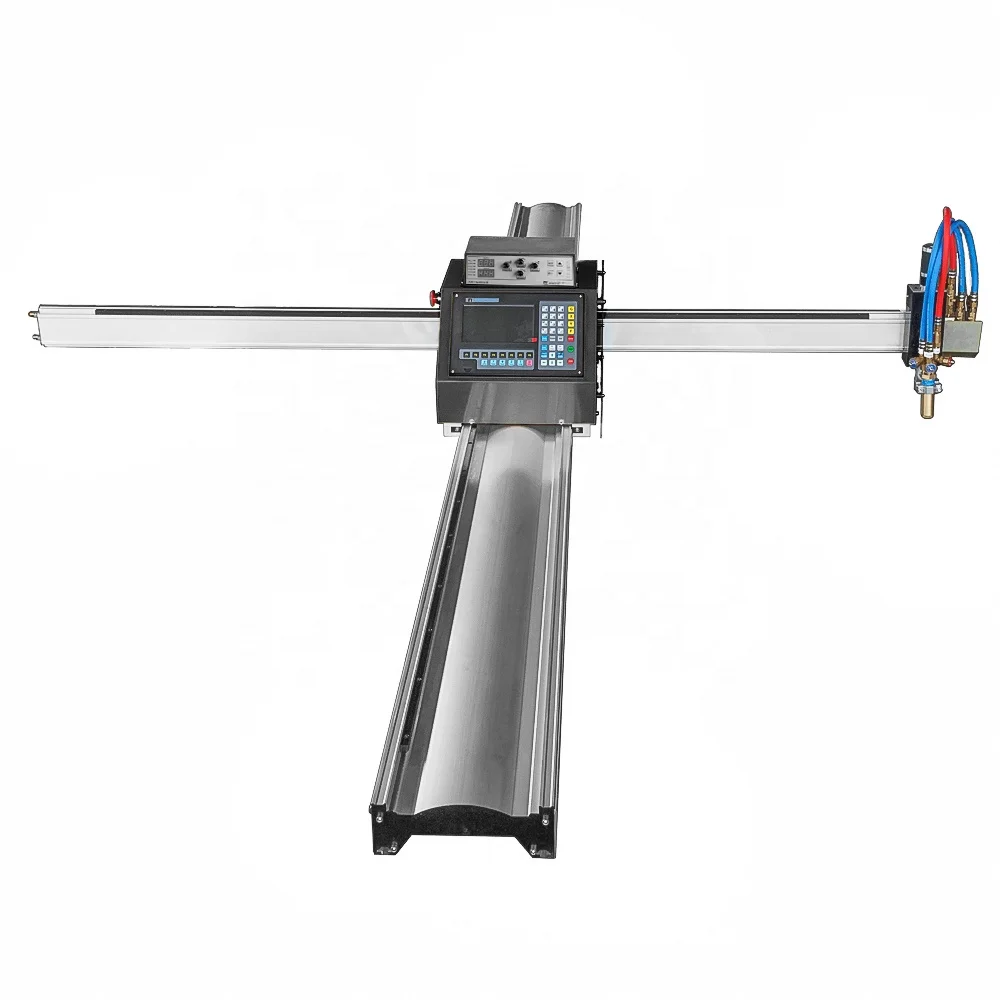

portable cnc metal  plasma cutter mini cutting machine





1	Model	GCP-1325
2	Power source	AC 220/380±10%VAC 50/60Hz
3	Cutting mode	O2/C3H8 or C2H2
4	Effective cutting range(mm)	1300*2500	1500*3000
5	Input Voltage	220V, 50HZ
6	Cutting speed(mm/min)	0-8000mm/min
7	Cutting thickness(Flame)	0-200 mm (O2/C3H8 or C2H2)
	Cutting thickness(Plasma)	According  plasma power source
8	Move precision	±0.2mm/m
9	Plasma THC	YES
10	Processing thickness(mm)	0-30mm
11	Cutting system	Shanghai Fangling F2100B control system
12	Host weight(kg)	19
13	Gas pressure(Mpa)	Max.0.1
14	Oxygen pressure(Mpa)	Max.0.7
15	Type of gas	C3H8 C2H2
16	Emergency stop	Yes
17	Working temperature	-5~45℃
18	Power	8.5kw
20	ARC	Untouched arc striking
21	Processing Materials	Iron, stainless steel, carbon steel, copper sheets; aluminum sheets, galvanized sheets, Titanium plates and other kinds metal





Production advantage :

1 Light weight ,small size ,easy to move ,and set up .

2 Durable construction,strong cross beam ,more rigid .
3 Better performance ,high precision.
4 CNC control ,supply Operation language, easy to operate.
5 Electric torch lifting,Arc voltage auto torch height control for plasma cutting
6 Support both of flame cutting and plasma cutting ,equipped with multitudinous plasma source
7 Widely applied in maintain ,construction,steel structure,shipbuilding industries.
8 The machine is equipped with FastCAM programming software ,the  software is easy to learn and operate .
9 Machine Color and Cutting area can be customized .









Service:

Vedio playing

Telephone Guide

Technician available for large quantity
