Трубогиб для труб EMT 20 25 32 мм
US $150.00-$220.00
Круглая труба квадратная дуга тепличная рама гидравлическая CNC автоматическая трубогибочная
- Категория: Pipe and Tube Bending Machines >>>
- Поставщик: Shandong,Jiesheng,Heavy,Industry,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 3808.94 $* | 3998.44 $* |
| Aug-16-2025 | 3776.42 $* | 3965.75 $* |
| Jul-16-2025 | 3168.36 $* | 3326.10 $* |
| Jun-16-2025 | 3712.52 $* | 3898.76 $* |
| May-16-2025 | 3232.42 $* | 3394.88 $* |
| Apr-16-2025 | 3648.50 $* | 3830.8 $* |
| Mar-16-2025 | 3616.87 $* | 3797.44 $* |
| Feb-16-2025 | 3584.12 $* | 3763.51 $* |
| Jan-16-2025 | 3552.91 $* | 3730.32 $* |
Характеристики
Product Description

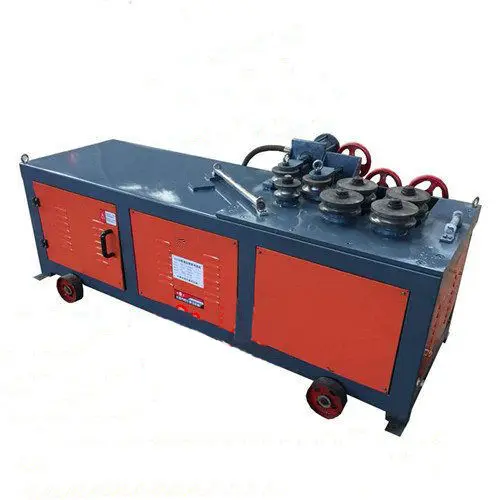

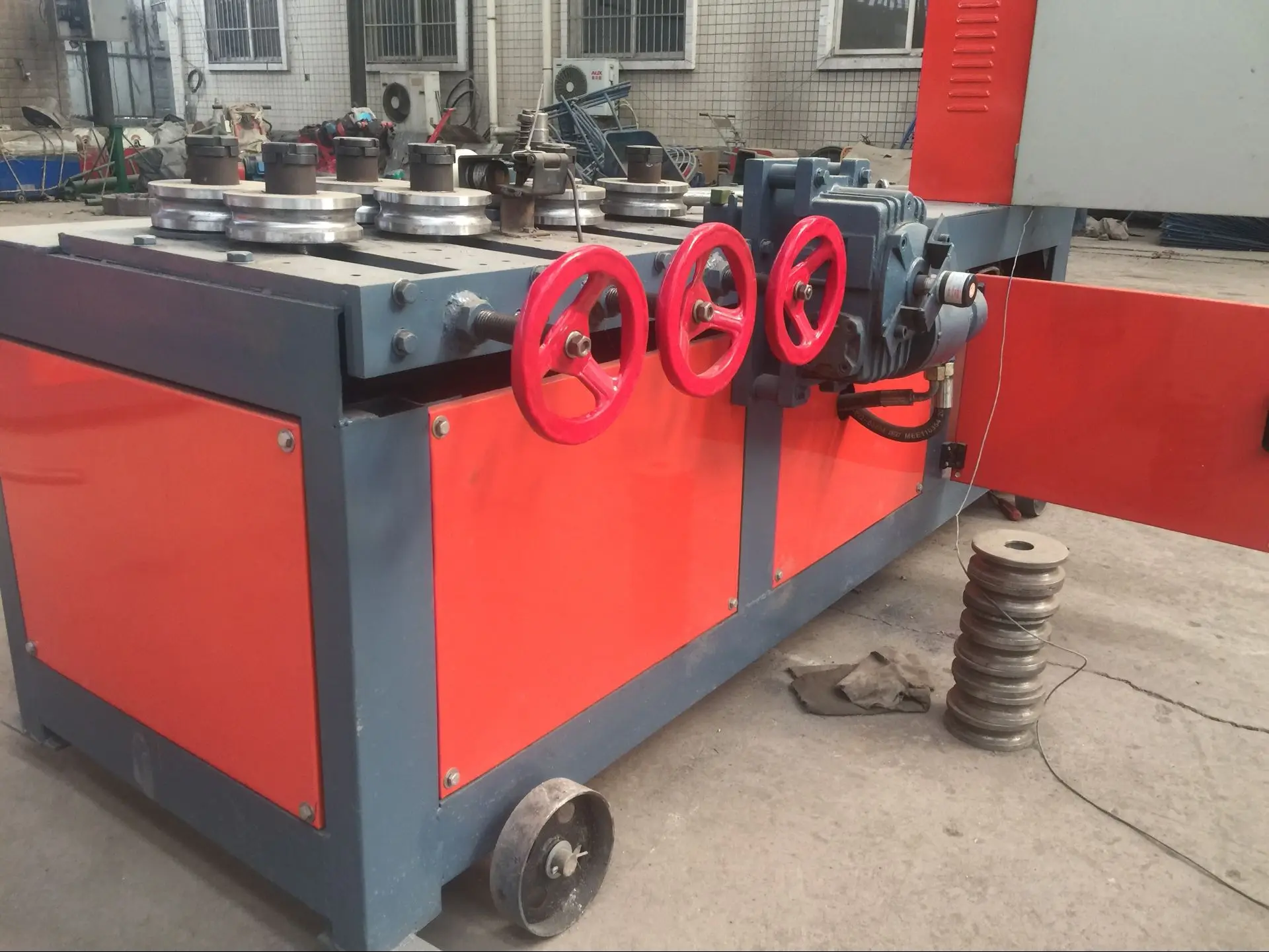

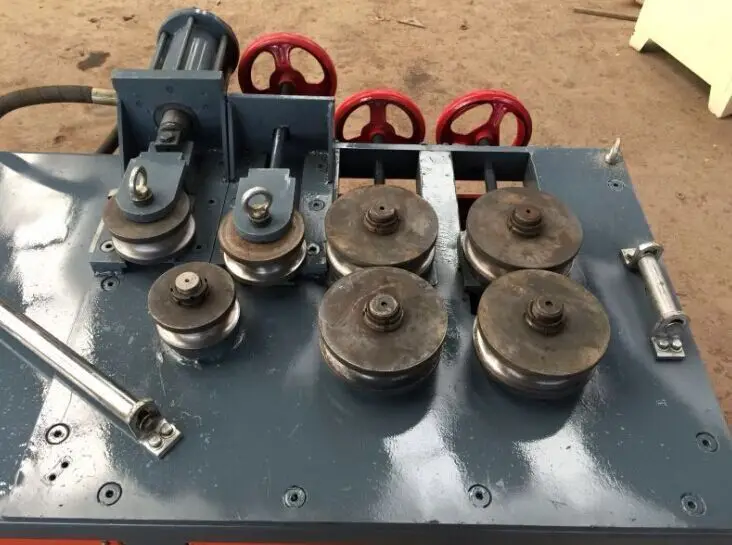

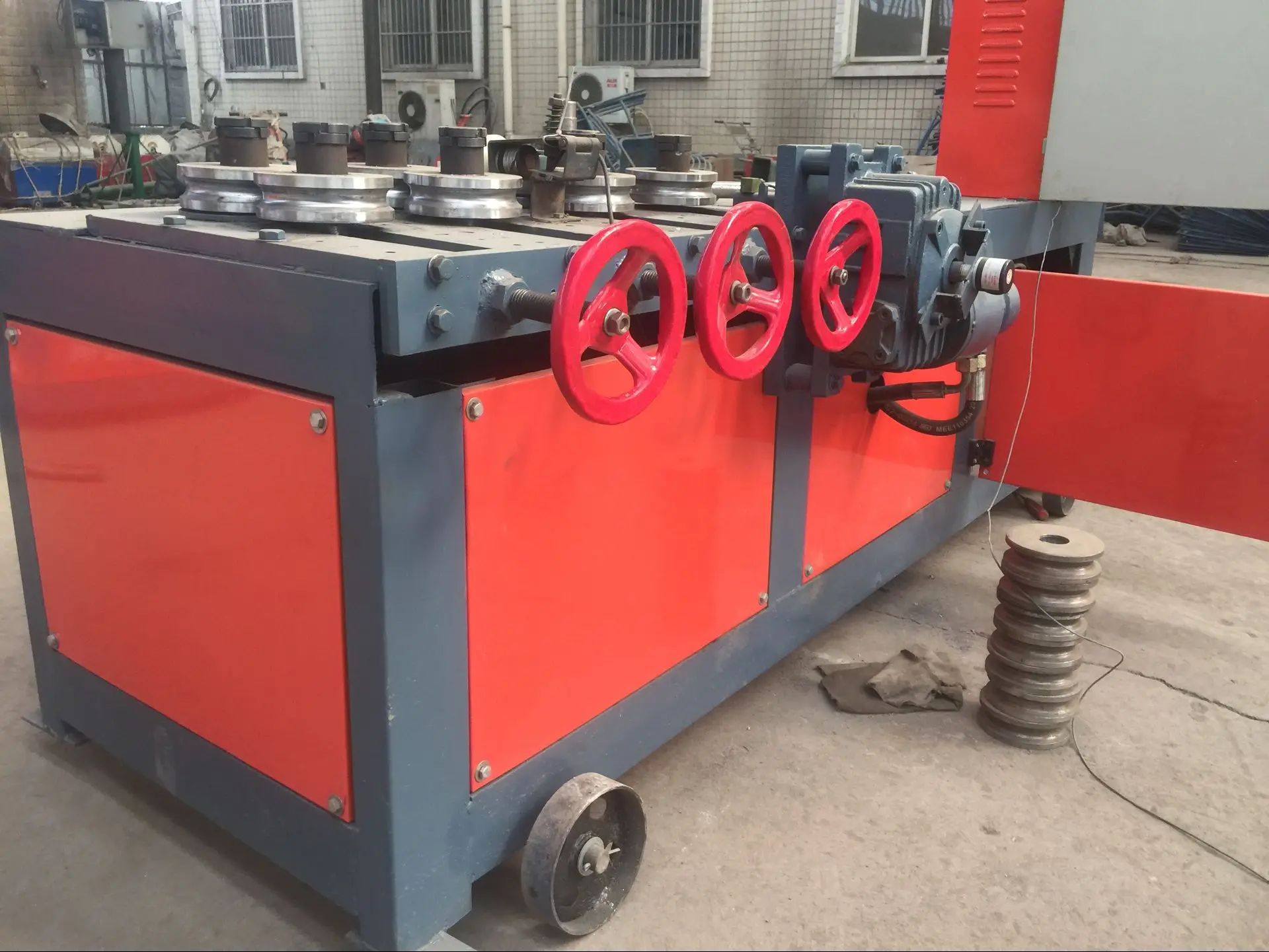

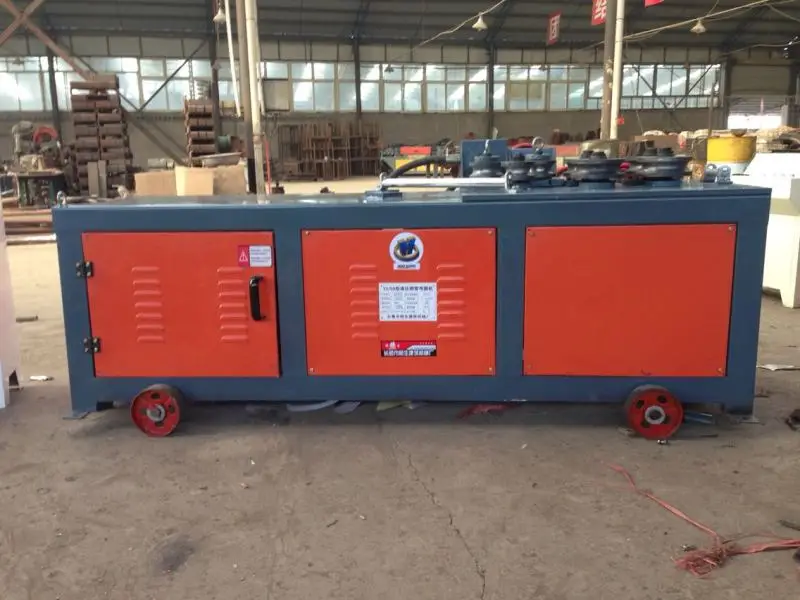

Round pipe square tube arc greenhouse frame hydraulic CNC automatic pipe bending machine
Introduction:
The automatic greenhouse bending machine consists of nine rounds, equipped with servo motor, PLC intelligent computer CNC system, computer memory function. The display operating system is touch-Chinese menu type, with a variety of different bending angles, Chinese subtitle display, you can choose manual, semi-automatic and automatic operation mode and tight stop function. Control system, drive system and display system all adopt reliable accessories, with high accuracy, high efficiency and suitable for mass production. Single travel bending tube can bend 10 angles, can bend tube, square tube, elliptical tube, double mode skeleton, a few words steel, C steel, greenhouse steel pipe skeleton bending design, walking is a turbine reducer, arc planetary reducer, the whole machine has convenient operation, stable performance, high working efficiency, high safety coefficient, a bending molding, only one manual.
Introduction:
The automatic greenhouse bending machine consists of nine rounds, equipped with servo motor, PLC intelligent computer CNC system, computer memory function. The display operating system is touch-Chinese menu type, with a variety of different bending angles, Chinese subtitle display, you can choose manual, semi-automatic and automatic operation mode and tight stop function. Control system, drive system and display system all adopt reliable accessories, with high accuracy, high efficiency and suitable for mass production. Single travel bending tube can bend 10 angles, can bend tube, square tube, elliptical tube, double mode skeleton, a few words steel, C steel, greenhouse steel pipe skeleton bending design, walking is a turbine reducer, arc planetary reducer, the whole machine has convenient operation, stable performance, high working efficiency, high safety coefficient, a bending molding, only one manual.
Specification
Name | CNC Conduit Pipe Bending Machine |
Diameter of reinforcement | 4-32mm |
Diameter | 10-60mm |
Diameter of elliptical tube | 30*80mm |
Hydraulic motor power | 3.8KW |
Walking motor | 4KW |
Walking speed | 12m/min |
External dimension | 1100*1800*1200mm |
Machine quality | 900kg |
Recommend Products
Packing & Delivery
Standard export wooden case packing for CNC Conduit Pipe Bending Machine
Certifications
Company Profile
Shandong Jiesheng Heavy Industry Machinery Co., Ltd. is a large enterprise in Jining High-tech Zone and a manufacturing enterprise in Jining. Shandong Jiesheng Heavy Industry Machinery Co., Ltd. has mainly sold various mining construction equipment to 28 provinces and cities nationwide, exported to more than 20 countries and regions, and imported equipment and equipment from Germany, Britain, France and other countries. Sheng Heavy Industry Machinery Co., Ltd. currently has 16 senior engineers, 28 technicians and 150 technicians. The company mainly produces construction machinery, road machinery, mining equipment, garden machinery and other products. All employees of Shandong Jiesheng Heavy Industry Machinery Co., Ltd. adhere to the principle of credibility is life, quality of survival, customers are the parents of clothing and food, and make new contributions to new and old customers at home and abroad. Welcome friends from all walks of life to visit, guide and negotiate business. Sales of machinery and equipment, industrial and mining equipment, auto parts, explosion-proof electrical appliances, hydraulic tools, refrigeration equipment, lifting equipment, steel, hardware, electricity, and daily necessities; import and export of goods and technologies (businesses that are restricted or prohibited by the state) except). (Projects that are subject to approval according to law can only be operated after approval by relevant departments)
Our Services & Strength
we are big group, we have 8 branchs in Shanghai and Shandong province. we are specialize in manufacturing construction machine, engineering machine. such as mortar spraynig machine, boring weld machine, we focus on offer good quality machine and service.
we are big group, we have 8 branchs in Shanghai and Shandong province. we are specialize in manufacturing construction machine, engineering machine. such as mortar spraynig machine, boring weld machine, we focus on offer good quality machine and service.
FAQ
1. who are we?
We are based in Shandong, China, start from 2017,sell to Africa(25.00%),Domestic Market(25.00%),Southeast Asia(12.00%),Eastern Europe(7.00%),North America(6.00%),South America(5.00%),South Asia(4.00%),Northern Europe(3.00%),Southern Europe(3.00%),Oceania(2.00%),Mid East(2.00%),Eastern Asia(2.00%),Western Europe(2.00%),Central America(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Construction Machinery Accessories,Engineering Machinery Accessories,Road Machinery Accessories,Construction Machinery,Engineering Machinery
4. why should you buy from us not from other suppliers?
we are big group, we have 8 branchs in Shanghai and Shandong province. we are specialize in manufacturing construction machine, engineering machine. such as mortar spraynig machine, boring weld machine, we focus on offer good quality machine and service.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Shandong, China, start from 2017,sell to Africa(25.00%),Domestic Market(25.00%),Southeast Asia(12.00%),Eastern Europe(7.00%),North America(6.00%),South America(5.00%),South Asia(4.00%),Northern Europe(3.00%),Southern Europe(3.00%),Oceania(2.00%),Mid East(2.00%),Eastern Asia(2.00%),Western Europe(2.00%),Central America(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Construction Machinery Accessories,Engineering Machinery Accessories,Road Machinery Accessories,Construction Machinery,Engineering Machinery
4. why should you buy from us not from other suppliers?
we are big group, we have 8 branchs in Shanghai and Shandong province. we are specialize in manufacturing construction machine, engineering machine. such as mortar spraynig machine, boring weld machine, we focus on offer good quality machine and service.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Contact
