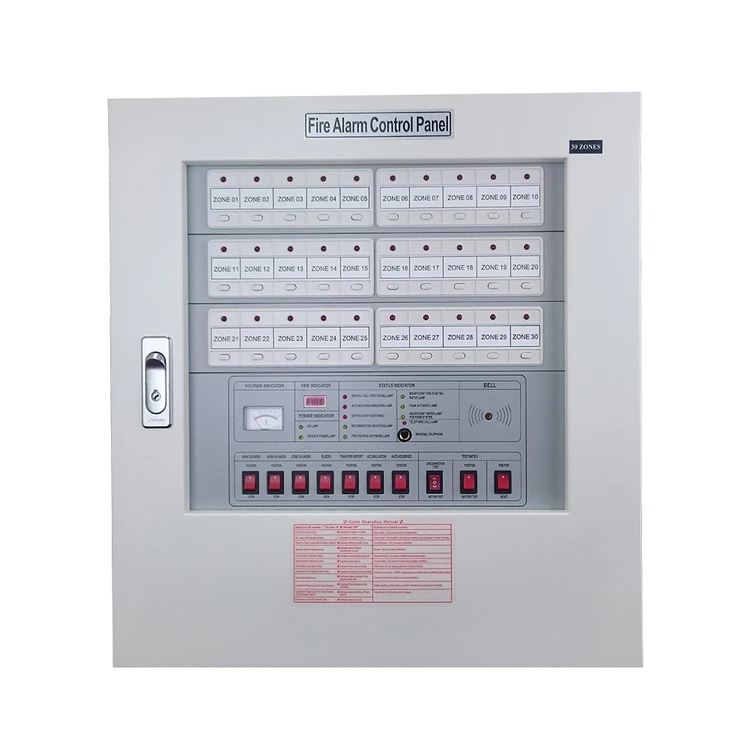

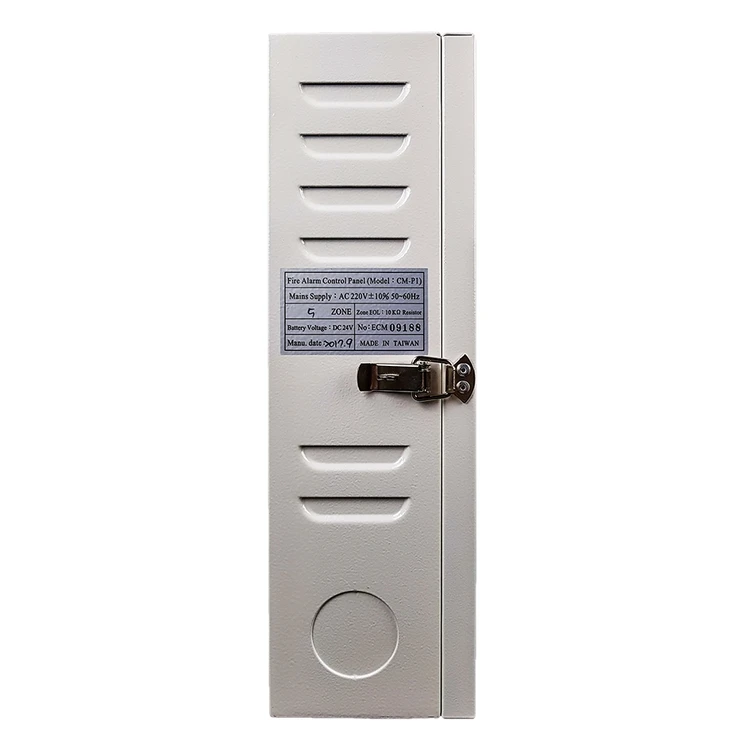

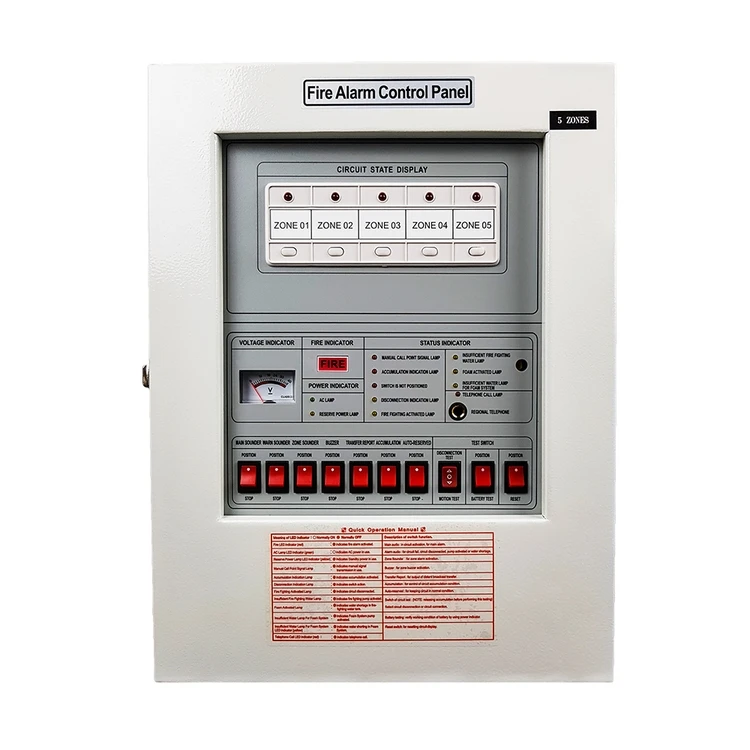

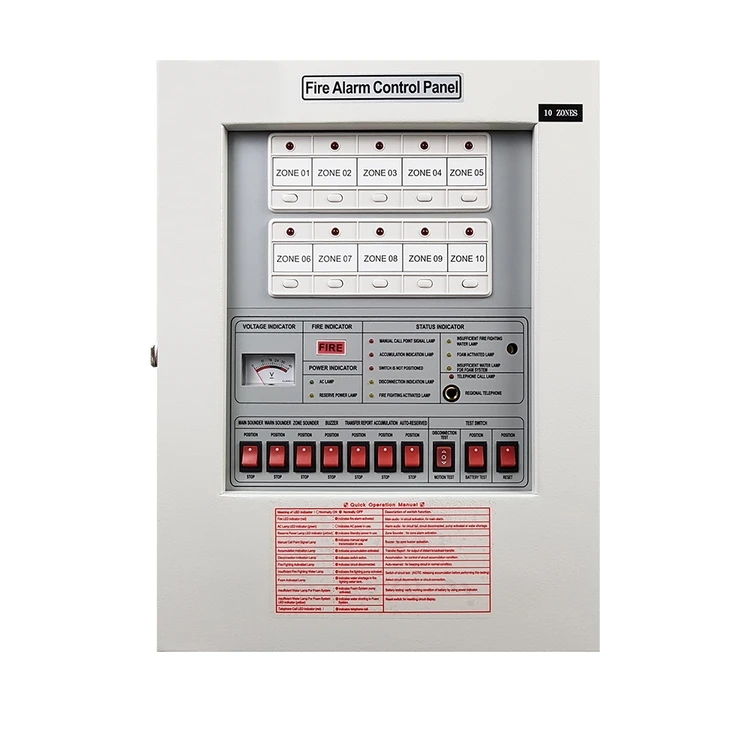

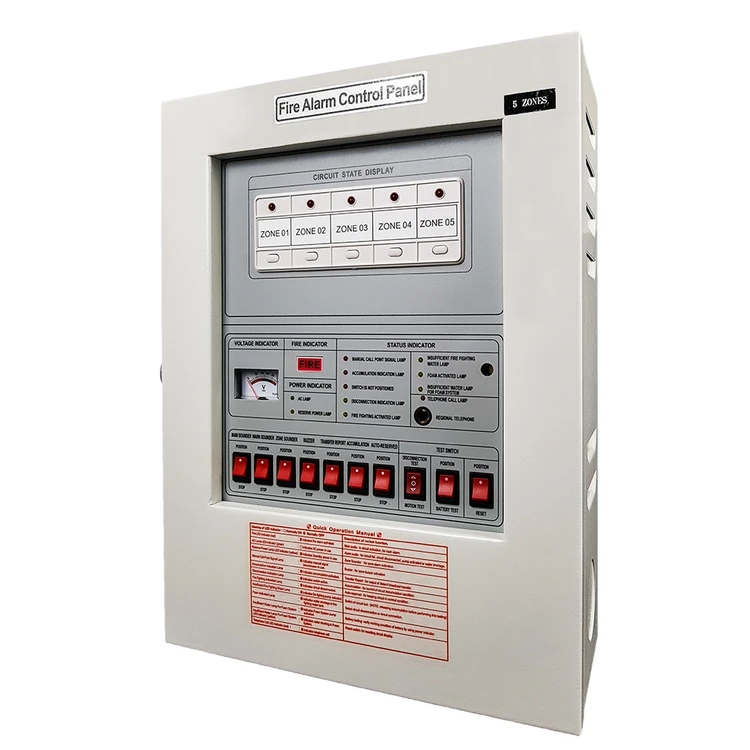

ASENWARE, обычная пожарная сигнализация, панель управления с LPCB
US $56.00-$70.00
Традиционная панель управления пожарной сигнализацией для китайских производителей предотвращения пожарных
- Категория: Fire Alarm Control Panel >>>
- Поставщик: CHUNG,MEI,FIRE,FIGHTING,SUPPLIER,CO.,LTD.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.70 $* | 0.52 $* |
| Aug-16-2025 | 0.18 $* | 0.32 $* |
| Jul-16-2025 | 0.22 $* | 0.29 $* |
| Jun-16-2025 | 0.68 $* | 0.40 $* |
| May-16-2025 | 0.81 $* | 0.7 $* |
| Apr-16-2025 | 0.58 $* | 0.20 $* |
| Mar-16-2025 | 0.35 $* | 0.35 $* |
| Feb-16-2025 | 0.84 $* | 0.3 $* |
| Jan-16-2025 | 0.0 $* | 0.82 $* |
Характеристики
Feature Of Product
Wall Mounting Type Fire Alarm Control Panel:
1.Zone range: 5 to 100 zones2.2 stages accumulation function to prevent false alarm from detectors
3.With no voltage output contacts and voltage contacts
4.The unit also can combine with CM broadcast host and emergency telephone into 3-in-1 system for multipurpose
Specification
1. Power Supply: 230V AC 50/60 Hz
2. Standby Battery: 24V DC / Lead-Acid (Non-Spillable) Battery
3. EOL Resistor: 10KΩ
4. External Circuit Resistance: To-And -Fro Below 50 Ω
5. No. Of Bells: 1.2 Times Of Panel Circuits
6. Main Audio: Single-Tone Buzzer, Above 85 dB
7. Material: Steel Plate With Powder Coating
8. Current Voltage: 26V DC, Under 450Ma, Trickle Charge
9. No. Of Indicators: 1.2 Times Of Panels Circuits (Led Indicator)
2. Standby Battery: 24V DC / Lead-Acid (Non-Spillable) Battery
3. EOL Resistor: 10KΩ
4. External Circuit Resistance: To-And -Fro Below 50 Ω
5. No. Of Bells: 1.2 Times Of Panel Circuits
6. Main Audio: Single-Tone Buzzer, Above 85 dB
7. Material: Steel Plate With Powder Coating
8. Current Voltage: 26V DC, Under 450Ma, Trickle Charge
9. No. Of Indicators: 1.2 Times Of Panels Circuits (Led Indicator)
10.Report Contact:No Voltage N.O. Contact Capacity 250V AC 7A × 2 Sets
11.Other Specifications:5L/10L/15L/20L/25L/30L/35L
11.Other Specifications:5L/10L/15L/20L/25L/30L/35L
ORDER INFORMATION
CM-P1 | FACP with battery | |
OPTION MODEL NO. | SPARE MODEL NO. | |
-T | Optional Telephone 1 set |
|
-A | Optional no voltage contacts (5 zones as 1 unit) | YFP-T4 (5 zones as 1 unit) |
-B | Optional voltage contacts (5 zones as 1 unit) | YFP-T3 (5 zones as 1 unit) |
-C | Optional annunciator out put (It needs to be order when it's connected to Annunciator Panel; 5 zone as 1 unit) | YFP-T8(A) (5 zones as 1 unit) |
YFP-T8(B) (10 zones as 1 unit) | ||
-D | Optional ZONE BELL (5 zones as 1 unit) | YFP-T3 (5 zones as 1 unit) |
YFP-D1 (5 zones as 1 unit) | ||
* Max. 100L
EXTERNAL DIMENSIONS
MODEL | WALL MOUNTING TYPE | |||||
CIRCUIT NO. | 5L - 10L | 15L | 20L | 25L - 30L | 35L - 40L | 45L - 50L |
H (MM) | 400 | 495 | 580 | 520 | 580 | 700 |
W (MM) | 300 | 300 | 300 | 480 | 480 | 480 |
D (MM) | 120 | 120 | 120 | 180 | 180 | 180 |
