Электрическая трубка штарки ролика двигателя
US $71.64-$164.18
Пульт дистанционного управления GSM реле вызова SMS переключатель водяного насоса двигатель бытовая техника управление
- Категория: Automatic Door Operators >>>
- Поставщик: Chisung,Intelligence,Technology,(Shenzhen),Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.26 $* | 0.46 $* |
| Aug-17-2025 | 0.34 $* | 0.69 $* |
| Jul-17-2025 | 0.43 $* | 0.5 $* |
| Jun-17-2025 | 0.78 $* | 0.31 $* |
| May-17-2025 | 0.67 $* | 0.19 $* |
| Apr-17-2025 | 0.77 $* | 0.90 $* |
| Mar-17-2025 | 0.28 $* | 0.84 $* |
| Feb-17-2025 | 0.27 $* | 0.52 $* |
| Jan-17-2025 | 0.89 $* | 0.72 $* |
Характеристики
Specification
Parameter item | Reference scope | Parameter item | Reference scope |
GSM/4G Frequency | GSM:850/900/1800/1900Hz 4G LTE | Storage temperature | -20℃～+60℃ |
DC Power Supply | 9-30V DC/1A/1.5A/2A | Relay Type | NO/NC |
Power consumption | Max. 55mA/Average 25mA | Relay Time | Max. 0s - 9.5s |
SIM Card | Nano type, 3V | Operating Temp | - 10℃ ～ + 60℃ |
Antenna | 50 Ω SMA | Relative Humidity | 10％ ～ 90％RH |
Relay Specification | 3A/250V AC | 20A/14V DC | Dimension | 96.5×72×59mm |
Users | 200 | Net Weight | 188g |

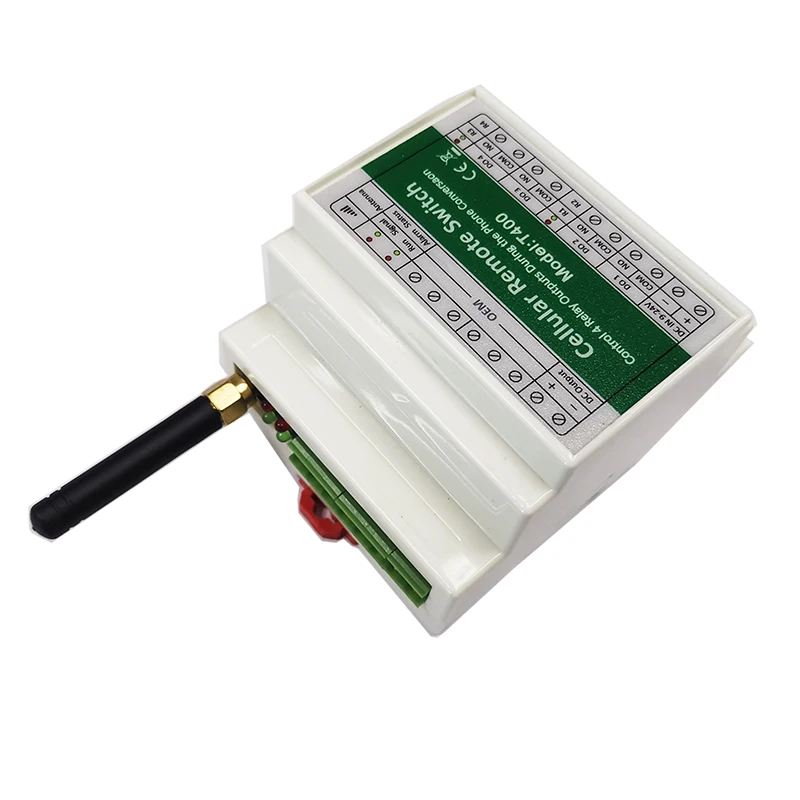

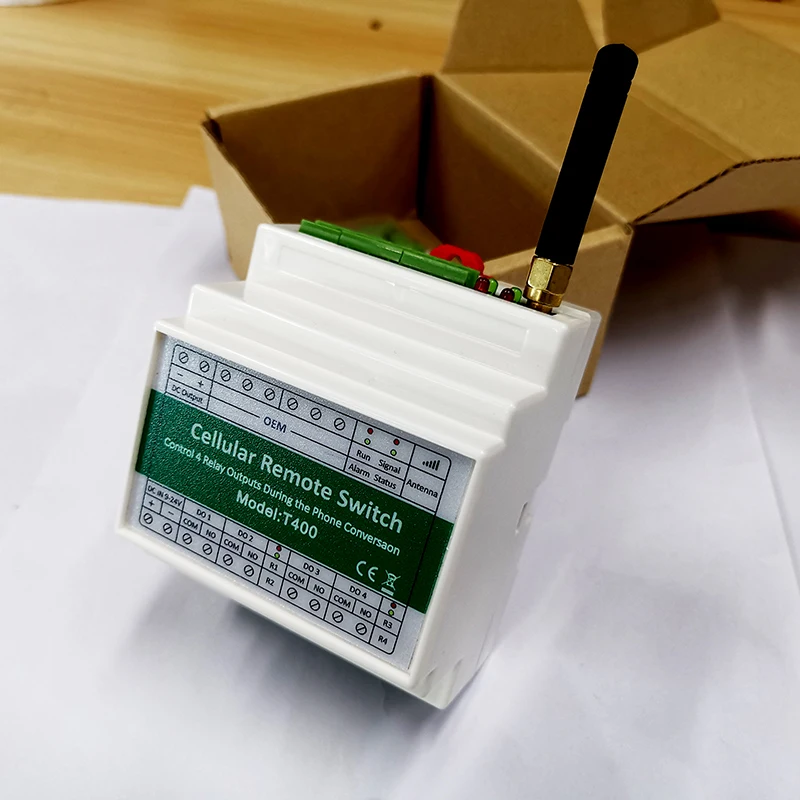

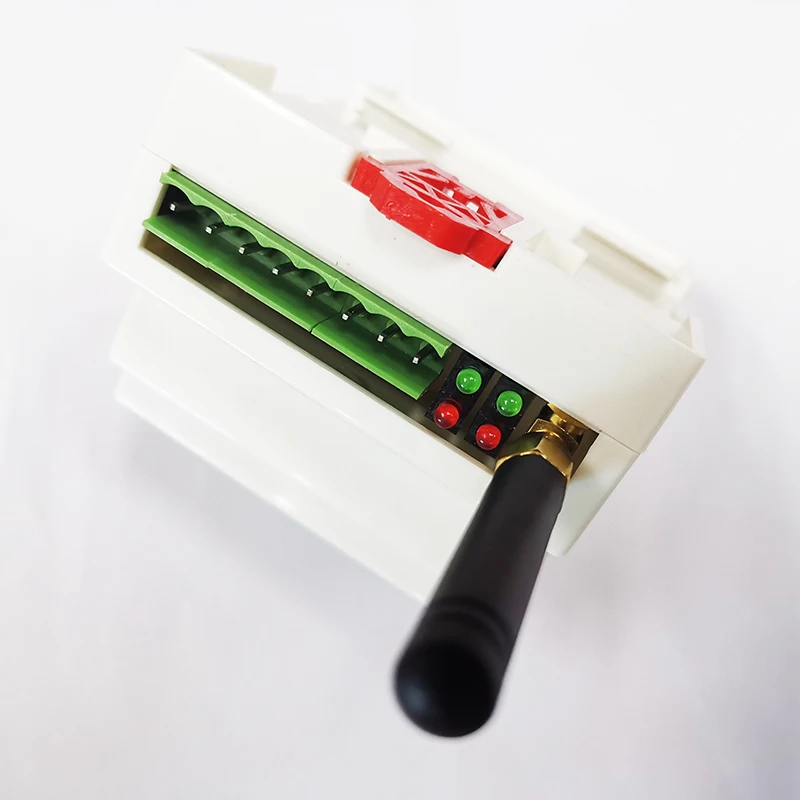

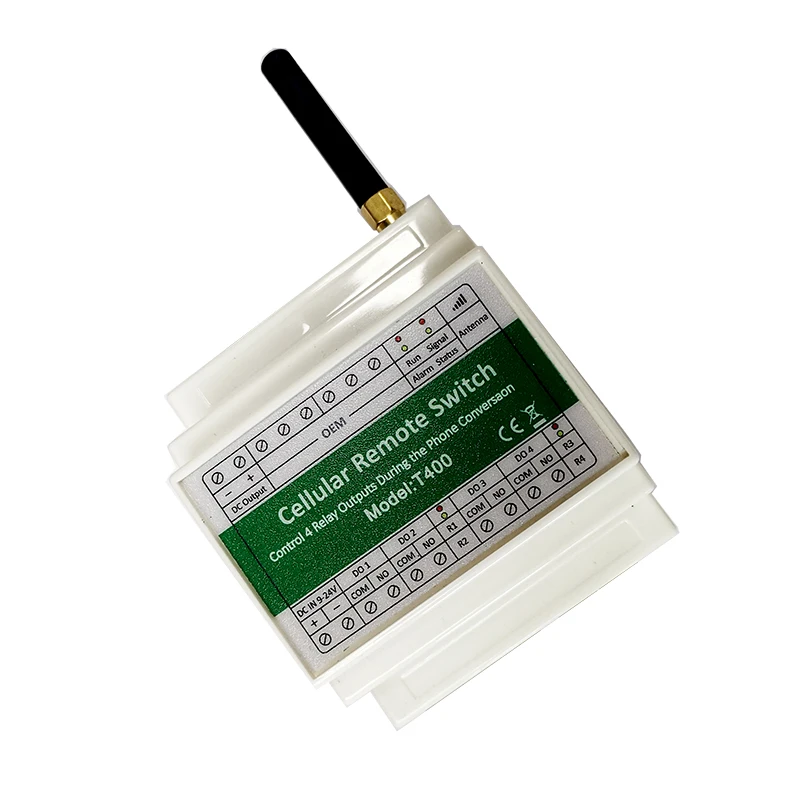

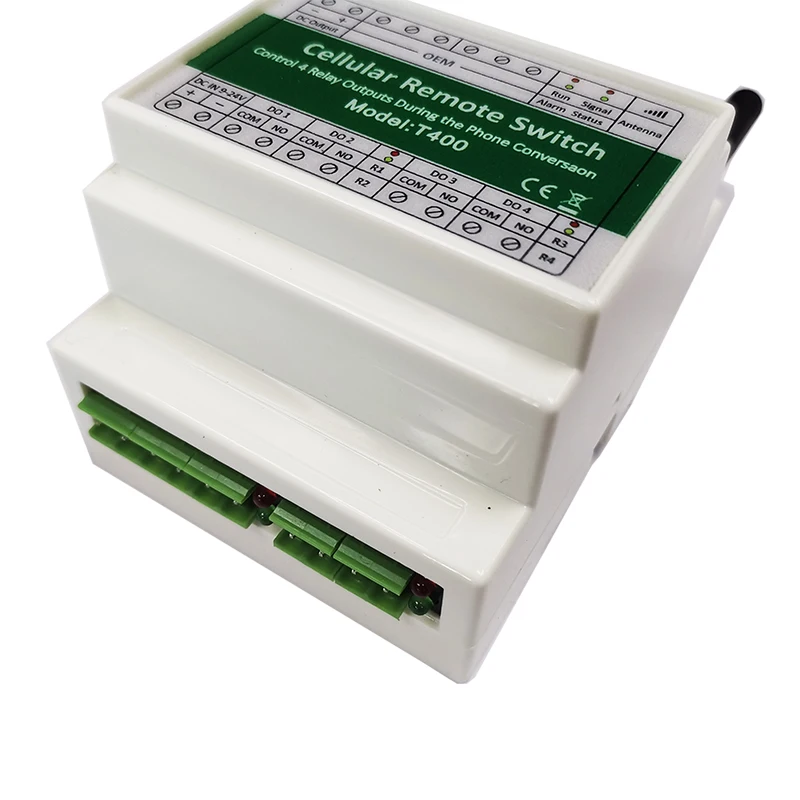

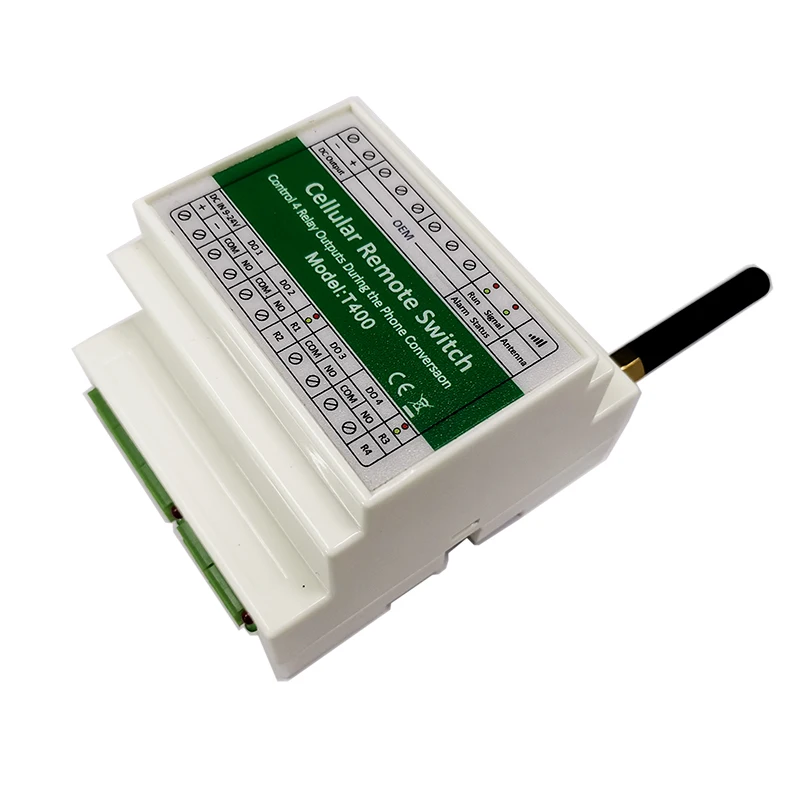

Product Display
Product Description
1.Brief introduction
The T400 is a very simple device which can be used for authorized door access, controlling gates, switching of remote equipment,car parking systems. When we dial to T400,T400 auto answer it ,we can control T400 though the keys on the mobile phone.
2.Packing List
Control Unit X1, GSM ANT X1
3.Physical Layout
3.1 Control Unit physical layout
Interface Instruction | ||
Run | Flash per 1 second: Connected the cellular network successfully. OFF: Unable to connect to SIM card or unregistered to the cellular network. | |
Signal | Flash per 1 second (quickly): registering to cellular network. Flash per 2 seconds: Normal status. OFF: Unable to connect to SIM card or unregistered to the cellular network | |
Alarm | Reserve | |
Status | Reserve | |
Antenna | Connect to GSM/4G antenna | |
R1 | Relay1 Status, ON:close;OFF:open | |
R2 | Relay2 Status, ON:close;OFF:open | |
R3 | Relay3 Status, ON:close;OFF:open | |
R4 | Relay4 Status, ON:close;OFF:open | |
DC OUT | + | Power supply output(+):output voltage = Power supply input, Output Current:<=1A | ||
- | Power supply output(-):output voltage = Power supply input, Output Current:<=1A | |||
DC IN 9-24DC | + | Power supply input, Positive wire. | ||
- | Power supply input, Negative wire. | |||
DO1 | Com1 | Relay 1 common port | ||
No | Relay 1 normally Open port | |||
DO2 | Com2 | Relay 2 common port | ||
No | Relay 2 normally Open port | |||
DO3 | Com3 | Relay 3 common port | ||
No | Relay 3 normally Open port | |||
DO4 | Com4 | Relay 4 common port | ||
No | Relay 4 normally Open port | |||
4. Features
1.We can control 4 relays by the keys on the mobile phone during the phone conversation
2.Remember relays status when power failure
3.Automatically report current status by SMS to the 1 st number
4.Multiple applications. (gates, bollards, barriers, garage doors, shutters and access doors or machines).
5.Secure - Using caller ID for identification, unknown callers are ignored.
6.Can be operated from anywhere, no distance limit.
7.Add or remove users by SMS Text command.
8.The relay close time is programmable.
9.Up to 200 authorized phone numbers can be configured.
10.Four outputs with relay （3A/240VAC）for connecting the switch of the door or machines.
11.The relay action will return a SMS confirmation to the owner, this function is editable by user.
12.Easy to install(Industrial guide rail:35mm)
13.Based on GSM /4G Network, applied to many applications.
2.Remember relays status when power failure
3.Automatically report current status by SMS to the 1 st number
4.Multiple applications. (gates, bollards, barriers, garage doors, shutters and access doors or machines).
5.Secure - Using caller ID for identification, unknown callers are ignored.
6.Can be operated from anywhere, no distance limit.
7.Add or remove users by SMS Text command.
8.The relay close time is programmable.
9.Up to 200 authorized phone numbers can be configured.
10.Four outputs with relay （3A/240VAC）for connecting the switch of the door or machines.
11.The relay action will return a SMS confirmation to the owner, this function is editable by user.
12.Easy to install(Industrial guide rail:35mm)
13.Based on GSM /4G Network, applied to many applications.
5. Control principle
1)Set Authorized number by SMS
2)Dail to T400,T400 will auto answer it
3)Turn on the phone's keyboard，we can control it through the keys,We'd better turn on the hands free function ,if the relay works ,we can hear the voice prompt to check whether we control the relay successfully or not
The keyboard operation mode is as follows:
2)Dail to T400,T400 will auto answer it
3)Turn on the phone's keyboard，we can control it through the keys,We'd better turn on the hands free function ,if the relay works ,we can hear the voice prompt to check whether we control the relay successfully or not
The keyboard operation mode is as follows:
Command | Description | voice prompt |
1# | Relay1 close | AAON |
2# | Relay2 close | BBON |
3# | Relay3 close | CCON |
4# | Relay4 close | DDDDON |
1* | Relay1 open | AAOFF |
2* | Relay2 open | BBOFF |
3* | Relay3 open | CCOFF |
4* | Relay4 open | DDDDOFF |
0# | Relay 1、2、3、4 close | ALLON |
0* | Relay 1、2、3、4 open | ALLOFF |
9# | Inquire the status of all the relays |
Notice:
It is best to complete the operation in 50 seconds,If more than 50 seconds, the device will hang up automatically,if you want to control it again,please dial it again.
6. Settings (SMS Commands)
Notice:
1.The default password is 1234 .
2.All the settings are through SMS commands, please edit the below SMS commands in your cell phone, then send to the T400 Unit. The unit cannot support PIN Code Protected SIM Card.
3.Remember that commands must be CAPITAL Lock LETTERS . Don't add spaces or any other character.
4.The pwd in the commands means the password, when you use it, please in stand of it by the digital number; the capital letters PWD is the command letter, use PWD directly.
5.If you use the T400 Unit for gate open, you only need to change the password and set the authorized numbers
6.For some GSM operators, they use different SMS parameter, the units cannot return the SMS confirmation. It is not product problem. you can try to add the country code before the number, see the below settings:
1.The default password is 1234 .
2.All the settings are through SMS commands, please edit the below SMS commands in your cell phone, then send to the T400 Unit. The unit cannot support PIN Code Protected SIM Card.
3.Remember that commands must be CAPITAL Lock LETTERS . Don't add spaces or any other character.
4.The pwd in the commands means the password, when you use it, please in stand of it by the digital number; the capital letters PWD is the command letter, use PWD directly.
5.If you use the T400 Unit for gate open, you only need to change the password and set the authorized numbers
6.For some GSM operators, they use different SMS parameter, the units cannot return the SMS confirmation. It is not product problem. you can try to add the country code before the number, see the below settings:
7.Please write down the Authorized number list in a paper for review it in the future.
8.If you want to reset the T400 to factory default, then please send pwd#RESET# （The unit will reply a message with Reset Success! Please Reboot your Device ) or When the T400 works normally, you can press and hold the RESET button（Open the unit,you will see it） for several seconds until the Run Led is always ON, and then after 5 seconds ,it will reset the T400 to factory default and reboot automatically at once.
9.If the command is incorrect, the T400 will return: Command error, please resend command . Please check the command, or check the input is in ENGLISH INPUT METHOD and CAPS LOCK.
10.The SMS commands that you will certainly use in the T400 are the following instruction:
8.If you want to reset the T400 to factory default, then please send pwd#RESET# （The unit will reply a message with Reset Success! Please Reboot your Device ) or When the T400 works normally, you can press and hold the RESET button（Open the unit,you will see it） for several seconds until the Run Led is always ON, and then after 5 seconds ,it will reset the T400 to factory default and reboot automatically at once.
9.If the command is incorrect, the T400 will return: Command error, please resend command . Please check the command, or check the input is in ENGLISH INPUT METHOD and CAPS LOCK.
10.The SMS commands that you will certainly use in the T400 are the following instruction:
7.Installation
Before installing the control unit, please test the system firstly, including power supply, GSM signal, etc.
7.1 Insert SIM card into Control unit
Step 1 : Open the device with a tool like the picture below.
Step 2 : Find the SIM card holder on the PCB board.
Step 3 : Use your finger to push the SIM card cover, and insert the SIM card..
Step 4 : Close the device case as the below picture shows.
Step 1 : Open the device with a tool like the picture below.
Step 2 : Find the SIM card holder on the PCB board.
Step 3 : Use your finger to push the SIM card cover, and insert the SIM card..
Step 4 : Close the device case as the below picture shows.
7.2 Connecting the Electronic Lock or Electric equipment
