Пылесборник с длинным мешком и импульсным низкого
- Категория: >>>
- Поставщик: Wuhan,Clear,Solenoid,Pulse,Valve,Science,&,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.36 $* | 0.30 $* |
| Aug-16-2025 | 0.46 $* | 0.61 $* |
| Jul-16-2025 | 0.97 $* | 0.10 $* |
| Jun-16-2025 | 0.59 $* | 0.43 $* |
| May-16-2025 | 0.10 $* | 0.96 $* |
| Apr-16-2025 | 0.76 $* | 0.94 $* |
| Mar-16-2025 | 0.38 $* | 0.12 $* |
| Feb-16-2025 | 0.53 $* | 0.55 $* |
| Jan-16-2025 | 0.73 $* | 0.89 $* |
Характеристики
Specification
item | value |
Applicable Industries | Manufacturing Plant, Machinery Repair Shops, Other, metallurgy, cement, chemicals |
After Warranty Service | Video technical support, Online support, Field maintenance and repair service |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | New Product 2020 |
Warranty of core components | 2Year |
Core Components | PLC, Motor, bag, solenoid vavle |
Condition | New |
Weight | Depends on case |
Warranty | 2 Year |
After-sales Service Provided | Online support |
Name | DMKY Bag Dust Filter |
Model | DMKY500-- DMKY20000 |
Treatment air volume | 20000m3/h--1000000m3/h |
Filtration wind speed | 0.8m/min |
Materials | Carbon Steel |
Medium | Dusty Gas |
Temperature | Normal Temperature |
Supply Capacity | 20000 m2 per month |
Details Images

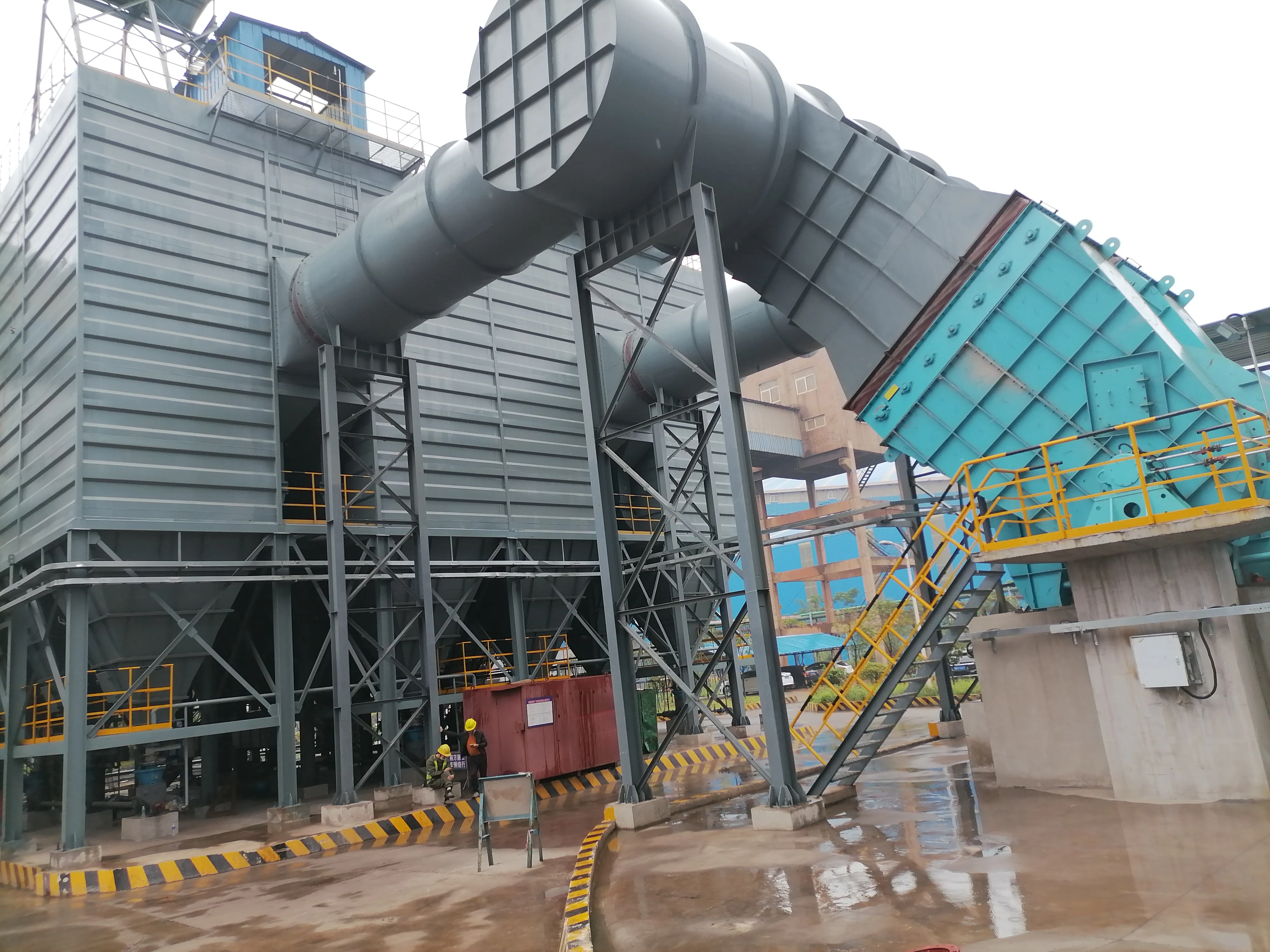

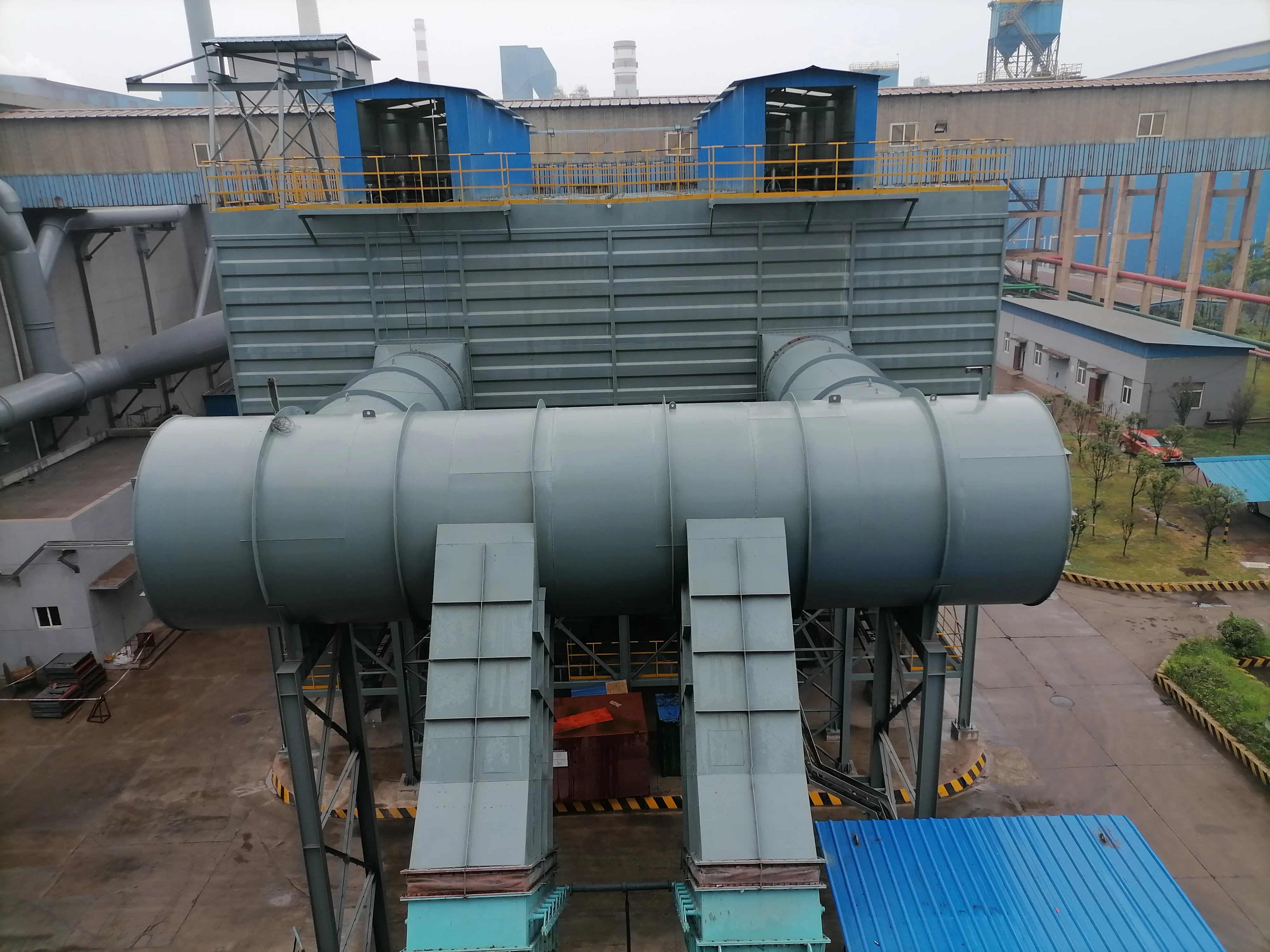

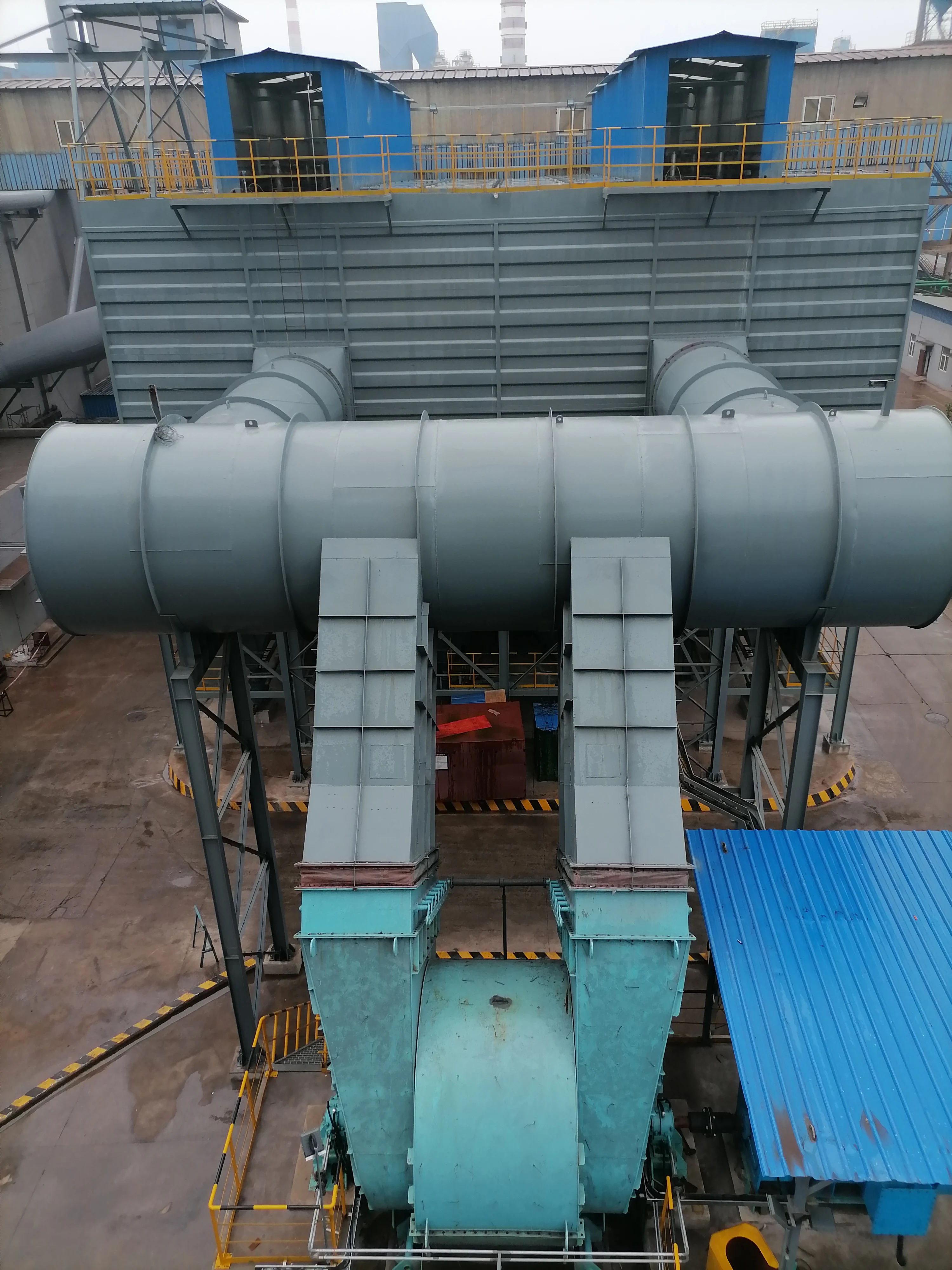

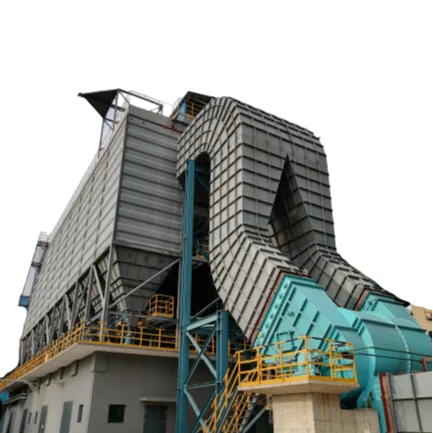

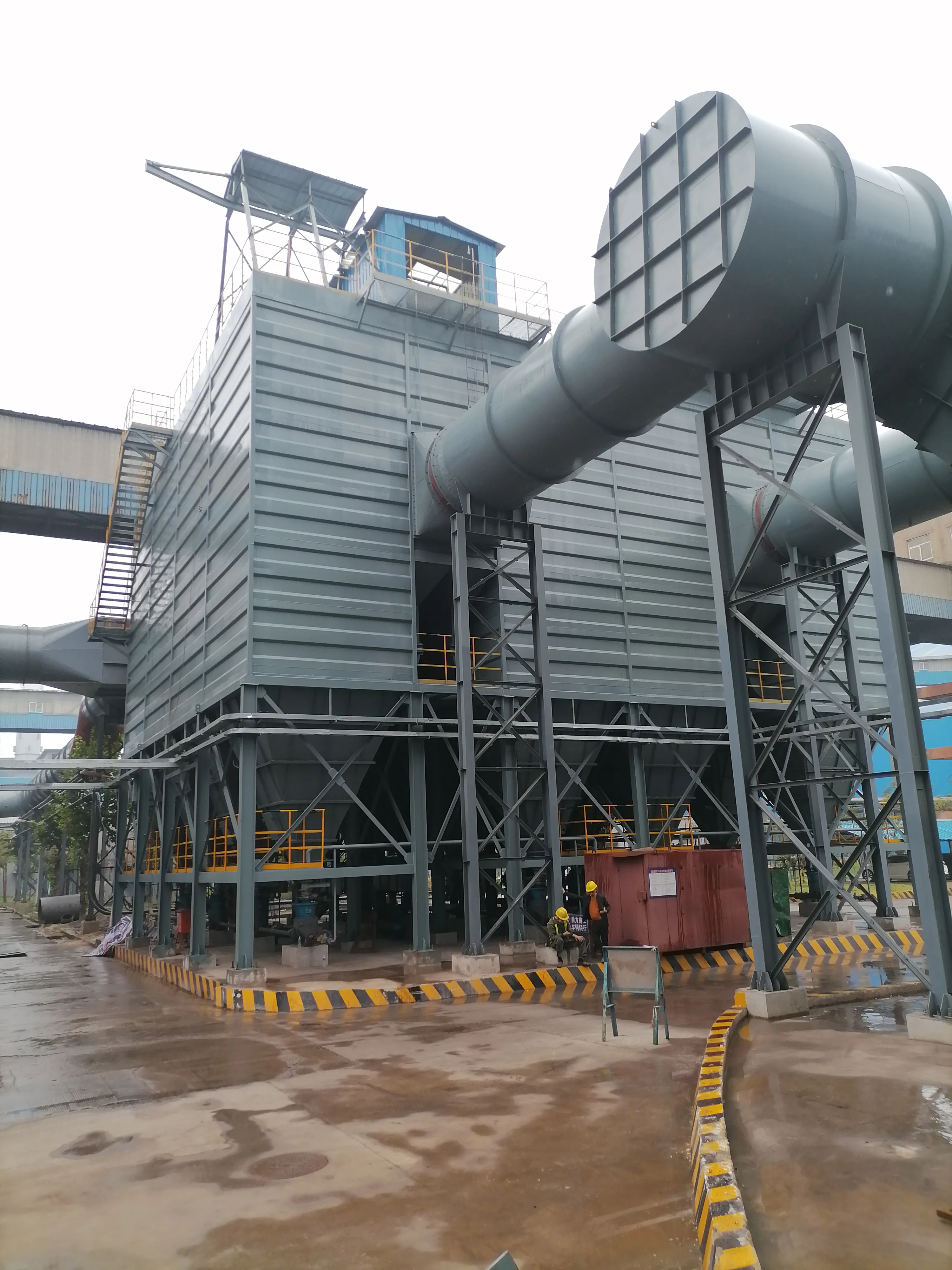

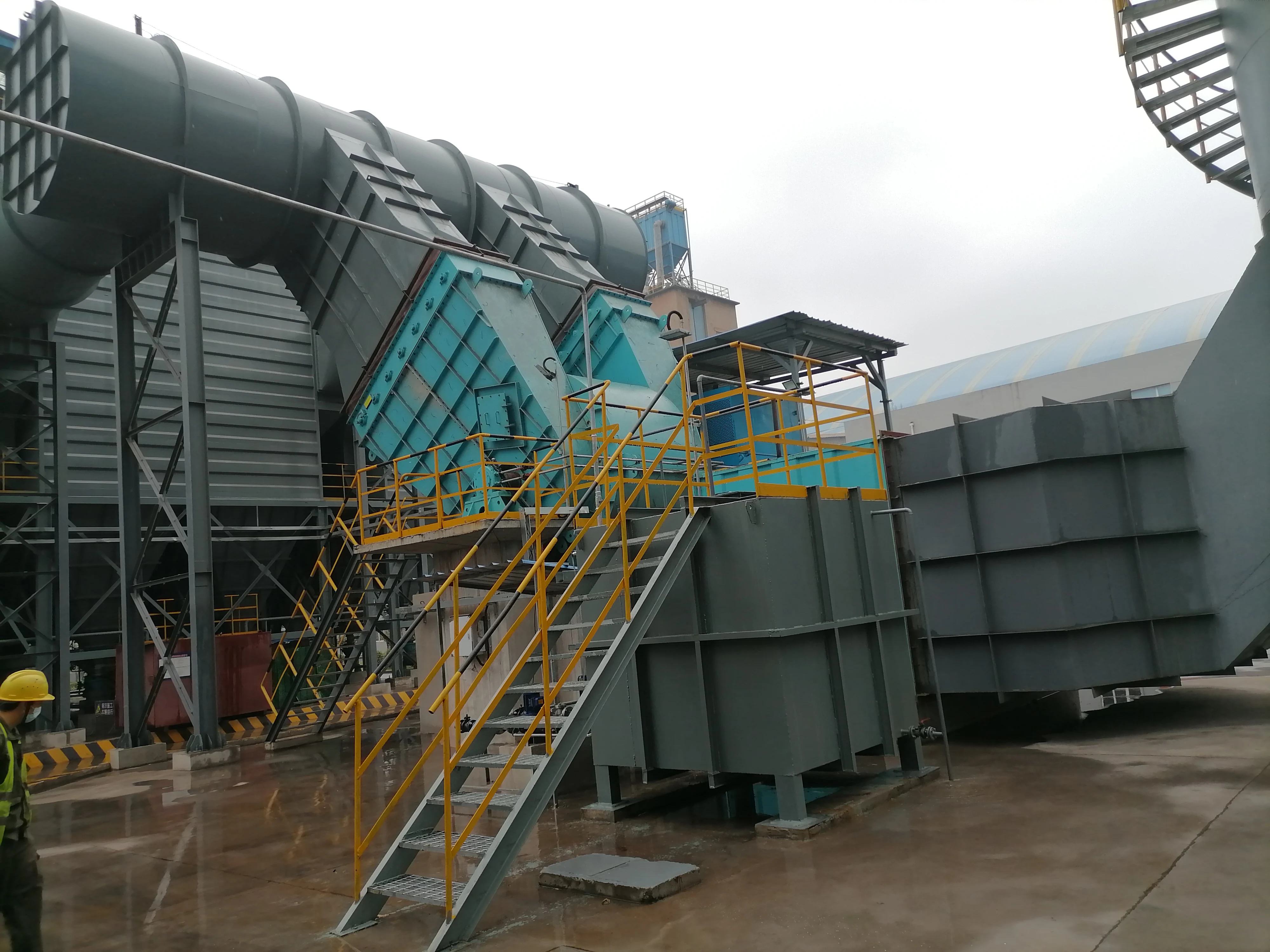

The Long-bag Low-pressure Pulse Bag Dust Filter is a large-scale high-efficiency dust filter with advanced technology, which has the characteristics of large capacity, good dust removal effect, high dust removal efficiency, reliable operation, convenient maintenance and small floor area. The dust filterr has excellent performance and can be used for air purification and material recovery in metallurgy, electric power, building materials, mining, cement, chemical industry, carbon black, asphalt concrete mixing, boiler and other industries. It is mainly composed of truss, ash hopper, middle box, upper box, air blowing device, ladder, air inlet, air outlet and PLC control system.
Products Description
The top of the upper box is designed with slope, the edge of the sealing cover is higher than the top surface of the upper box ≥60mm, and the sealing material is 1613 soft rubber to prevent water accumulation. The upper cabinet of dust collector is assembled as a whole in the equipment manufacturing plant, and the box is assembled on the platform. Reasonable welding process is adopted to reduce welding deformation, so that the flatness of the bottom surface of the upper box is less than 1 mm/m.
The spray pipe adopts a quick joint device, and the bolt is used to position it well after the assembly in the plant meets the requirements. The nozzle and ejector are of pulse injection structure, which is made of top pressure flanging to meet the requirements of long bag low-pressure pulse ash cleaning. The energy consumption of ash cleaning is saved. The injection device is polished smoothly to ensure high jet energy. The hole diameter deviation is less than 0.05mm, and there is no deformation. Good flatness, self-locking sealing device is adopted at the bag mouth to ensure no leakage and convenient assembly and disassembly. The frame of filter bag is made by multi-point welding production line controlled by microcomputer. There is no burr, welding scar, missing welding and other phenomena on the surface of the filter bag (the desoldering of cage bone is about 1/10000), which provides a guarantee for extending the service life of the filter bag. In order to replace the filter bag conveniently, the filter bag is equipped with spring expansion ring clasp.
Company Profile
Wuhan clear Solenoid Pulse Valve Science &Technology Co., Ltd. is a high-tech enterprise for research & development and production of various solenoid pulse valve, integrating processing and sales of accessories of environment- protection dedusting equipments.The office and industry base are located at Miaoshan economic development zone, Jiangxia District, Wuhan City. With favorable geographical condition that Wuhan is the thoroughfare connecting nine provinces, there are convenient transportation and great market penetration capacity.
The Company has been taking the quality of products as the fundamentality for serving market since its establishment. The solenoid pulse valves researched, developed and produced by the Company with the advantages such as low removal energy consumption, low investment, long service life of diaphragm, stable & reliable operation, etc. have obtained the national patent and national key &new products, and many other awards with performance of products comparable to similar domestic & foreign products. They are now widely used in iron and steel, smelting of building materials, chemicals, power and other industries.
"One must have good tools in order to do a good job." With pulse valve production line workshops as well as professional engineering design and manufacturing & installation teams, the Company is able to provide customers with high-quality products and after-sales service. In recent years, based on the existing technology, the Company has constantly increased financial & human investment and introduced new technologies & equipments with research and development of various new products; meanwhile, it successfully cooperates with many domestic design institutes, iron & steel enterprises and large dedusting equipment manufacturers with unanimous praise from customers.
Customers' satisfaction is our constant pursuit! We are willing to establish long-term friendly cooperation relationship with customers! Adhering to the business philosophy of "quality first, honesty first", we will make every endeavor to provide high-quality products and services to our customers!
Packing & Delivery
FAQ
Q1: Wonder if you accept small orders?
A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.
Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q3: Can you do OEM for me?
A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
Q4: What's your payment terms ?
A4: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment.
Q5: How long is your production lead time?
A5:It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.
Q6: When can I get the quotation ?
A6: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.
Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q3: Can you do OEM for me?
A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
Q4: What's your payment terms ?
A4: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment.
Q5: How long is your production lead time?
A5:It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.
Q6: When can I get the quotation ?
A6: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
