Заводская поставка алюминиевый сплав соленоидный импульсный клапан

Заводская поставка алюминиевый сплав соленоидный импульсный клапан

Категория: Gate Valves >>>
Поставщик: Wuhan,Clear,Solenoid,Pulse,Valve,Science,&,Technology,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.41 $*	0.87 $*
Aug-16-2025	0.77 $*	0.45 $*
Jul-16-2025	0.67 $*	0.60 $*
Jun-16-2025	0.33 $*	0.86 $*
May-16-2025	0.50 $*	0.73 $*
Apr-16-2025	0.43 $*	0.74 $*
Mar-16-2025	0.69 $*	0.39 $*
Feb-16-2025	0.85 $*	0.5 $*
Jan-16-2025	0.64 $*	0.36 $*

Характеристики

Specification

item	value
Name	DMKY Solenoid Pulse Valve
Warranty	3year
Type	SOLENOID VALVES
Customized support	OEM
Place of Origin	Hubei，China
Application	bag filiter
Temperature of Media	Normal Temperature
Power	Solenoid
Media	Compressed air or nitrogen
Structure	Plug
Model	DMKY2
Port Size	89mm
Working pressure	Low Pressure 0.15-0.35MPa
Materials	stainless steel
Temperature	Normal Temperature
Supply Capacity	1000 pcses per month
MOQ	1 Pcs
Packing	Carton packing

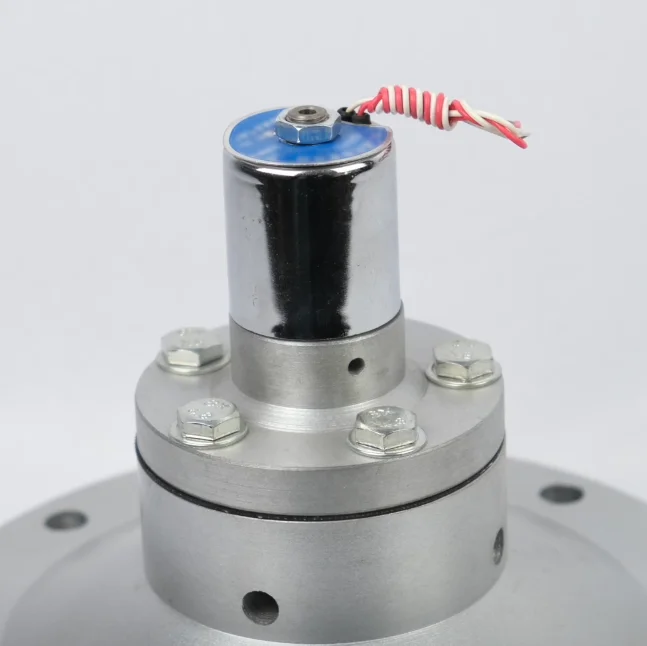

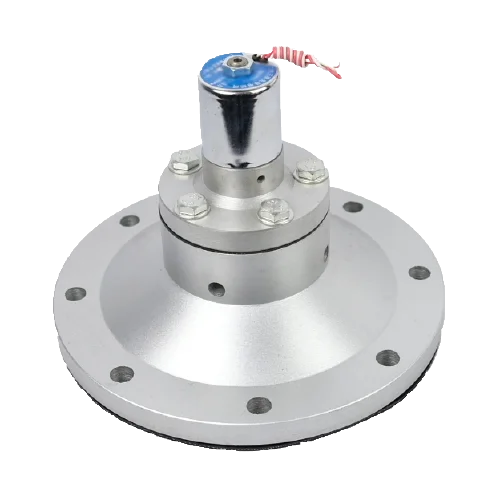

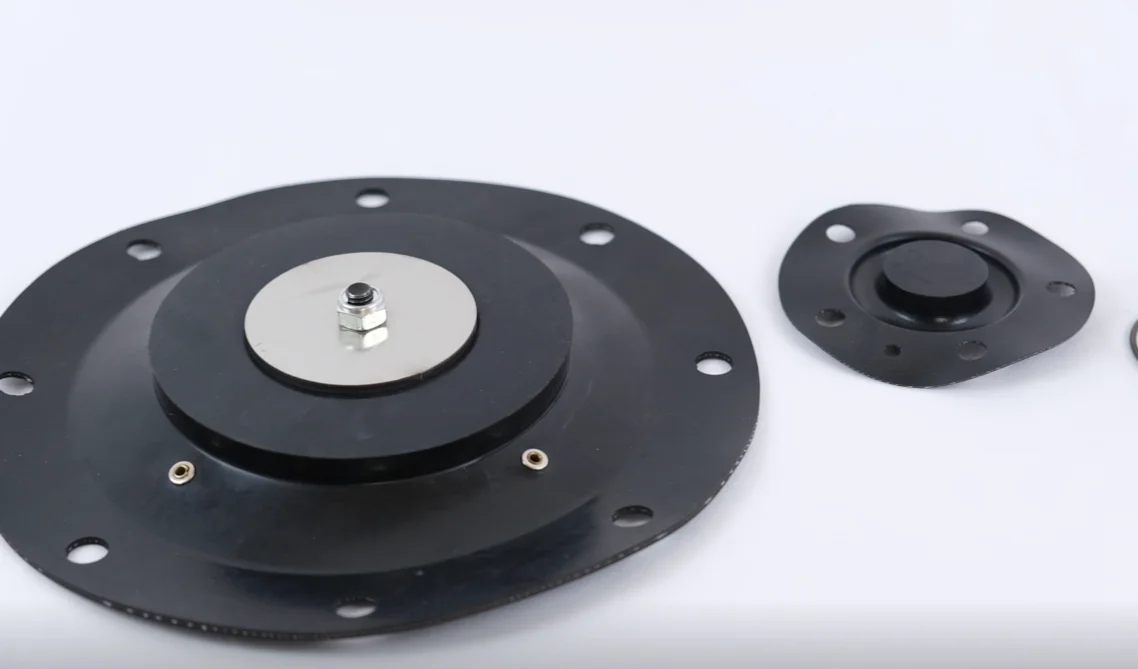

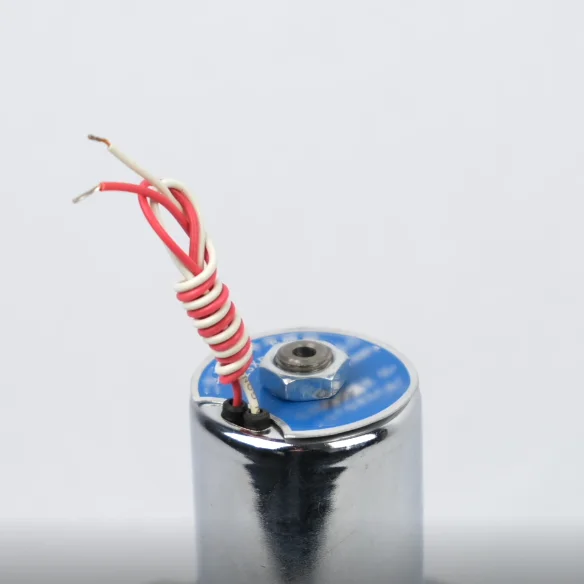

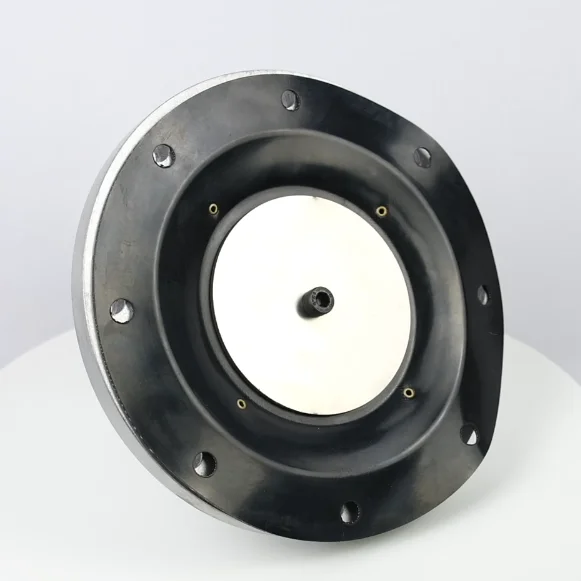

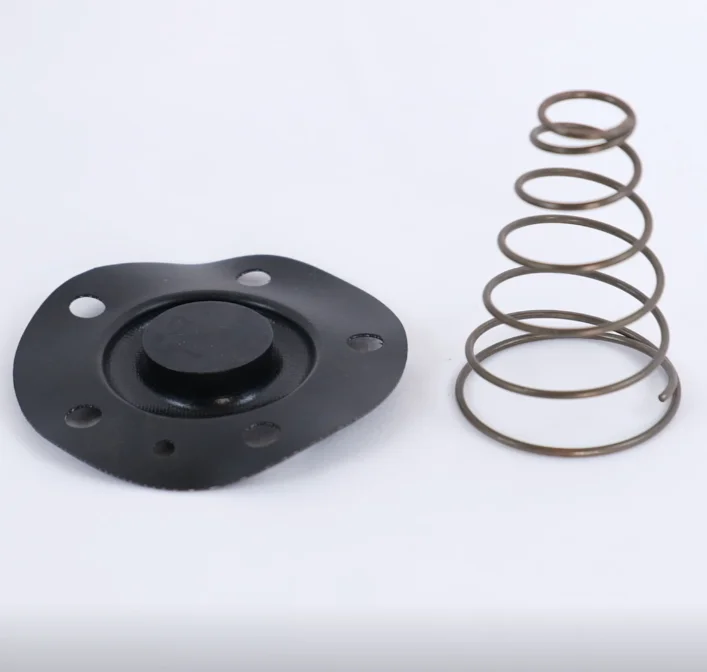

Details Images

Products Description

Solenoid Pulse Valve is a double diaphragm fast pulse valve used in pulse bag dust removal equipment under low pressure air source pressure. Under the control of the output signal of the pulse injection controller, the filter bag is sprayed row by row to clean the dust to keep the resistance of the dust collector within the set range to ensure the processing capacity and dust collection efficiency of the dust collector.

The air inlet of the DMKY electromagnetic pulse valve is directly installed on the air bag, so it is called a submerged pulse valve. Its remarkable characteristics are: low gas resistance in the pipe, can be applied to low-pressure gas source, low energy
consumption for cleaning, strong explosive force, good cleaning effect, stable operation, compared with high-pressure valve, can reduce energy consumption and extend the use of diaphragm life.

Working principle

The solenoid valve receives the signal of the control instrument, opens the piston rod, the gas in chamber A is discharged into the atmosphere through the exhaust hole, the pressure in chamber A drops, the small diaphragm moves up, and the chamber B is
opened, and the gas in chamber B passes through the exhaust hole When the pressure in chamber B drops, the large diaphragm moves upwards, opening the nozzle of the blowing tube in the air bag, and the gas in the air bag is instantly sprayed into the cloth bag through the blowing pipe for dust removal. After that, the solenoid valve exhaust port is closed, The diaphragm and the large diaphragm move down, and the pressure in the A and B chambers are balanced. Under the action of the spring, the large diaphragm pushes the nozzle of the nozzle tightly to complete a pulse cleaning.

Company Profile

Wuhan clear Solenoid Pulse Valve Science &Technology Co., Ltd. is a high-tech enterprise for research & development and production of various solenoid pulse valve, integrating processing and sales of accessories of environment- protection dedusting equipments.The office and industry base are located at Miaoshan economic development zone, Jiangxia District, Wuhan City. With favorable geographical condition that Wuhan is the thoroughfare connecting nine provinces, there are convenient transportation and great market penetration capacity.

The Company has been taking the quality of products as the fundamentality for serving market since its establishment. The solenoid pulse valves researched, developed and produced by the Company with the advantages such as low removal energy consumption, low investment, long service life of diaphragm, stable & reliable operation, etc. have obtained the national patent and national key &new products, and many other awards with performance of products comparable to similar domestic & foreign products. They are now widely used in iron and steel, smelting of building materials, chemicals, power and other industries.

"One must have good tools in order to do a good job." With pulse valve production line workshops as well as professional engineering design and manufacturing & installation teams, the Company is able to provide customers with high-quality products and after-sales service. In recent years, based on the existing technology, the Company has constantly increased financial & human investment and introduced new technologies & equipments with research and development of various new products; meanwhile, it successfully cooperates with many domestic design institutes, iron & steel enterprises and large dedusting equipment manufacturers with unanimous praise from customers.

Customers' satisfaction is our constant pursuit! We are willing to establish long-term friendly cooperation relationship with customers! Adhering to the business philosophy of "quality first, honesty first", we will make every endeavor to provide high-quality products and services to our customers!

Packing & Delivery

FAQ

Q1: Wonder if you accept small orders?
A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.

Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.

Q3: Can you do OEM for me?
A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.

Q4: What's your payment terms ?
A4: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment.

Q5: How long is your production lead time?
A5:It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.

Q6: When can I get the quotation ?
A6: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
