Высокое качество AB C8007-24V-2 алюминиевое колесо вентилятора центробежного воздухонагнетателя усовершенствованная от взрыва низкий уровень шума 24V центробежный

Высокое качество AB C8007-24V-2 алюминиевое колесо вентилятора центробежного воздухонагнетателя усовершенствованная от взрыва низкий уровень шума 24V центробежный

Категория: Radial Fans >>>
Поставщик: Ningbo,Anchor,Drive,Technology,Co.,Ltd.

Цена:84,50 $ - 95,50 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	100.33 $*	105.5 $*
Aug-16-2025	99.7 $*	104.32 $*
Jul-16-2025	83.29 $*	87.19 $*
Jun-16-2025	97.96 $*	102.53 $*
May-16-2025	85.2 $*	89.64 $*
Apr-16-2025	96.13 $*	101.39 $*
Mar-16-2025	95.83 $*	100.23 $*
Feb-16-2025	94.74 $*	99.53 $*
Jan-16-2025	93.17 $*	98.77 $*

Характеристики

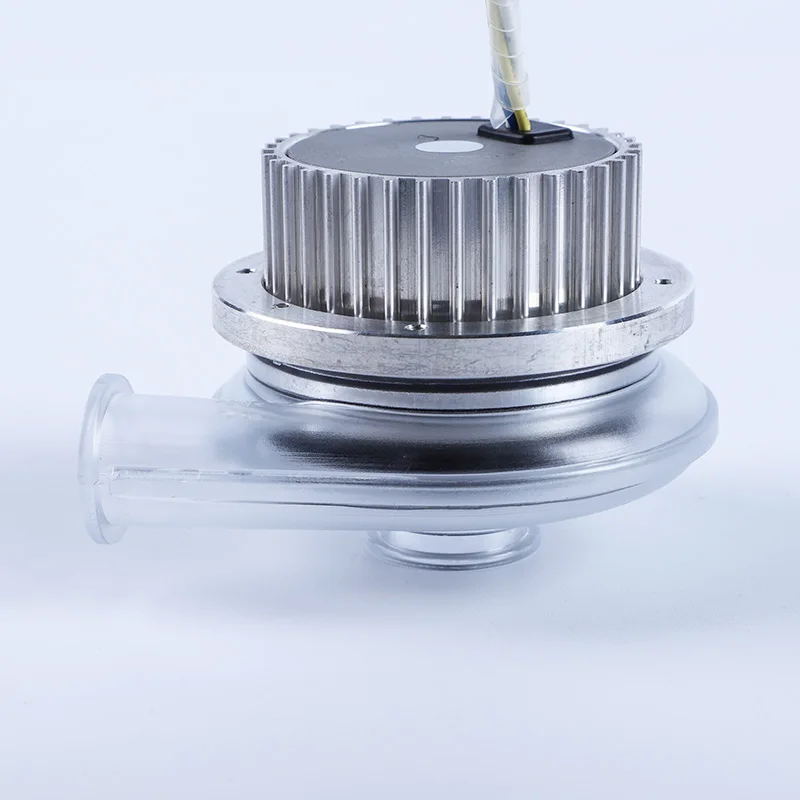

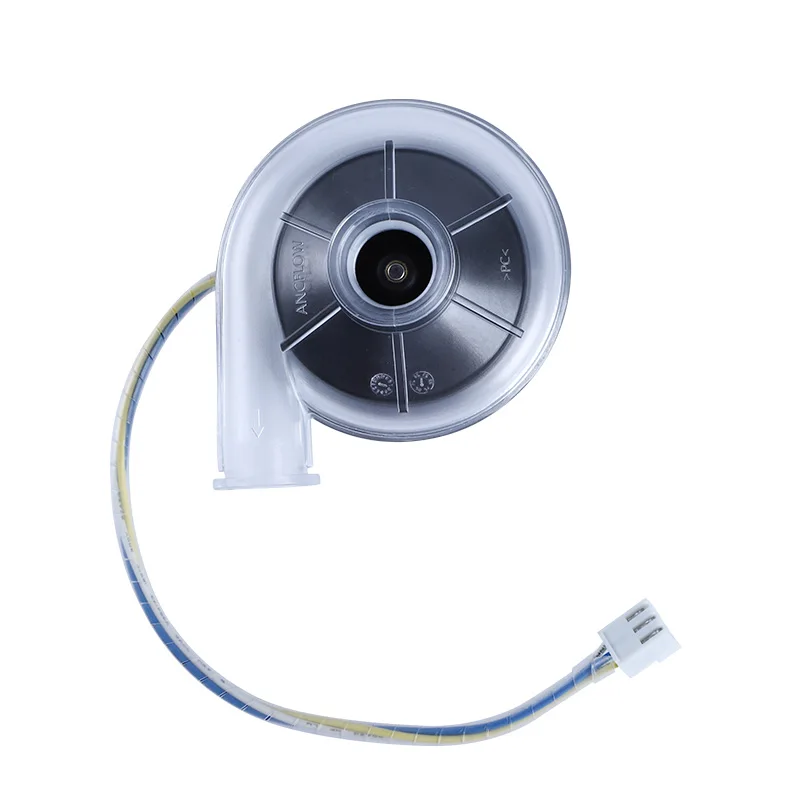

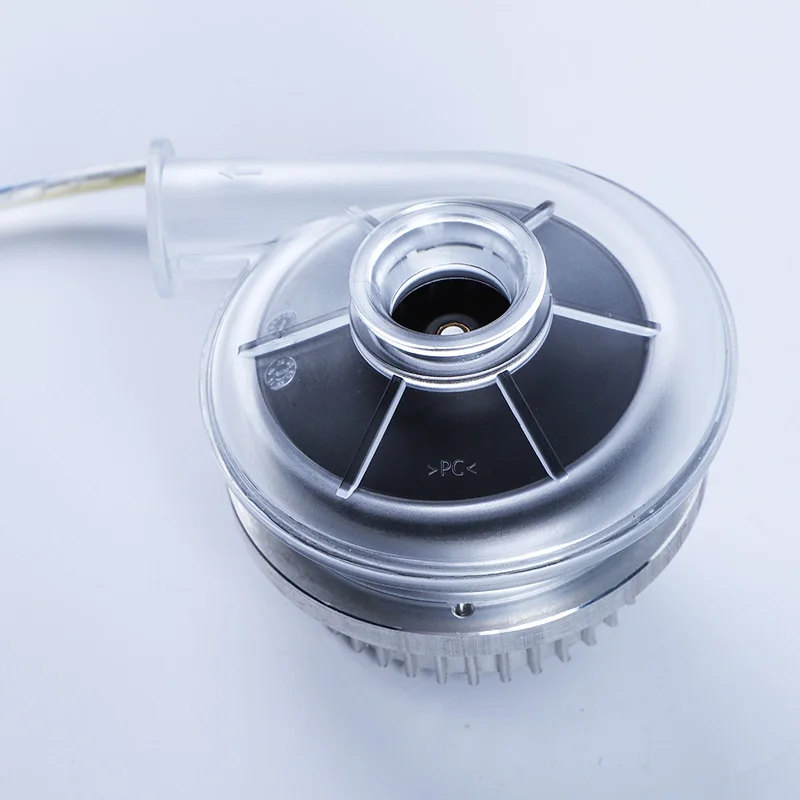

High Quality AB C8007-24V-2 aluminum centrifugal fan impeller explosion proof low noise 24V centrifugal fan

Product Parameter

Product Model	AB C8007-24V-2	Brand	ANCFLOW
Product SPEC	AB C8007-24V-13.5kPa-920LPM	max.Speed	49,500 rpm
Part Name	Brushless DC Blower	max.Flow-rate	920LPM（55.2m³/h）

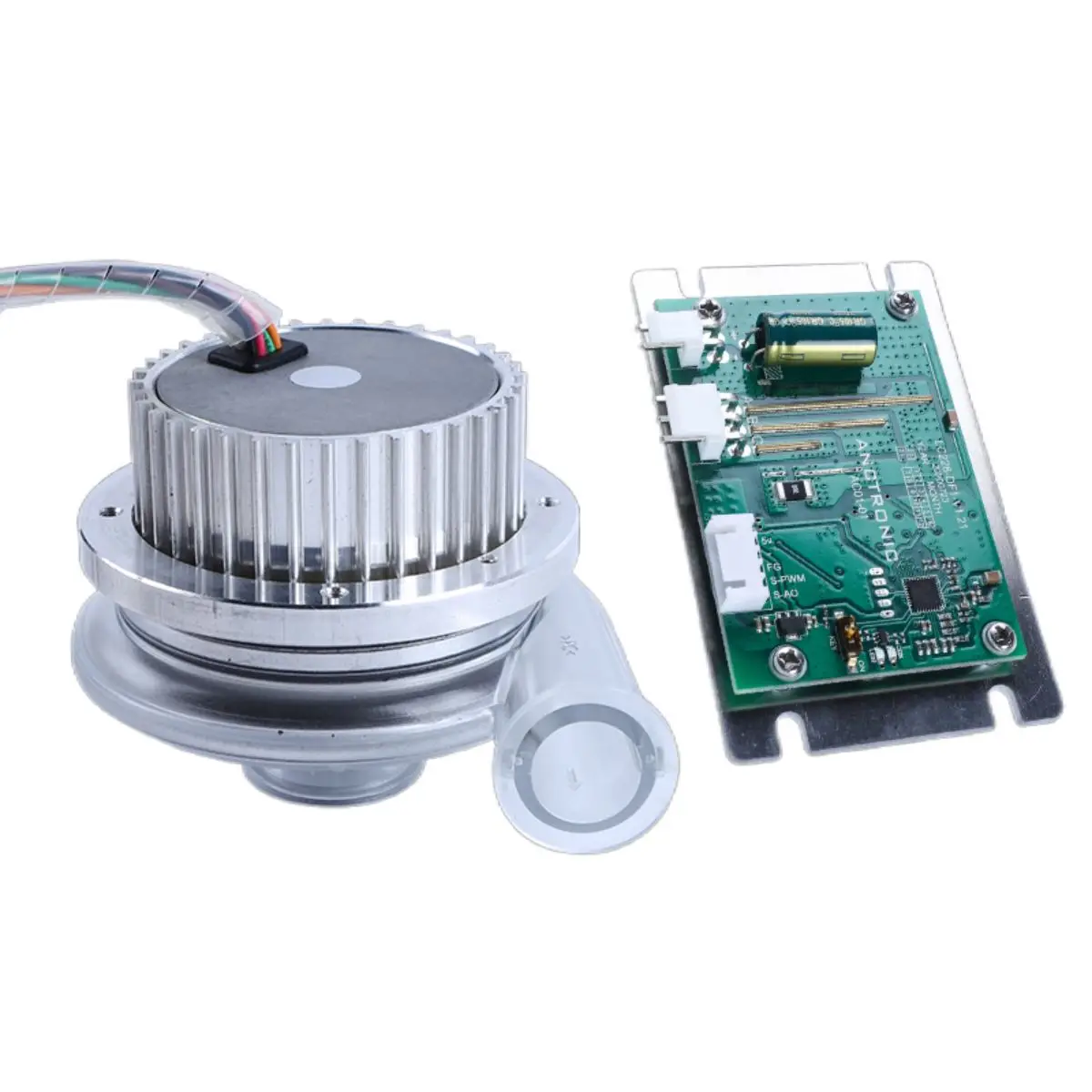

Motor Driver	AC01, AC06	max.flow Speed	94.20m/s
Motor Driver Layout	External	max.Static Pressure	13.5kPa
Lifetime	20,000h	Rated Speed	42,500rpm
Rate Voltage	24 VDC	Rated Airflow	405LPM（24.3m³/h）
Voltage Range	14-28V	Rated Static Pressure	10.0kPa
Peak Power	170W	Work Temp.	-40℃~+50℃
Rated Power	130W	Humidity Range	≤95%RH
ID of Inlet	16.8mm	ID of Outlet	14.4mm
Mass	300g	Wire Length	300mm
Size	85.3(L)82.2(W)60.9(H)mm	Bearing	Ball Bearing(NMB)
Housing Material	PC+ Aluminum	Impeller Material	PA6
Application Scenarios	medical smoke removal equipment, ventilator, hydrogen fuel cell, cold chain sterilization equipment, disinfection and sterilization equipment, oxygen generator, dental equipment, negative pressure isolation chamber, PARR, moxibustion smoking, household fresh air system, temperature and humidity control, environmental monitoring equipment, gas detector, air cushion aerator, glove box, industrial smoke/dust removal equipment, liquid atomization, cooling and drying equipment, agricultural machinery, fishery aerator, etc.

Product Details

Company Profile

Certificates And Honors

Payment Shipping

FAQ

1) Are you a factory or only a trading company?
We have a factory to produce brushless DC blowers, fans, motors and motor drivers.
2) Why to choose us?
a. Professional- we always offer system solutions based on your specific application scenarions.
b. Reliable- we have a robust manufacturing and quality assurance system in place, can offer customers with high quality products with competitive price.
3) How abut the shipping cost?
Out price is an ex-work price. We can quote the price based on FOB, CIF&CNF as you like, then you can choose whether to use our forwarder or yours.
4) How about the price? Can you make it cheaper?
The price depends on product model types and its order size. The final quotation will be based on your full description of SOR or SPEC.
5) How about the lead time? What is the payment?
According to customer's specific requirements, if to choose a base model, then it will take 5-10 days after e-proof confirmed and your payment is received.
