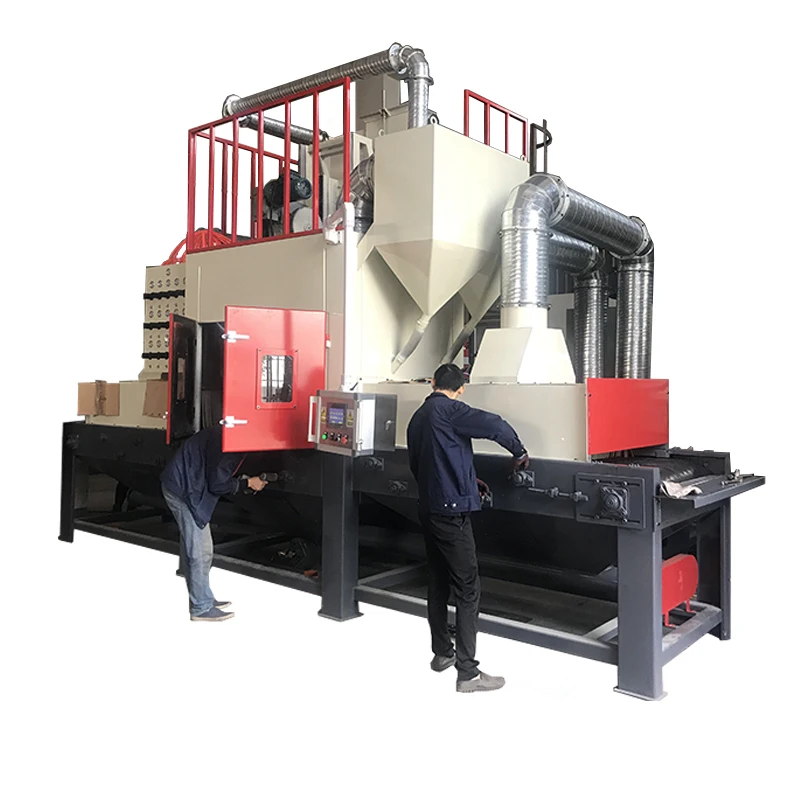

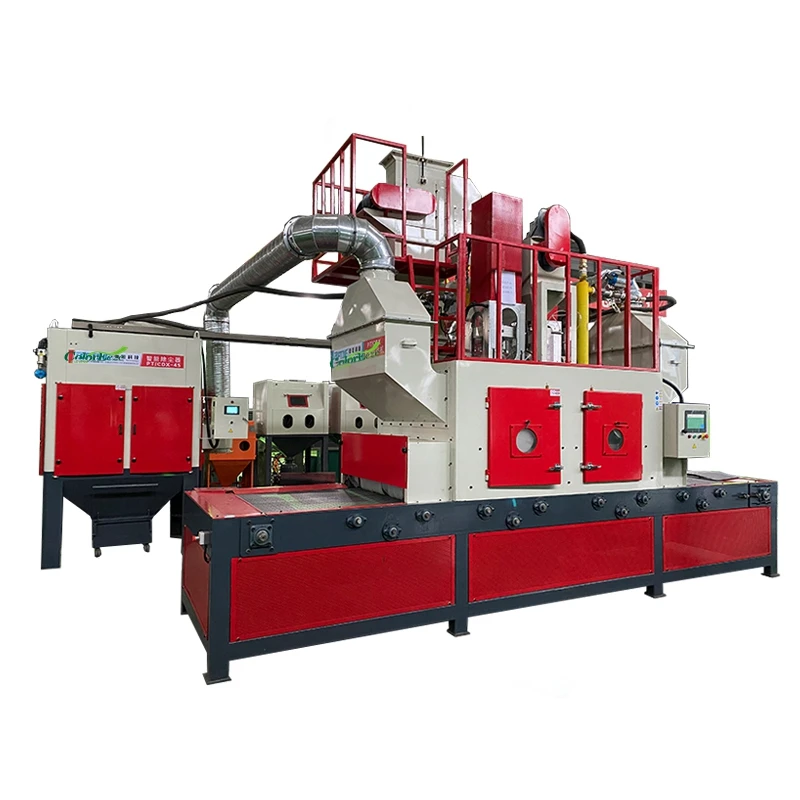

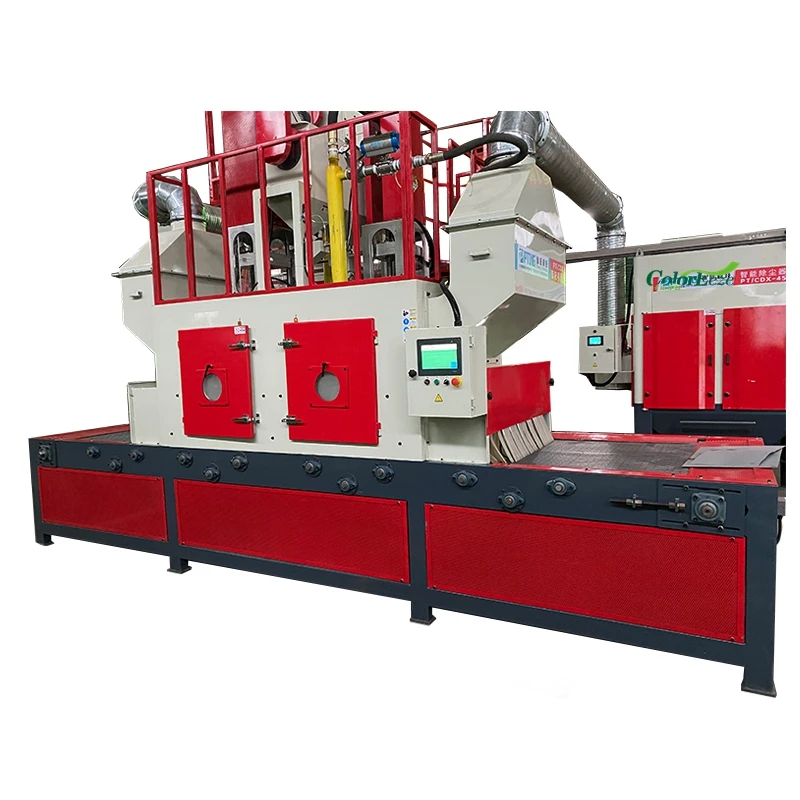

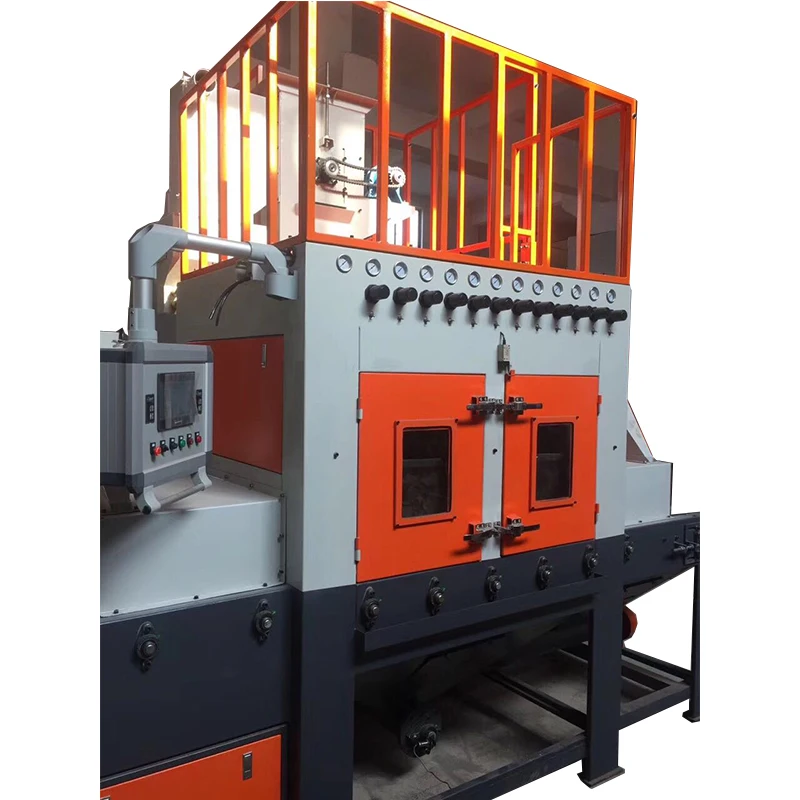

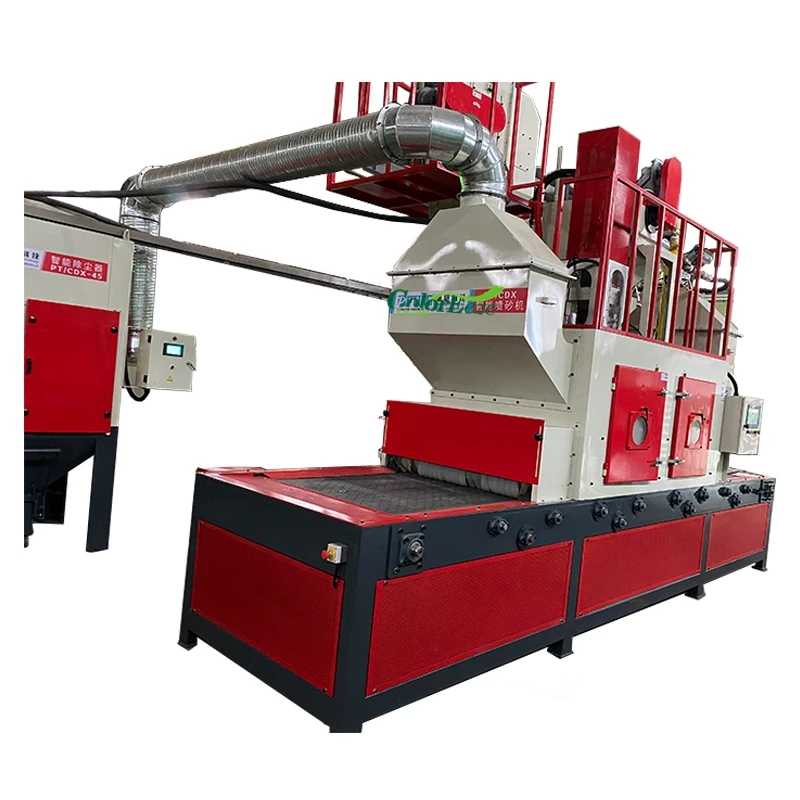

Автоматическая пескоструйная машина для обработки посуды перед распылением Пескоструйный Аппарат проходного

Reference model

Effective Blasting area width

Effective Blasting area height

Conveyor speed Adjustable Frequency

Overall Length

CLE-B900

900mm

300mm

0-3m/min

5000mm

CLE-B1200

1200mm

300mm

0-3m/min

5000mm

CLE-B1500

1500mm

300mm

0-3m/min

5000mm

CLE-B1700

1700mm

300mm

0-3m/min

7000mm

Tips: Whole machine can be customized, please contact us to customize your machine.

Specifications

No

Items

Configuration

Qty

Unit

Function

1

Main Machine

1600×1300×1900

3mmQ235 Steel Plate Made

1

PCS

Provide Sandblast Area

2

Convey Rack

1450×1150×10503mmQ235 Steel Plate Made

2

Sets

Both Side of Convey Belt Locate Right Direction and Bring Workpiece From Belt to Blasting Cabin

3

Lifting Device

Lifting Tank, Dustpan Belt, Belt Wheel, Screw Axle, Driving Axle. Roller, Seal Ring, Discharge Nozzle, Desander

2.2kw Swing Motor

1

Set

Recycle Abrasive (material)

4

Spray Gun

φ8 Boron Carbide

12

Sets

Sandblasting to Workpiece

5

Swing Device

Connecting Rod Swing Structure, 0.75kw Gear Reduce Speed Motor

1

Set

Distance Removable, Position Adjustable for Sandblasting

6

Backing-Sand Hopper

Filter Screen

3

Sets

Filtering. Anti-Blocking

7

Workpiece Convey Device

Belt Convey Type 0.75kwGear Reduce Speed Motor

1

Set

Workpiece Go to Blasting Cabin Automatically

8

Impulse Filter Drum Dust Remover

MCYT325×100×6

1

Set

Remove Dust

10

Exhaust Blower

4-72-4-5.5KW

1

Set

Remove Dust

Model CLE-B900. Please contact us for other models or customizations.
