Гибкий кабель управления изолированный многожильный 2 5 мм LiYY


Поделиться:


Цена:0,80 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 0.17 $* 0.99 $*
Aug-16-2025 0.57 $* 0.3 $*
Jul-16-2025 0.82 $* 0.93 $*
Jun-16-2025 0.86 $* 0.78 $*
May-16-2025 0.12 $* 0.66 $*
Apr-16-2025 0.65 $* 0.19 $*
Mar-16-2025 0.3 $* 0.88 $*
Feb-16-2025 0.82 $* 0.62 $*
Jan-16-2025 0.30 $* 0.33 $*

Характеристики

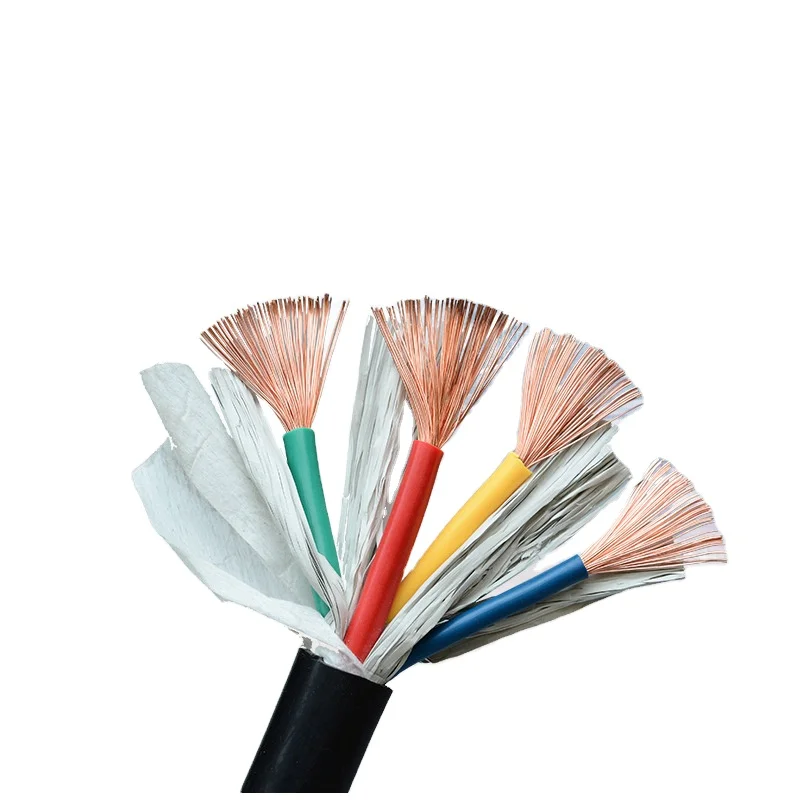

Flexible control cable PVC insulated multi core 2.5mm LiYY Cable



Product description


LiYY Cable - The PVC/PVC data cable is a flexible data cable with a small outer diameter. It is applied in scales, construction of appliances and control panels, construction of low-voltage switchboard plants, and communication technologies.





 Outstanding features






  • flexible

  • small outer diameter

  • small bending radius


Technical Specification


Construction






























Conductor

bare copper strands with reference to VDE 0812


Insulation

PVC, TI2


acc. to EN 50363-3 + VDE 0207-363-3


Colour code

with reference to DIN 47100


Stranding

in layers


Sheath material

PVC, TM2


acc. to EN 50363-4-1 + VDE 0207-363-4-1


Sheath colour

grey (RAL 7032)



Flexible control cable PVC insulated multi core 2.5mm LiYY Cable





Technical data






























Peak operating voltage

< 0,25 mm² = max. 350 V


≥ 0,25 mm² = max. 500 V


Testing voltage

core/core 1500 V


Min. bending radius

fixed laying: 5 x d


flexible application: 10 x d


Capacitance

see page N/8


Radiation resistance

8 x 10^7 cJ/kg


Temperature range

fixed laying: -30/+70 °C


flexible application: -5/+70 °C















kvvr (1).jpgKVVR (9).jpgkvvr (11).jpgkvvr (13).jpgkvvr (14).jpgkvvr (16).jpgkvvr (19).jpgkvvr (20).jpg




Flexible control cable PVC insulated multi core 2.5mm LiYY Cable



Packaging & Shipping


Packaging Details: The standard export wooden drum or as the requirements of clients


Delivery Details: Shipping will be 15days after advance payment


We have the professional lashing&packaging team to ensure the cargos tighted and secured when transporting


package cable wire





Payment and Logistic







Factory Show


Zhengzhou SITONG CABLE company is one of the most professional manufacturers in wire & cable industry,The factory located in ZhengZhou city of China


We specialize in producing and exporting all kinds of electric wires and power cables,We have advanced tech-staffs and advanced equipments.


Since we were founded , we have been built favorable business relationships with many customers from different markets all over the world.


factory show 02





Our Services


 1:OEM service available based on official & legal authorization


2:Faster lead time than our competitors


3:Free sample is available with economic express fee


4:Sufficient support for our tendering representatives


Our Service_00





Contact me










FAQ


1.Q:Are you the factory or the trading company?


    A: We are the factory


2.Q:Where is your factory ? How can I visit your factory?


    A: Our factory located in Zhengzhou city, Henan Province. You could reach here by air and by train ,We can pick you up from the air port and the railway station.


3.Q: How can I get the samples?


    A: After price confirmed,  You can order the samples to check the quality,the sample is free ,but the freight charge should be paid


 4.Q: What is the production capacity per week or per month?


     A:For the care conductor , we can produce 3000tons per month, for the power cables that depends on the cable type, anyhow ,we will do our best to meet your requirement.
