Introduction

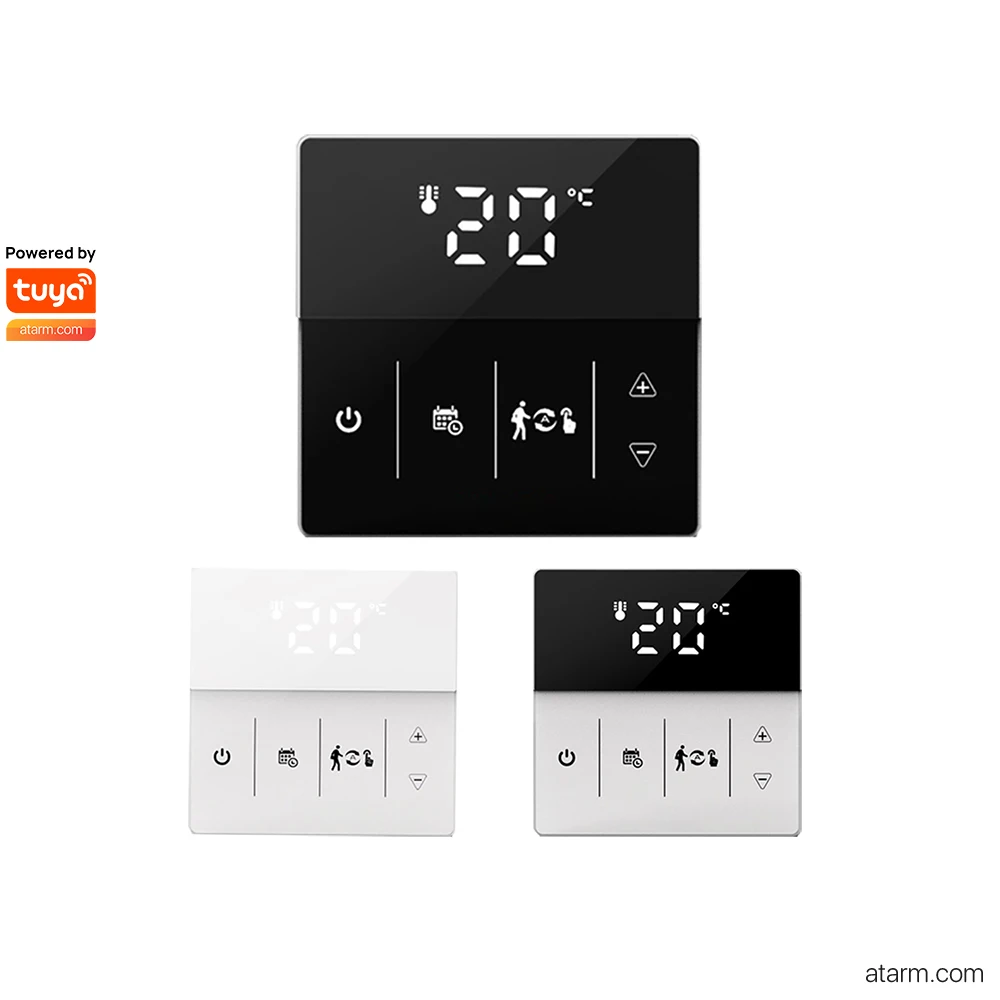

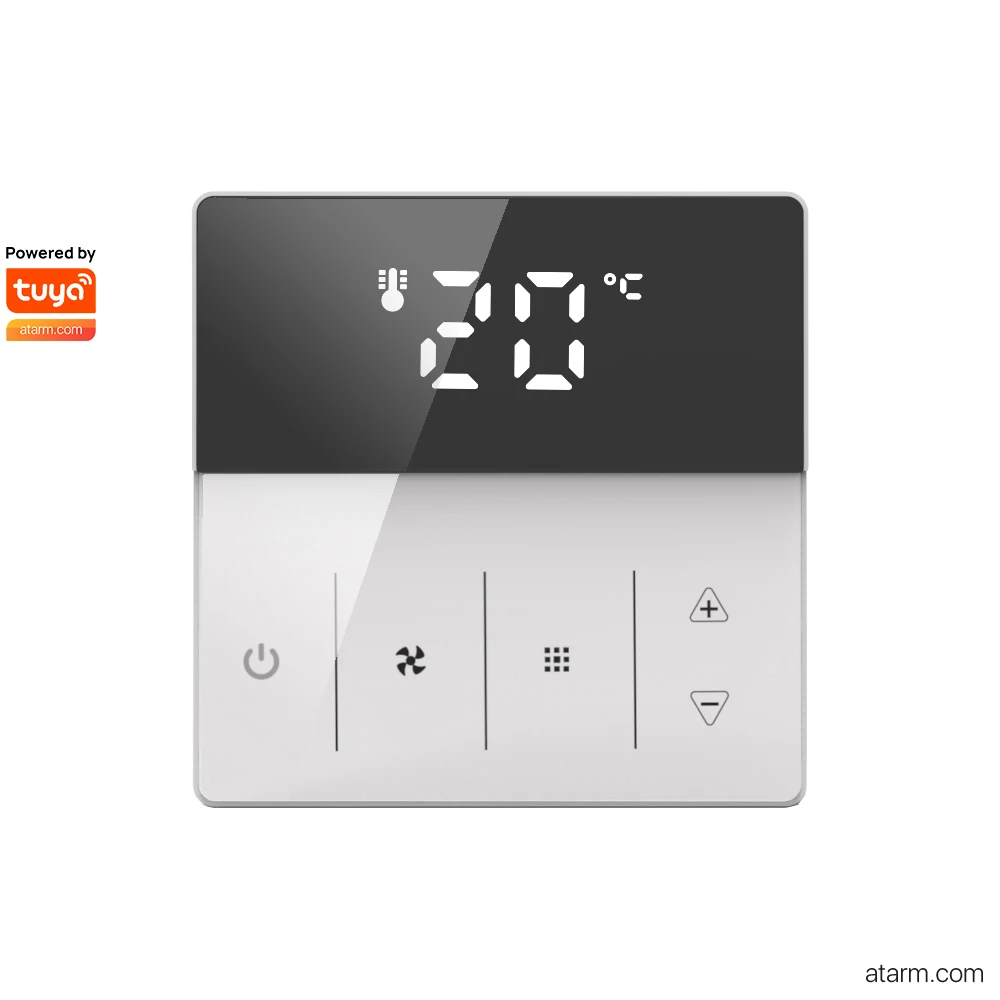

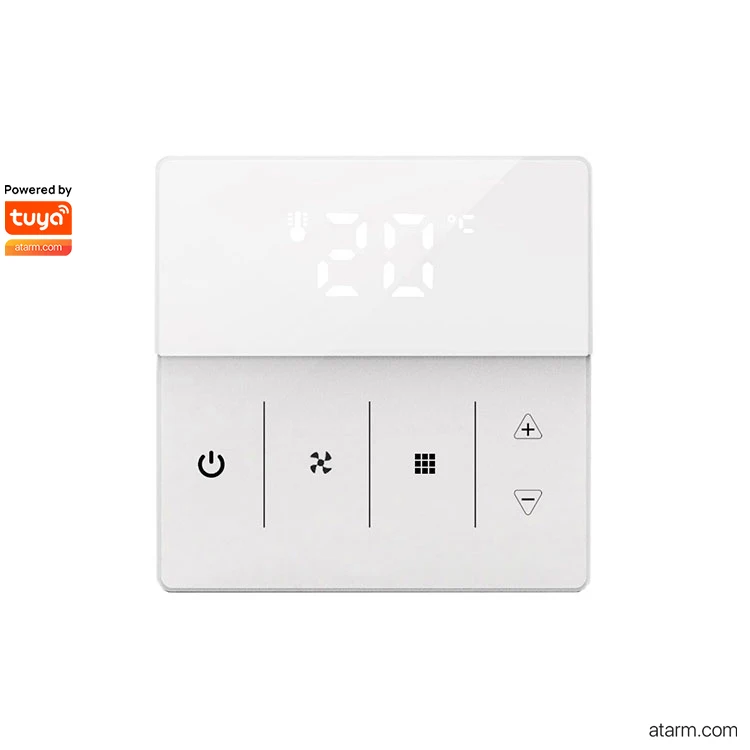

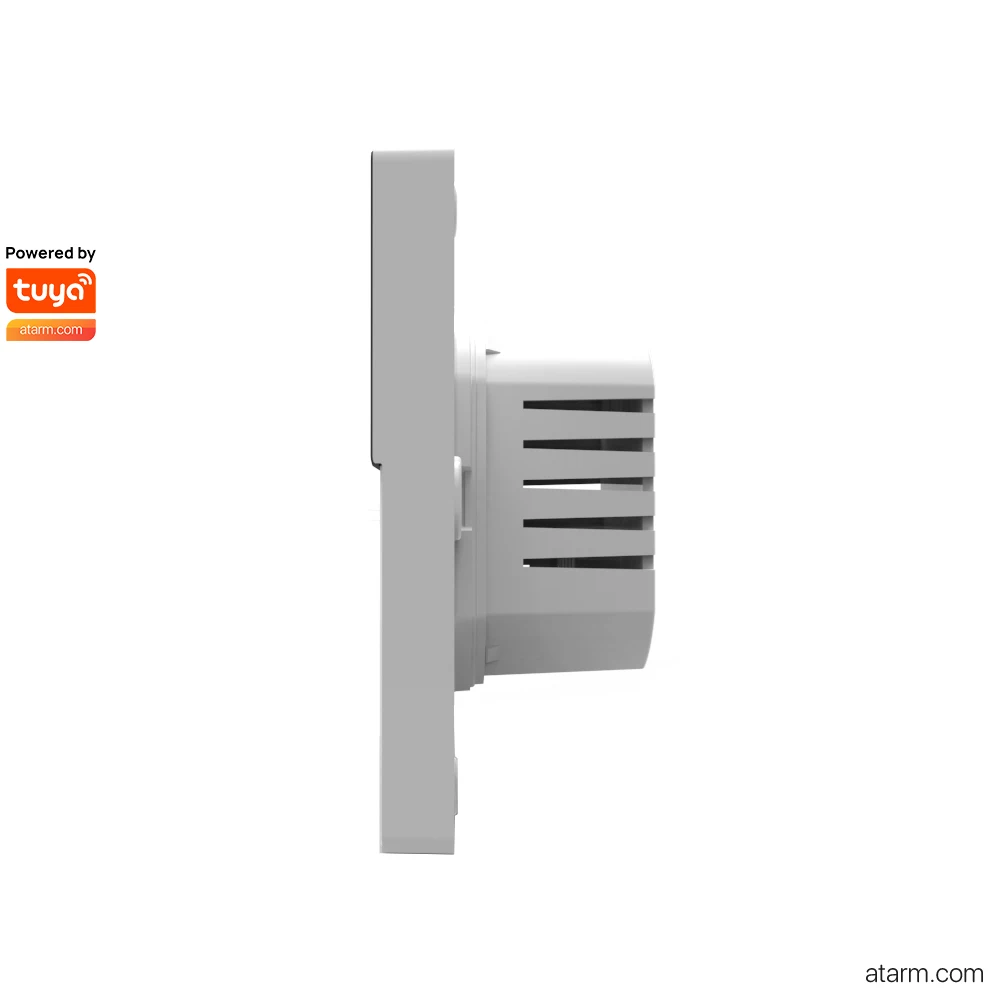

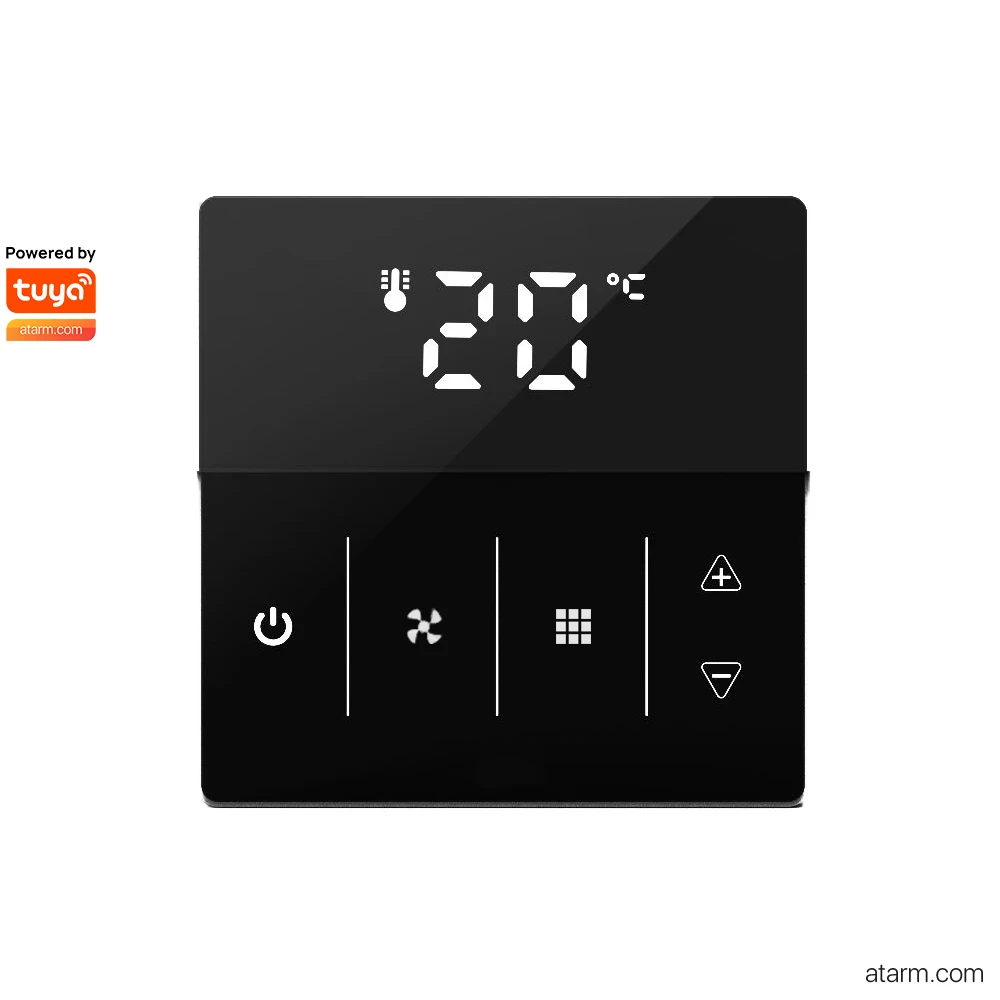

ATARM HY609AC Wi-Fi Fan/Coil Thermostat
Wi-Fi/Zigbee types are available for this device
https://www.atarm.com/product-page/hy609ac
https://www.atarm.com/product-page/hy609ac
Tech Specs
Voltage | AC110V - 240V | 50/60Hz |
Rated current | 3A |
Set Point Range | 10-40°C |
Ambient temperature | 0°C~50°C |
Size | 86mm *86mm *38mm |
Storage temperature | -10°C - 60°C |
Installation | Wall mounted |
Accuracy | ±0.5°C |
Sensor | NTC |
Protection Class | IP30 |
Housing | ABS plastic |
Application 1 | Central air conditioner |
Application 1 | Fan coil units |
Fan Speed | High,Middle,Low,Auto |
Weekly programmable | 7, 6+1, 5+2 days programmable mode |
Lock | Key lock function(chlildren lock) |
Mode | 2 pipes or 4 pipes (heating/cooling) |
Type | Touch screen,digital with timer |
System 1 | 2 pipes(only cooling ) |
System 2 | 4 pipes(cooling&heating) |
In the Box
* 1 x HY609AC Thermostat
* 1 x Set interface accessories
* 1 x User manual
* 1 x Set interface accessories
* 1 x User manual
Product Description
Wiring
Production Profile
Cautions on Installation
1. To prevent the thermostat display from a high fluctuation, special treatment has been made to the program. Therefore, it is normal that the thermostat cannot immediately display the sudden change of temperature;
2. The thermostat installed on 1.5m above the ground;
3. For the thermostat installed,please take care not to install it to the wall corner, door / window side or behind the door or in such unheated area as exterior wall. Avoid hot / cold air duct, radiator, flue or thermal pipe;
4. When install the power supply, make sure that the power cable is well insulated;
5. Do not open the internal circuit board;
6. HY08AC series thermostat design for the standard 75x75x 35mm wall mount box installed. Follow the instructions to open the rear cover base, mount it on the wall and wire it;
7. Before installing the thermostat, make sure that the system is disconnected. The maximum voltage of the system shall meet the equirements specified in the Instruction Manual (Max. AC Voltage: 250V).
2. The thermostat installed on 1.5m above the ground;
3. For the thermostat installed,please take care not to install it to the wall corner, door / window side or behind the door or in such unheated area as exterior wall. Avoid hot / cold air duct, radiator, flue or thermal pipe;
4. When install the power supply, make sure that the power cable is well insulated;
5. Do not open the internal circuit board;
6. HY08AC series thermostat design for the standard 75x75x 35mm wall mount box installed. Follow the instructions to open the rear cover base, mount it on the wall and wire it;
7. Before installing the thermostat, make sure that the system is disconnected. The maximum voltage of the system shall meet the equirements specified in the Instruction Manual (Max. AC Voltage: 250V).
