2PJ314 3pj314специальный ремень для транспортировки транспортировочный ролик

2PJ314 3pj314специальный ремень для транспортировки транспортировочный ролик

Категория: Power Transmission Parts >>>
Поставщик: Kunshan,Meilide,Industrial,Automation,Technology,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	0.86 $*	0.9 $*
Aug-17-2025	0.75 $*	0.70 $*
Jul-17-2025	0.1 $*	0.66 $*
Jun-17-2025	0.30 $*	0.53 $*
May-17-2025	0.41 $*	0.62 $*
Apr-17-2025	0.28 $*	0.28 $*
Mar-17-2025	0.12 $*	0.36 $*
Feb-17-2025	0.44 $*	0.21 $*
Jan-17-2025	0.81 $*	0.52 $*

Характеристики

brand introduction

（Hutchinson）ConveyXonic

The Hutchinson ConveyXonic® belt transmits power from the drive roller to all drive rollers on the belt. The molding process adopted by Hutchinson can ensure the high quality and durability of the belt, and greatly reduce the maintenance cost. Hutchinson's solution reduces the number of drive rollers, which in turn reduces transmission costs across the board.

French Hutchinson is the inventor of the drum V-ribbed belt!

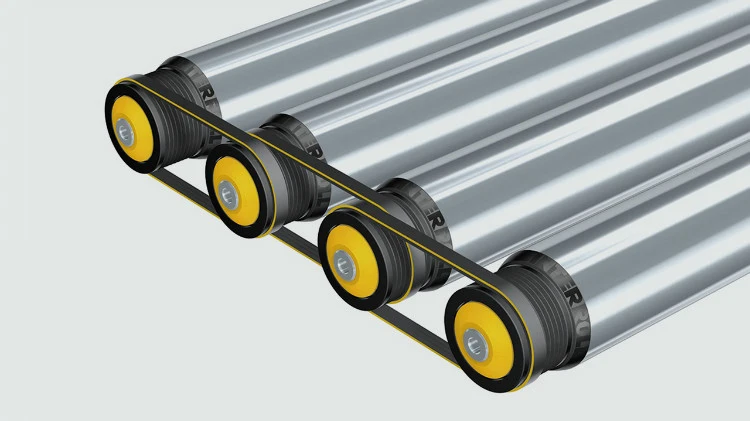

A roller conveyor drive method developed and created by Hutchinson and Interroll is applied to light and medium loads to compensate for the small load of O-belt (round belt), the skipping of teeth and the high cost of the timing belt, the large noise and pollution of the chain, and the demand. Deficiencies such as maintenance have gradually become the mainstream driving mode of roller conveyors.

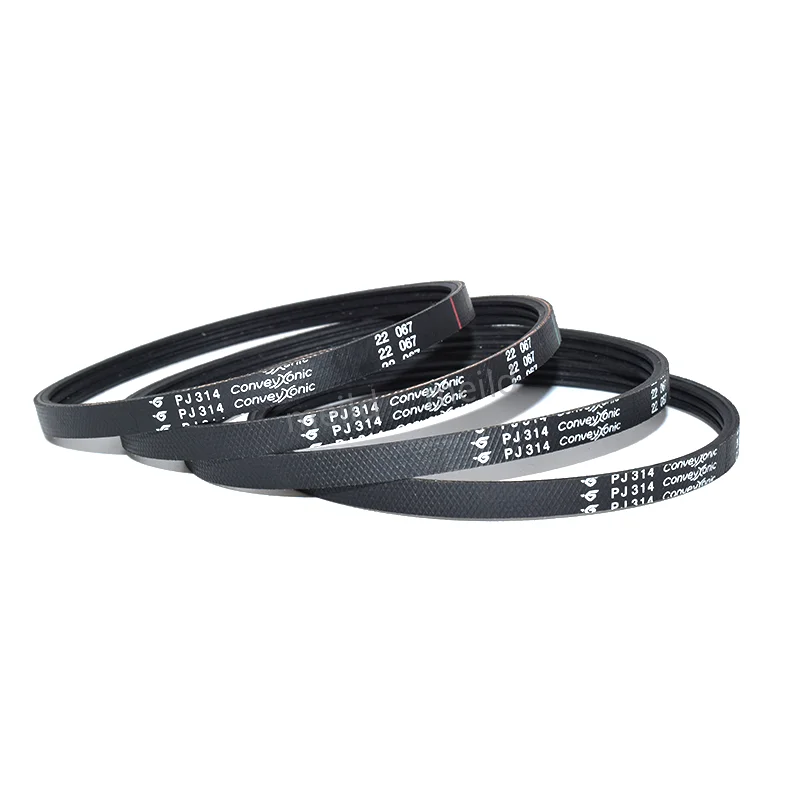

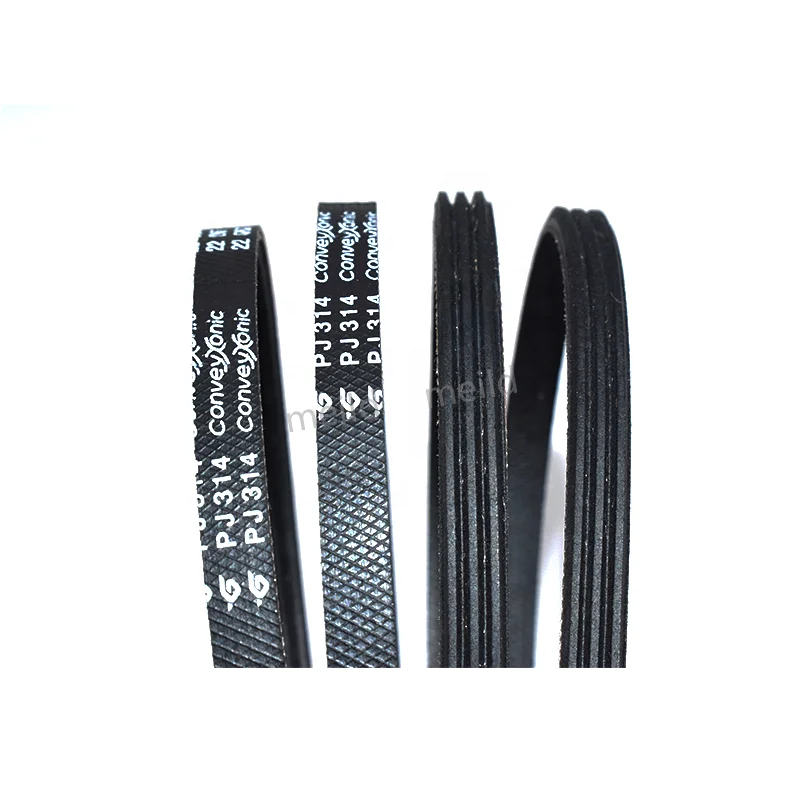

Photographs of products

Product advantages

Hutchinon roller Advantages of V-ribbed belts

High transmission efficiency: up to 97%!

Fast transmission speed: 3m/s

Mute: elastic properties can effectively avoid the belt beating, and significantly reduce vibration and noise belt

Reliability: The average life span is more than 5 years, and it can operate 24 hours a day

Clean: No maintenance, no lubrication, no dust accumulation!

Comparison chart of transmission systems relying on friction

Specification parameter table

French Hutchinson drum multi-mode belt PJ series is suitable for drum V-ribbed belts with a diameter of 42~43mm
Drum center spacing / mm	2PJ	3PJ	4PJ
Drum center spacing / mm		1 unit load: 1-120 kg	1 unit load: 120-220 kg	1 unit load:220-350 kg
60	PJ256
68	PJ270
73	PJ282
75	PJ286
80	PJ290
83	PJ302
90	PJ314
94	PJ316
100	PJ336
105	PJ346
120	PJ376
133	PJ416
150	PJ435
160	PJ456
175	PJ486

Payment and transportation

After-sales service

1. Manufacturers supply genuine products
The Hutchinson drum V-ribbed belt sold by our company is 100% genuine, and a penalty of ten is imposed for fake!
2. Regarding the length
When the elastic V-ribbed belt is not installed, it is in a tightened state, so the measured data must be less than the length of the mark!
3. About the delivery speed
The company’s common specifications have a certain amount of stock, and the rest need to be delivered by Hutchinson, Hutchinson needs to go through the process, so it usually takes 1 to 2 weeks, and non-standard specifications (4PJ and specifications with *) generally take 2 to 3 weeks!
