Acrel ADL10-E din рельс энергии metersmart метр одиночной фазы для электрического
- Категория: Energy Meters >>>
- Поставщик: Jiangsu,Acrel,Electrical,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.5 $* | 0.95 $* |
| Aug-16-2025 | 0.75 $* | 0.78 $* |
| Jul-16-2025 | 0.58 $* | 0.46 $* |
| Jun-16-2025 | 0.15 $* | 0.92 $* |
| May-16-2025 | 0.75 $* | 0.28 $* |
| Apr-16-2025 | 0.0 $* | 0.34 $* |
| Mar-16-2025 | 0.8 $* | 0.14 $* |
| Feb-16-2025 | 0.0 $* | 0.69 $* |
| Jan-16-2025 | 0.15 $* | 0.0 $* |
Характеристики
Product Description

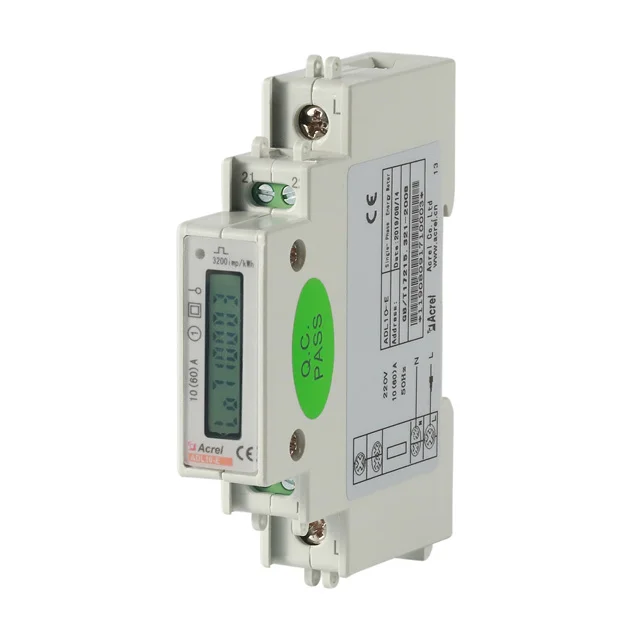

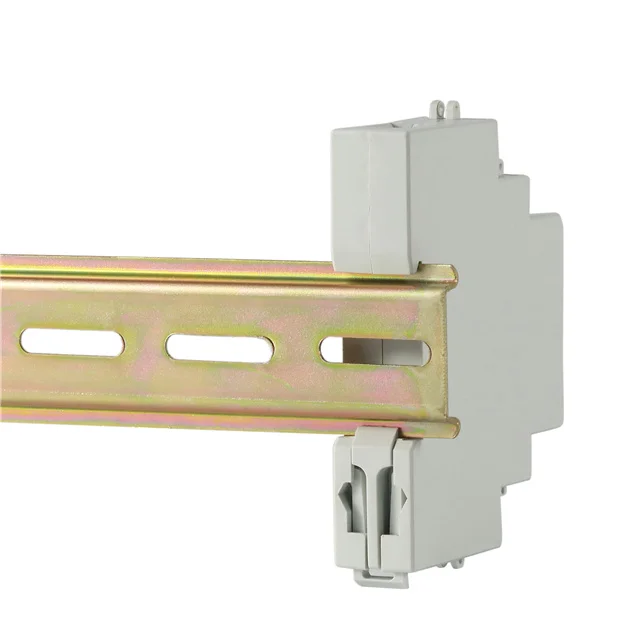

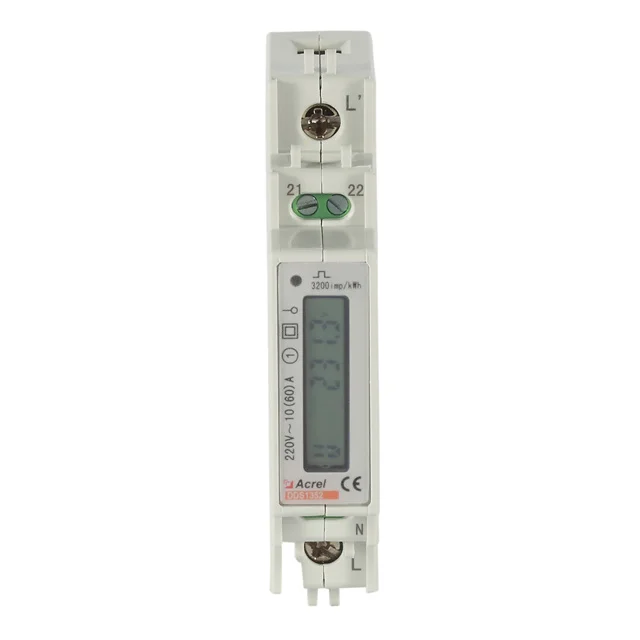

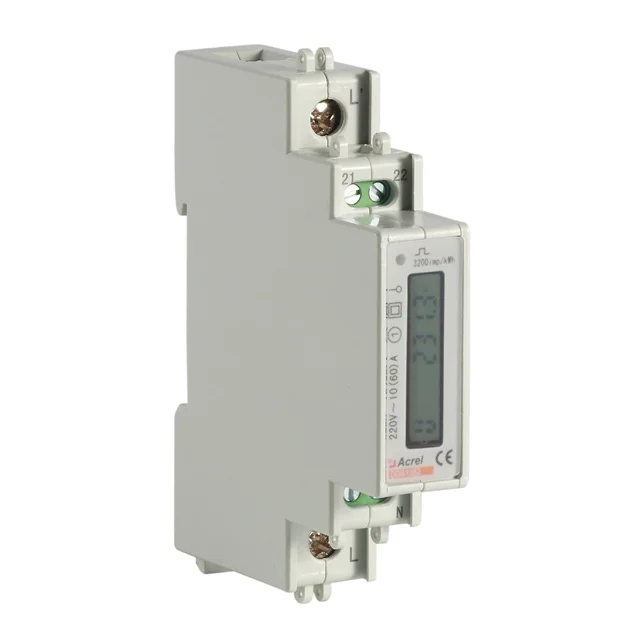

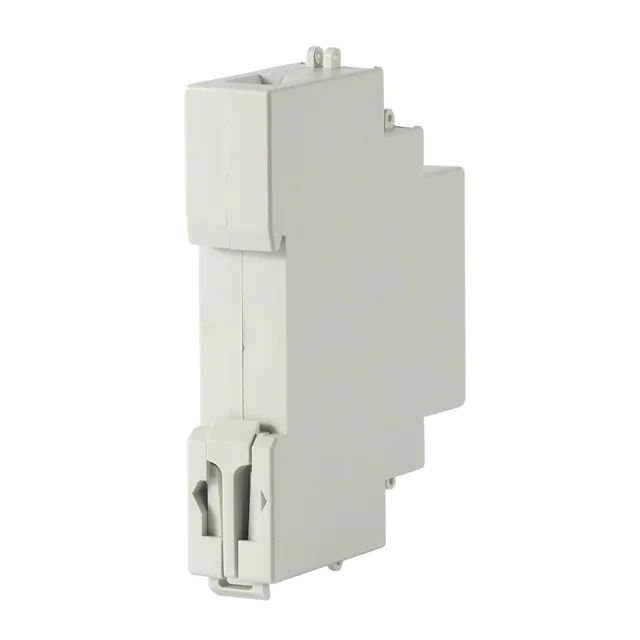

Single phase Din rail energy meter
ADL rail- installation Electricity meters is a new generation electricity meter developed by Acrel Co,.Ltd, resulting from many years experience in designing Electricity meters.
LCD display and electricity pulse output function is installed in the power meter; clock, rate period parameters can be set also. Data swap with the super ordination machine via RS485 communication interface greatly facilitate the power automated administration. This power meter has advantages of smaller volume, high precision, good EMC, easy installation etc, meet the related technical requirements of electronic power meter in the IEC 62053-21,IEC 62053-22 standard.
LCD display and electricity pulse output function is installed in the power meter; clock, rate period parameters can be set also. Data swap with the super ordination machine via RS485 communication interface greatly facilitate the power automated administration. This power meter has advantages of smaller volume, high precision, good EMC, easy installation etc, meet the related technical requirements of electronic power meter in the IEC 62053-21,IEC 62053-22 standard.
Specification
Voltage | Reference voltage | AC 220V | ||||
Reference frequency | 45-65 Hz | |||||
Consumption | <10VA( Single phase) | |||||
Current | Maximum | 60A | ||||
Starting current | 0.004 Ib | |||||
Consumption | <4VA(Maximum current) | |||||
Measurement performance | Accuracy of active kWH | Class 1 | ||||
Standards complicant | IEC 62053-21:2003 | |||||
Pulse | Pulse width | 80+20 ms | ||||
Pulse constant | 3200 imp/kWH | |||||
Communication | Interface | RS485 | ||||
Protocol | Modbus-RTU | |||||
Outling | L*W*H(mm) | 18*88*70 | ||||
Environment | Temperature | Operating:-25℃~55℃；Storage:-40℃~70℃ | ||||
Humidity | ≦95% (No condensation) | |||||
Altitude | <2000m | |||||
Technical Parameters
Customized service
If you have any special requirements, for example modbus address and other specifications ,please feel free to Contact Us.
Dimensions
Certifications
CE
IEC
EAC
Packing & Delivery
Company Profile
Acrel Electric Co., Ltd. [Stock Code: 300286.SZ]
Founded in 2003, one of the few leading companies in China who provides various systematic solutions of power monitoring, power control, energy management and electrical safety for smart grid users. Substation automation system, power quality management system, energy management system, electrical fire monitoring system, IT distribution system for medical locations, precise distribution management system, FEPS power supply monitoring system, fire emergency lighting and evacuate indicating system, smart lighting control system and electric vehicle charging system.
