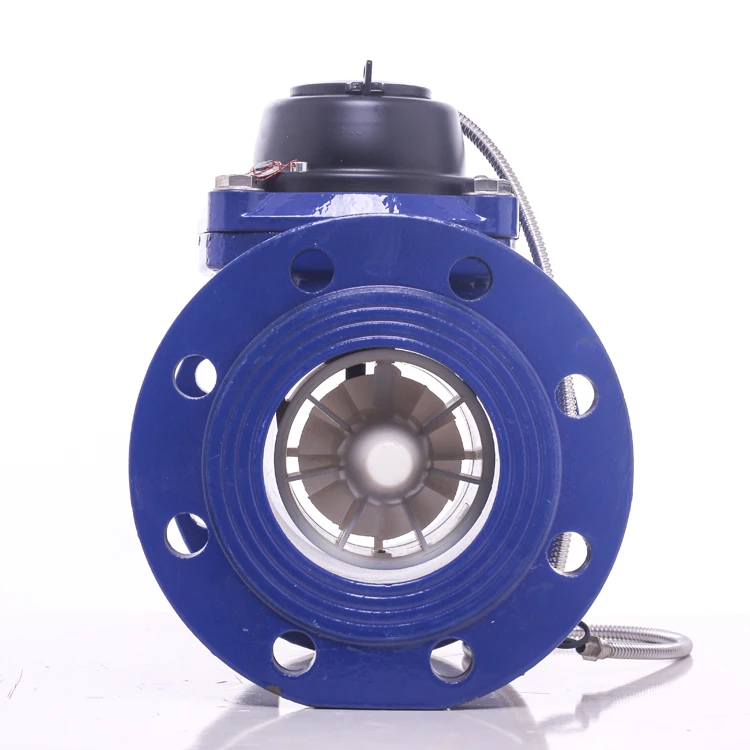

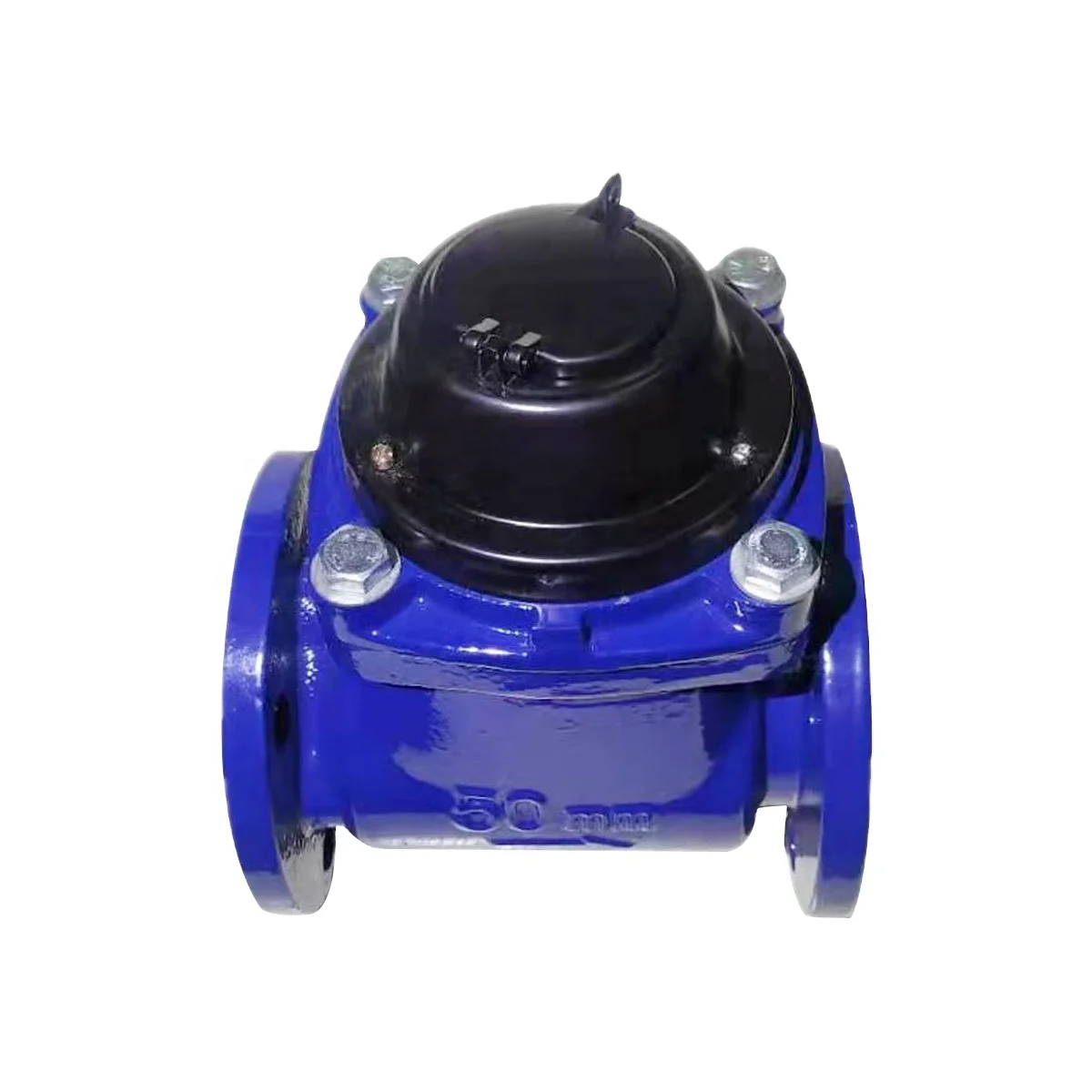

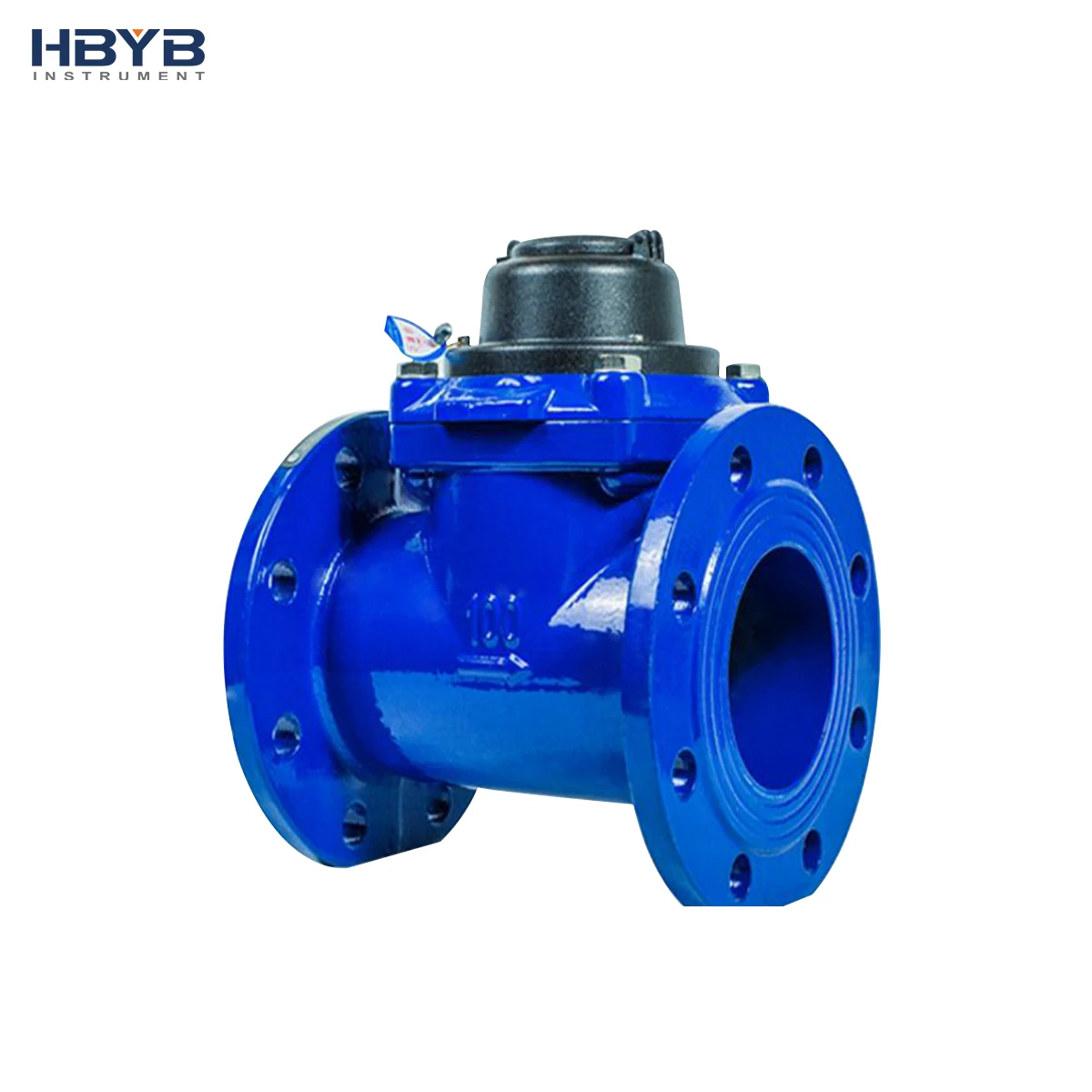

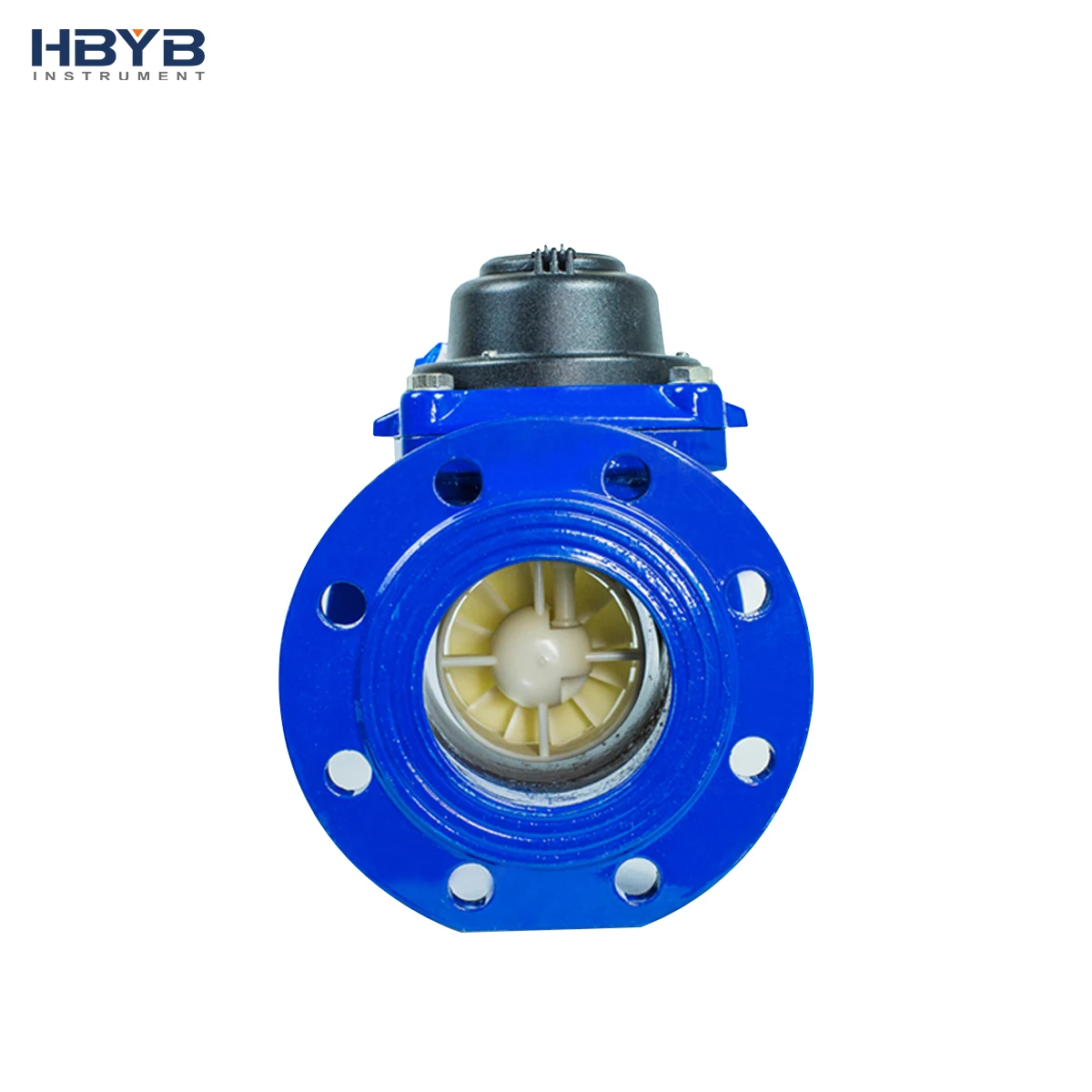

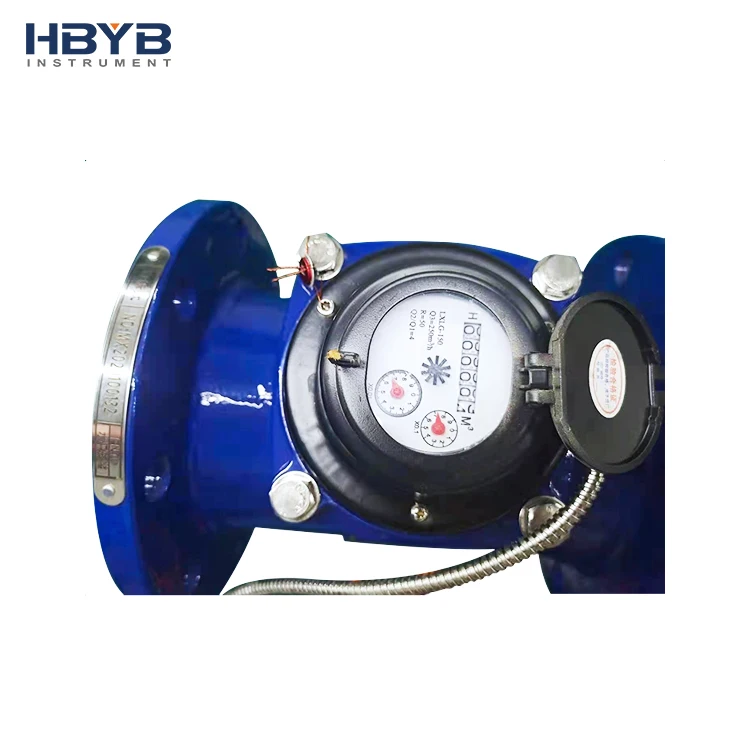

Домик для кошек из LXLC-50-300mm горизонтальные Woltman съемный сухого типа счетчик воды полива и орошения оптом
- Категория: Water Meters >>>
- Поставщик: Kaifeng,Huabang,Instrument,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 62.36 $* | 65.4 $* |
| Aug-17-2025 | 61.74 $* | 64.39 $* |
| Jul-17-2025 | 51.51 $* | 54.37 $* |
| Jun-17-2025 | 60.19 $* | 63.77 $* |
| May-17-2025 | 53.67 $* | 56.67 $* |
| Apr-17-2025 | 59.76 $* | 62.25 $* |
| Mar-17-2025 | 59.84 $* | 62.99 $* |
| Feb-17-2025 | 58.33 $* | 61.48 $* |
| Jan-17-2025 | 58.86 $* | 61.87 $* |
Характеристики
Feature：
1 . Dry magnetic transmission stucture,make sure the counters are clean,clear showing.
2 . Six digit of digital word wheel showing reading, read more clearly.
3 . Detachable measuring core, convenient to maintance.
4 . The measured flow direction is axial flow, the flow capacity is strong, pressure loss is small and the measuring range is wide. Large water consumption, suitable for use in relatively stable flow.
5 . High abrasion proof bearing system,make sure standly work and dependly,increase mix flow of products
6 . Use stainless steel fastener,use epoxy powder coating and inside,hight limit antirust,increase of service life.
2 . Six digit of digital word wheel showing reading, read more clearly.
3 . Detachable measuring core, convenient to maintance.
4 . The measured flow direction is axial flow, the flow capacity is strong, pressure loss is small and the measuring range is wide. Large water consumption, suitable for use in relatively stable flow.
5 . High abrasion proof bearing system,make sure standly work and dependly,increase mix flow of products
6 . Use stainless steel fastener,use epoxy powder coating and inside,hight limit antirust,increase of service life.
Product Information
Main technical parameters | ||||||||||||||||||
Model NO | DN(mm) | Flow range | Common flow(Q3) | Over flow(Q4) | Boundary | Mini flow(Q1) | Mini Reading | Max Reading | ||||||||||
Q3/Q1 | Q2/Q1 | m³/h | M3 | |||||||||||||||
LXLC-40 | 40 | 80 | 6.3 | 40 | 50 | 3.15 | 0.5 | 0.0005 | 999999 | |||||||||
LXLC-50 | 50 | 80 | 6.3 | 40 | 50 | 3.15 | 0.5 | 0.0005 | 999999 | |||||||||
LXLC-65 | 65 | 80 | 6.3 | 63 | 78.75 | 5.00 | 0.79 | 0.0005 | 999999 | |||||||||
LXLC-80 | 80 | 80 | 6.3 | 100 | 125 | 7.88 | 1.25 | 0.0005 | 999999 | |||||||||
LXLC-100 | 100 | 80 | 6.3 | 160 | 200 | 12.6 | 2.00 | 0.0005 | 999999 | |||||||||
LXLC-150 | 150 | 80 | 6.3 | 400 | 500 | 31.5 | 5.00 | 0.0005 | 999999 | |||||||||
LXLC-200 | 200 | 80 | 6.3 | 630 | 800 | 49.64 | 7.88 | 0.0005 | 999999 | |||||||||
DN(mm) | Length | High | Flange | Bolt | Weight | ||||||
L | H | h | G | Outside diameter D(mm) | Bolt holes center diameter | Quantity and size | KG | ||||
LXLC-40 | 200 | 198 | 69 | 228 | 150 | 110 | 4*M16 | 8.3 | |||
LXLC-50 | 200 | 205 | 75 | 228 | 165 | 125 | 4*M16 | 10 | |||
LXLC-65 | 200 | 218 | 85 | 228 | 185 | 145 | 4*M16 | 12.5 | |||
LXLC-80 | 225 | 280 | 96 | 338 | 200 | 160 | 8*M16 | 13.6 | |||
LXLC-100 | 250 | 290 | 105 | 338 | 220 | 180 | 8*M16 | 18.3 | |||
LXLC-150 | 300 | 320 | 135 | 338 | 285 | 240 | 8*M20 | 28 | |||
LXLC-200 | 350 | 365 | 162 | 356 | 340 | 295 | 8*M20 | 44.8 | |||
performance curves
1. Low area(Q1≤Q＜Q2) maximum allowable error is ±5%.
2. High area(Q2≤Q≤Q4).
3. When water temperature ≤30℃,maximum allowable error is ±2%.
4. When water temperature ＞30℃,maximum allowable error is ±3%.
2. High area(Q2≤Q≤Q4).
3. When water temperature ≤30℃,maximum allowable error is ±2%.
4. When water temperature ＞30℃,maximum allowable error is ±3%.
Installation
1 . Horizontal installation
2 . Need additional filter
2 . Need additional filter
3 . Need straight pipe at inlet and outlet
Product Details
Application Field
Certifications
About us
Our company has CE, ISO certification, explosion-proof certification, more than 30 real-type new patents. The company’s main products are electromagnetic flowmeters, vortex flowmeters, ultrasonic flowmeters, turbine flowmeters, open channel flowmeters, orifice flowmeters, metal rotor flowmeters, thermal gas mass flowmeters, etc., which can meet the needs of different occasions.And can design and produce special customized products according to user requirements.
Every year, customers from all over the world come to visit our factory, and our company will also travel to many countries to participate in exhibitions from all over the world. We sincerely invite you to visit our factory and the exhibition site, and sincerely invite you to join us!
FAQ
Can I buy the sample separately?
A: Of course, many customers will choose to buy a sample to check the quality before placing a large order.
Can you customize the products according to the customer's needs?
A: Yes, dear, we can customize the specifications you want according to your requirements.
Is there a discount for purchasing products?
A: Yes, if you buy a large number of products, we will give you a partial discount.You can follow our store, if there is an event,you can receive the notice in the first time.
A: Of course, many customers will choose to buy a sample to check the quality before placing a large order.
Can you customize the products according to the customer's needs?
A: Yes, dear, we can customize the specifications you want according to your requirements.
Is there a discount for purchasing products?
A: Yes, if you buy a large number of products, we will give you a partial discount.You can follow our store, if there is an event,you can receive the notice in the first time.
