Промышленный нагреватель горячей катушки 110 В для литья под давлением с герметичным
- Категория: Industrial Heater >>>
- Поставщик: Yancheng,Hongtai,Alloy,Electric,Apparatus,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 24.27 $* | 24.20 $* |
| Jul-16-2025 | 20.52 $* | 20.24 $* |
| Jun-16-2025 | 24.34 $* | 24.13 $* |
| May-16-2025 | 24.78 $* | 24.73 $* |
| Apr-16-2025 | 19.92 $* | 19.44 $* |
| Mar-16-2025 | 23.2 $* | 23.75 $* |
| Feb-16-2025 | 23.20 $* | 23.45 $* |
| Jan-16-2025 | 23.79 $* | 23.81 $* |
Характеристики
Product Descriptions
Electric spring hot runner coil heater with thermocouple is made of nickel chrome resistance wire placed inside chrome nickel steel tube that is filled with MgO powder.Spring coil heater is also known as high performance tubular heaters or cable heaters. Spring heater can be produced with or without built in thermocouples. Spring coil heater is widely used in heating engineering, mold, plastic industry, including the transfer machinery, medical equipment, casting process, welding, heat treatment process and many other industries and fields.
Item name | Electric spring hot runner coil heater with thermocouple | ||||
Resistance heating wire | Ni-Cr or FeCr | ||||
Sheath | stainless steel 304,321,316, Incoloy 800, Incoloy 840 | ||||
Insulation | High-purity Mgo | ||||
Maximum temperature | 700 degree Celsius | ||||
Die Electrical Strength | 800V A/C | ||||
Insulation | > 5 M W | ||||
Wattage Tolerance | +5%, -10% | ||||
Thermocouple | K type or J type | ||||

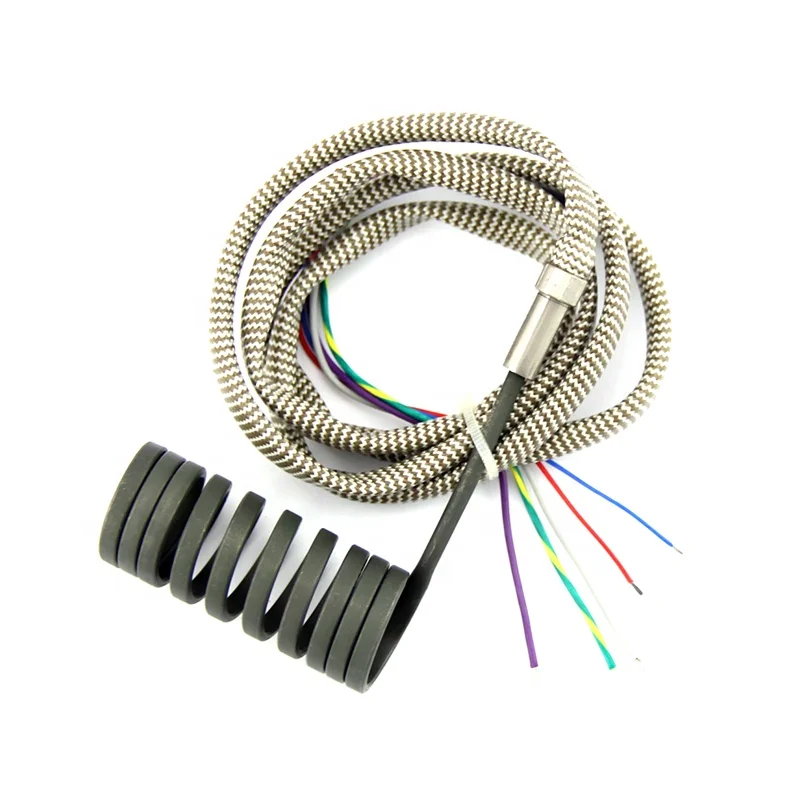

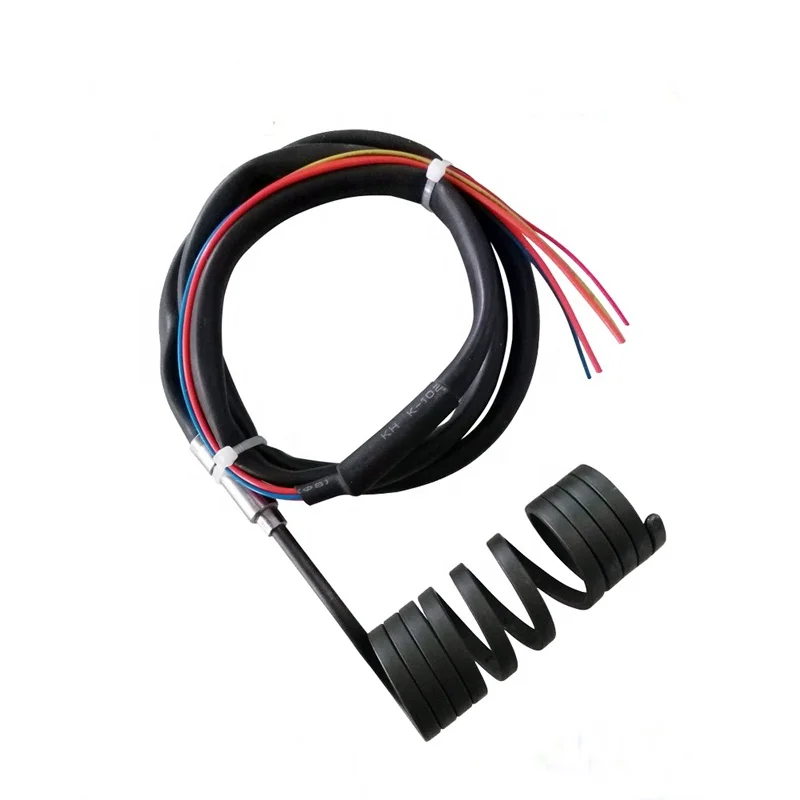

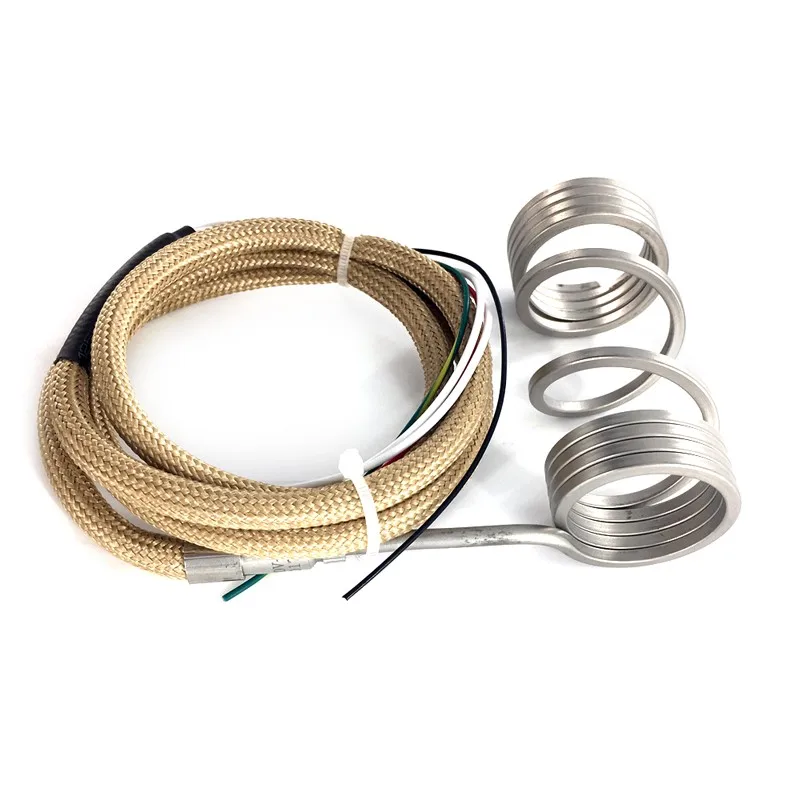

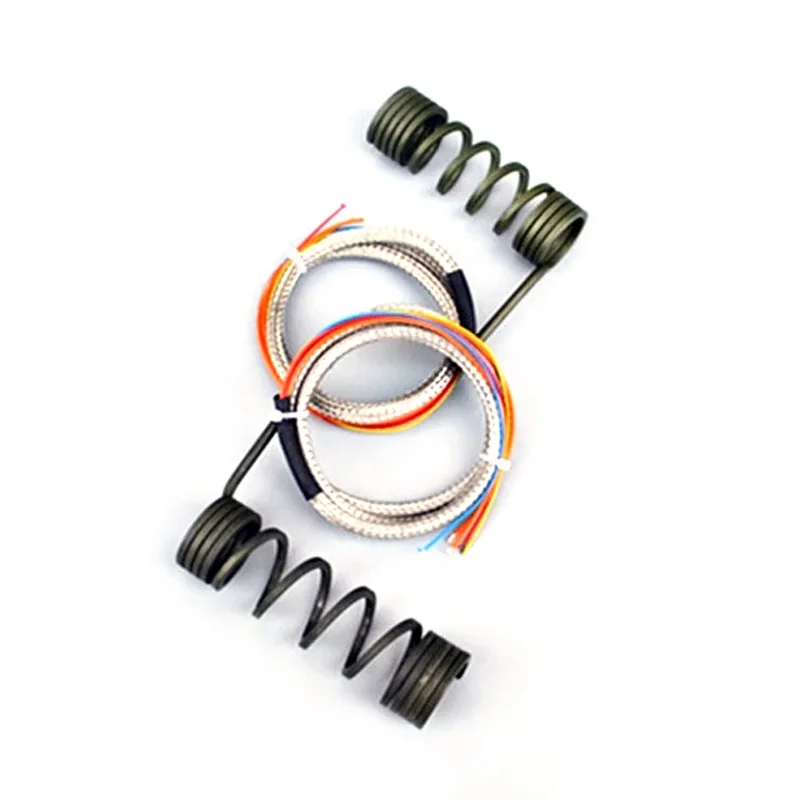

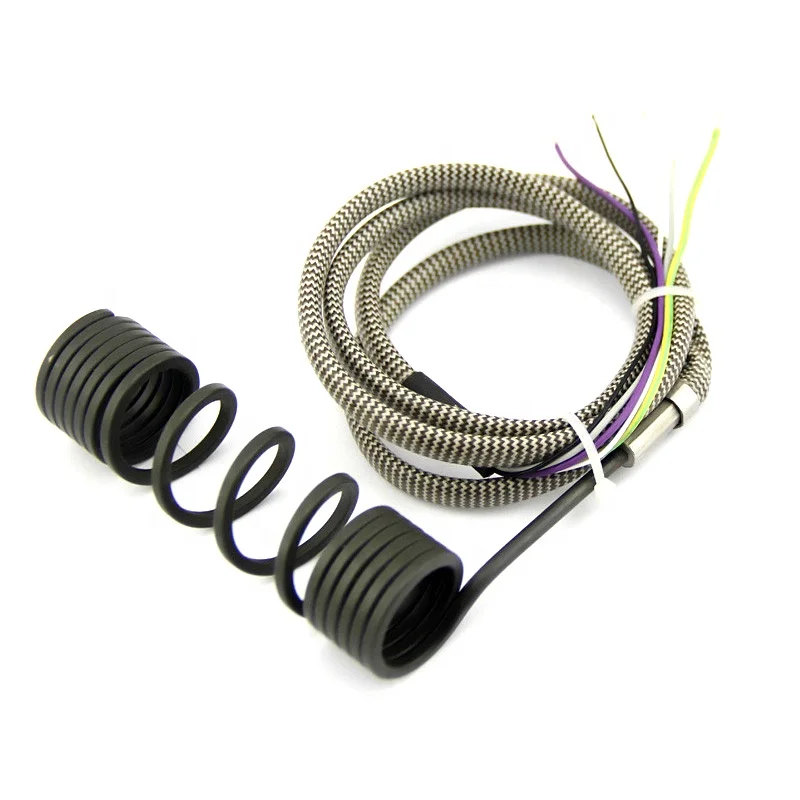

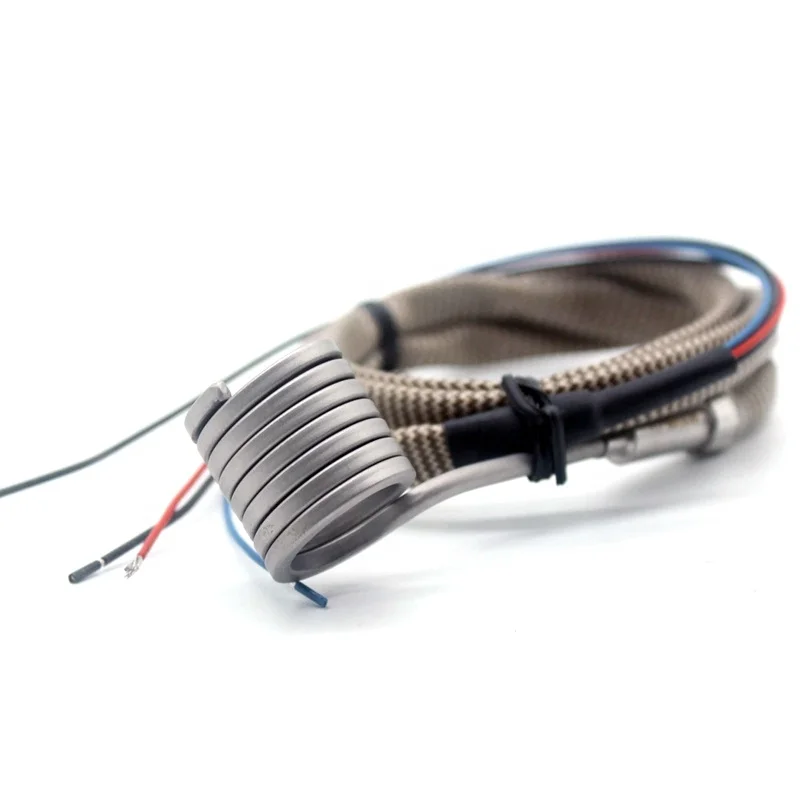

Product Show
When you order ,pls provide this information
1.D: Inner Diameter (mm)
2.C: Height(mm)
3.Section Area: E*F(mm)
4.A: Lead Wire
5.Q:Quantity
\t\t\t\t\t\t\t\t\tProduct Applications \t\t\t\t\t\t\t
1). Injection & Blow moulding machine nozzle
2). Hot Runner Nozzles & Bushings.
3). Packaging machinery
4). Hot runner Injection Moulds.
5). PET preform & Thin wall container Moulding
6). Hot runner Manifolds
2). Hot Runner Nozzles & Bushings.
3). Packaging machinery
4). Hot runner Injection Moulds.
5). PET preform & Thin wall container Moulding
6). Hot runner Manifolds
Related Products
Our Company
Factory
Office
Sales Team
Engineer Team
Certifications
Certified by Alibaba Group and a third-party international certification authority --- France BV,we declare that all of our descriptions are true,and more details can be viewed by clicking the link.
Packing & Delivery
Packaging for hot runner heater
1) plastic bag + carton
2) wooden box
Shipping
1) shipping by express (sample order) or by sea(bulk order)
2) worldwide shipping service available
Each heater use bubble bag and wrapped first
Choose the right box for the lamp. use bubble for whole
Exported Wooden case can protect the heaters very well
