Color Doppler Probe Ultrasound Scanner Portable Wireless Wifi For IOS Android
- Категория: Ultrasonic, Optical, Electronic Equipment >>>
- Поставщик: Shenzhen,Minder,Biomedical,Tech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 4284.62 $* | 4498.48 $* |
| Aug-15-2025 | 4248.22 $* | 4460.56 $* |
| Jul-15-2025 | 3564.97 $* | 3742.50 $* |
| Jun-15-2025 | 4176.30 $* | 4385.73 $* |
| May-15-2025 | 3636.12 $* | 3818.40 $* |
| Apr-15-2025 | 4104.31 $* | 4309.72 $* |
| Mar-15-2025 | 4068.3 $* | 4271.44 $* |
| Feb-15-2025 | 4032.33 $* | 4234.35 $* |
| Jan-15-2025 | 3996.52 $* | 4196.77 $* |
Характеристики
Products Description
Model | MTH31(Basic) | MTS31(Advanced) | MTL31(Pro) | |||||||||||
Model | MTH31L | MTH31C | MTS31L | MTS31C | MTL31L | MTL31C | MTL31P | |||||||
Specs | ||||||||||||||
Application | subcutaneous organs small organs peripheric veins MSK | Abdomen GYN OB URN | subcutaneous organs small organs peripheric veins MSK | Abdomen GYN OB URN | subcutaneous organs small organs peripheric veins MSK | Abdomen GYN OB URN | Heart Abdomen | |||||||
Host | Android and IOS | |||||||||||||
Frequency | 4-12MHz | 2-5MHz | 4-12MHz | 2-5MHz | 4-12MHz | 2-5MHz | 2-5MHz | |||||||
Max Depth | 12cm | 37.8cm | 12cm | 37.8cm | 12cm | 37.8cm | 18.9cm | |||||||
Emission channels | 32 | 32 | 32 | 32 | 32 | 32 | 32 | |||||||
Recepetion channels | 32 | 32 | 64 | 64 | 64 | 64 | 64 | |||||||
Elements | 128 | 128 | 128 | 128 | 64 | |||||||||
Size | 17.9x7.5x3.4cm | 18.8x7.5x3.4cm | 17.9x7.5x3.4cm | 18.8x7.5x3.4cm | 16.1x5x3.2cm | 17.1x6.8x3.2cm | 16.4x5x3.2cm | |||||||
Weight | 300g | 250g | 200g | |||||||||||
Battery capacity | 6000mhA | 3000mhA | 3000mhA | |||||||||||
Scan time | 4h | 1.5h | 1.5h | |||||||||||
Image quality | 4 Star | 4 Star | 4 Star | 5 Star | 5 Star | 5 Star | 5 Star | |||||||
Modes | B/C/M/PW | |||||||||||||
Phase sector array ultrasonic scanner transducer:MTL31C
Hardware

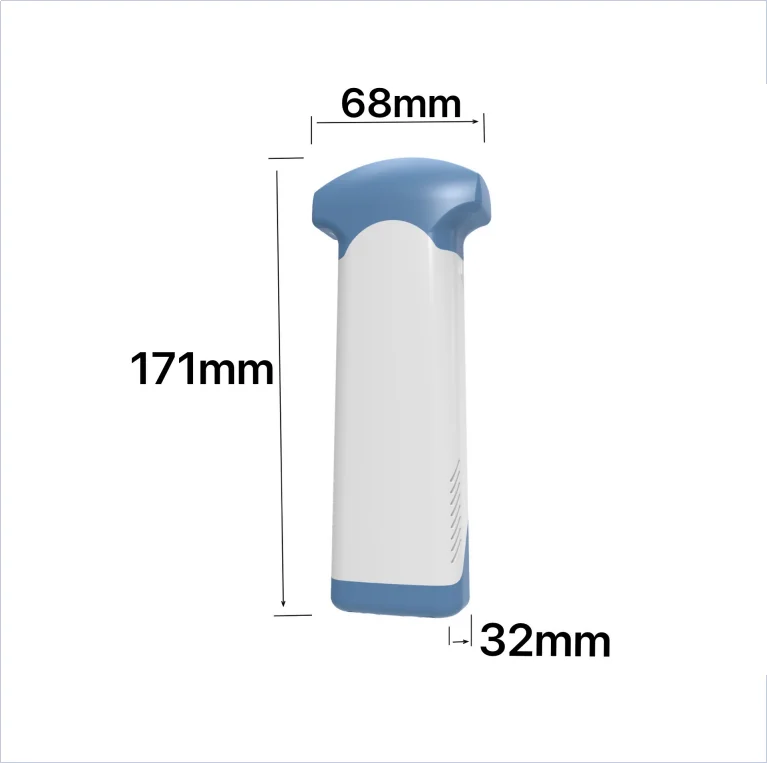

Dimensions: 171*68*32mm
Weight：200 grams
Battery：3000 mAh Lithium Ion Battery
Battery life：1.5 continuous hours of scanning
Working system: Apple iOS & Android
Imaging
2-5 MHz central frequency
Max depth:37.8cm
Imaging mode B/C/M/PW/PD/DPD
Cineloop: 100frame
Pic format JPG/PNG/BMP/DCM
Measurement: Area, bore narrow, ellipse, distance, angle, hip joint
Controls: Depth, Gain, Dynamic range, Frequency,Frame rate, Enhancement,Gray map, persistence
Dimensions: 171*68*32mm
Weight：200 grams
Battery：3000 mAh Lithium Ion Battery
Battery life：1.5 continuous hours of scanning
Working system: Apple iOS & Android
Imaging
2-5 MHz central frequency
Max depth:37.8cm
Imaging mode B/C/M/PW/PD/DPD
Cineloop: 100frame
Pic format JPG/PNG/BMP/DCM
Measurement: Area, bore narrow, ellipse, distance, angle, hip joint
Controls: Depth, Gain, Dynamic range, Frequency,Frame rate, Enhancement,Gray map, persistence

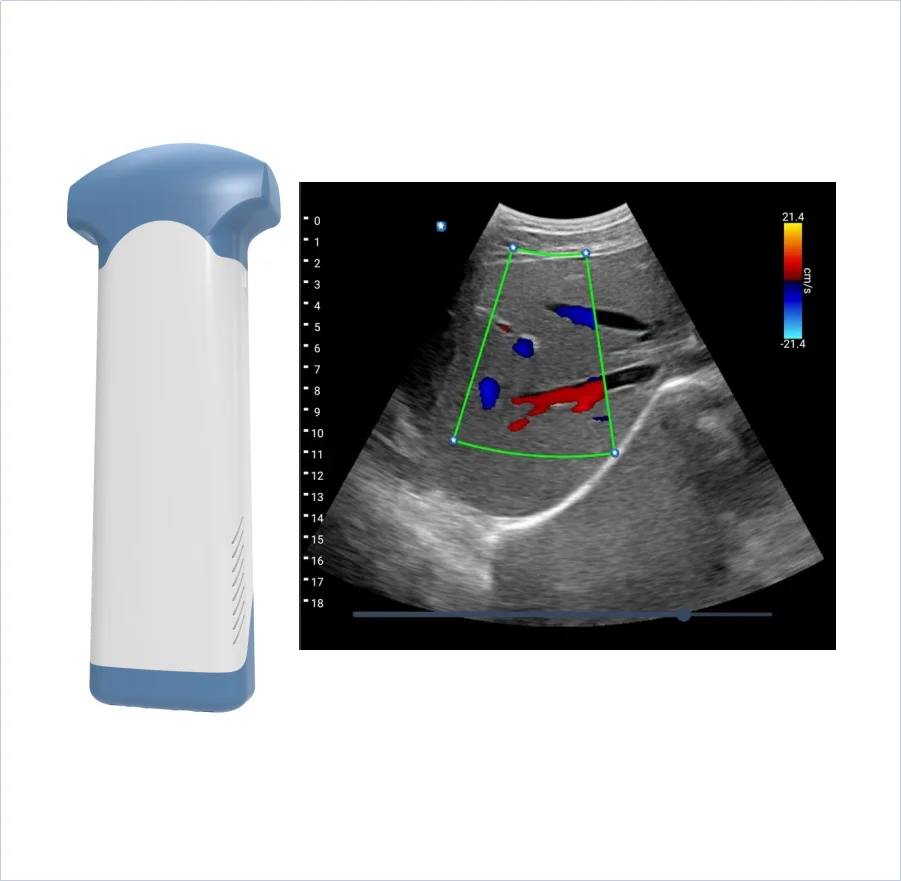

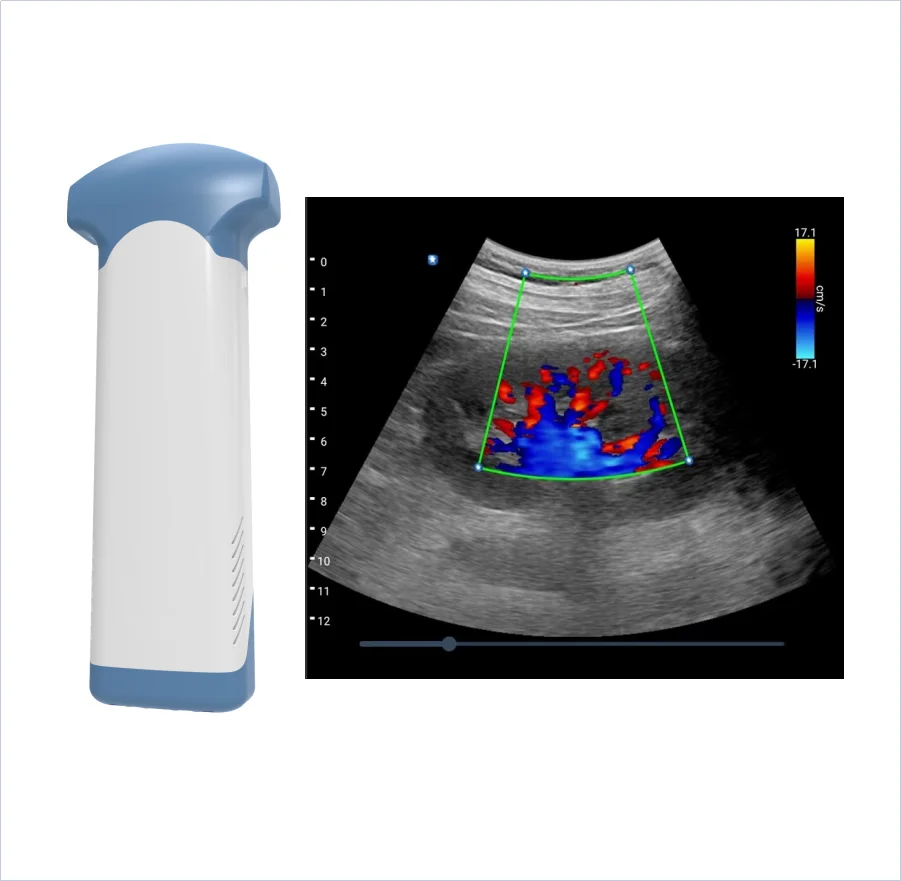

Performance Samples
How to select the right transducer?
We have three types of probes: convex, linear, and phased array.
1.Linear transducer:
Firstly, the piezoelectric crystal arrangement is linear, the shape of the beam is rectangular, and the near-field resolution is
good.
the linear transducer has a wide footprint and its frequency range is from 4Mhz – 12Mhz.
You can use this transducer for various applications, such as:
Vascular examination, Venipuncture, blood vessel visualization, Breast, Thyroid, Tendon, Nerve, The thickness measurement of body
fat and muscles.
2.Convex transducer:
The convex ultrasound transducer is also called the curved transducer because the piezoelectric crystal arrangement is
curvilinear.
Moreover, the beam shape is convex and the transducer is good for in-depth examinations.
For example, the convex transducer has a wide footprint and its frequency is 2MHz – 5MHz.
You can use it for Abdominal examinations, Diagnosis of organs.
3.Phased array transducer:
Phased Array transducer has a small footprint and low frequency (its central frequency is 2Mhz – 5Mhz).
The beam point is narrow but it expands depending on the applied frequency. Furthermore, the beam shape is almost triangular and the near-field resolution is poor.
We have three types of probes: convex, linear, and phased array.
1.Linear transducer:
Firstly, the piezoelectric crystal arrangement is linear, the shape of the beam is rectangular, and the near-field resolution is
good.
the linear transducer has a wide footprint and its frequency range is from 4Mhz – 12Mhz.
You can use this transducer for various applications, such as:
Vascular examination, Venipuncture, blood vessel visualization, Breast, Thyroid, Tendon, Nerve, The thickness measurement of body
fat and muscles.
2.Convex transducer:
The convex ultrasound transducer is also called the curved transducer because the piezoelectric crystal arrangement is
curvilinear.
Moreover, the beam shape is convex and the transducer is good for in-depth examinations.
For example, the convex transducer has a wide footprint and its frequency is 2MHz – 5MHz.
You can use it for Abdominal examinations, Diagnosis of organs.
3.Phased array transducer:
Phased Array transducer has a small footprint and low frequency (its central frequency is 2Mhz – 5Mhz).
The beam point is narrow but it expands depending on the applied frequency. Furthermore, the beam shape is almost triangular and the near-field resolution is poor.
