Бинокулярный CMOS-датчик 1080P HD OEM с двумя объективами AR0230 Vivi модуль камеры USB2.0 для обнаружения
- Категория: >>>
- Поставщик: Shenzhen,Jinshikang,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 57.79 $* | 60.33 $* |
| Aug-16-2025 | 57.77 $* | 60.23 $* |
| Jul-16-2025 | 48.9 $* | 50.16 $* |
| Jun-16-2025 | 56.49 $* | 59.63 $* |
| May-16-2025 | 48.37 $* | 50.80 $* |
| Apr-16-2025 | 55.49 $* | 58.47 $* |
| Mar-16-2025 | 54.31 $* | 57.98 $* |
| Feb-16-2025 | 54.47 $* | 57.21 $* |
| Jan-16-2025 | 53.68 $* | 56.51 $* |
Характеристики
Specification
1Models（B12） | JSK-LAOO8MAMB-V1.1 Binocular Face Anti-spoofing Camera Module |
Image Sensor | AR0230 (1/2.7” CMOS)*2 |
Focal length | 3.6mm/4.7mm/6mm(optional) |
Image Resolution | 1920(H)*1080(V) |
Angle of View | 76° |
Object distance | 50‐150cm |
S/N Ratio | ≥41DB |
Shutter Type | Electronic Rolling Shutter |
Wide Dynamic Range | ≥96DB |
AEC/AGE/White Balance | Auto |
Max Frame Rate | 30fps@1080P |
Compliant | UVC |
Certificates | USB‐IF WHQL CE RoHS |
Video Output | MJPG/YUY2 |
Interface | USB1.1/USB2.0 |
Dimensions(PCBA) | 80mm*16mm*10.3mm±0.3mm |
Temperature(Operation) | ‐20~70 ℃ |
Product Description

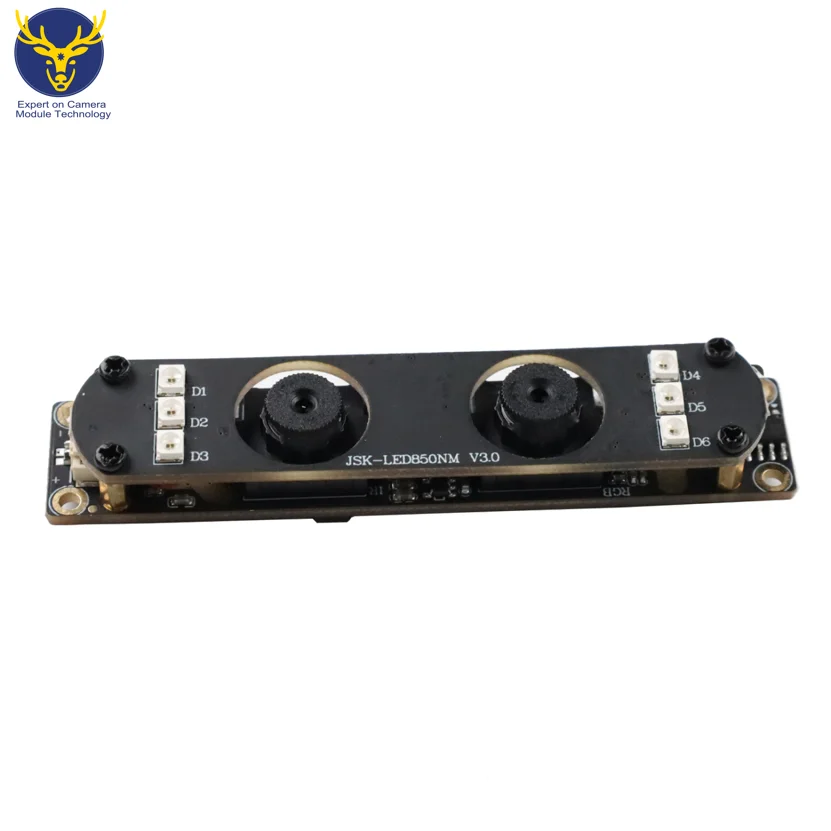

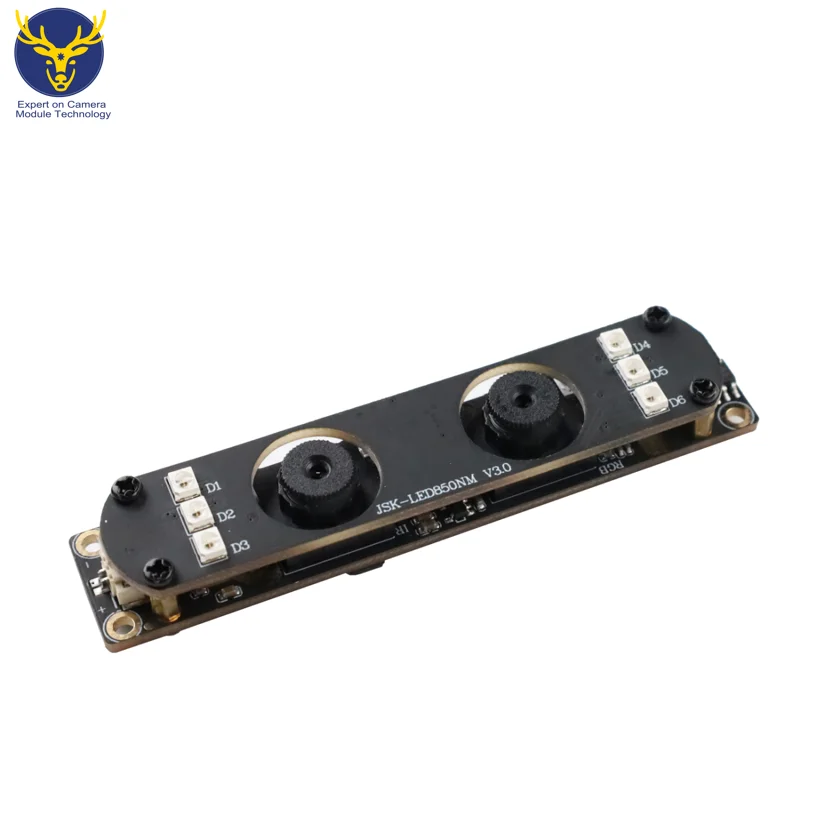

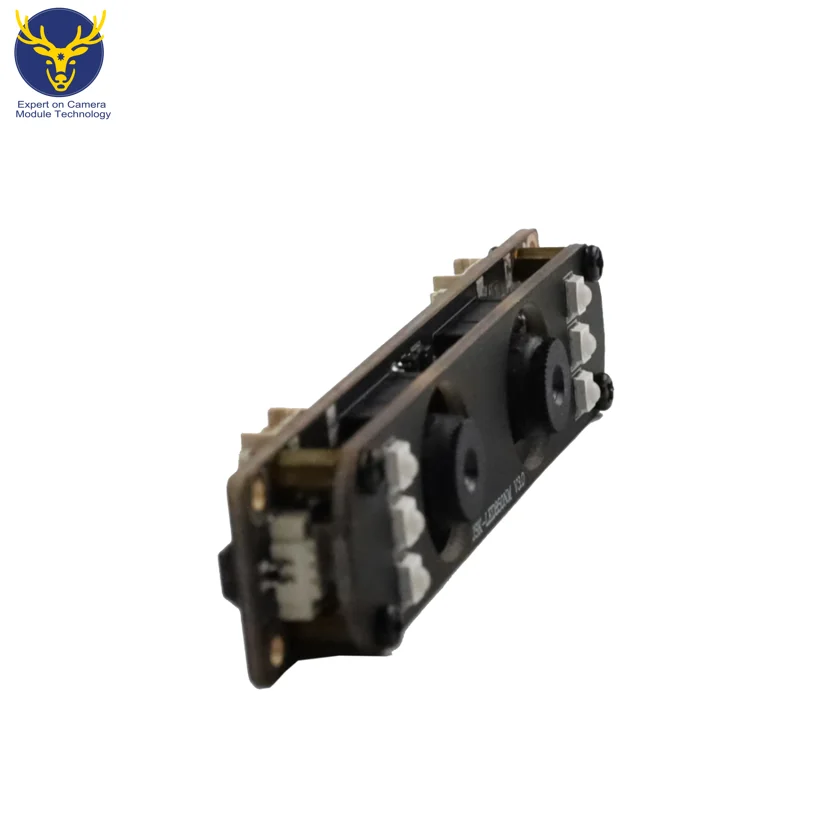

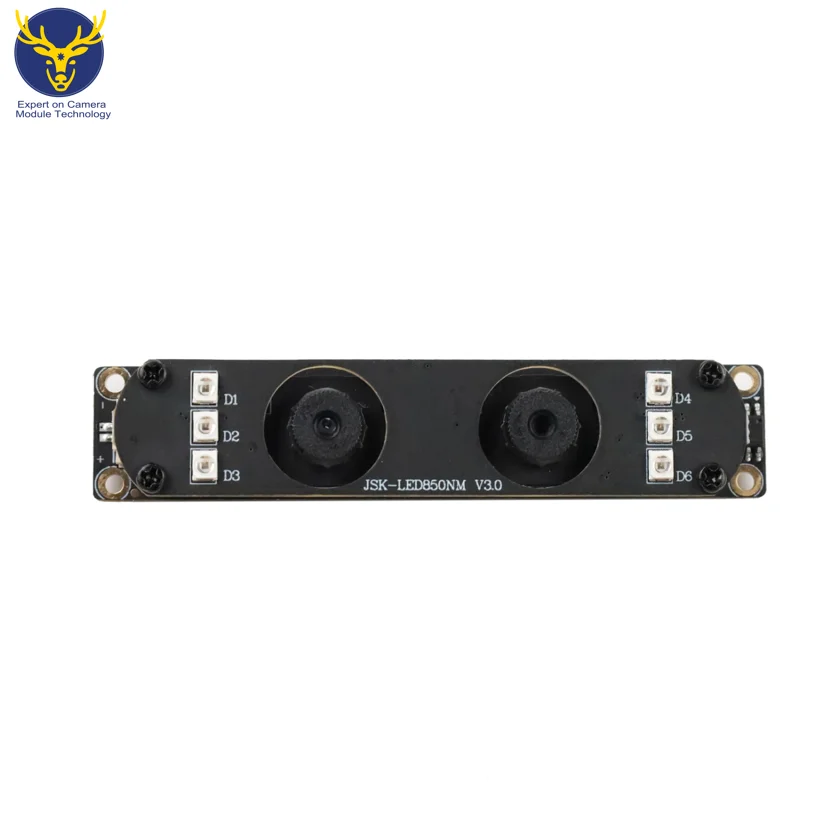

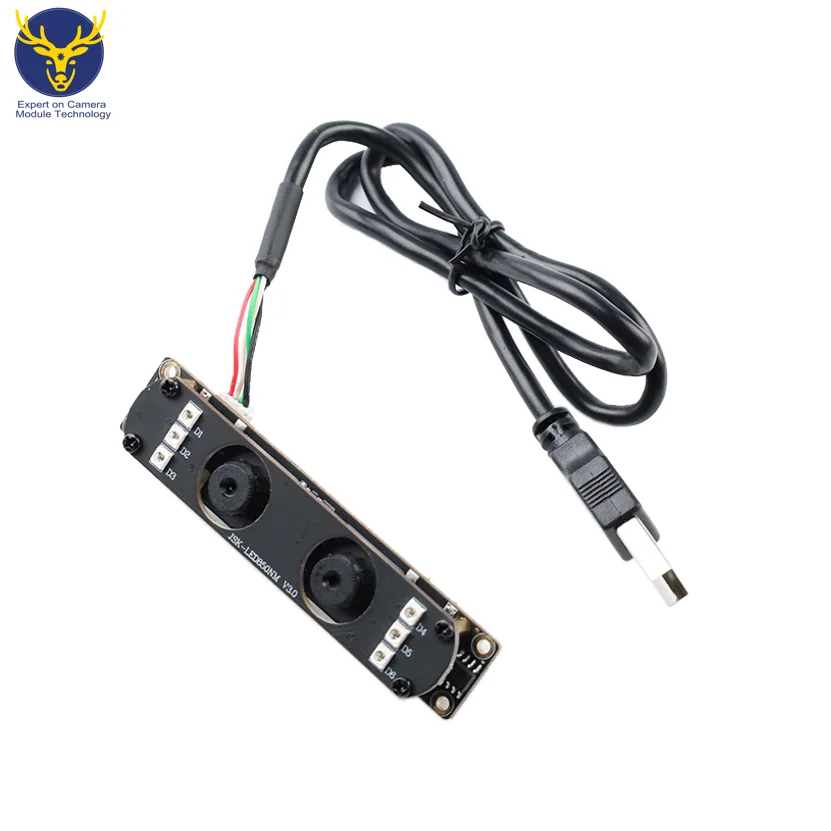

JSK-LAOO8MAMB-V1.1
Binocular live detection cameraBinocular live detection camera
2 million high-definition wide dynamic color camera2 million high-definition wide dynamic color camera
Features:
* 1080P Full HD 1920*1080 resolution USB2.0 Camera module
* 1/2.7” AR0230 CMOS sensor for high quality image
* With HD 76 degree no distortion lens(Optional)
* With Dual lens for video recording
* High frame rate - MJPEG 1920*1080 30fps
* MJPEG/YUY2 dual output format optional
* Mini board size 80mm*16mm*12mm for embedded application
* High speed USB 2.0 plug&play port - suitable for any PC with USB 2.0 interface
* Low power consumption - ideal for portable equipment.
* UVC compliant - support Windows, Linux, Android system with UVC
Specially designed for face recognition research and development
High-precision algorithm face data
Accurately identify some key construction parts such as eyes, ears and nose
High-precision algorithm face data
Accurately identify some key construction parts such as eyes, ears and nose
Adopt USB communication interface
Transmission speed is greater than 400MB/S
Say goodbye to the traditional slow lag
Transmission speed is greater than 400MB/S
Say goodbye to the traditional slow lag
Use 1/2.7” inch COMS SENSOR
Good photosensitive performance, high signal-to-noise ratio
The sensor size is large, the photosensitive area is large, and the imaging quality is excellent.
Aperture : F2.4
FOV : 76 Degree
Different optical lenses are available.
OEM / ODM / Customized Design is welcome.
Different optical lenses are available.
OEM / ODM / Customized Design is welcome.
Certifications
Production Process
1. Raw Meterials
2. Workshop
3. Clean Booth
4. Sensor Cleaning
5. Assemble
6. Focusing
7. Temperature Test
8. Aging Test
Company Profile
Exhibition
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
