Products Description

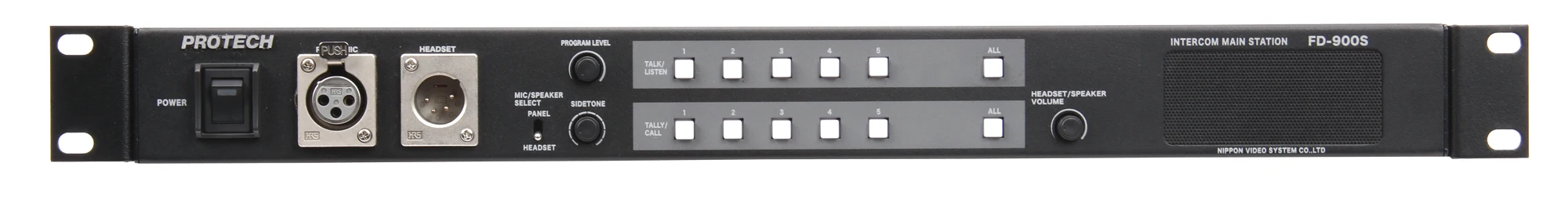

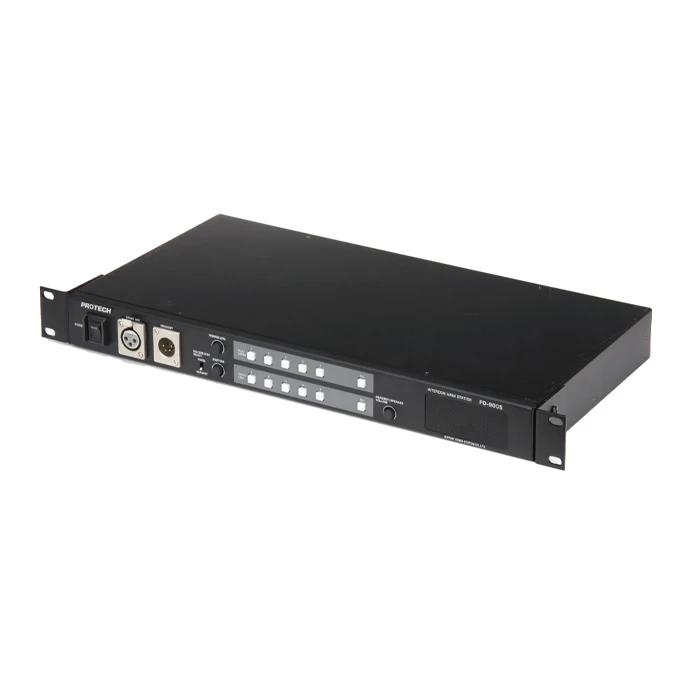

PROTECH NIPROS BNC wired Intercom Base Station FD-900S
The FD-900S has five channels for individual talk or simultaneously talk.

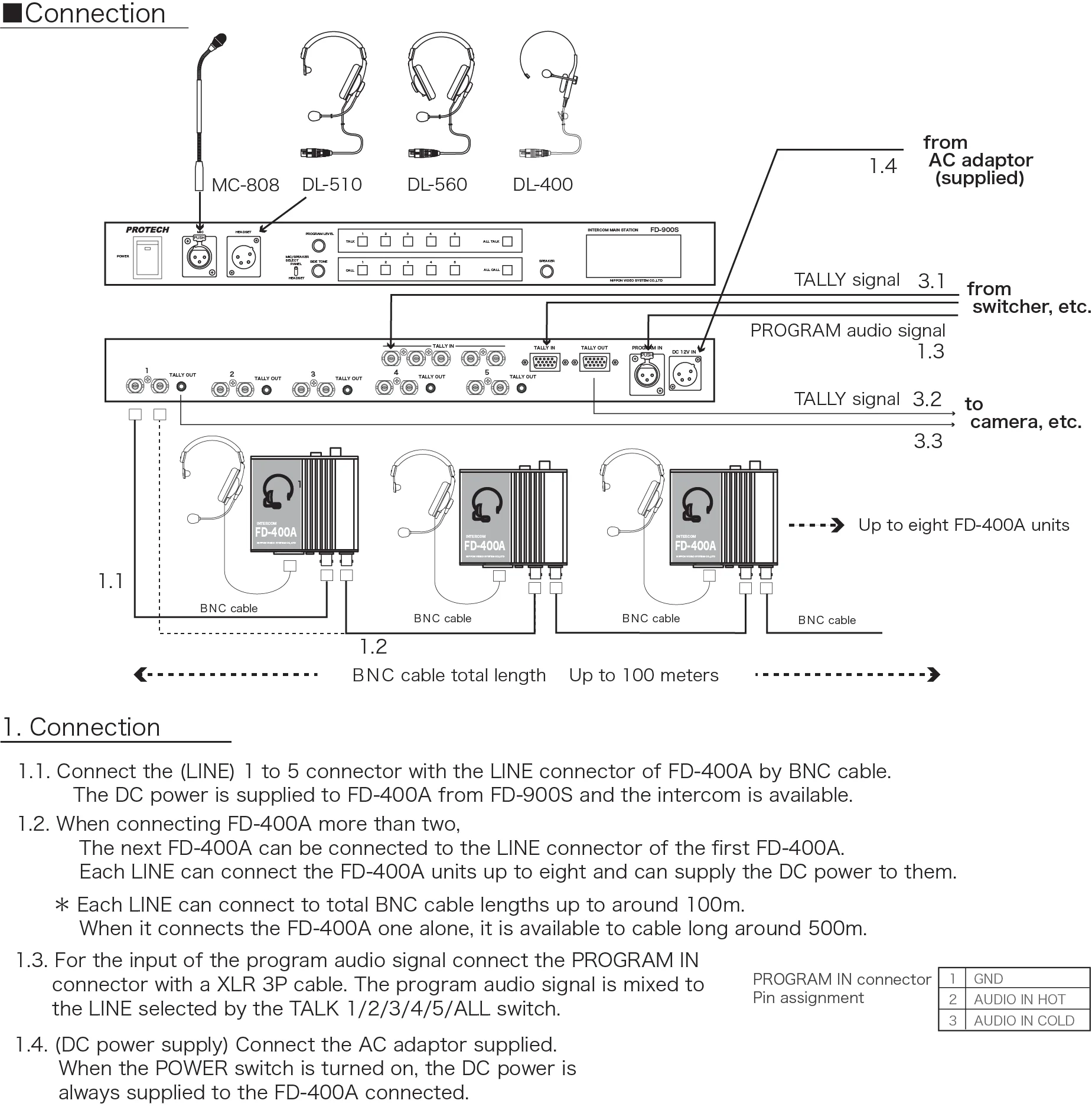

Up to eight units of FD-400A can be connected to each channel (40 units of FD-400A can be connected in total) and DC power can be supplied from this intercom base station to the FD-400A beltpacks.
Up to eight units of FD-400A can be connected to each channel (40 units of FD-400A can be connected in total) and DC power can be supplied from this intercom base station to the FD-400A beltpacks.
BNC cable connection between FD-400A or between intercom base station and FD-400A.
In addition to the headset XLR 4-pin connector, the FD-900S is equipped with a 3-pin XLR connector for general microphones and built in speaker for convenient use when the FD-900S is deployed in an operation room, etc., without the need for a headset.
The FD-900S is equipped with a function to input the main program audio (line audio) at an event venue, a concert, etc., and then mix and distribute it to each intercom line.
*Note
Features, design and specifications are subject to change without notice.
Please contact us for more infomation or inquiry.
*Note
Features, design and specifications are subject to change without notice.
Please contact us for more infomation or inquiry.

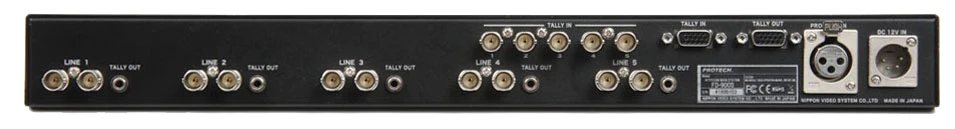

FD-900S | |||||
Intercom Line Input/Output | BNC x2 x5 chennels | ||||

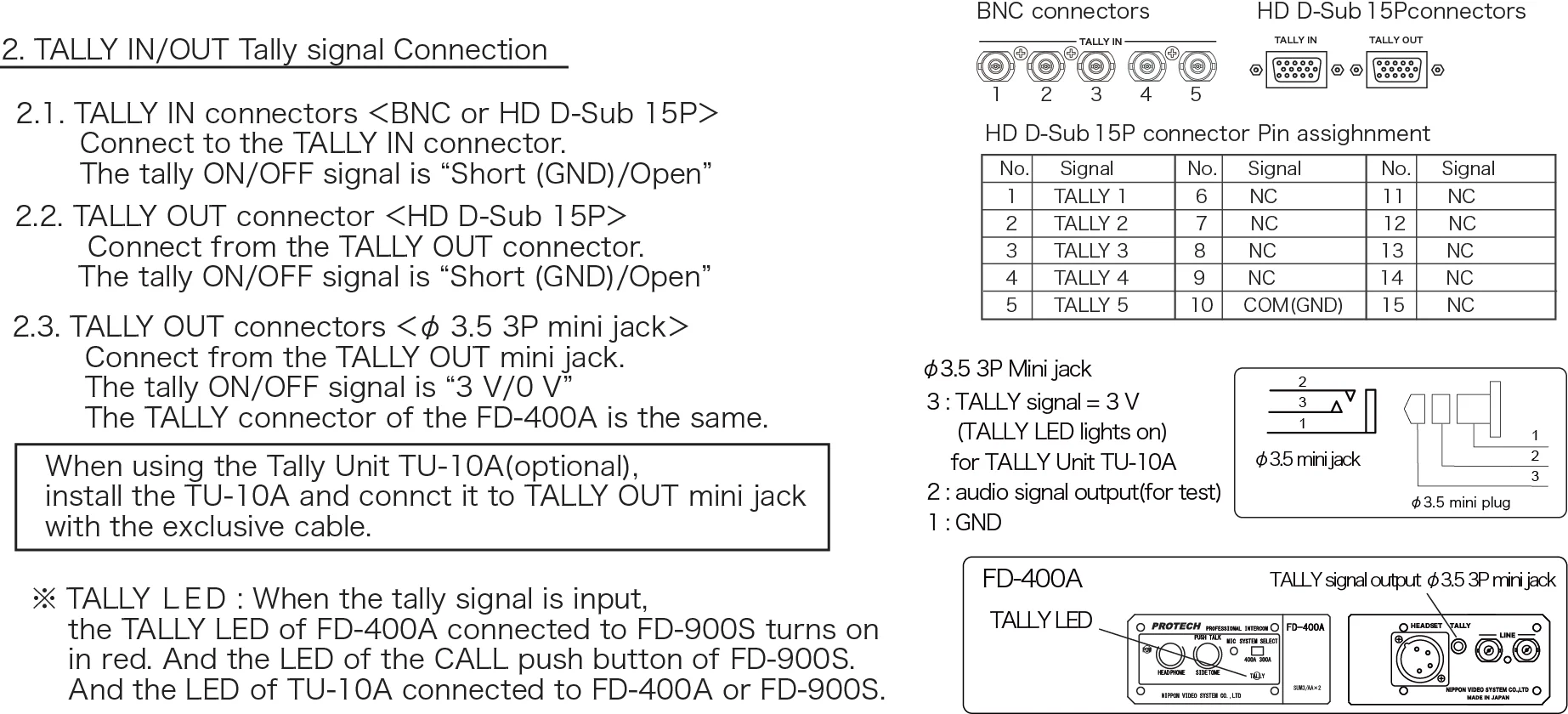

Tally In | BNC x5, D-sub 15-pin female x1 | ||||
Tally Out | φ3.5 mini jack x5, D-sub 15-pin female x1 | ||||
MIC | XLR 3-pin female x1 | ||||
Headset | XLR 4-pin male x1 | ||||
Speaker | Dynamic | ||||
Program In | XLR 3-pin female x1 | ||||
DC IN | 12V XLR 4-pin male x1 | ||||
Dimention | 430x44x220mm (1U) | ||||
Weight | 3.5kg | ||||
Accessory | AC adapter, Rack mount bracket, Instruction manual | ||||
Company Description
PROTECH/NIPROS has over 30 years of experience manufacturing camera equipment for the broadcast and video production.
We can support for HD/4K/8K resolution, and propose the system you would like. (OEM/ODM) Our Fiber Optic Transmission System has been used at many broadcasting, cabinet office, schools, OB van, etc., and has successfully carried out very important 4K/8K relays.
PROTECH/NIPROS continues to expand on its existing various products and new products with the best technology in Japan and innovate for the state of art systems building. Please feel free to contact us anytime if you are interested in our systems!
We can support for HD/4K/8K resolution, and propose the system you would like. (OEM/ODM) Our Fiber Optic Transmission System has been used at many broadcasting, cabinet office, schools, OB van, etc., and has successfully carried out very important 4K/8K relays.
PROTECH/NIPROS continues to expand on its existing various products and new products with the best technology in Japan and innovate for the state of art systems building. Please feel free to contact us anytime if you are interested in our systems!
