Производственная линия автоматическая машина для наполнения силиконовых
- Категория: Packaging Machines >>>
- Поставщик: Zhangjiagang,Mic,Machinery,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 35700.28 $* | 37485.33 $* |
| Aug-16-2025 | 35400.58 $* | 37170.32 $* |
| Jul-16-2025 | 29700.0 $* | 31185.73 $* |
| Jun-16-2025 | 34800.57 $* | 36540.89 $* |
| May-16-2025 | 30300.1 $* | 31815.64 $* |
| Apr-16-2025 | 34200.92 $* | 35910.88 $* |
| Mar-16-2025 | 33900.14 $* | 35595.3 $* |
| Feb-16-2025 | 33600.36 $* | 35280.63 $* |
| Jan-16-2025 | 33300.12 $* | 34965.66 $* |
Характеристики
PRODUCT DESCRIPTION
Fully automatic silica gel silicone sealant filling capping machine for silicone cartridge is designed for high viscosity material filling and capping. This machine is composed by hydraulic pressing system, filling control system and automatic capping system. Only one operator can control the whole machine. High filling accuracy, stable and reliable operation of the whole machine, no other pollution.
PRODUCT PARAMETER
Type | MIC 300 |
Power Supply | 380V/50HZ |
Air Supply | ≮0.5MPa |
Air Consume | <0.3m 3 /min |
Filling Volume | MAX 310ml Adjustable |
Volume Precision | ≤±0.5℅ |
Productivity | 40~60pcs/min |
Tube Diameters | ￠50mm*300ML |
Dimensions(L×W×H) | 5200×1450*2200 |
Weight(kg) | 1100KG |
PRODUCT APPLICATION
DETAILED IMAGES

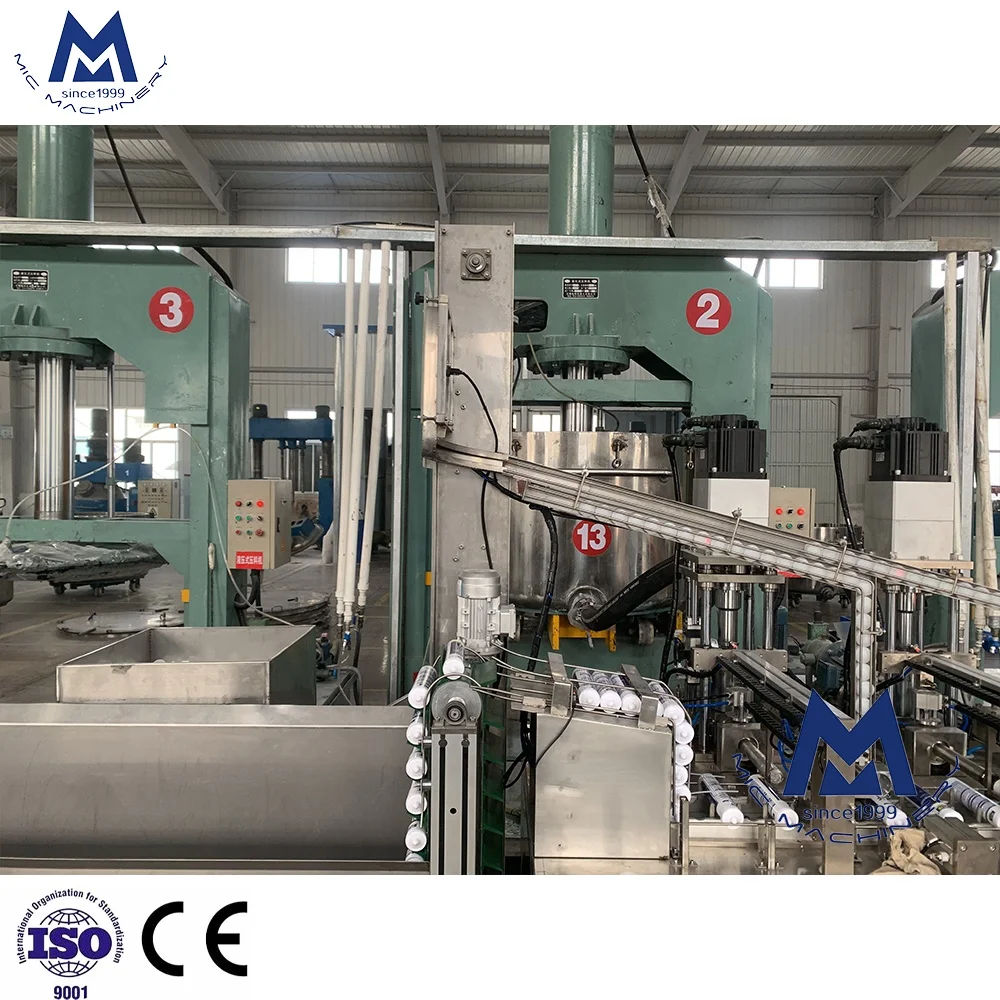

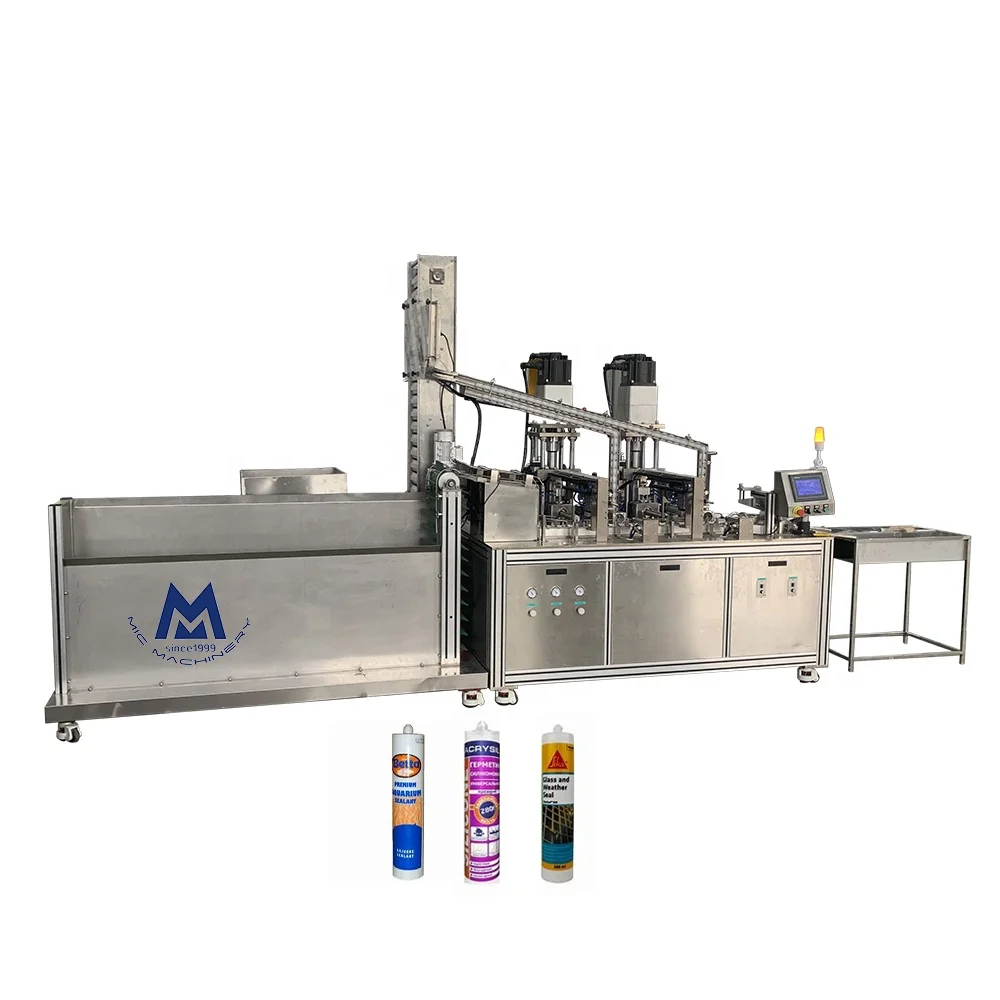

Machine Whole View
The whole machine adopts PLC controller and touch screen, strict precision control and processing technology of various transmission parts, high stability of the equipment and fast response.

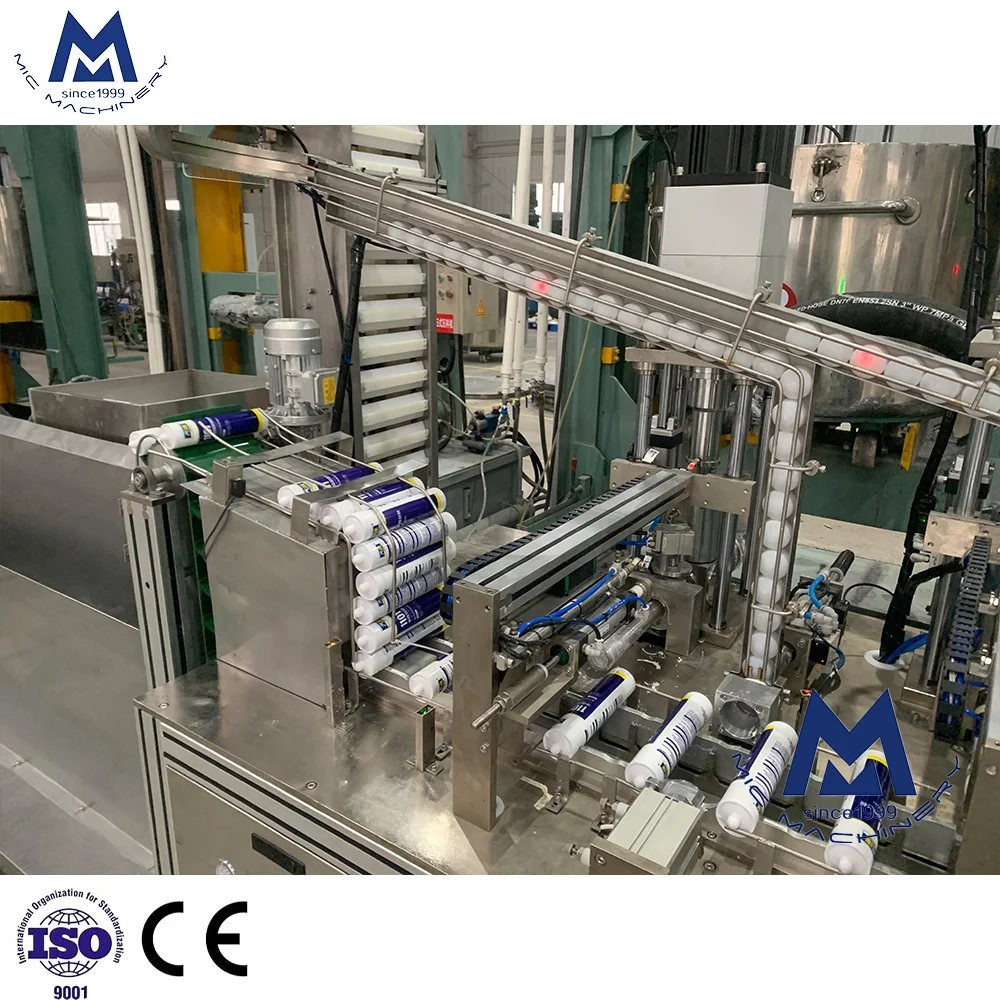

Tube loading
adapt tube loader automatic loading the tube on machine

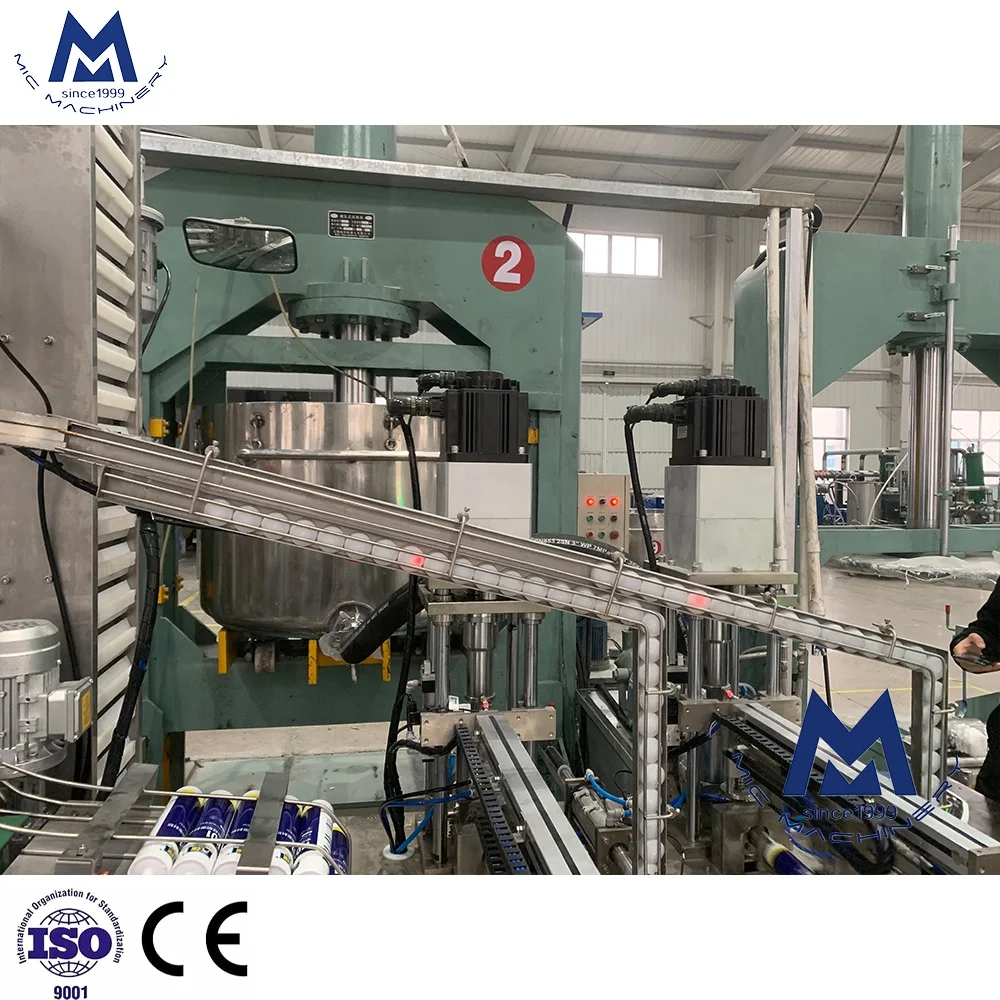

Servo control system
Servo motor control the filling , the whole work process is running stable.
VIBRATING TRAY
The vibration disc is automatically covered, without pipe and no cap
The volume metering cylinder is adopted, and the servo motor controls the quantitative. Filling measurement accuracy is high
(error 0.5%). the whole process no air come in.
