Официальная машина для уборочной машины 3 тонны XZJ5071TSLQ5 мусоровоз
- Категория: Floor Sweeper >>>
- Поставщик: Evangel,Industrial,(Shanghai),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 47600.12 $* | 49980.38 $* |
| Aug-19-2025 | 47200.37 $* | 49560.65 $* |
| Jul-19-2025 | 39600.29 $* | 41580.7 $* |
| Jun-19-2025 | 46400.50 $* | 48720.57 $* |
| May-19-2025 | 40400.41 $* | 42420.8 $* |
| Apr-19-2025 | 45600.48 $* | 47880.53 $* |
| Mar-19-2025 | 45200.25 $* | 47460.3 $* |
| Feb-19-2025 | 44800.77 $* | 47040.12 $* |
| Jan-19-2025 | 44400.26 $* | 46620.71 $* |
Характеристики

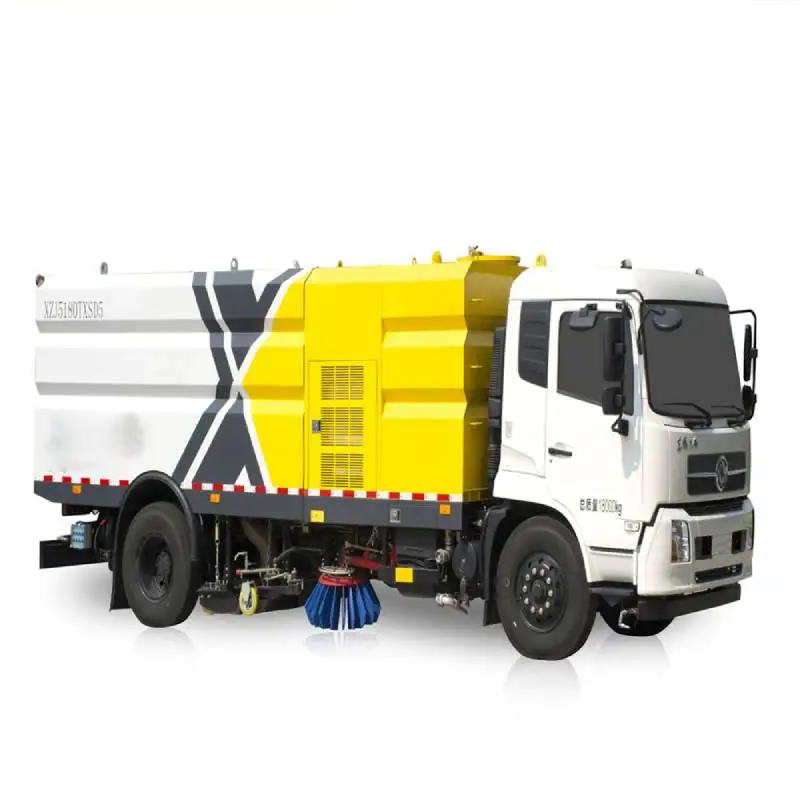

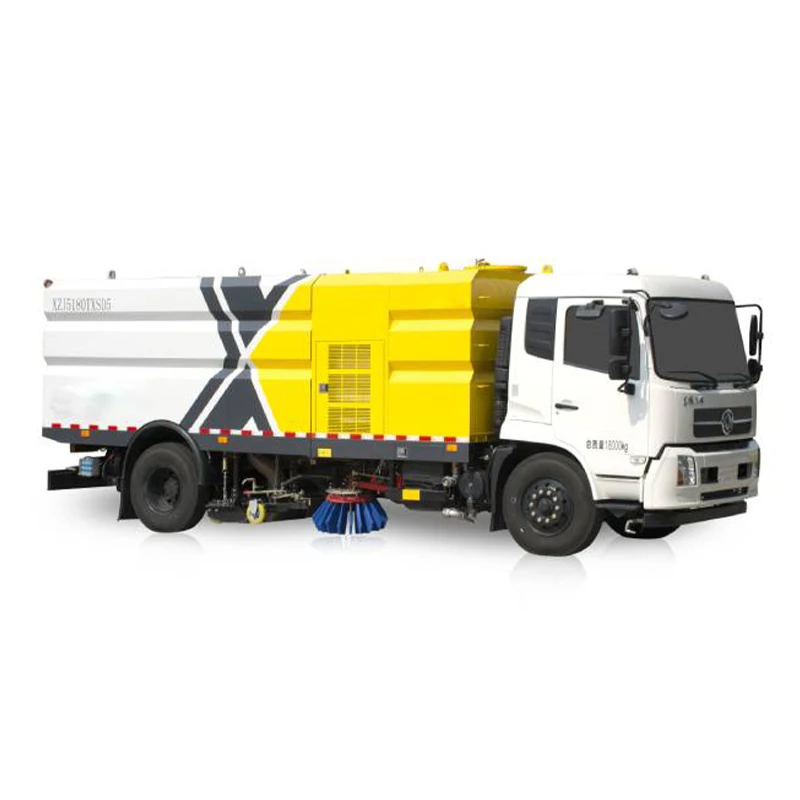

3 tons XZJ5071TSLQ5 Road Sweeper Machine Garbage Truck
1,Beautiful and practical model of tank
On the premise of meeting relevant use and strength requirements, it is integrally made of SUS304 single-layer stainless steel. It is simple and practical, with good usability. Moreover, the dustbin is integrated with the fresh water tank, increasing the water volume and making it convenient for batch production and processing. At the same time, the lifting angle is increased for the dustbin, making it convenient for garbage dumping. Adismountable structure is adopted for the sucker in the tank. After it is worn,the sucker can be conveniently replaced.
2,Sweeping mechanism under self-adaptive control
The mode of spring adjustment is adopted for the ground pressure of side sweeper system. In the working process, the ground pressure of the sweeper can be adjusted at any time according to the pavement condition, so as to reduce wear of the sweeper. In order to reduce wear of the sweeper, the mode of spring adjustment is adopted for the ground pressure of side sweeper system. Its ground pressure can be adjusted at any time during working according to the pavement condition. In order to solve the issue of sweeping plate obstacle, one end of the oil cylinder support is connected via shackle,making the oil cylinder under a floating state. When the sweeping plateencounters an obstacle, the function of automatic avoidance can be realized.
3,Efficient air duct system
The air duct system serves as the basis for the pneumatic transmission system of the cleaning sweeper truck. It includes the following three parts: suction nozzle, tank pipeline and fan, which decides the garbage suction force, airflow loss and system power. At the same time, it is also a key design part of the sweeping machine.
(1)Efficient sucking disc
A total floating suction nozzle structure of narrow suction nozzle + single large air duct is adopted for this machine. A roll sweeping device is added to the rear end of the suction nozzle, which is driven by motor, effectively improving the sweeping efficiency and speed. During working,the motor speed is adjustable, or the motor may not work, so as to adapt to different pavement conditions.
(2)Efficient centrifugal fan
The independently researched and developed centrifugal fan is adopted, with the maximum blast capacity of 12,000m3/h. The fan has large total pressure and high efficiency. Its blade is made of special steel. The special shape of its blade is extremely uneasy to wear.
4,Reliable and effective dust falling system
The stainless-steel water spraying frame of sweeping plate is equipped with a low-pressure fan-shaped nozzle, in order to suppress the dust raised by the sweeper. Furthermore, a dust reduction spray pipe is also installed at the suction nozzle. A self-made large-diameter nozzle is installed, so as to suppress the dust raised when the sweeping plate absorbs garbage. Wenzhou Hanxing centrifugal water pump shall be selected as the water spray pump, which is provided with an electromagnetic clutch. At the same time,a water torch is provided as well, making it convenient for integral cleaning,maintenance and high-pressure washing at the fixed point.
5,Convenient PTO port
QSB5.9-C160-30 is adopted for the auxiliary engine. The hydraulic pump is directly driven by the auxiliary engine through the side force taking port (PTO port), which improves the transmission efficiency, reduces the transition of supporting seat, saves oil consumption, lowers the user costs, and effectively lowers the failure rate.
6,Power output system
The output protection device of clutch for vehicle + air cylinder control is adopted for the auxiliary engine of sweeping machine, which guarantees no-load starting and no-load shutdown of the auxiliary engine, solves the issue of large output impact of the engine, and gives better protection to the engine,fan and high-pressure water pump.
On the premise of meeting relevant use and strength requirements, it is integrally made of SUS304 single-layer stainless steel. It is simple and practical, with good usability. Moreover, the dustbin is integrated with the fresh water tank, increasing the water volume and making it convenient for batch production and processing. At the same time, the lifting angle is increased for the dustbin, making it convenient for garbage dumping. Adismountable structure is adopted for the sucker in the tank. After it is worn,the sucker can be conveniently replaced.
2,Sweeping mechanism under self-adaptive control
The mode of spring adjustment is adopted for the ground pressure of side sweeper system. In the working process, the ground pressure of the sweeper can be adjusted at any time according to the pavement condition, so as to reduce wear of the sweeper. In order to reduce wear of the sweeper, the mode of spring adjustment is adopted for the ground pressure of side sweeper system. Its ground pressure can be adjusted at any time during working according to the pavement condition. In order to solve the issue of sweeping plate obstacle, one end of the oil cylinder support is connected via shackle,making the oil cylinder under a floating state. When the sweeping plateencounters an obstacle, the function of automatic avoidance can be realized.
3,Efficient air duct system
The air duct system serves as the basis for the pneumatic transmission system of the cleaning sweeper truck. It includes the following three parts: suction nozzle, tank pipeline and fan, which decides the garbage suction force, airflow loss and system power. At the same time, it is also a key design part of the sweeping machine.
(1)Efficient sucking disc
A total floating suction nozzle structure of narrow suction nozzle + single large air duct is adopted for this machine. A roll sweeping device is added to the rear end of the suction nozzle, which is driven by motor, effectively improving the sweeping efficiency and speed. During working,the motor speed is adjustable, or the motor may not work, so as to adapt to different pavement conditions.
(2)Efficient centrifugal fan
The independently researched and developed centrifugal fan is adopted, with the maximum blast capacity of 12,000m3/h. The fan has large total pressure and high efficiency. Its blade is made of special steel. The special shape of its blade is extremely uneasy to wear.
4,Reliable and effective dust falling system
The stainless-steel water spraying frame of sweeping plate is equipped with a low-pressure fan-shaped nozzle, in order to suppress the dust raised by the sweeper. Furthermore, a dust reduction spray pipe is also installed at the suction nozzle. A self-made large-diameter nozzle is installed, so as to suppress the dust raised when the sweeping plate absorbs garbage. Wenzhou Hanxing centrifugal water pump shall be selected as the water spray pump, which is provided with an electromagnetic clutch. At the same time,a water torch is provided as well, making it convenient for integral cleaning,maintenance and high-pressure washing at the fixed point.
5,Convenient PTO port
QSB5.9-C160-30 is adopted for the auxiliary engine. The hydraulic pump is directly driven by the auxiliary engine through the side force taking port (PTO port), which improves the transmission efficiency, reduces the transition of supporting seat, saves oil consumption, lowers the user costs, and effectively lowers the failure rate.
6,Power output system
The output protection device of clutch for vehicle + air cylinder control is adopted for the auxiliary engine of sweeping machine, which guarantees no-load starting and no-load shutdown of the auxiliary engine, solves the issue of large output impact of the engine, and gives better protection to the engine,fan and high-pressure water pump.
Items | Contents | XZJ5071TSLQ5 |
Chassis parameters | Chassis Model | QL1070A5HAY (State V) |
Chassis engine model | 4KH1CN5HS | |
Power | 96kW | |
Wheelbase | 3360mm | |
Donkey engine | Model | JMC JX493ZG3 (State III) |
Power | 64kw/3000r/min | |
Vehicle parameters | Max. total weight | 7300kg |
L x W x H | 5730×2080×2520mm | |
Curb weight | 5080kg | |
Garbage parameters | Garbage volume | 5 m³ |
Water tank volume | 1.3 m³ | |
Max. lifting angle | 46°+13° | |
Suction nozzle | Suction diameter | 200mm |
Ground clearance during working | 5~10mm | |
Working Performance | Sweeping width | 3m |
Sweeping speed | 3~20km/h | |
Max. sweeping capacity | 60000m²/h | |
Max. inhaled particles | 110mm | |
Sweeping and washing diameter | Φ900mm | |
Driving performance | Max. driving speed | 100km/h |
Max. climbing angle | 30% | |
Brake distance (full loading 30km/h) | ≤10m | |
Min. turning diameter | ≤13.6m | |
Dimensions | Front wheel | 1504mm |
Rear wheel | 1425mm | |
Approach angle | 24° |
