Hot Digital Colposcope Imaging System AJ-100B
US $1400-$1500
Заводская цена портативные цифровые офтальмологические Цифровые оптометрические инструменты щелевая
- Категория: Visual Acuity Examination Apparatus >>>
- Поставщик: Guangzhou,Yscon,Medical,Appliance,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 1428.25 $* | 1499.16 $* |
| Aug-16-2025 | 1416.6 $* | 1487.76 $* |
| Jul-16-2025 | 1188.8 $* | 1247.98 $* |
| Jun-16-2025 | 1392.7 $* | 1462.44 $* |
| May-16-2025 | 1212.2 $* | 1273.81 $* |
| Apr-16-2025 | 1368.78 $* | 1436.50 $* |
| Mar-16-2025 | 1356.87 $* | 1424.56 $* |
| Feb-16-2025 | 1344.96 $* | 1411.79 $* |
| Jan-16-2025 | 1332.98 $* | 1399.73 $* |
Характеристики

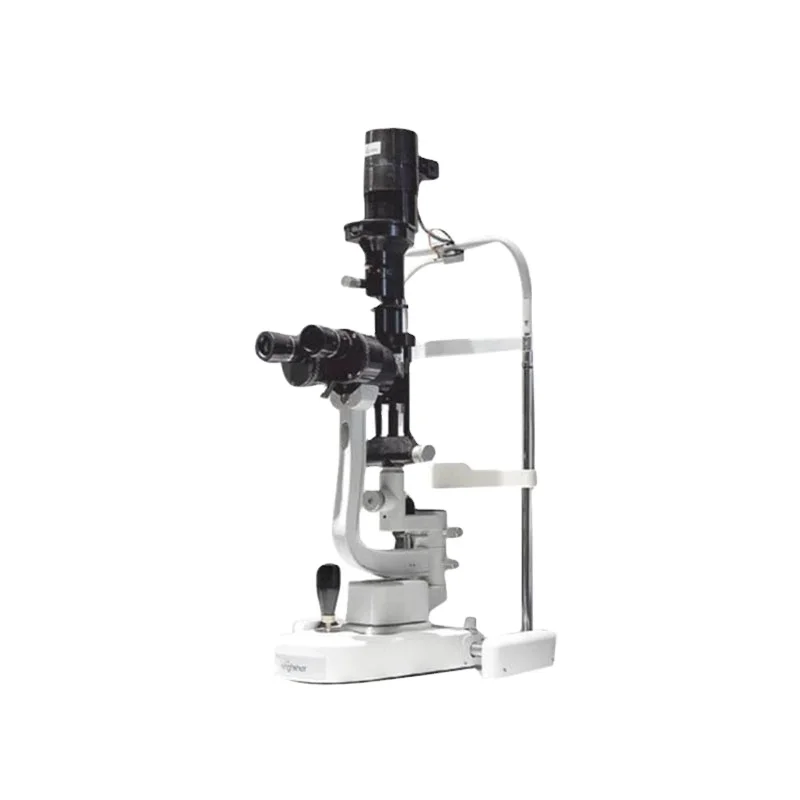

the more details of the portable slit lamp microscope
Specification of portable slit lamp microscope :
Specification of portable slit lamp microscope :
1.The Galilean type microscope system adopts revolving drum,the highestmagnification is 5 steps. (Professional type)2.The excellent optical system can give you a clear and clean image
.3.The 14mm aperture can help you observe the whole cornea and iris easily, and it is convenient to examine the foreign object
.4.The German imported 6V20W Osram halogen lamp can fully make use of every beam. It can make sure that you get the clean and clear image effect
with the minimum illumination, at the same time can protect the patients eye
with the minimum illumination, at the same time can protect the patients eye
.5.The high eyepoint and open field eyepieces design can guarantee the clear image even when you wear glasses
.6.The modular design can reserve the adapters, this is convenient to connect beam splitter, digital camera adapter and the CCD adapter, thus can upgrade to the digital camera system or the image
capture system.
capture system.
7.The adapter function is good, digital single lens reflex camera and the digital vidicon are compatible.
Magnification change | Revolving Drum | |||||
Total magnification Ratio | 6x,10x, 16x, 25x,40x | |||||
professional configuration | ||||||
Eyepieces | 12.5x | |||||
Angle between eyepieces | 13 degree | |||||
Pupillary adjustment | 55mm~78mm | |||||
Diopter adjustment | ±6D | |||||
Field of view | 40x (¢5.5mm), 25x ( ¢ 8.5mm),16x ( ¢ 13.5mm), 10x ( ¢ 22mm), 6x ( ¢ 34.7mm) | |||||
Slit Illumination: | ||||||
Slit width | Continuously variable from 0 to 14mm | |||||
at 14mm,slit becomes a circle | ||||||
Slit length | Continuously variable from 1mm to 14mm | |||||
Lamp | 6V/20W Halogen Lamp | |||||
Slit angle | 0~180 degree(continuously adjustable both vertical and horizontal) | |||||
Slit inclination | 4 step 5 degree,10 degree,15 degree,20 degree | |||||
Filters | Thermal safety,UV,Red-free,Cobalt Blue | |||||
Aperture diameters | ¢ 14mm, ¢ 10mm, ¢ 5mm, ¢ 3mm, ¢ 2mm, ¢ 1mm, ¢ 0.2mm | |||||
Base | ||||||
Longitudinal movement | 90mm | |||||
Lateral movement | 100mm | |||||
Vertical movement | 30mm | |||||
Chin-Rest | ||||||
Vertical movement | 80mm | |||||
Fixation | Green LED | |||||
Power: | ||||||
Input voltage | 220V/110V~±10 | |||||
Input frequency | 50Hz/60Hz | |||||
Power consumption | 30VAmax | |||||
Output voltage | Lamp 6V (continuously adjustable),Fixation 3V | |||||
Dimension & Weight: | ||||||
Dimension | 740mm x 450mm x 500mm | |||||
Gross weight | 25Kg | |||||
Net weight | 24kg | |||||
Working environment: | ||||||
Temperature | +5~+40 | |||||
Relative humidity | ≤80% | |||||
Air pressure | 800hpa~1060hpa | |||||
Storing environment: | ||||||
Temperature | -40~+55 | |||||
Relative humidity | ≤93% | |||||
Air pressure | 700hpa~1060hpa | |||||
Transporting environment: | ||||||
Temperature | -40~+55 | |||||
Relative humidity | ≤93% | |||||
Air pressure | 700hpa~1060hpa | |||||
1.Q: How long is your delivery time?
A A Usually it takes about 7 working days, it depends on the quantity
2Q:Do you provide samples is it free or extra?
AA Yes, we could offer samples of most products for free charge but do not pay the cost of freight.
3. Q: How to get quotation?
A A Please tell us the name and quantity of the products you need, we will offer you our best prices
4. Q: Can you design for us?
A Of course, we accept vanous OEM and ODM orders
5.0: How do I pay?
A: You can pay us by wire transfer, WestemUnion, Money Gram T/T: 30% deposit, pay the balance before
6.Q:How long is the warranty time?
AA12 Months
Q7.a:It is my 1st time purchase products oversea, how to promise its safe?
AA We are vertified company by Alibaba, and we attend many Int, Fairs every year
Welcome to visit our ofmice and company
A A Usually it takes about 7 working days, it depends on the quantity
2Q:Do you provide samples is it free or extra?
AA Yes, we could offer samples of most products for free charge but do not pay the cost of freight.
3. Q: How to get quotation?
A A Please tell us the name and quantity of the products you need, we will offer you our best prices
4. Q: Can you design for us?
A Of course, we accept vanous OEM and ODM orders
5.0: How do I pay?
A: You can pay us by wire transfer, WestemUnion, Money Gram T/T: 30% deposit, pay the balance before
6.Q:How long is the warranty time?
AA12 Months
Q7.a:It is my 1st time purchase products oversea, how to promise its safe?
AA We are vertified company by Alibaba, and we attend many Int, Fairs every year
Welcome to visit our ofmice and company
