Edible red oil making diesel engine small palm oil pressing machine

Description of palm oil processing machine

1.The  small special palm oil press made by our factory is suitable for small farm about 3-15 hectares, or self-employed businessmen who process the incoming materials.

2.The raw material of red oil is getting from unbroken palm fruit (Weight is 10-20kg). After thermophilicdigestion,palm berry fruits are separated from the unbroken fruit.After heating ,put the palm berry fruit into palm dedicated oil press,the kernel,fibre,and the red oil mixture including water ,slag can be produced.After separating,can get pure red palm oil.

3.The kernel can be pressed into oil by screw oil press after breaking.

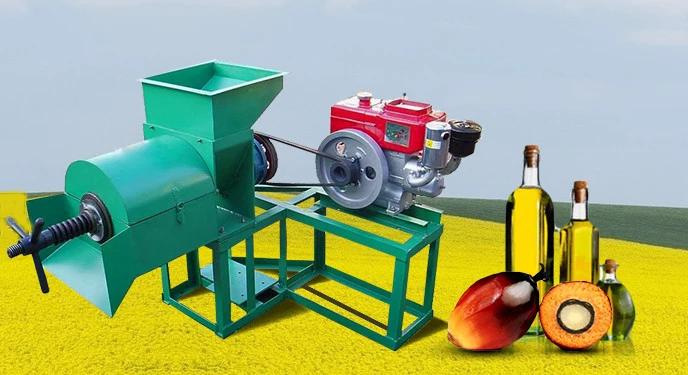

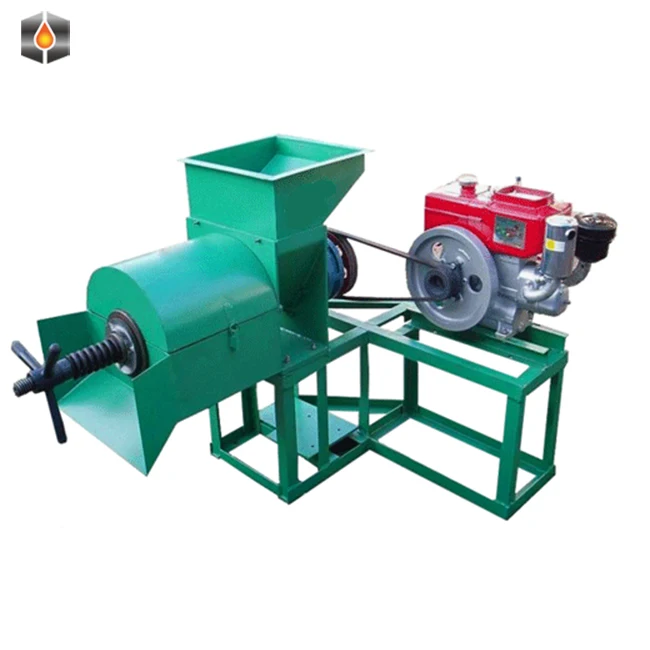

Photos of palm oil processing machine

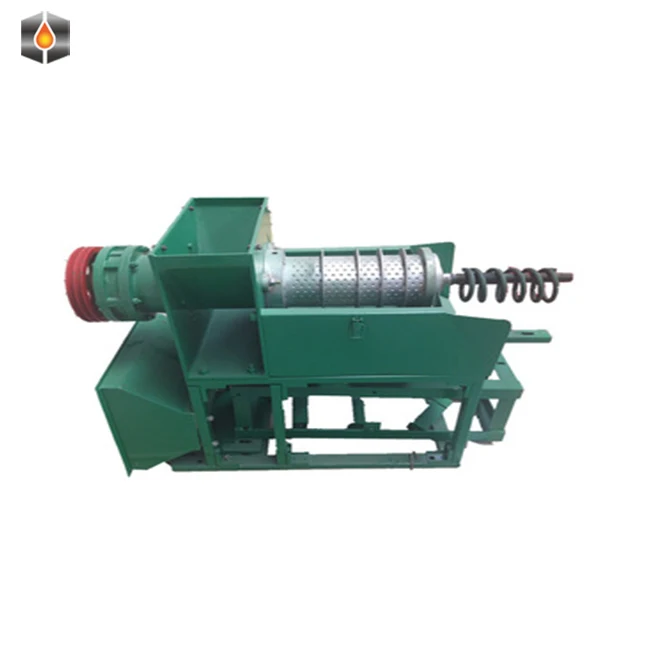

Detailed Images

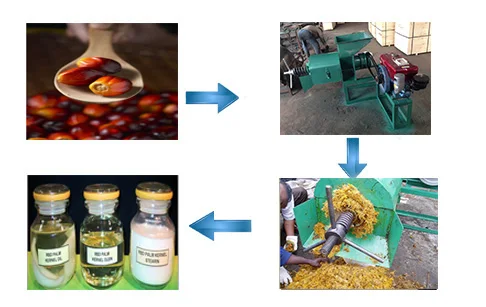

palm oil processing machine producing process

Palm oil is divided into red oil and white oil. Red oil is pressed by the palm fruit pulp,

mainly for edible oil.White oil is pressed by the palm kernel, mainly for industrial oil.

Red oil is made by the fresh palm fruit string, each string is 10Kg to 20Kg.

The fruit string should do the high temperature cooking. Threshing the fruit for the string, heating and pressed by our palm oil press can get red oil with water.

Parameters of palm oil processing machine



Model	TZ-1
Matched Power	3 KW OR Diesel engine 6 HP
Rotary  speed of principal axis	25-35 R/Min
Braising time ( steam of 100°C)	2 hours
Weight	260kg
Dimension	1.4*0.6*0.6m
Capacity	250-300 kg/h

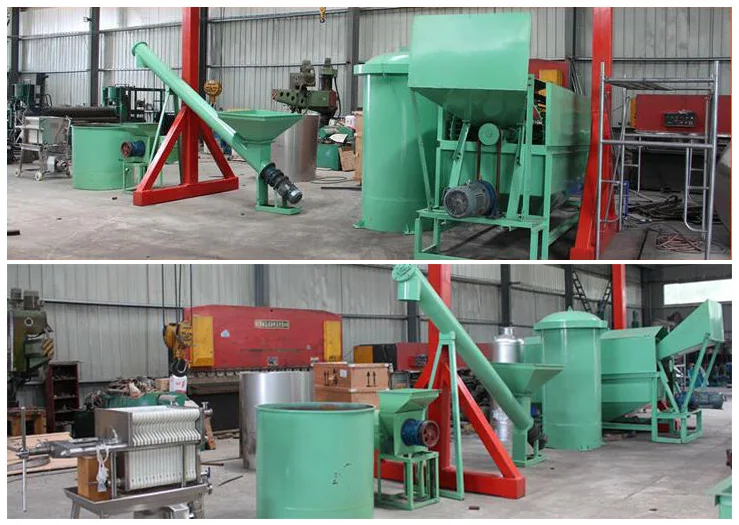

small palm oil processing line we have provided

we can provide large palm oil processing line

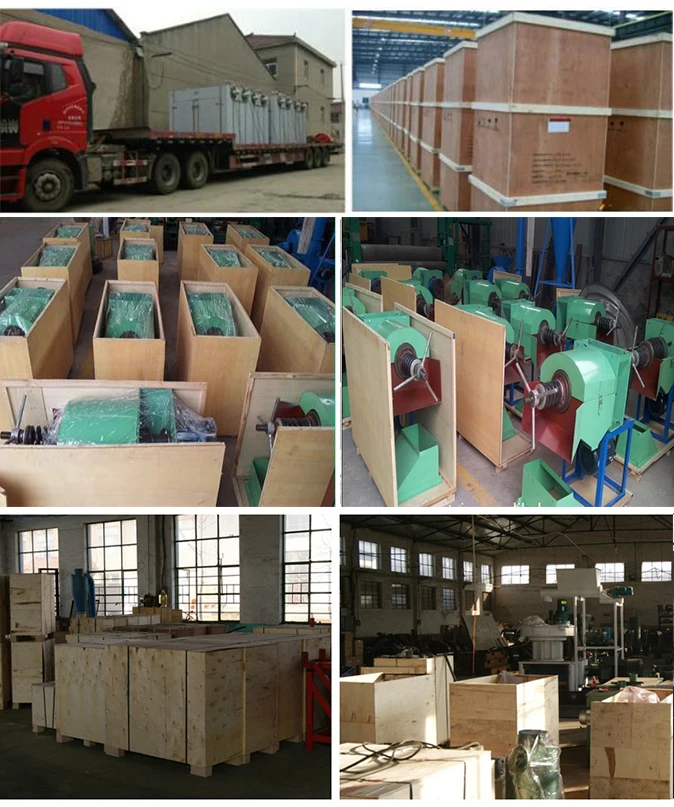

Packaging & Shipping

About us

Wuhan HDC  is a Professional and modern grain and oil machinery engineering equipment manufacturer integrating research, manufacturing and installation. We have obtained rich experience and practice in palm fruit oil machine, vegetable oil pretreatment, prepress,extraction, sophisticated technology and equipment designs etc, owing wide international market in more than 130 countries and regions.
With more than 30 years of experience on oil making machine, we provide a comprehensive range of products
We are proud to guarantee that, with our strong technical background and communication capability, our sales/support engineers are able to answer your most complicated technical questions over the phone in English.
