Product Overview
PRODUCT SPECIFICATIONS

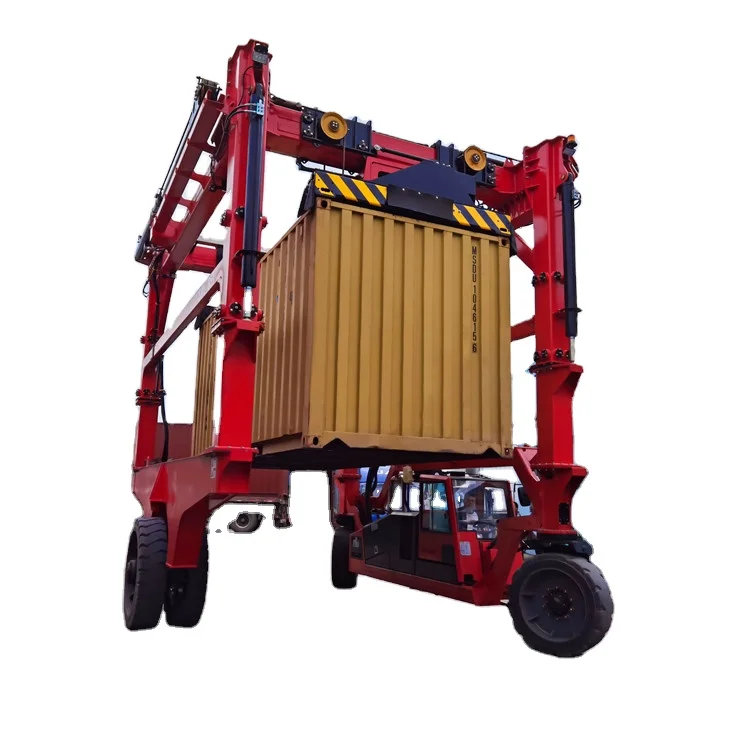

China manufacturer straddle carrier container te koop mobile crane 50 ton container straddle carrier
ADVANTAGES:
1 Capable of handling 20ft, 30ft, 40ft and 45ft containers
2 Used for moving containers from trailer to ground and to eliminate containers being left on trailers for long periods of time
3 Max 120,000 kg in lifting capacity
4 Equipped with wide tires, can be used on rugged or unstable terrains
5 Enables to move oversize disproportionate loads
6 Can Travel Fully Loaded
7 Can be easily broke down and moved to a new location
2 Used for moving containers from trailer to ground and to eliminate containers being left on trailers for long periods of time
3 Max 120,000 kg in lifting capacity
4 Equipped with wide tires, can be used on rugged or unstable terrains
5 Enables to move oversize disproportionate loads
6 Can Travel Fully Loaded
7 Can be easily broke down and moved to a new location
Basic Parameter | HKY3531-3-2 | HKY3533-4-2 | HKY12065-1 |
Lifting weight | 35T | 45T | 120T |
Dimension(L*W*H) | 7100*5000*5500 | 10000*5800*7000 | 12000*8210*6900 |
Inner width | 3100mm | 3400mm | 6500mm |
Wheel base | 6000mm | 6500mm | 9000mm |
Min Ground clearance | 300mm | 600mm | 300mm |
Deadweight | 17T | 29T | 120T |
Engine | Cummins/Weichai | Weichai 170KW | Weichai（247KW) |
Travel Pump(closed travel) | Hytek/Linde/Danfoss | Linde/Danfoss | Linde/Danfoss |
Travel speed(Unladen) | 8KM-10KM | 9KM-12KM | 5KM-3KM |
Travel speed(Loaden) | 6KM-8KM | 7KM-10KM | 5KM-3KM |
Turning Radius | 7000mm | 8500mm | 15000mm |
Gradeability(Unladen/Loaden) | 15%/6% | 15%-5% | 15%-5% |
Maniopulation | Steering wheel (can be romote control) | Steering wheel (can be romote control) | Steering wheel (can be romote control) |
Tires(Solid tire) | 1100(2 pcs)+1300(2 pcs) | Solid Tires 1800 | Solid Tires 1800 |
Lifting Tools | Customized oversized Load spreader | Customized oversized Load spreader | Customized oversized Load spreader |
It's better to give below detail parameters when you send enquiry to us:
1. Lifting capacity:___?tons or what type cntainers you need to lift
2.Span:___meters ( Distance between two wheel centers)
3.Lifting height:__?meters
4.Work duty: __?hours you need the crane to work? what's the full load percentage?
5.Power supply: __?V __?HZ
2.Span:___meters ( Distance between two wheel centers)
3.Lifting height:__?meters
4.Work duty: __?hours you need the crane to work? what's the full load percentage?
5.Power supply: __?V __?HZ
After-sales service
To train operating,maintenance and construction people for our customers.
1： Keep clients updated when our company getsadvanced payment;
2：Confirm production details with clients;
3:Take photos and send all pictures to customers during production;
4:Inspection and testing the product before delivery;
5： Always be ready to answer technical questions concerned from our customers.
6： Be responsible for the quality of our products and provide technical service of installing,making ajustment,testing and maintenance on the site in time.
6： Be responsible for the quality of our products and provide technical service of installing,making ajustment,testing and maintenance on the site in time.
7： To dispatch technicans to the worksite at short notice to solve problems or fix breakdowns.
8:Keep a record of our customers and be informed of the working performance of our products,feedback and suggestions of our customers so as to make a good cooperation with customers.
Optional accessories
20Feet Spreader 40Feet Spreader
20-40 Feet Spreader Oversized Load Spreader
Company Profile
Factory Workshop
Successful Project
Certifications
Product packaging
FAQ
FAQ
Q1: Why should I choose you?1. after sales service support in different languages;
2. Guidance of installation and commissioning on site can be provided by factory-trained technicians or local Authorized Service Center;
3. Technical training can be carried out for customers in the factory or on the job site
4. Plenty of original spare parts with proven quality are all available from our central stocks in HUNAN Province and alldistributors'depots;
5. All kinds of technical documents in different languages.
Q2:Where is your factory located?
A:Our factory is located in HUNAN
Q3: How many do you produce every month?
A: We can produce 100 pcs every month.
Q4: Can you use our brand?
A: Yes, OEM is available.
Q5: What is delivery time?
A: It depends on the order quantity .Normally our lead-time is 7-30 days
