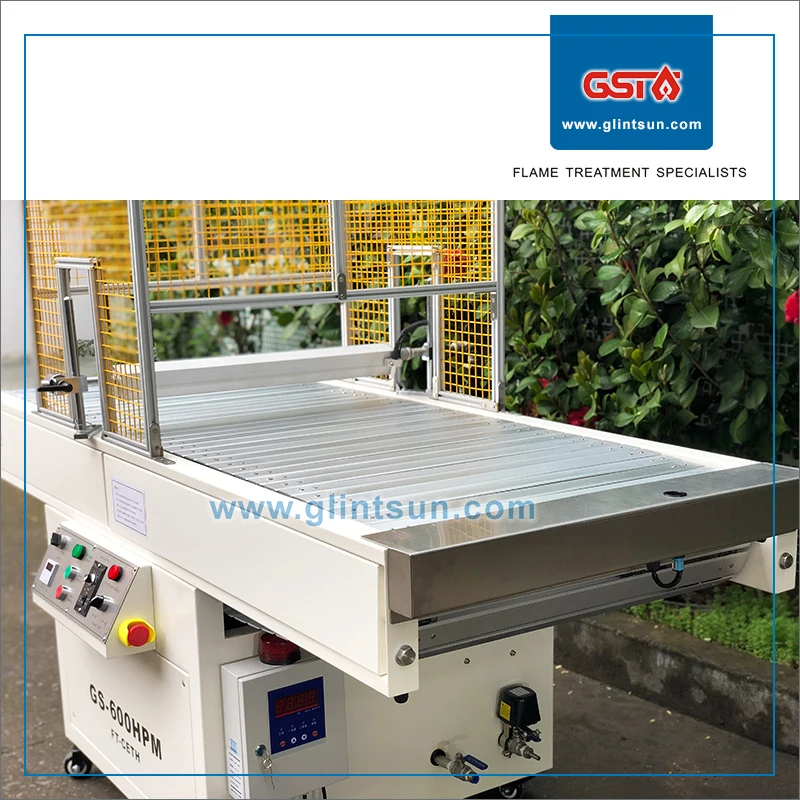

GS-600HPM Flame Treatment Machine (GSI Flame Treatment)



The flame pretreatment system manufactured by Beicang Machinery has sophisticated flame application technology; we have accumulated many years of experience, combined with advanced combustion safety control systems and spare parts, and each system is assembled before leaving the factory and has undergone strict Quality inspection and testing to ensure its quality. Use the components and spare parts of the excellent combustion safety control system



Industry Application

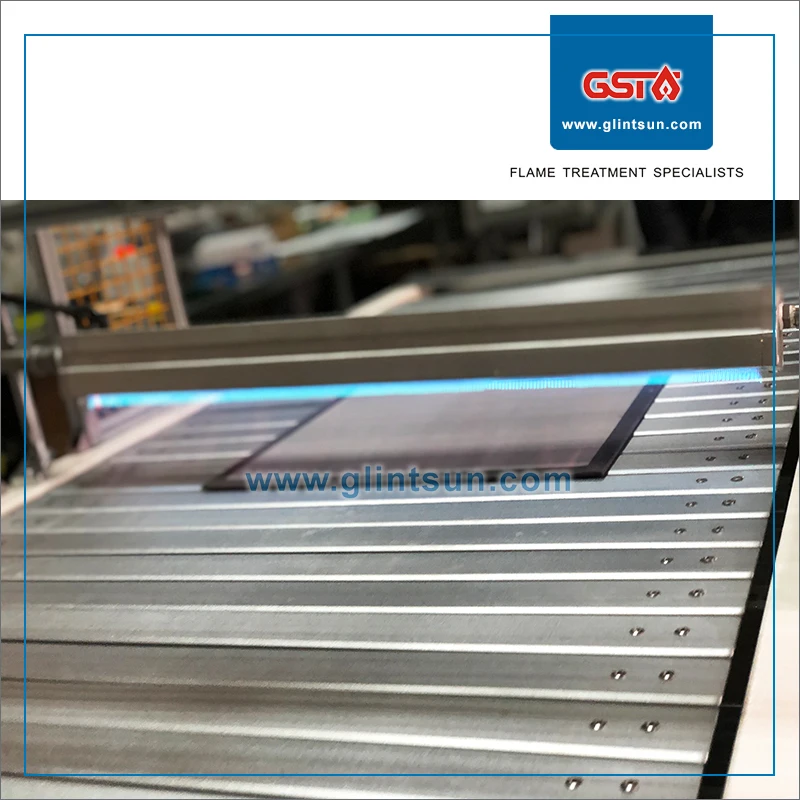

Large plane (wide format) flame treatment technology is the advantage of Beicang, which improves the adhesion of printing and coating; PP hollow blow molding board surface flame treatment, PP sheet flame treatment; basketball board flame treatment before silk printing and other flat products equipment



Features

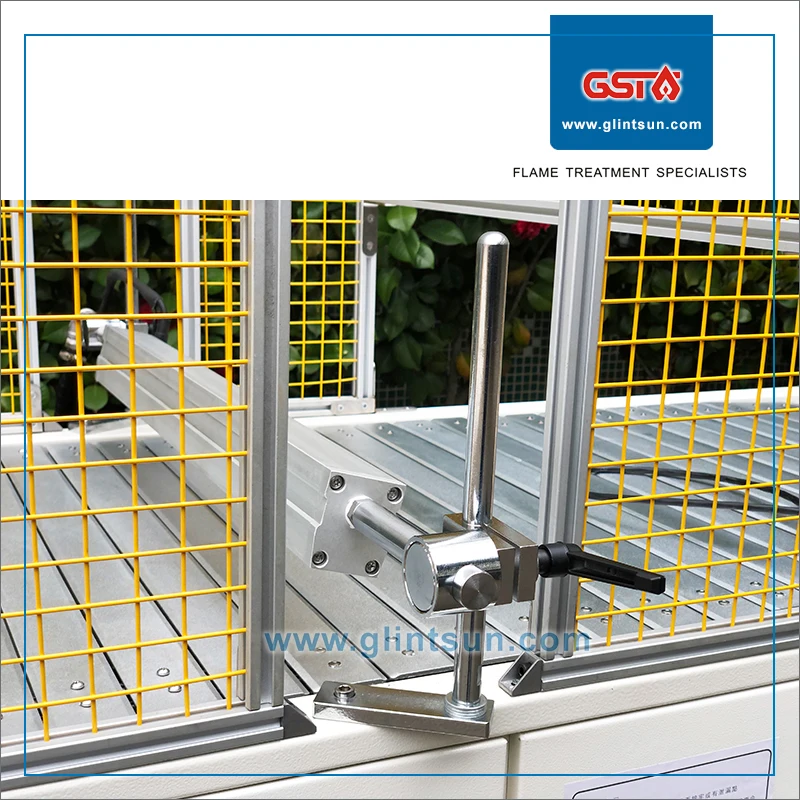

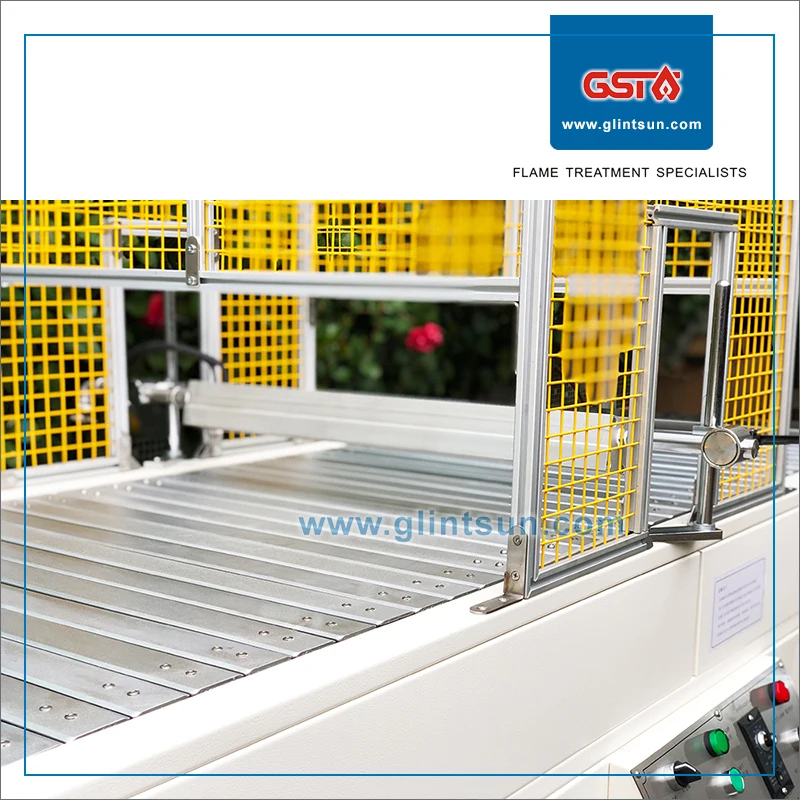

The high-temperature corrosion-resistant crawler conveyor selected by the equipment can adjust the angle and vertical height of the nozzle arbitrarily to meet the needs of surface treatment of different shapes; this burner has the patented flame jet process design of Beicang

Effectively make fuel utilization more efficient; this system can use fuel LPG (liquefied gas) or Natural GAS (natural gas); to ensure the safety of the system, a solenoid valve design is used on the gas circuit to ensure that the gas can be reliably shut down when abnormal ; The whole machine has novel structure, reasonable design, convenient operation, movable casters at the bottom, and convenient movement.





technical parameter

Combustion nozzle size: 600*13MM high-speed flame nozzle

Combustion gas: LNG liquefied natural gas

Gas calorific value: LNG: 8700Kcal/m³

Maximum gas consumption: about LNG: 60L/min

Air consumption—maximum: 25m³/hr

Ignition mode, manual and automatic dual mode switching; controllable frequency of ignition and flameout

Combustion gas: compressed air 6KGf/CM2

Control voltage: 220V/50Hz;

Conveyor belt speed: 1-15m/min

Adjustment method: crawler stepless speed regulation

Safety method: equipped with gas leakage monitor

Conveyor belt size: 2000×650mm (length×width)

Dimensions: 2100×850×1500mm (length×width×height)

Weight: 230KG
