Лидер продаж умный ультразвуковой расходомер воды M-Bus хорошего качества для домашней
- Категория: Water Meters >>>
- Поставщик: Wenling,Younio,Water,Meter,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 71.67 $* | 75.37 $* |
| Aug-16-2025 | 71.12 $* | 75.50 $* |
| Jul-16-2025 | 59.59 $* | 62.39 $* |
| Jun-16-2025 | 70.43 $* | 74.75 $* |
| May-16-2025 | 61.51 $* | 64.83 $* |
| Apr-16-2025 | 68.77 $* | 71.67 $* |
| Mar-16-2025 | 68.32 $* | 71.91 $* |
| Feb-16-2025 | 67.34 $* | 70.11 $* |
| Jan-16-2025 | 67.48 $* | 70.1 $* |
Характеристики

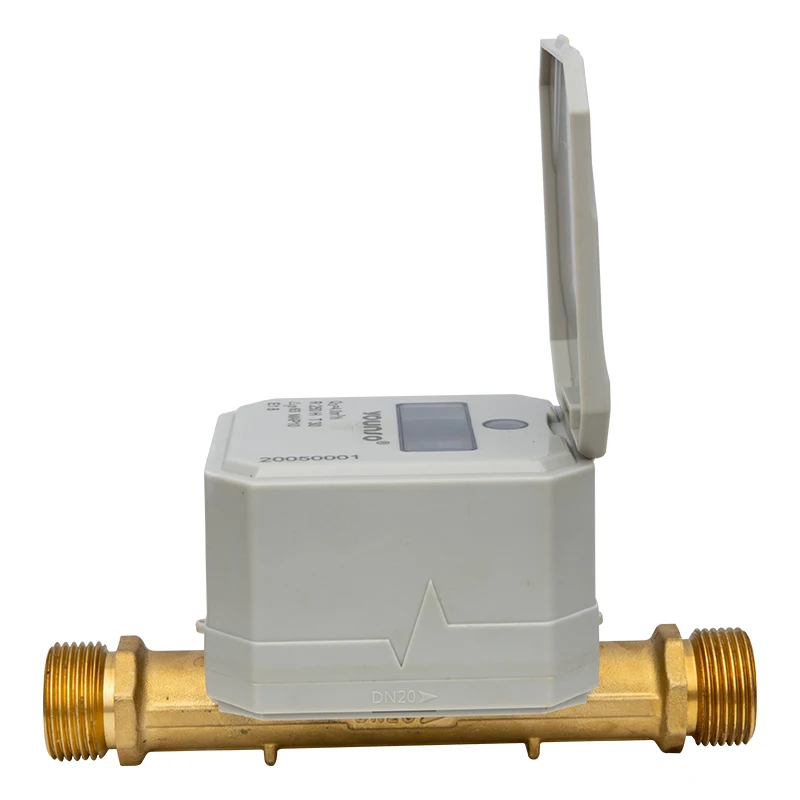

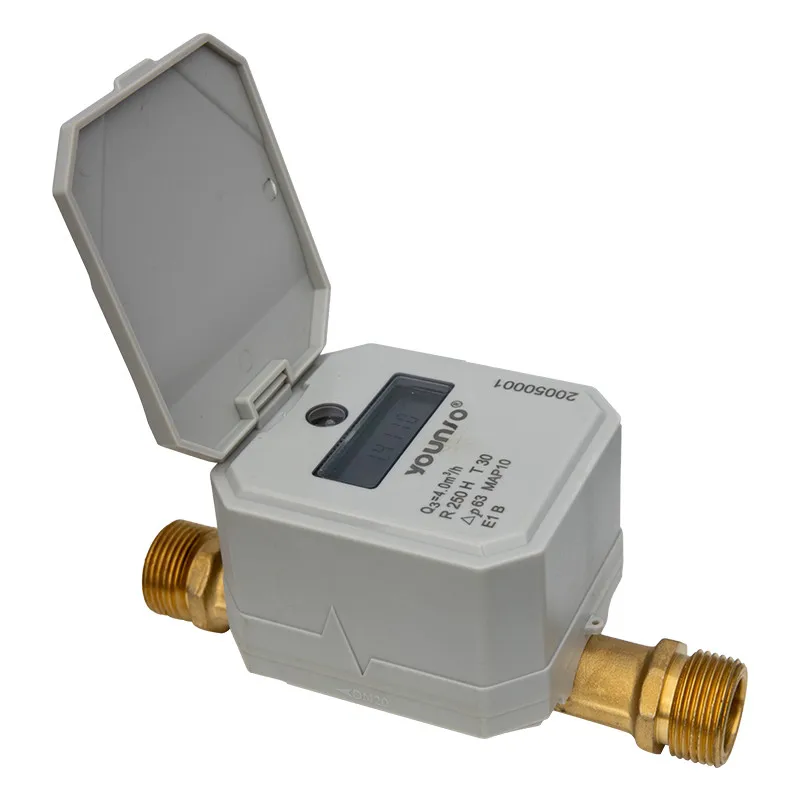

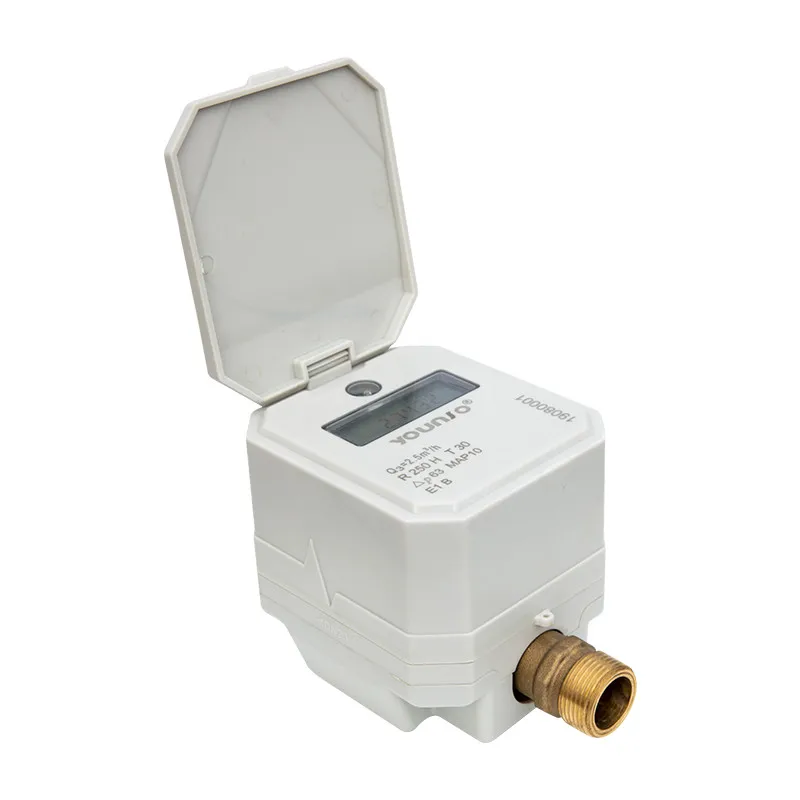

M-bus Water Meter
Adopt high quality piezoelectric ceramics to collect signals, accurate measurement, low initial flow,high sensitivity.
1. Dimension
Size (mm) | Length (mm) L | Length (mm) L2 | B | Heigh (mm) H | Connecting Screw | Thread |
15 | 130 | 220 | 70 | 75 | R1/2 | G3/4 |
20 | 130 | 230 | 70 | 85 | R3/4 | G1 |
25 | 150 | 266 | 70 | 85 | R1 | G11/4 |
40 | 200 | 324 | 70 | 110 | R1 1/2 | G2 |
2. Features
Ultrasonic technology, High accuracy, Accurate rate: R800
Without mechanical movement parts,no wear,long working life;
Data Storage：Recent 24 months data
Starting flow：12L/H
Meter body: strong corrosion resistance and high intensity stainless steel
Without mechanical movement parts,no wear,long working life;
Data Storage：Recent 24 months data
Starting flow：12L/H
Meter body: strong corrosion resistance and high intensity stainless steel
3. Working condition
Water Temperature 0.1℃~ 50 ℃
Water Pressure ≤ 1.0 MPa （PN: 1.6 MPa / 16bar)
Water Pressure ≤ 1.0 MPa （PN: 1.6 MPa / 16bar)
4. Accuracy
In high zone (Q2≤ Q≤Q4）,maximum permissible error is ±2%
In the low zone (Q1≤Q＜Q2），maximum permissible error is ±5%
In the low zone (Q1≤Q＜Q2），maximum permissible error is ±5%
5. Main technical data
(Q3)m3/h | (Q2) m3/h | (Q1) m3/h | |
2.5 | Q3/Q1=160、200、400 Q2/Q1=1.6 | ||
4 | |||
6.3 | |||
16 | |||
