Высокоточный станок с ЧПУ серии TNMG1604 токарные вставки
- Категория: Turning Tool >>>
- Поставщик: Zhuzhou,Uko,Cemented,Carbide,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.2 $* | 0.4 $* |
| Aug-16-2025 | 0.46 $* | 0.25 $* |
| Jul-16-2025 | 0.47 $* | 0.26 $* |
| Jun-16-2025 | 0.91 $* | 0.74 $* |
| May-16-2025 | 0.89 $* | 0.56 $* |
| Apr-16-2025 | 0.30 $* | 0.76 $* |
| Mar-16-2025 | 0.99 $* | 0.58 $* |
| Feb-16-2025 | 0.24 $* | 0.18 $* |
| Jan-16-2025 | 0.14 $* | 0.34 $* |
Характеристики
Product Description
Our Advantages
Details Images
Type | Dimension | ||||||||
LE | IC | S | D1 | RE | |||||
TNMG160404-FG | 16.5 | 9.525 | 4.76 | 3.81 | 0.4 | ||||
TNMG160408-FG | 16.5 | 9.525 | 4.76 | 3.81 | 0.8 | ||||
TNMG160404-MT | 16.5 | 9.525 | 4.76 | 3.81 | 0.4 | ||||
TNMG160408-MT | 16.5 | 9.525 | 4.76 | 3.81 | 0.8 | ||||
TNMG160404-HQ | 16.5 | 9.525 | 4.76 | 3.81 | 0.4 | ||||
TNMG160408-HQ | 16.5 | 9.525 | 4.76 | 3.81 | 0.8 | ||||
Customer Usage Scenarios
Top Equipment
Packing & Delivery

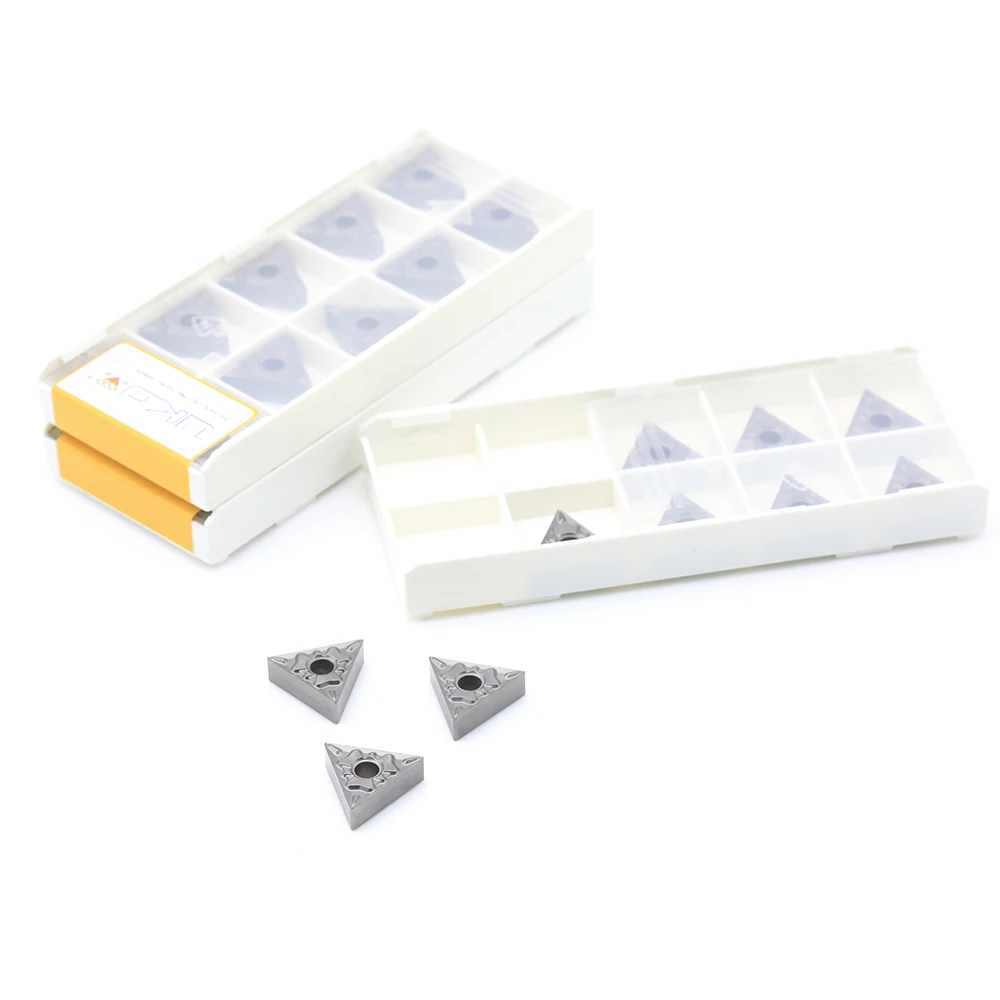

Packing Details : 10 PCS to a box
Delivery Details : For stocked items, we will deliver the products within 3-5 days after payment confirmed.

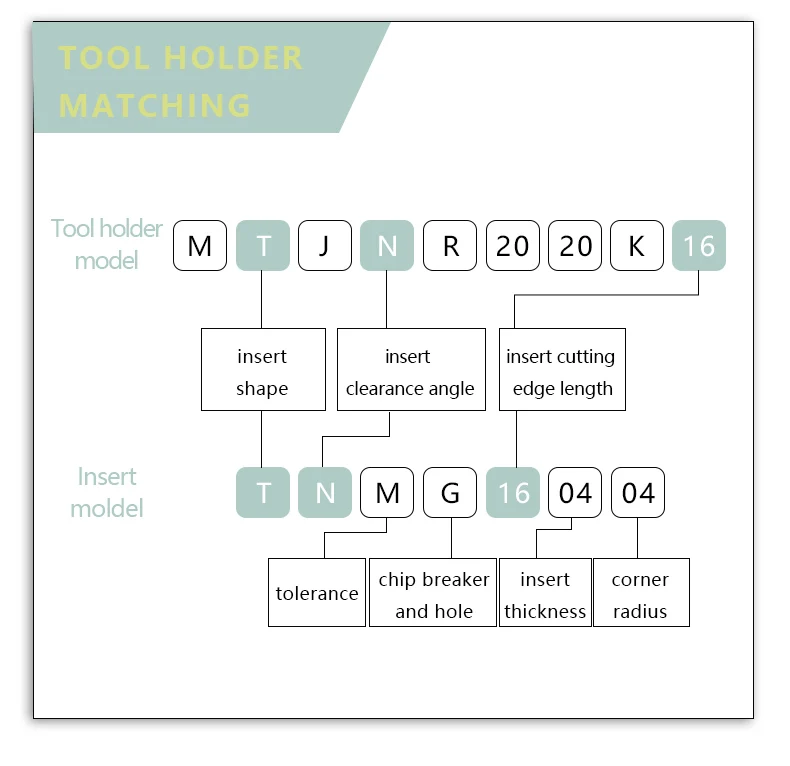

Tool Holder Matching
Our Company
Cermet inserts use FAQ
1. Worn face
Influence: Gradually changing workpiece size or surface finish
Reason: Line speed is too high, reaching tool life
Solution: Adjust processing parameters, such as reducing line speed and using more wear-resistant inserts
Reason: Line speed is too high, reaching tool life
Solution: Adjust processing parameters, such as reducing line speed and using more wear-resistant inserts
2. The insert broke
Influence: Sudden change in workpiece size or surface finish, sparks on the surface
Reason: Inappropriate parameter settings, inappropriate choice of insert material, poor workpiece rigidity, unstable blade clamping
Solution: Check whether the parameter setting is reasonable and select the corresponding tool according to the workpiece material
Reason: Inappropriate parameter settings, inappropriate choice of insert material, poor workpiece rigidity, unstable blade clamping
Solution: Check whether the parameter setting is reasonable and select the corresponding tool according to the workpiece material
3. Severe fracture
Influence: Sudden unpredictable conditions occur, resulting in scrap of tool holders or defective and scrapped workpieces
Reason: The processing parameters are set incorrectly, and the vibrating workpiece or insert is not installed in place.
Solution: Set reasonable processing parameters, should reduce the feed amount and reduce the chip selection of the corresponding processing inserts, strengthen the rigidity of the workpiece and the insert.
Reason: The processing parameters are set incorrectly, and the vibrating workpiece or insert is not installed in place.
Solution: Set reasonable processing parameters, should reduce the feed amount and reduce the chip selection of the corresponding processing inserts, strengthen the rigidity of the workpiece and the insert.
4. Scum tumor
Influence: Inconsistent workpiece size, poor surface finish, and fluff or burrs on the surface
Reason: Cutting speed is too low, feed is too low / not sharp enough
Solution: Increase cutting speed and use sharper inserts for feed
Reason: Cutting speed is too low, feed is too low / not sharp enough
Solution: Increase cutting speed and use sharper inserts for feed
