LMD-400 + LST-4700R высокоскоростная Продовольственная машина для создания бумажных пакетов Цена за производства стоимость
- Категория: Packaging Material Making Machine >>>
- Поставщик: Ruian,Lilin,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 47600.89 $* | 49980.98 $* |
| Aug-16-2025 | 47200.21 $* | 49560.61 $* |
| Jul-16-2025 | 39600.28 $* | 41580.0 $* |
| Jun-16-2025 | 46400.18 $* | 48720.86 $* |
| May-16-2025 | 40400.89 $* | 42420.76 $* |
| Apr-16-2025 | 45600.78 $* | 47880.24 $* |
| Mar-16-2025 | 45200.40 $* | 47460.62 $* |
| Feb-16-2025 | 44800.96 $* | 47040.54 $* |
| Jan-16-2025 | 44400.39 $* | 46620.63 $* |
Характеристики
Products Description
Introduction

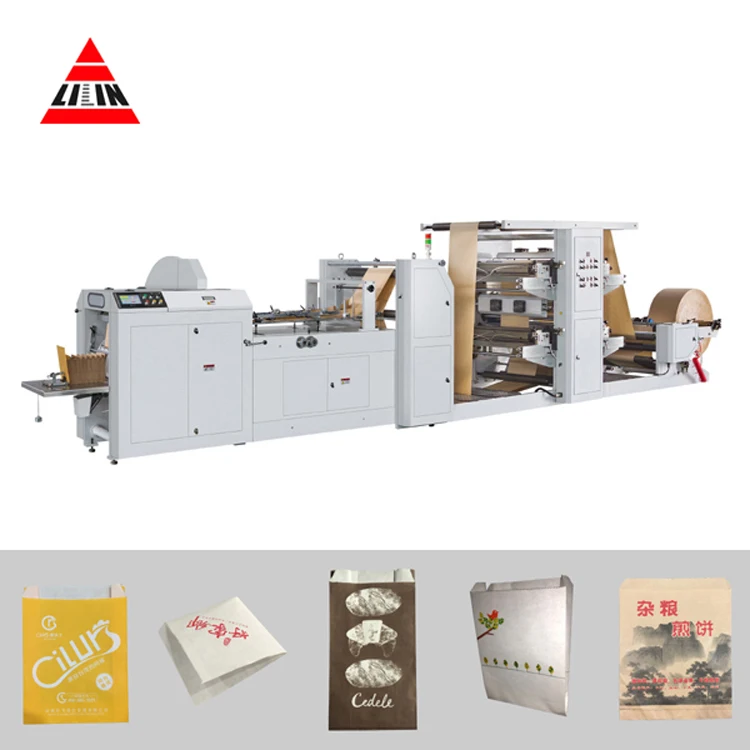

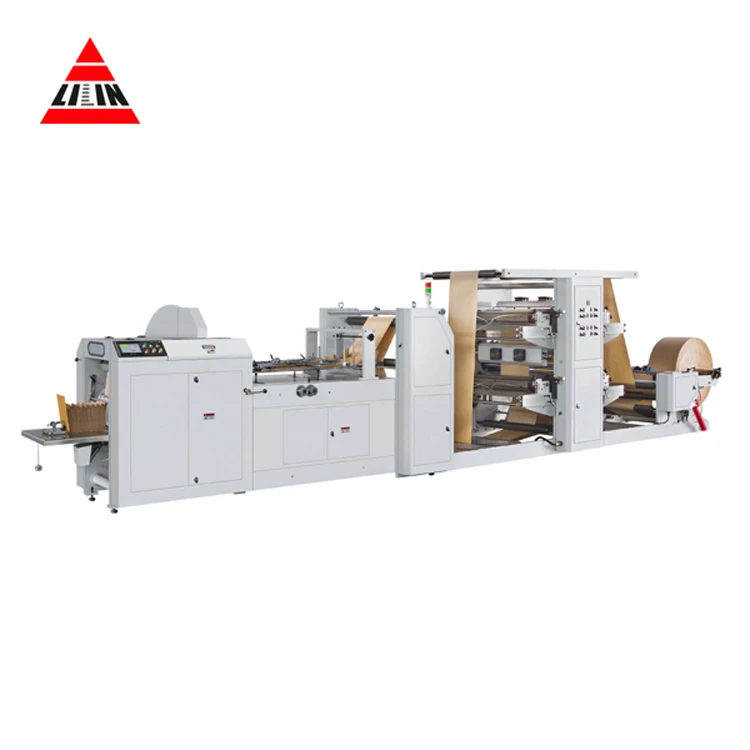

This paper bag making machine forming the paper bag in one process from roll paper, edge folding, tube forming, cutting,

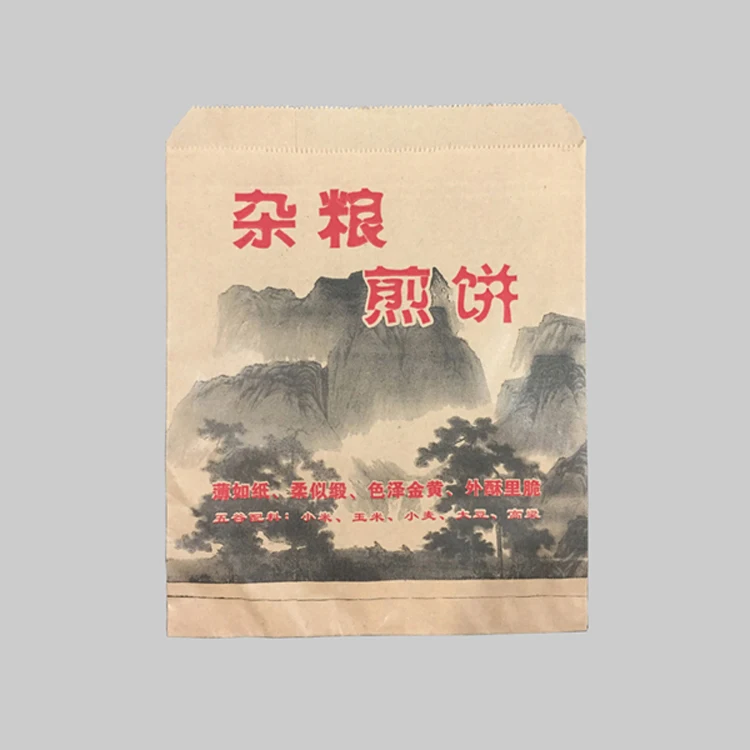

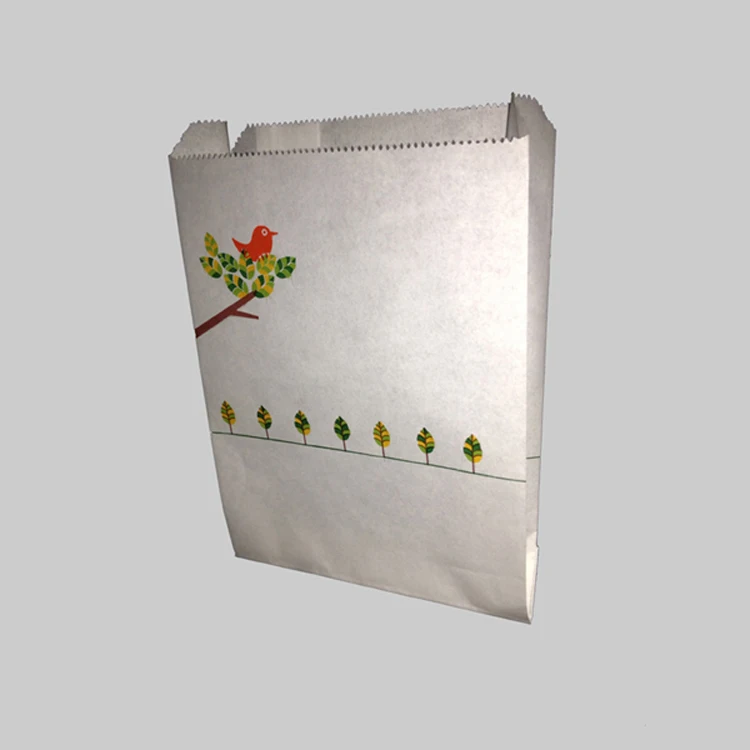

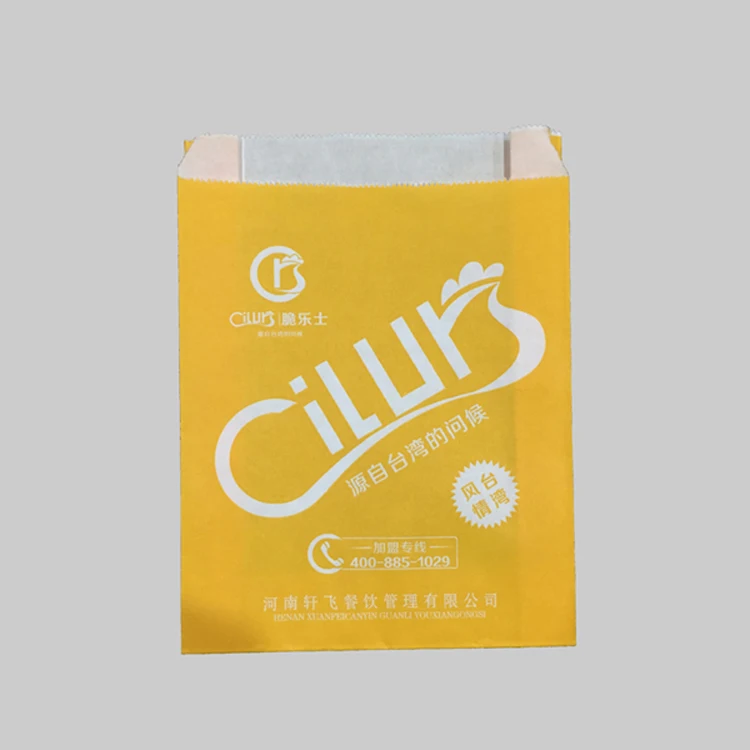

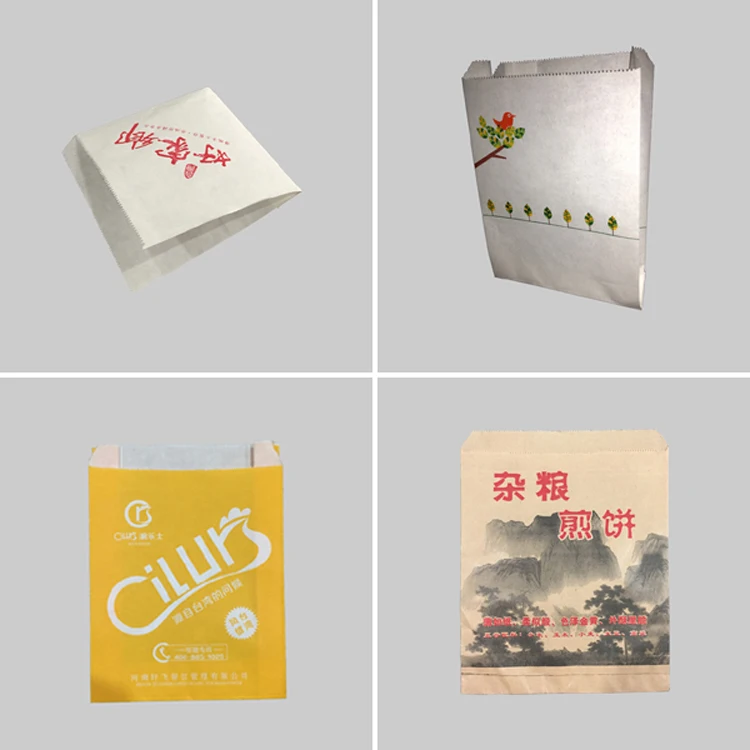

gluing,bottom folding,bottom gluing and finishing bag Easy operation, low power consumption, high efficiency. It is an ideal machine for producing food bags like bread bags, KFC bags and Mcdonald’s bags.
gluing,bottom folding,bottom gluing and finishing bag Easy operation, low power consumption, high efficiency. It is an ideal machine for producing food bags like bread bags, KFC bags and Mcdonald’s bags.
Features
1.Controls bag length through the human-machine touch screen interface.
2. Adopt touch screen and PLC programmable control system, the work condition can be shown real time.
3.The machine has automatic counting system. The user can set a number to count.
4 Equipped with an accurate photocell system for printed mark tracking.
5. Color mark error stopping system .6.Double photoelectric sensor limit automatic correction control system.
7.Material lifting adopt pneumatic lift structure.
8.Automatic oil lubrication system.
2. Adopt touch screen and PLC programmable control system, the work condition can be shown real time.
3.The machine has automatic counting system. The user can set a number to count.
4 Equipped with an accurate photocell system for printed mark tracking.
5. Color mark error stopping system .6.Double photoelectric sensor limit automatic correction control system.
7.Material lifting adopt pneumatic lift structure.
8.Automatic oil lubrication system.
Product Paramenters
Cutting Length | 150-460 mm |
Bag Length | 140-450mm |
Bag Width | 70-280 mm |
Gusset Thickness | 0-120 mm |
Standard Flap | 12-20 mm |
Max.Speed | 500 pcs/min |
Paper Thickness | 30-80 gsm |
Paper Roll Width | 220-700 mm |
Max.Roll Diameter | 1100 mm |
Reel Inner Diameter | 76 mm |
Printing Color | 4Color |
Printing Width | 700 mm |
Printing Length | 180-800 mm |
Max.Printing Speed | 80 m/min |
Overprint Precision | ±0.15 mm |
Thickness of Plate | 1.7 mm |
Total Power | 7.5KW |
Optional paste window unit | LMD-400B+LST-4700R |
Film Thickness | 0.02-0.04mm |
Film Width | 50-180 mm |
The Max Film Diameter | 450 mm |
Film Inner Diameter | 76 mm |
Power | 2 kw |
Weight of Machine | 5500 kg |
Overall Dimension | 8520×1550×1850 mm |
Product packaging
FAQ
1.Are you trading company or manufacturer?
We are manufacturer, we have our own worker and factory.
2.How long has your factory been in this field?
In China, As one of the earliest manufacturers in paper bag machine, we have more than 10 years professional experience.
3.What types of machine do you have?
Commonly are paper bag machine V shape bottom or square bottom ,flexo printing machine,slitting machines according to clients'needs.
4.Where is your factory located? how can l visit there?
Our factory is located in Ruian city,Zhejiang province china.our local airport is Wenzhou Longwan Airport the nearest international airport is shanghai Pudong Airport about 40 minutes by plane from shanghai (4 hours by train
5.Can i get some samples? how can l get it?
Yes,we can send you some free samples, but you need to bear the courier cost by DHL, TNT etc.
sincerely welcome all clients to visit us!
We are manufacturer, we have our own worker and factory.
2.How long has your factory been in this field?
In China, As one of the earliest manufacturers in paper bag machine, we have more than 10 years professional experience.
3.What types of machine do you have?
Commonly are paper bag machine V shape bottom or square bottom ,flexo printing machine,slitting machines according to clients'needs.
4.Where is your factory located? how can l visit there?
Our factory is located in Ruian city,Zhejiang province china.our local airport is Wenzhou Longwan Airport the nearest international airport is shanghai Pudong Airport about 40 minutes by plane from shanghai (4 hours by train
5.Can i get some samples? how can l get it?
Yes,we can send you some free samples, but you need to bear the courier cost by DHL, TNT etc.
sincerely welcome all clients to visit us!
Company Profile
About us
Ruian Lilin machinery Co., LTD., is a professional paper bag machine manufacturer.It was founded in 2006, since its inception,the company has been committed to the r&d and production of paper bag making machine, constantly introducing new and high technology,combined with market demands and constantly develop new products, higher quality, higher efficiency to meet the market demands.Main products: LSB series roll paper square bottom paper bag machine,LSD series automatic high-speed paper bag machine, LMD series automatic high-speed paper bag machine, LST series flexo printing machine, and other paper bag related supporting products.The products have been sold to Southeast Asia and Europe. , Middle East, Africa, South America and more than 60 countries and regions. Since its inception, the enterprise always adhere to the "technology first, quality first" business philosophy, with honest and trustworthy operating style,excellent product quality and excellent service to win for the principle, for the user to achieve maximum value to reflect my value. Wholeheartedly welcome the domestic and foreign merchants to come to visit or inquire.
