Промышленный скруббер для влажной газовой трубы и скребок большого объема

Промышленный скруббер для влажной газовой трубы и скребок большого объема

Категория: >>>
Поставщик: Zhengzhou,Jinhua,Plastic,Plate,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.91 $*	0.7 $*
Aug-16-2025	0.51 $*	0.66 $*
Jul-16-2025	0.71 $*	0.46 $*
Jun-16-2025	0.16 $*	0.39 $*
May-16-2025	0.4 $*	0.85 $*
Apr-16-2025	0.33 $*	0.50 $*
Mar-16-2025	0.40 $*	0.21 $*
Feb-16-2025	0.49 $*	0.92 $*
Jan-16-2025	0.33 $*	0.14 $*

Характеристики

Products Description

The working principle of the spray tower is to separate the pollutants in the gas into harmless substances in order to achieve the purpose of purifying the gas. It belongs to the differential contact countercurrent. The tower packing is the basic component of the gas-liquid contact. The gas entering the tower body enters After the tower body, the gas enters the packing layer, and the packing layer has the spray liquid on the top and the liquid spray on the front, forming a layer of liquid film on the packing. When the gas flows through the gap, it contacts the filler
The liquid film also acts as an absorption or neutralization reaction. The filler layer can provide a sufficiently large surface area. The air flow is absorbed by the collected gas or neutralized by the mist eliminator without generating too much resistance, and then discharged from the air outlet outside the tower.

The absorbent is the main media for the treatment of exhaust gas, the nature and concentration of it is based on the different nature of exhaust gas to match, the processing unit of gas consumption, is determined by the ratio of molar flow calculation of the sorbent with inert gas.
The exhaust gas is sucked by the fan from the air duct and passes through the packing layer from bottom to top. The circulating absorber is uniformly sprayed into the packing layer by the top nozzle through the high efficiency nozzle, and flows downward along the surface of the packing layer and enters the circulating water tank. Because of the ascending and descending of absorbent constant contact in the filling, in the rising air liquid concentration is more and more low, to the top of the tower when meet the emissions requirements on the liquid liquid under the action of gravity flows into a liquid storage tank, and a circulation pump out of circulation.

Product Description

Specification

Applicable Industries	Manufacturing Plant
After Warranty Service	Online support
Video outgoing-inspection	Provided
Core Components	Pressure vessel
Warranty	1 Year
After-sales Service Provided	Online support
Weight (KG)	300kg

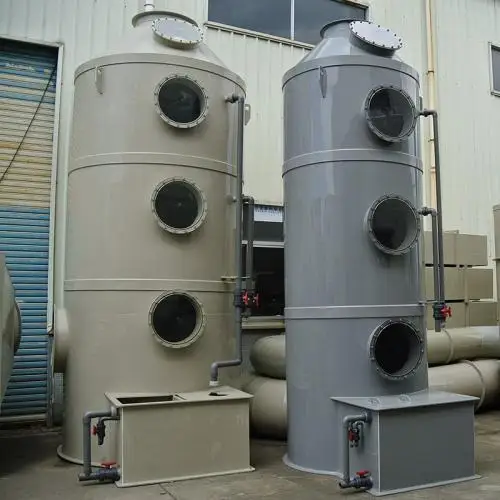

Product Name	pp spray tower
Processing customization	Yes
Origin	China
Material	PP
Purification efficiency	80%, 90%
Dimensions	1500*3000
Applications	Gas, Wet, Mist Treatment
Main function	Waste Gases Removal
Application field	Industrial boiler
Usage	waste gas purification
