Цена:7 900,00 $ - 8 800,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 9401.60 $* 9871.96 $*
Aug-16-2025 9322.67 $* 9788.41 $*
Jul-16-2025 7821.29 $* 8212.33 $*
Jun-16-2025 9164.47 $* 9622.34 $*
May-16-2025 7979.3 $* 8378.61 $*
Apr-16-2025 9006.32 $* 9456.11 $*
Mar-16-2025 8927.68 $* 9373.36 $*
Feb-16-2025 8848.5 $* 9290.84 $*
Jan-16-2025 8769.19 $* 9207.17 $*

Характеристики



Product Overview


The above is sent to you to confirm the product
This product has strong power, strong load-bearing capacity, thickened and reinforced door frame, and ergonomic design concept


FEATURES AT A GLANCE


1. Strong power system forklift
2. Wide-view mast forklift
3. Unique overhead guard design forklift
4. Low non-slip pedal forklift
5. Adjustable safety seat forklift
6. Solid-state LCD digital meter
7. Eco-friendly design forklift
8. Adjustable steering wheel forklift




Right elevation
Left elevation
Front elevation




PRODUCT SPECIFICATIONS


Model
UNIT
HH30 (Z)
HH30 (Z)
Power type
Diesel/ Gasoline/LPG
Rated capacity
kg
3000
3000
Load center
mm
500
500
Lift height
mm
3000
3000
Free lift height
mm
130
130
Fork size(L*W*T)
mm
1070×125×45
1070×125×45
Fork outside spread(Min./Max.)
mm
300/1200
300/1200
Mast tilt range(F/R)
deg
6/12
6/12
Front overhang
mm
490
490
Overall dimensions
Length to face of fork
Without of fork
mm
2680
2680
With fork
mm
2680
2680
Wheel width
mm
1225
1225
Mast lowered height
mm
2095
2095
Mast extended height
mm
4180
4180
Overhead guard height
mm
2120
2120
Turning radius
mm
2460
2460
Min. right angle aisle width
mm
2105
2105
Travel speed (unload/full load)
km/h
20/18.5
20/18.5
Lift speed (unload/ full load)
mm/s
480
480
Max. gradeability
%
20
20
Tires
Front

28×9-15-12PR
28×9-15-12PR
Rear

6.50-10-10PR
6.50-10-10PR
Tread
Front
mm
1000
1000
Rear
mm
970
970
Wheelbase
mm
1700
1700
Min. ground clearance(unload/ full load)
Mast
mm
152/132
152/132
Frame
mm
158/138
158/138
Battery
v/ah
12/90
12/90

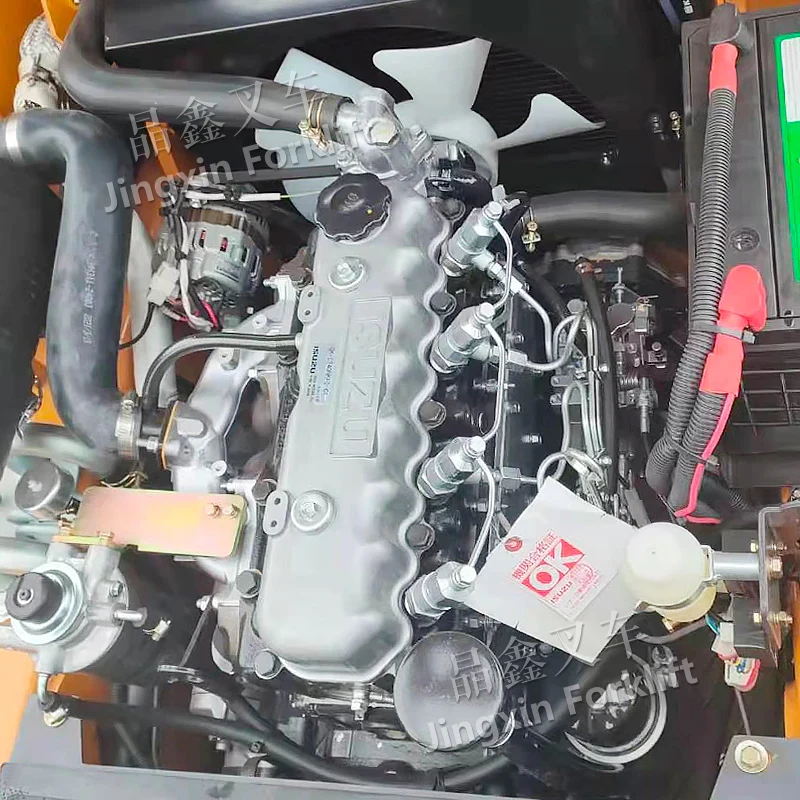

Engine
Model

C240
490BPG
Rated output
kw/r.p.m
35.4/2500
40/2650
Rated torque
n.m/r.p.m
139/1800
148/1800
Displacement
cc
2369
2540
No. of cylinder

4
4
Borestroke
mm
90×100
90×100
Transmission
Model

Hydraulic
Hydraulic
Shift (FWD/RVS)

1/1
1/1
Operating pressure
mpa
17.5
17.5


PRODUCT CONFIGURATION


Large flow air filter with high instake, which effectively reduce the resistence and dust into engine,improving engine life.
The casting-type steering brige (makes forklift more stable and the performance more reliable)

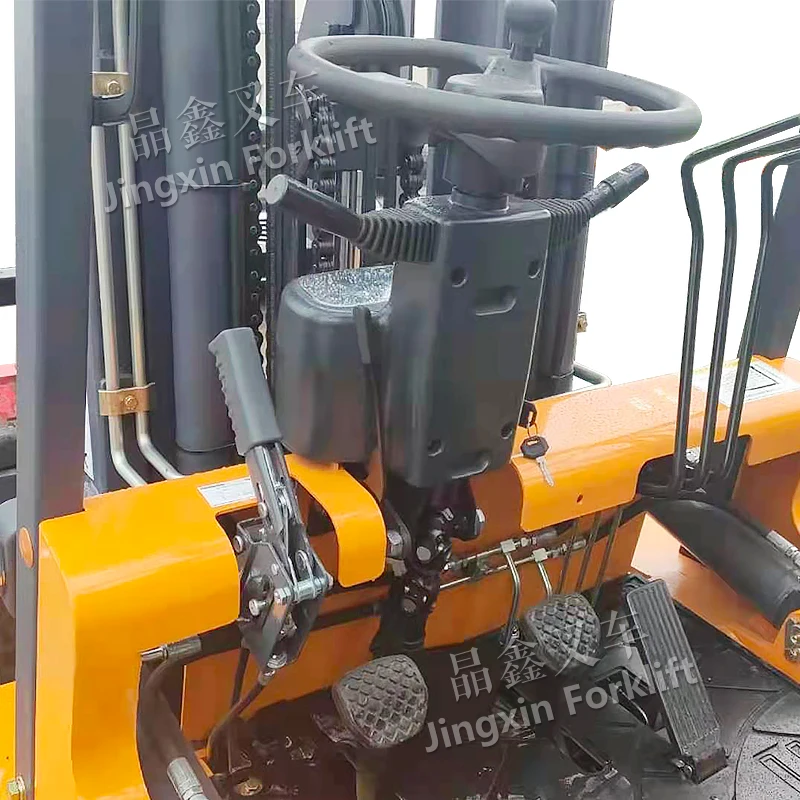

Driver's Cabin, Customized Color,


SALES AND SERVICE NETWORK




SIMILAR PRODUCTS






FAQ


Q1: Are you a factory?
A1: Of course. Jingxin hosting equipment Co. Ltd., established in 1996, is a national hi-tech enterprise, which owns the unique
combination of scientific research, development, production, sale and service.
Q2: Can Jingxin provide customized products? OEM products or ODM products?
A2: Yes, Jingxin can provide customized products according to your requirement. Both OEM and ODM are acceptable. We do a lot of
non-standard products, welcome your special custom-made.
Q3: What's the specification of the chargers?
A3: Jingxin have all kinds of the chargers and welcome the customers to custom-made.
