C-1 активный звуковой модуль Black Board KY-012
US $0.20-$0.36
Запчасти для микрофона с шумоподавлением конденсаторный микрофон electret в капсулах прочный конденсатор
- Категория: Acoustic Components >>>
- Поставщик: Foshan,Sanshui,Yipin,Electrical,Accessories,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.97 $* | 0.48 $* |
| Aug-17-2025 | 0.80 $* | 0.32 $* |
| Jul-17-2025 | 0.74 $* | 0.56 $* |
| Jun-17-2025 | 0.24 $* | 0.24 $* |
| May-17-2025 | 0.89 $* | 0.51 $* |
| Apr-17-2025 | 0.75 $* | 0.26 $* |
| Mar-17-2025 | 0.2 $* | 0.58 $* |
| Feb-17-2025 | 0.5 $* | 0.75 $* |
| Jan-17-2025 | 0.75 $* | 0.81 $* |
Характеристики

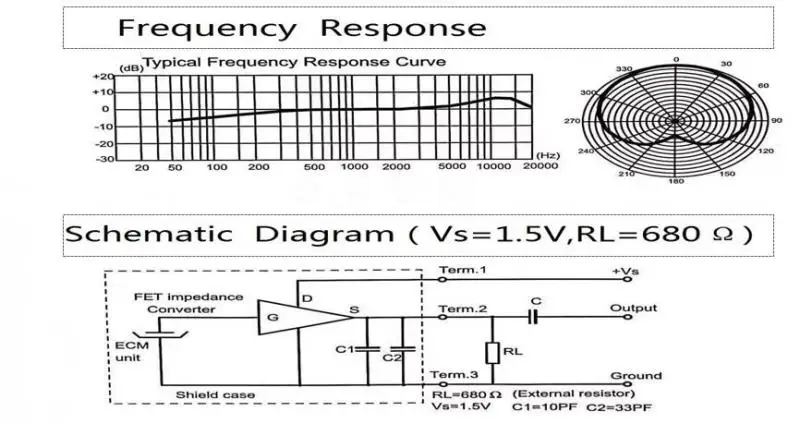

Specification
Serial number | parameter | symbol | Test Conditions | Range | unit | ||||
Min | central value | Max | |||||||
1 | symbol | S | f=1KHZ,S,P,L=1Pa,0dB=1V/Pa | -45 | -43 | -41 | dB | ||
2 | output impedance | Zo | f=1KHZ | 680 | Ω | ||||
3 | current consumption | Ids | Vcc=1.5V,RL=680Ω | 150 | 500 | uA | |||
4 | Signal to Noise Ratio | S/N | f=1KHZ,S,P,L=1Pa | 66 | |||||
5 | Voltage reduction sensitivity | △S/VS | Vcc=1.5V to 1.0 | -3 | dB | ||||
6 | working voltage | Vcc | 1.5 | 10 | V | ||||
7 | frequency response | Gv | 50 | 13K | HZ | ||||
8 | Maximum input sound pressure level | SPL | 110 | dB | |||||
Product Description
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
>Epinpox is located in the beautiful city of Foshan, China,we are specialized in making high quality speaker parts such as terminals, connectors, and dampers.
>Epinpox was founded in Taiwan and has over 35 years' experience in the speaker industry. Epinpox was the leader in the industry in obtaining the ISO9001, ISO14001, and IATF16949 certifications.
>Epinpox developed our own automated terminal assembly machines and is the owner of 8 innovative hardware and 6 software patents. In 2017, Epinpox obtained the 2017 Innovative and High Technology Business Award in China.
>Epinpox's speaker parts are shipped to many major name brand speaker manufacturers in Japan, Europe, USA, and S. E. Asia.
>Epinpox's corporate motto is "Quality Means Business". We are too pleased to work with you, our business partner, together, let's Energize the Music World!
>Epinpox was founded in Taiwan and has over 35 years' experience in the speaker industry. Epinpox was the leader in the industry in obtaining the ISO9001, ISO14001, and IATF16949 certifications.
>Epinpox developed our own automated terminal assembly machines and is the owner of 8 innovative hardware and 6 software patents. In 2017, Epinpox obtained the 2017 Innovative and High Technology Business Award in China.
>Epinpox's speaker parts are shipped to many major name brand speaker manufacturers in Japan, Europe, USA, and S. E. Asia.
>Epinpox's corporate motto is "Quality Means Business". We are too pleased to work with you, our business partner, together, let's Energize the Music World!
FAQ
1. who are we?
We are based in Guangdong, China, start from 2000,sell to Southeast Asia(50.00%),South America(10.00%),Eastern Europe(5.00%),Eastern Asia(5.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Speaker Lug,Speaker Damper,Speaker Terminal,Speaker Connector
4. why should you buy from us not from other suppliers?
Epinpox is located in the beautiful city of Foshan, China. We are not only specialized in making high-quality speaker parts such as terminal, connector, and dampers but also a leader in the industry in obtaining the ISO9001 and IATF16969 certifications.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T;
Language Spoken:English
We are based in Guangdong, China, start from 2000,sell to Southeast Asia(50.00%),South America(10.00%),Eastern Europe(5.00%),Eastern Asia(5.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Speaker Lug,Speaker Damper,Speaker Terminal,Speaker Connector
4. why should you buy from us not from other suppliers?
Epinpox is located in the beautiful city of Foshan, China. We are not only specialized in making high-quality speaker parts such as terminal, connector, and dampers but also a leader in the industry in obtaining the ISO9001 and IATF16969 certifications.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T;
Language Spoken:English
