A50 xprinter 53 mm printhead sticker parts tt3 barcode OverPrinter ribbon label tto printer thermal transfer printer for tto
Product Description

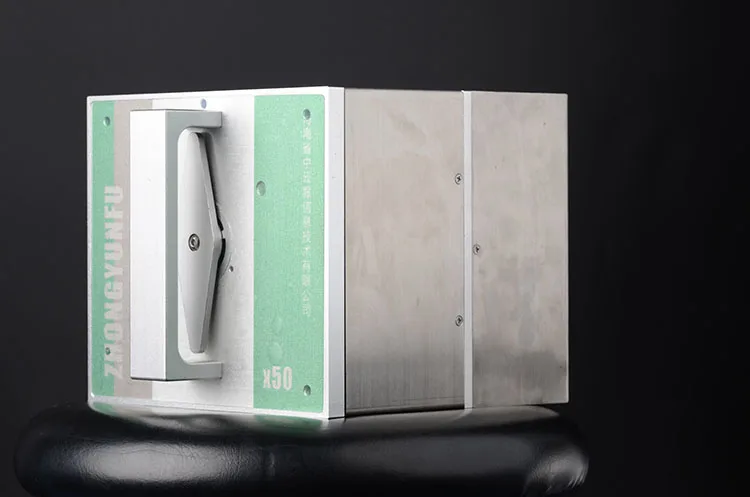

A50 Thermal Transfer Overprinter
Is China's leading thermal transfer printer smart coding machines, It can help customers to manage and use the manufacture data for identification, verifying, product promotion and logistic tracing. All these solutions are widely applied to industries of food, paper making, medicine, seeds, medical equipment, cosmetics, daily tissue, daily chemicals, wood industry.
Is China's leading thermal transfer printer smart coding machines, It can help customers to manage and use the manufacture data for identification, verifying, product promotion and logistic tracing. All these solutions are widely applied to industries of food, paper making, medicine, seeds, medical equipment, cosmetics, daily tissue, daily chemicals, wood industry.
| Model | A50 |
| Print mode | Continuous & intermittent thermal transfer printing |
| Maximum printing width | 53mm (standard with 53mm print head); 32mm (optional with 32mm print head) |
| Print area | Intermittent mode: 53mm*75mm/32mm*75mm, Continuous mode: 53mm*300mm/32mm*300mm |
| Resolution | 300dpi |
| Printing speed | Continuous mode: 50-600mm/s; Intermittent mode: 50-500mm/s |
| Print gap | 0.5mm |
| Processor | 32-bit RSIC processor |
| Running memory | 256M |
| Storage | 512M |
| Types of flexible packaging materials | PET, PE, OPP, BOPP, CPP, PA and other films and composite films |
| Ribbon width | 20mm-55mm |
| Ribbon type | Resin base/mixed base |
| Ribbon length | Maximum length: 800 meters |
| Printing features | Easily switch between left and right hands (no additional parts required), automatic print head positioning, intermittent and continuous integrated printer |
| Environmental conditions | Operating environment 0℃ to 40℃ |
| Print head life | Not less than 50KM |
1. Product features
A50 Thermal Transfer Overprinter has the following features:
(1) The all-metal structure of the printer is strong and durable
(2) Automatically identify the ribbon to ensure print quality
(3) Automatically detect ribbon tension and used ribbon length
(4) Head-up ribbon saving design
(5) Easy to install ribbon design
(6) Multiple printing trigger mechanisms
(7) Support both intermittent and continuous printing modes
(8) Support both left-handed and right-handed modes
(9) Automatically detect printer status
(10) Support a variety of ribbon saving modes

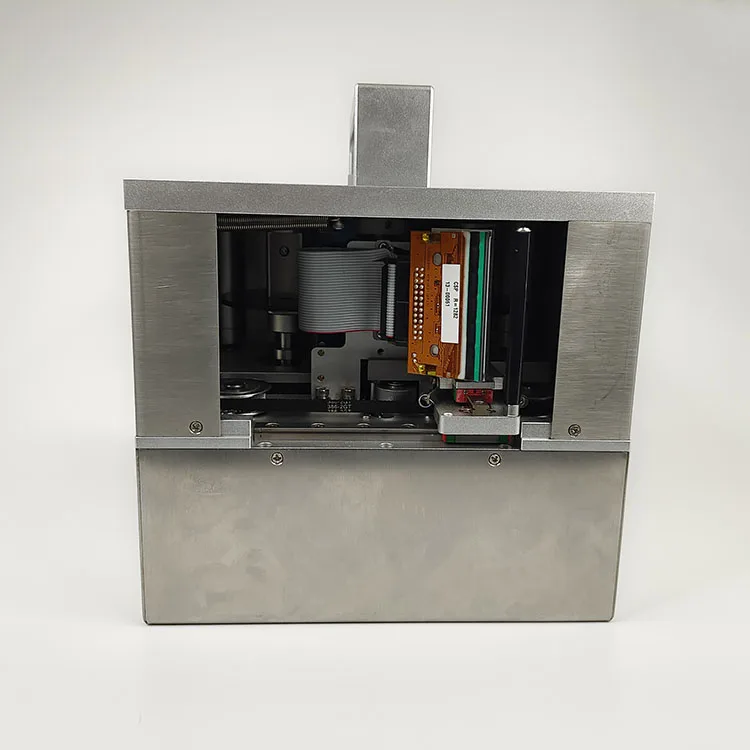

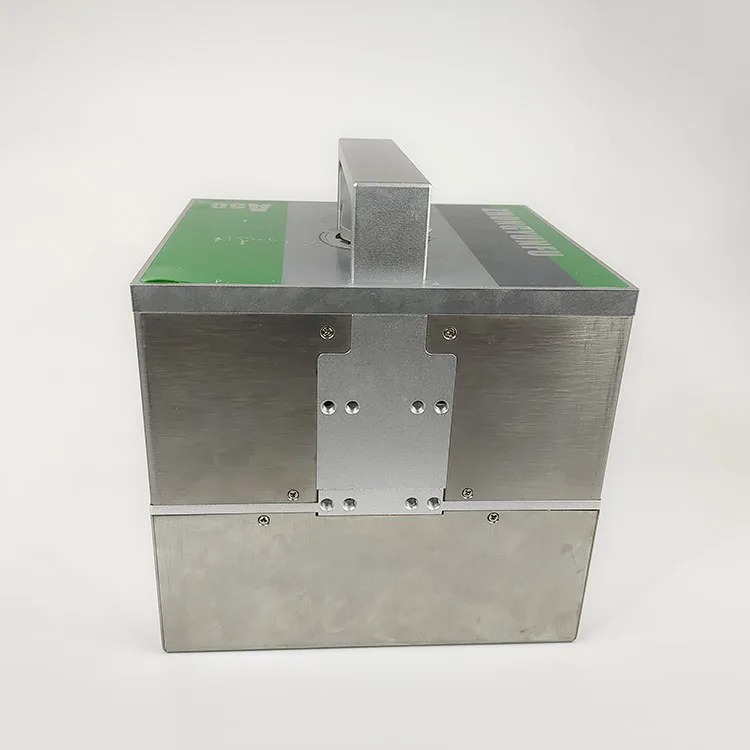

2. Appearance and components
A50 is an all-in-one printer
The main components of A50 thermal transfer printer are as follows

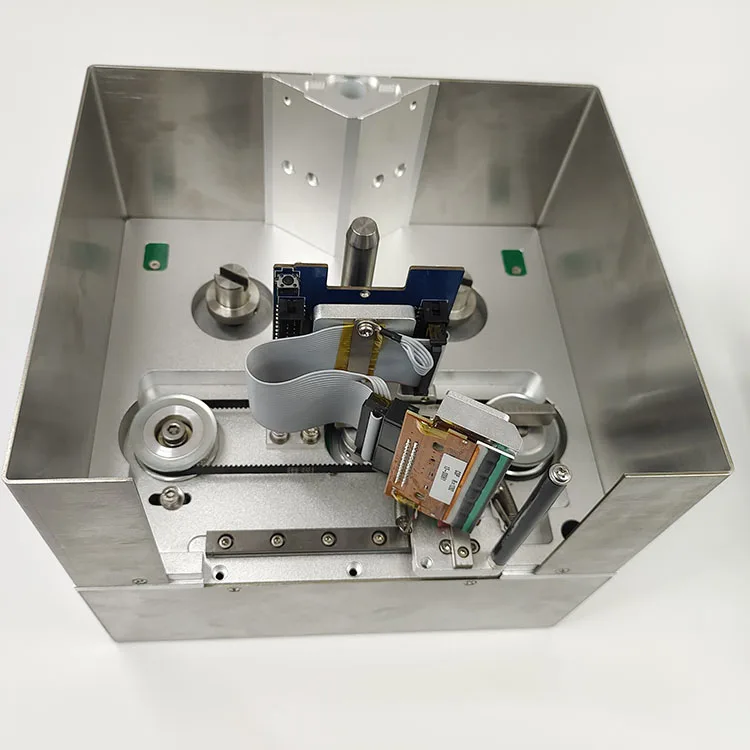

(1) The printer body, including the printed circuit board, drive system, and thermal transfer print head.
(2) The ribbon cassette of the printer body is equipped with a ribbon unwinding spool and a ribbon winding spool.

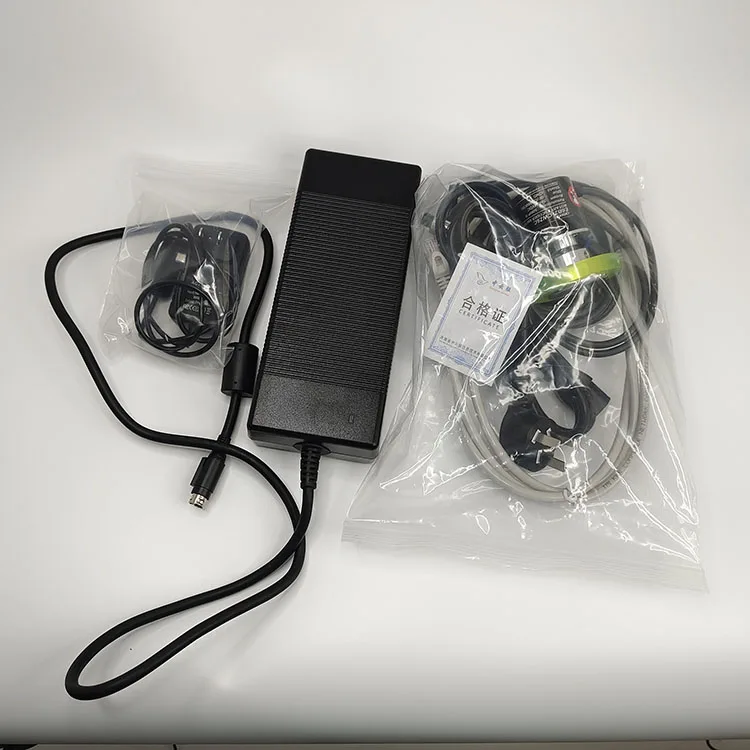

(3) Connecting cables for the power and control of the print head.
(4) Connecting cables for external input/output signal transmission.
(5) An encoder used to track the speed of the substrate.
We hope to cooperate with you, welcome to contact us
3. Printer type
A50 thermal transfer printer is an intermittent continuous all-in-one machine
(1) Intermittent printing mode
1) In intermittent printing mode, printing will be performed when the material is fixed.
2) The printing area in intermittent printing mode is 53*75mm or 32*75mm, and the printing speed is 50 to
600mm/s.
3) During the static period when the packaging material is in a fixed state, the information can be printed by moving the print head
4) In the discontinuous mode, the printer can print text and bar codes on any position within the printing area of 53mm wide and 75mm long or 32mm wide and 75 mm long.
(2) Continuous printing mode
1) The printing area of the printer in this mode is 53*300mm or 32mm*300mm, and the printing speed is
50 to 600mm/s.
2) When in continuous motion mode, place the print head in a fixed position and accelerate the ribbon to
Bottom speed matching.
3) Use the encoder to determine the speed of the printed material.
4) In this mode, the printer can print an area of 53mm wide and 300mm long or 32mm wide and 300mm long.
Print text, bar codes, etc. on any position within.
5) Use the thermal transfer print head and thermal transfer ribbon to print the information on the substrate tightly attached to the roller.
4. Printing samples
Print the real-time time and date, and automatically update the validity period and bar code.
If you are interested in our products, pls click "send" give us inquiry.
Packaging & Shipping
1.Standard export cartons with sponge filled inside for packing protection
2.Package suitable for sea, air, fast courier shipping
3.Customized Packing as per Customer's requirement.
We usually ship goods via DHL, UPS, FedEx, for large quantity goods, we can also ship goods by air and by sea.
Our Services
Technical Supports
--R&D supports;
--Operation Manual Guidance
--Within 24-hour professional online supports
--Video supports
--Possible onsite supports...
