Цена по прейскуранту завода-изготовителя Несколько диаметр многоструйный счетчик воды с R80 счетчиков в
- Категория: Water Meters >>>
- Поставщик: Yunnan,Dianhuai,Technology,Development,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 6.2 $* | 6.47 $* |
| Jul-16-2025 | 5.79 $* | 5.68 $* |
| Jun-16-2025 | 6.83 $* | 6.79 $* |
| May-16-2025 | 6.81 $* | 6.73 $* |
| Apr-16-2025 | 5.27 $* | 5.34 $* |
| Mar-16-2025 | 6.97 $* | 6.94 $* |
| Feb-16-2025 | 6.68 $* | 6.15 $* |
| Jan-16-2025 | 6.42 $* | 6.93 $* |
Характеристики
Item | Standard |
Operating condition | PN: 1.0/1.6 Mpa (10/16bar) |
Material | Brass, Cast iron, Plastic |
Size | DN15 - DN50 |

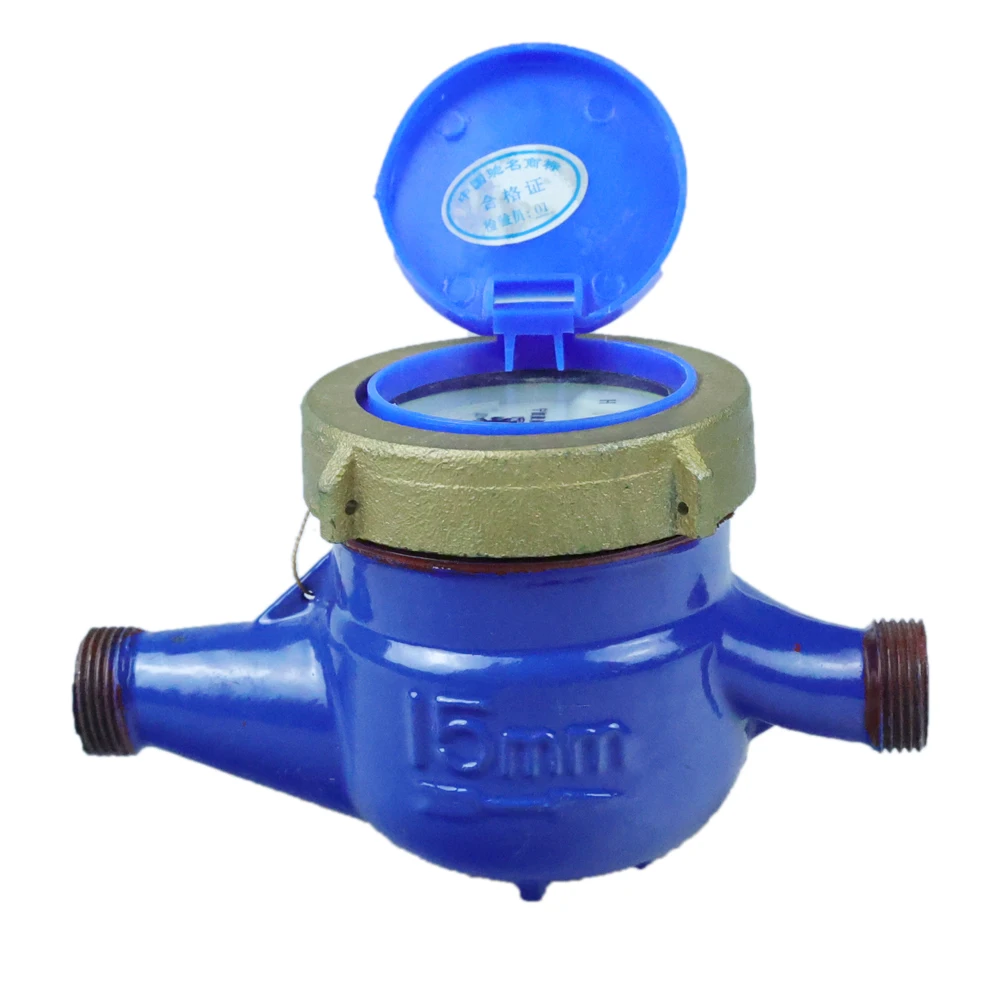

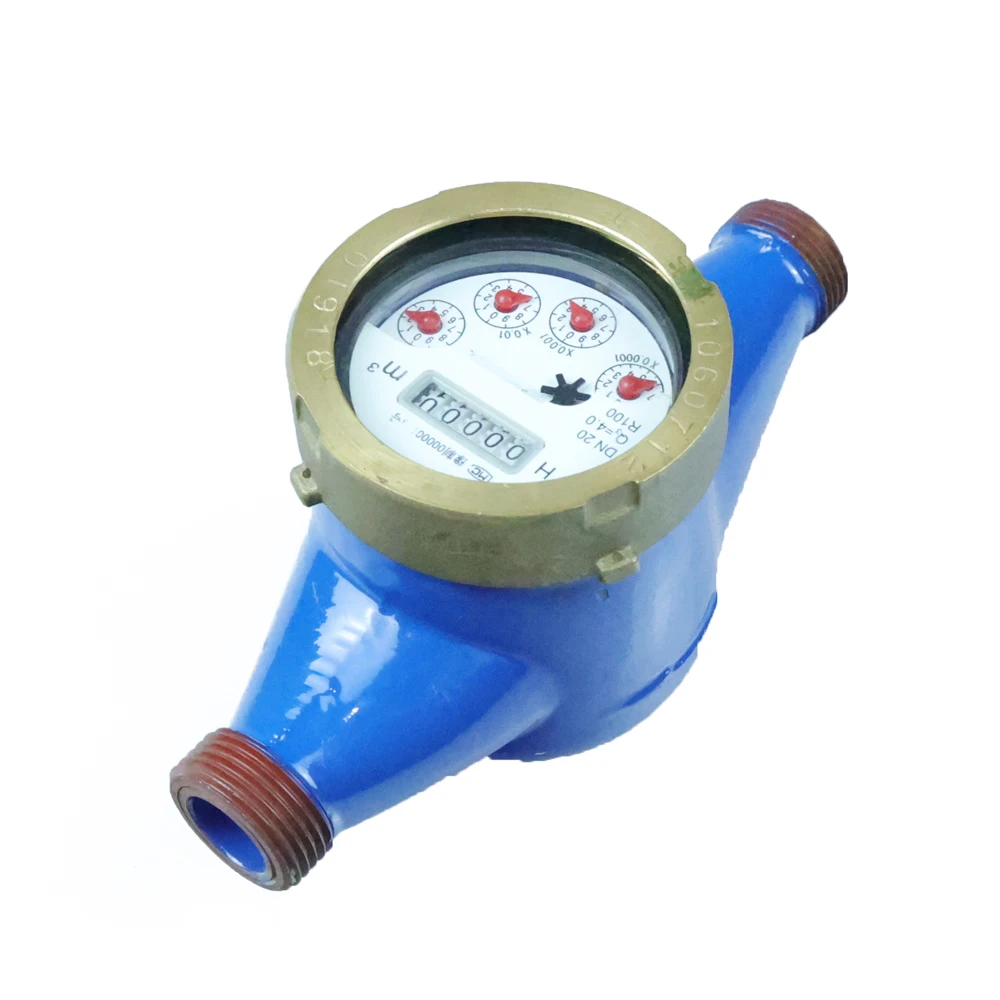

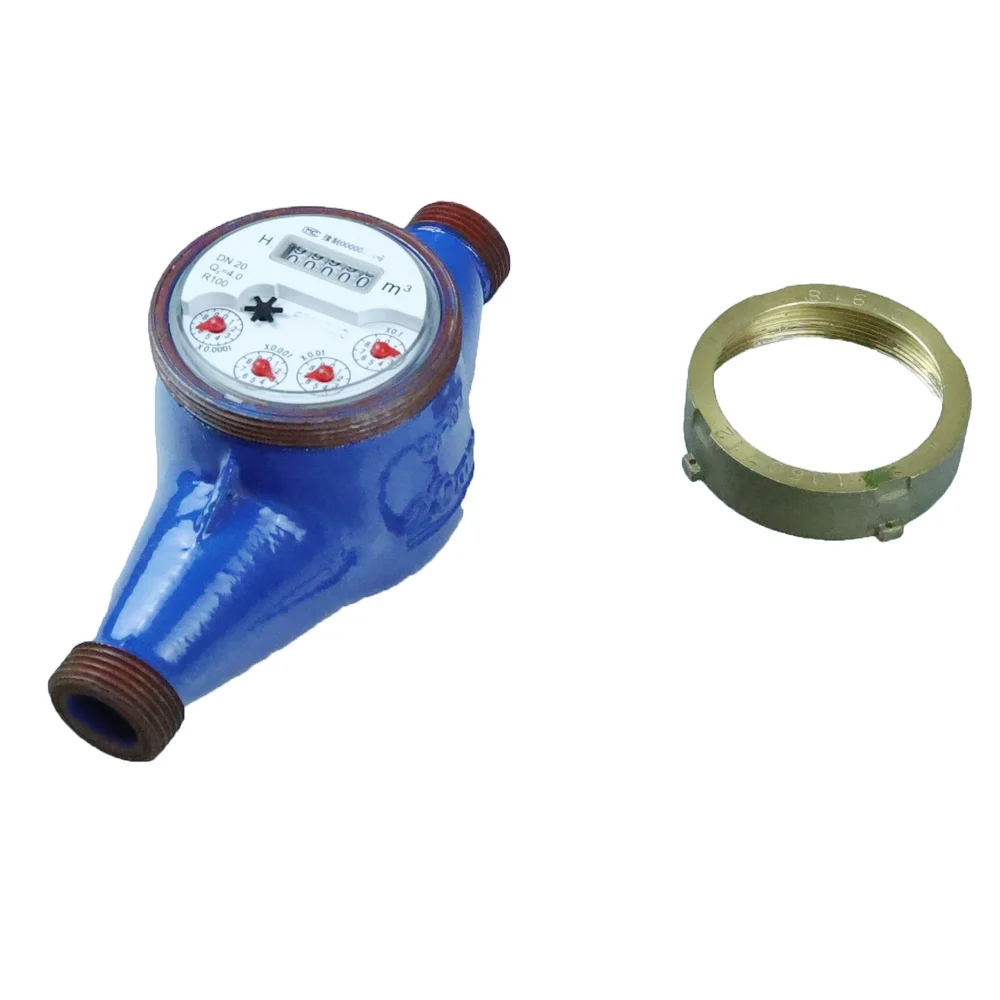

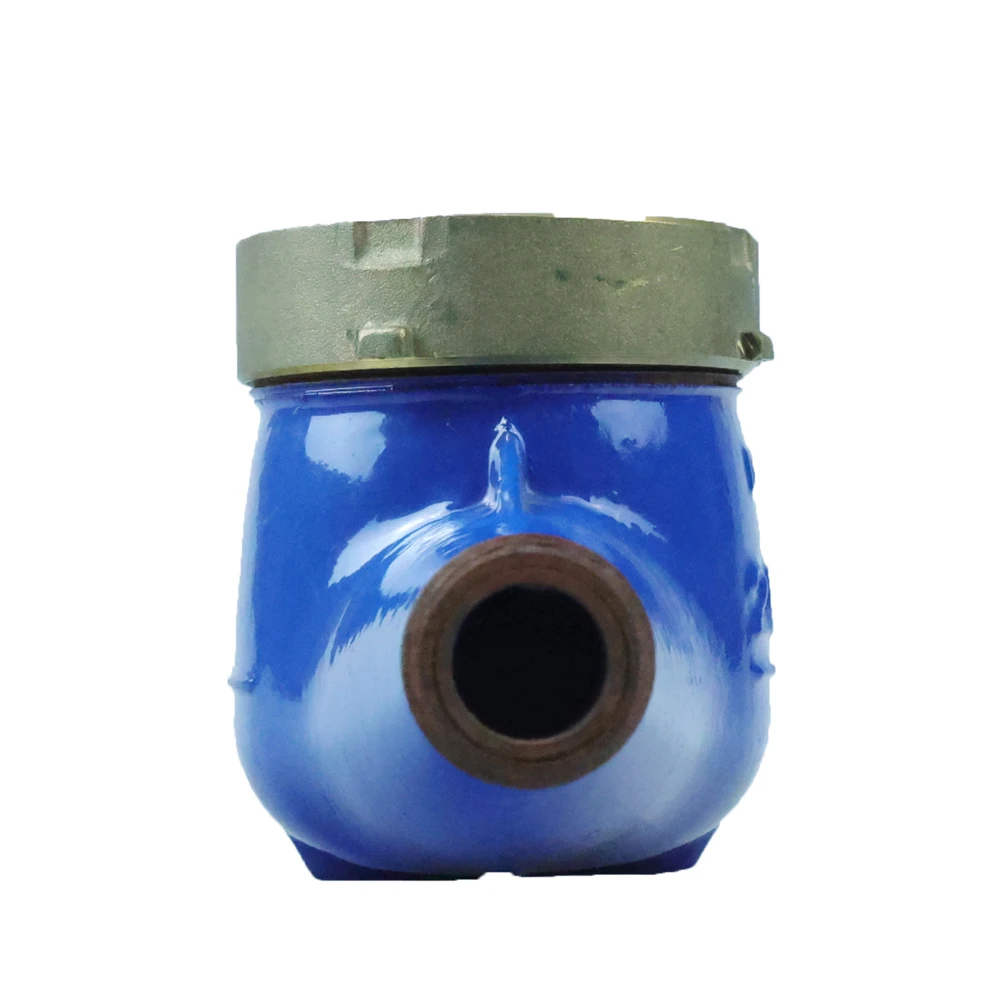

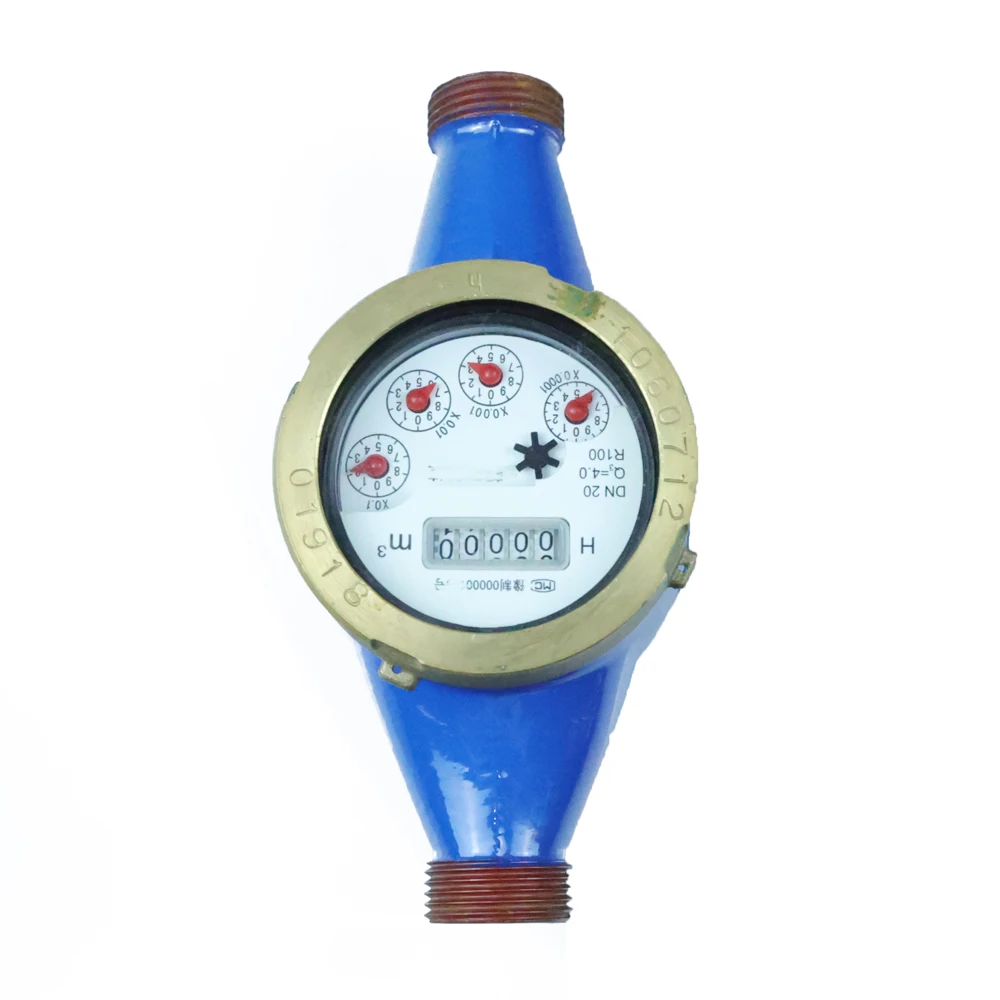

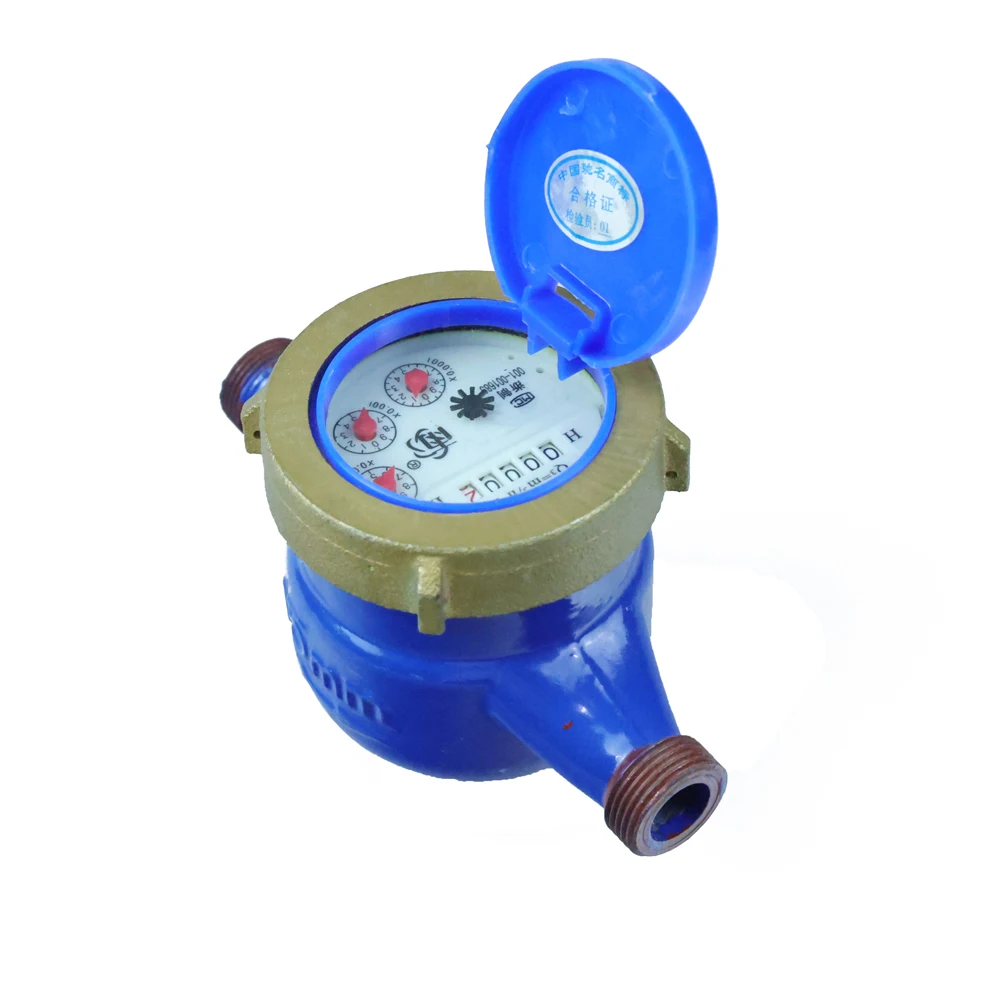

Product images
Product introduction:
Multi jit dry adjustable water meter is mainly composed of meter case,cover,counting mechanism and metering mechanism.The counting mechanism and impeller are completely isolated by magnetic drive.The reading part of the word wheel is dry and separated from the water used.It can keep the reading part clear for a long time and has the characteristics of antifreeze. Antifogging and antifouling.
Detals
DRY DIAL
BRASS BODY
BRASS FITTINGS
Product overview
Our Advantages
1.High accuracy, accurate measurement
2.Convenient maintenance
3.Technical indicators up to GB/t778.1~3`2007 standard.
4.Dry counter sparated from the measured water can keep clear indication for along time, parts in contact with water are made of high-quality anti-corrosion and anti fouling materials.
5.And standard pipe thread is used for Din15~50
6.It can be equipped with wrieless and wired remote transmission function to realize the intelligent metering terminal of remote reading.
The maximum allowable error of low zone is as follows:
The maximum allowable error of discharge volume between minium flow(Q1) and boundary flow (Q2)(excluding Q2) is ± 5%.
Maximum Allowable erro in right range:
The maximum allowable error of discharge volume is ± 2% based on the flow between boundary (Q2) and overload flow (Q4)
