Характеристики
Brief Introduction

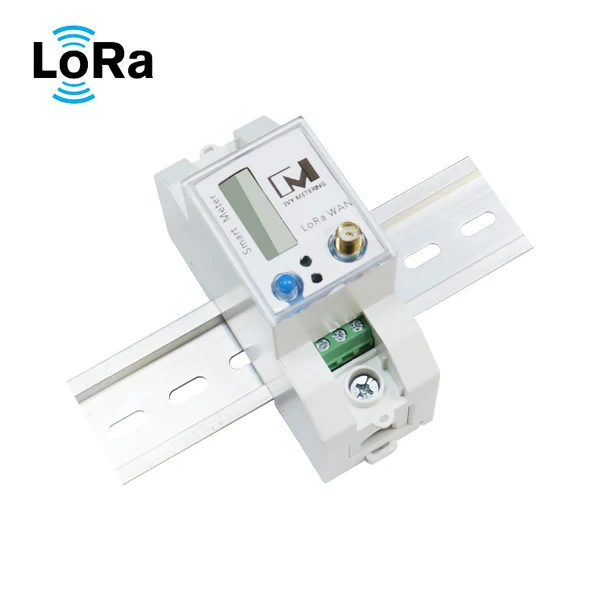

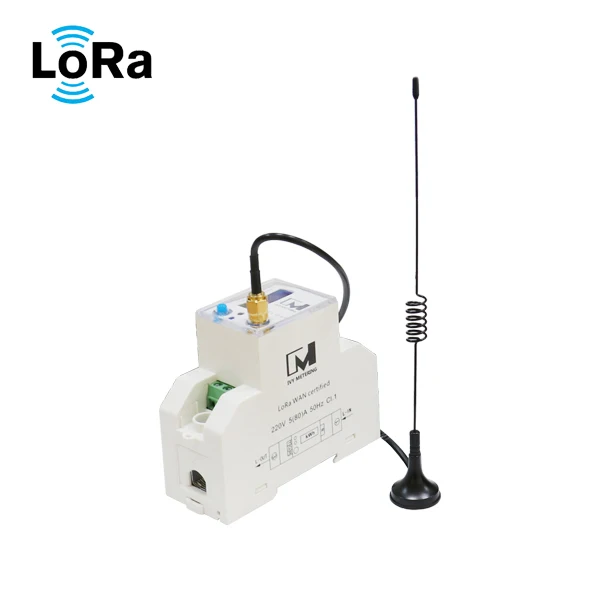

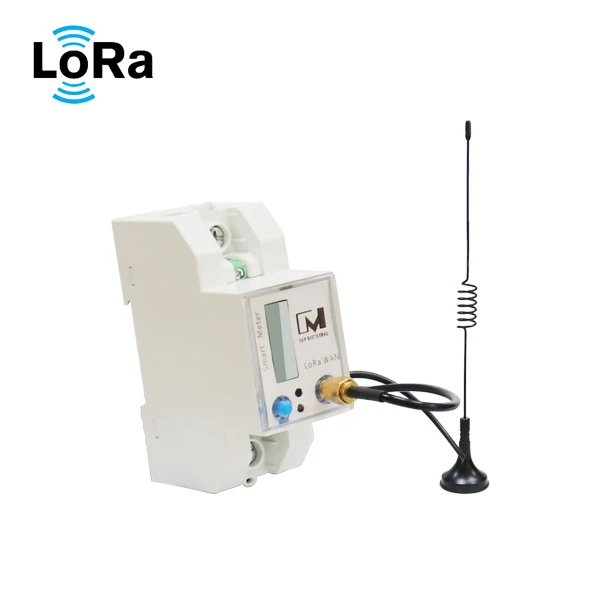

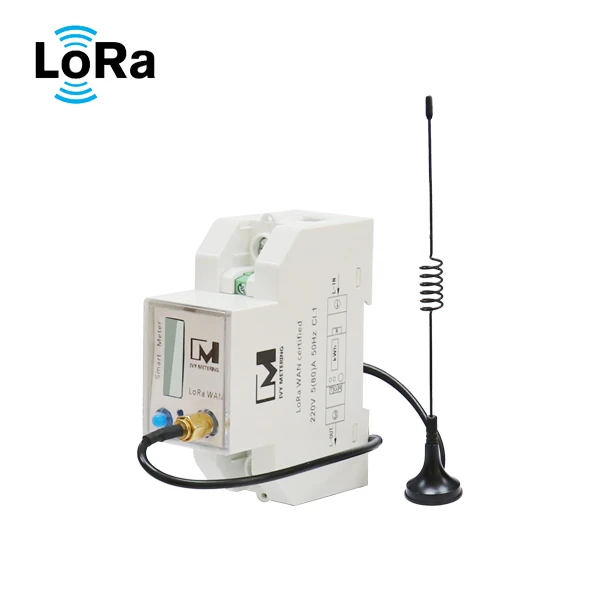

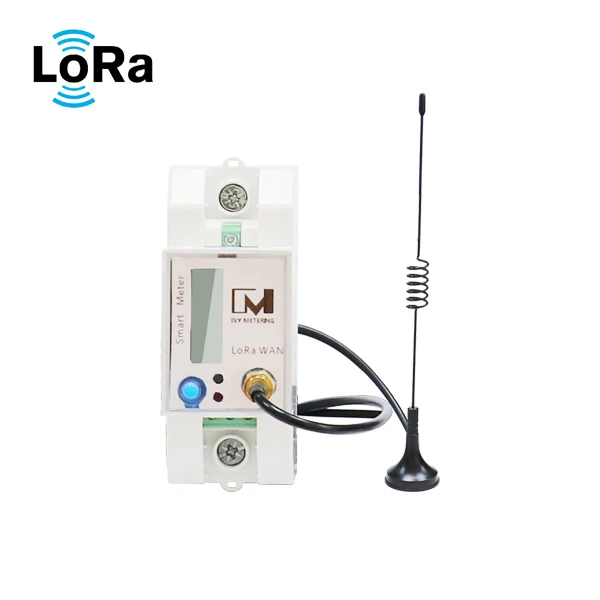

EM114039 is a single phase Din Rail Meter in the series of LoraWAN Meter. Through LoarWAN Communication, it supports recharging and reading data remotely. It has built-in 80A relay for overload protection and SMA socket for external antenna. Two-way measurement is also available on this meter.
Specification | Type | 1 Phase 2 Wires Prepaid Din Rail Meter |
P/N | EM114039 | |
Accuracy Class | Cl.1 | |
Operating Voltage | 220V | |
Rated Current | 0.25-5(80)A | |
Rated Frequency | 50Hz | |
Power Consumption | <1W/<10VA | |
Starting Current | 0.4%/Ib(Cl.1) | |
Technical Standard | IEC62052-11/ IEC62053-21, IEC62055-41/IEC62056-21 | |
Operating Temp. | -20℃~+70℃ | |
Relative Humidity | <95% | |
Load Control | Built-in 80A Latching Relay | |
LoRaWAN Communication | 868MHz | |
LCD | LCD5+1 | |
Antenna | Optional |
Feature
Measure I, V, kWh, kVarh, f, PF (5~80A, 220VDC)
LoraWan Communication EU868MHz
Built-in 80A Magnetic Latching Relay For Load Control
SMA Socket For External Antenna
Remote Operation and reading
LoraWan Communication EU868MHz
Built-in 80A Magnetic Latching Relay For Load Control
SMA Socket For External Antenna
Remote Operation and reading
Cautions:
1.About AC/DC Energy Meter
(1) AC or DC- Generally speaking alternating current or direct current shall be the first factor.
(2) We also have DC meter when you need to measure the Direct Current.
2.About Function
(1) As the content is limited, all functions mentioned above are the main functions
(2) Other functions such as TOU, load control, friendly hours,RTC, plz refer to the technical specification or
(1) AC or DC- Generally speaking alternating current or direct current shall be the first factor.
(2) We also have DC meter when you need to measure the Direct Current.
2.About Function
(1) As the content is limited, all functions mentioned above are the main functions
(2) Other functions such as TOU, load control, friendly hours,RTC, plz refer to the technical specification or
contact with our sales team.
3.About Application
(1) The applications only for examples, for the pratical situation the energy meter can also be used for
3.About Application
(1) The applications only for examples, for the pratical situation the energy meter can also be used for
other applications.
(2) Welcome to inquiry if you are not sure about the functions or application, we have free technical support
(2) Welcome to inquiry if you are not sure about the functions or application, we have free technical support
