Product Details
Lock Custom EDID
Any splicing mode can achieve equal proportion of the whole screen without deformation and stretching
More usage
Multiple devices are connected to the graphics card in parallel.
Through the NVIDIA Surround/Mosaic allows you to join multiple displays into a single immersive viewing surface.
And can achieve 4K/6K/8K/12K/16K and higher display resolution.
Product Description

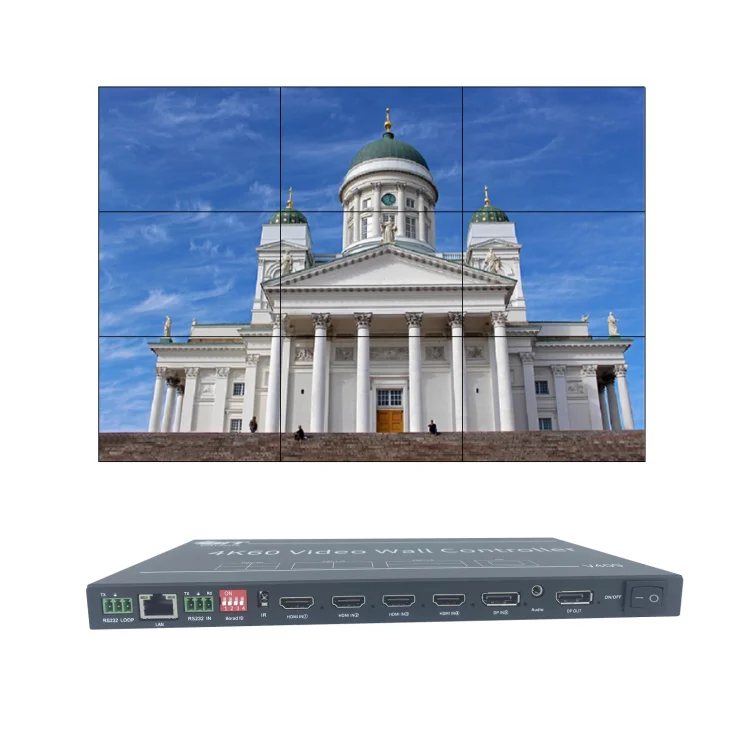

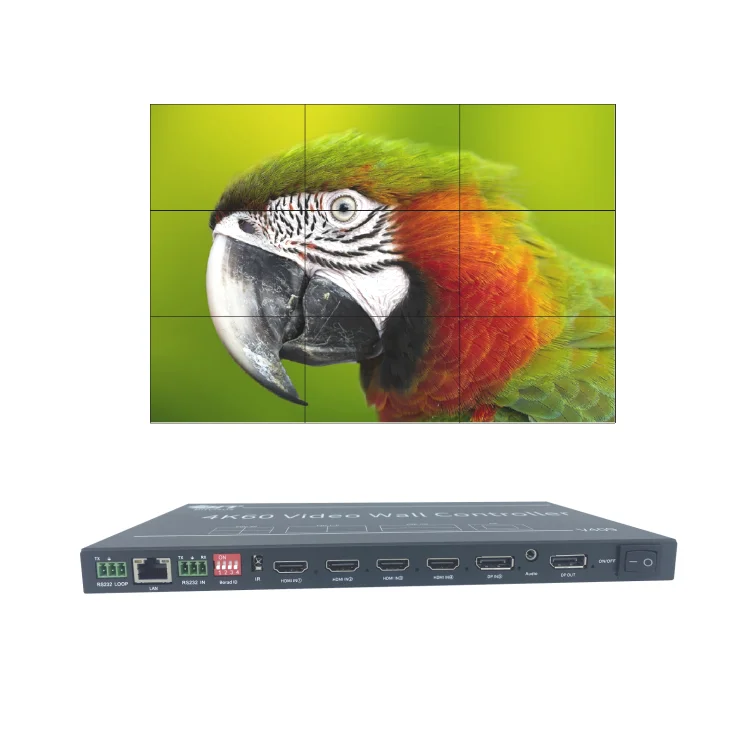

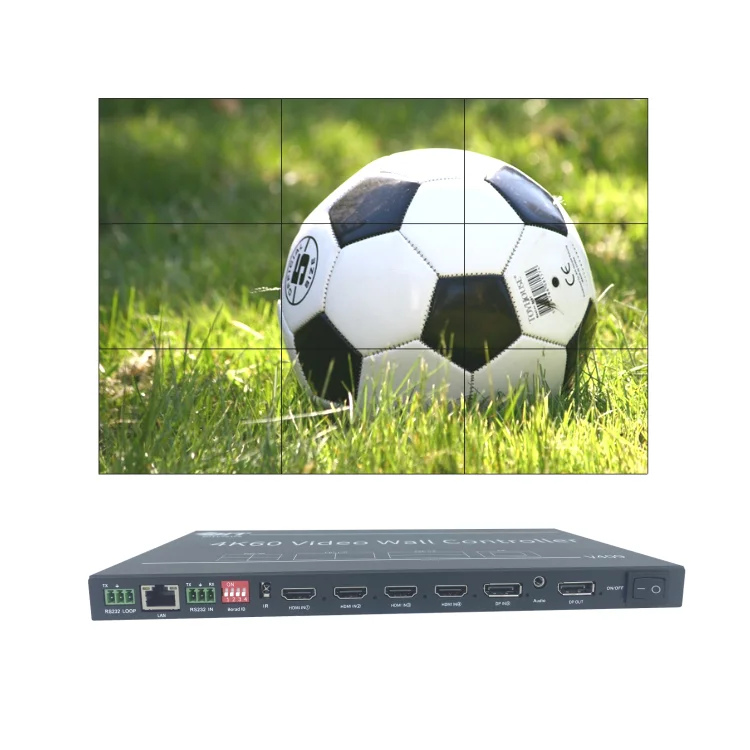

4K HDMI video wall controller switcher features

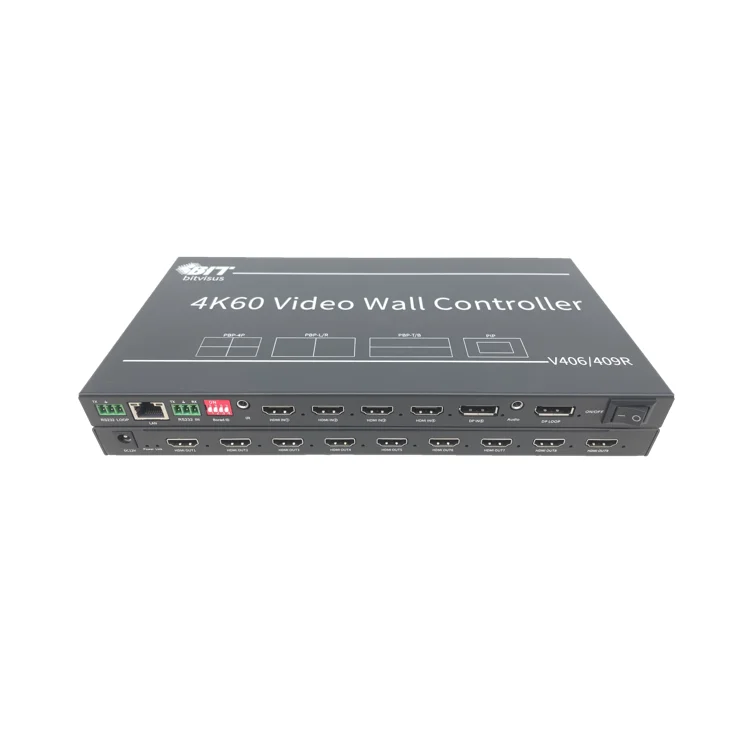

BIT-V409R is an ultra HD Rotary Splicer by Shenzhen Bitvisus Technology Limited.
Support 4 channels HDMI input (1 channel 4K@60Hz,3 channels 4K@30Hz), 1 channel DP input (4K@60Hz),
9 channels output HDMI (1080p@60Hz),
1 channel DP loop out.
9 channels output HDMI (1080p@60Hz),
1 channel DP loop out.
● Input Max supports 4096x2160@ 60Hz. output max supports 1920x1080 @ 60Hz.
● The input supports full screen rotation of 90 °(only supported in single-picture mode), and the output supports 180 ° rotation of the first line (only supported when the stitching mode is two lines).
● no stretching, no deformation, no need to compress the input source, the picture is clear.
● Support single display mode (1x1).

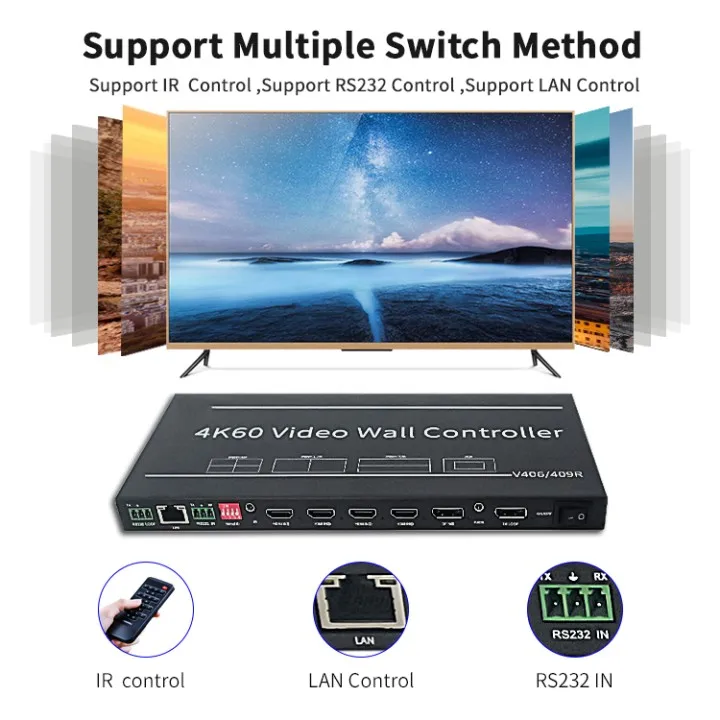

● Support infrared remote control, serial RS232 control.
● Low power consumption, energy saving and environmental protection. Conductive heat dissipation is used internally.
● without any external heat dissipation measures, and the reliability is extremely high.
● Support Computers, Android boxs, game consoles and other devices as input source.
● Using 40nm high-end programmable FPGA chip, full hardware real-time processing architecture, ultra-fast processing speed without delay.
Specification
Model Number | BIT-VWC-409R |
Product features | Support any splicing in 9 screens |
Brand Name | Bitvisus |
Model Number | BIT-VWC-409R |
Warranty | 12months-1year |
Certification | CE,FCC,ROHS |
Power | 24W |
Voltage | 12V 2A |
Customized | yes |
Product Type | 4K TV video wall controller switcher |
Light Source Type | 4K |
Product name | 3x3 video wall controller switcher |
Keyword | video wall processor |
Keyword 1 | Matrix switcher |
Keyword 2 | 4K video wall controller |
input | 4 HDMI and 1 DP |
output | 9 HDMI |
Resolution | 4096X2160@60Hz |
Type | HDMI video wall controller switcher |
ouput Resolution | 1920X1080@60HZ |
Customer customized resolution EDID reference table | ||||||
Support splicing Mode | Full screen input resolution | Full screen output resolution | Single screen resolution | |||
1x2 | 3840x1080@30Hz | 3840x1080@60HZ | 1920x1080@60HZ | |||
1x3 | 3840x720@30HZ | 5760x1080@60HZ | 1920x1080@60HZ | |||
1x4 | 4096x576@30HZ | 7680x1080@60HZ | 1920x1080@60HZ | |||
1x5 | 4080x459@30HZ | 9600x1080@30HZ | 1920x1080@60HZ | |||
1x6 | 4032x378@30HZ | 11520x1080@60HZ | 1920x1080@60HZ | |||
9x1 | 784x3969@30HZ | 1920x9720@60HZ | 1920x1080@60HZ | |||
8x1 | 888x3996@30HZ | 1920x8640@60HZ | 1920x1080@60HZ | |||
7x1 | 992x3906@30HZ | 1920x7560@60HZ | 1920x1080@60HZ | |||
6x1 | 1184x3996@30HZ | 1920x6480@60HZ | 1920x1080@60HZ | |||
5x1 | 1408x3960@30HZ | 1920x5400@60HZ | 1920x1080@60HZ | |||
4x1 | 1776x3996@30HZ | 1920x4320@60HZ | 1920x1080@60HZ | |||
3x1 | 1920x3240@30HZ | 1920x3240@60HZ | 1920x1080@60HZ | |||
2x1 | 1920x2160@30HZ | 1920x2160@60HZ | 1920x1080@60HZ | |||
2x2 | 3840x2160@30HZ | 3840x2160@60HZ | 1920x1080@60HZ | |||
2x3 | 3840x1440@30HZ | 5760x2160@60HZ | 1920x1080@60HZ | |||
2x4 | 4096x1152@30HZ | 7680x2160@60HZ | 1920x1080@60HZ | |||
3x2 | 2816x2376@30HZ | 3840x3240@60HZ | 1920x1080@60HZ | |||
3x3 | 3840x2160@30HZ | 5760x3240@60HZ | 1920x1080@60HZ | |||
4x2 | 2688x3024@30HZ | 3840x4320@60HZ | 1920x1080@60HZ | |||
