Беспроводной дверной звонок по внутренней связи портативный с одним передатчиком и приемником открытое пространство 300 м. Не нужно подключать

Описание и отзывы

Трекер стоимости

Характеристики

Descrizione:

Outdoor machine

1. Remove the battery cover

2. Install 4 7-cell batteries in the direction shown above.

3. Cover the battery cover

4. Press the internal communication button, the button indicator lights, indicating that the machine is normal, and the button indicator is off, indicating that the battery is not installed. Press the ring button, the LED indicator around the ring button light is on, indicating that the device is installed properly.

5. Tighten the screws

Indoor machine

1. Turn the power switch to the ON position

2. Press the internal communication button and make a sound to indicate that the machine is normal.

Pairing method

Turn on the room ringtone and press and hold the answer button for about 5 seconds, then release the button and the LED flashes quickly. Now, click the ring button on the outdoor ringtone.

When the LEDs on the indoor unit are off, they indicate that they are successfully paired.

If there are N indoor units, they are all the same encoding method.

Low battery indicator

Outdoor unit: LED light flashes slowly, please replace the battery

Indoor unit - The LED light flashes slowly. Please charge in time.



Product parameters:

Power supply mode: Outdoor unit: 4 sections of 7th battery Indoor unit: Lithium battery supply

Transmission distance: 300m in open space, obstacle 50-100m

Waterproof rating: no waterproof function

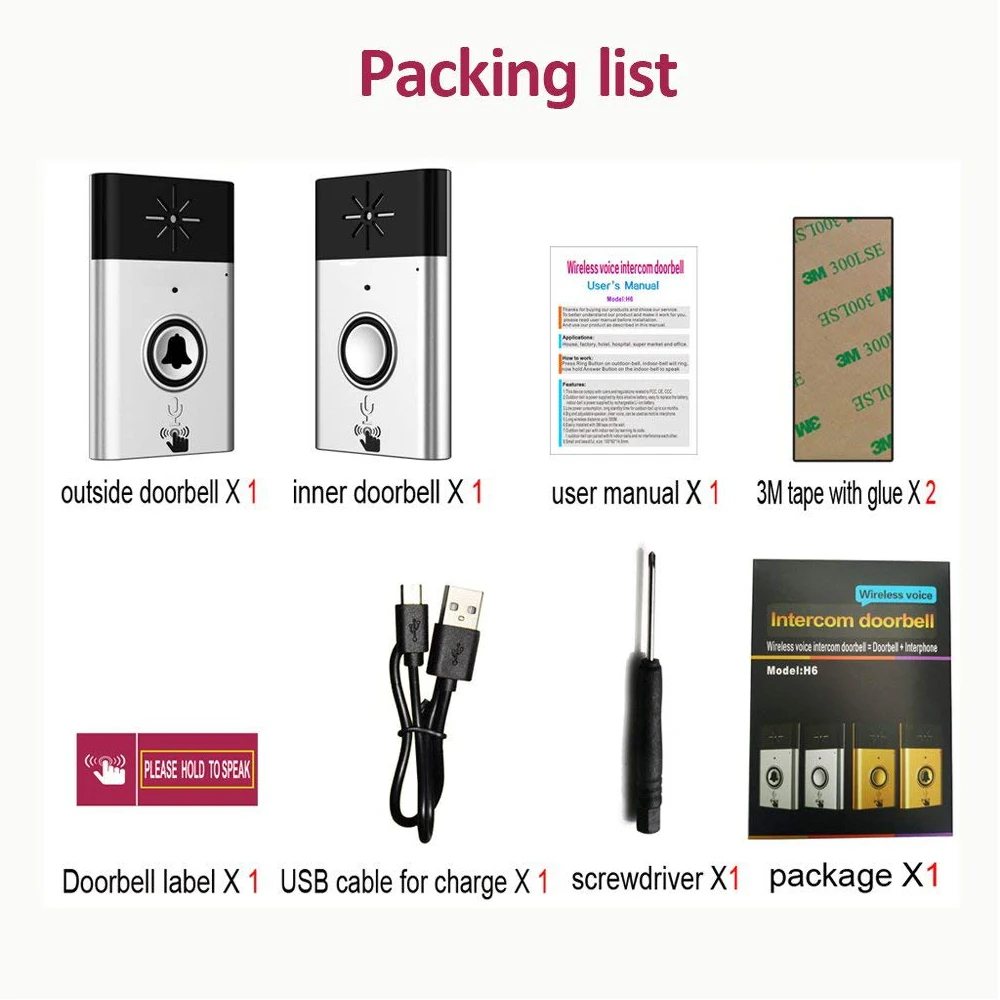

Products included:

Outdoor unit*1

Indoor unit*1

Instruction manual*1

Screwdriver*1

Charging cable*1

Certificate of conformity*1





Wireless intercom doorbell - This doorbell supports calls between the inner doorbell and the outdoor doorbell.

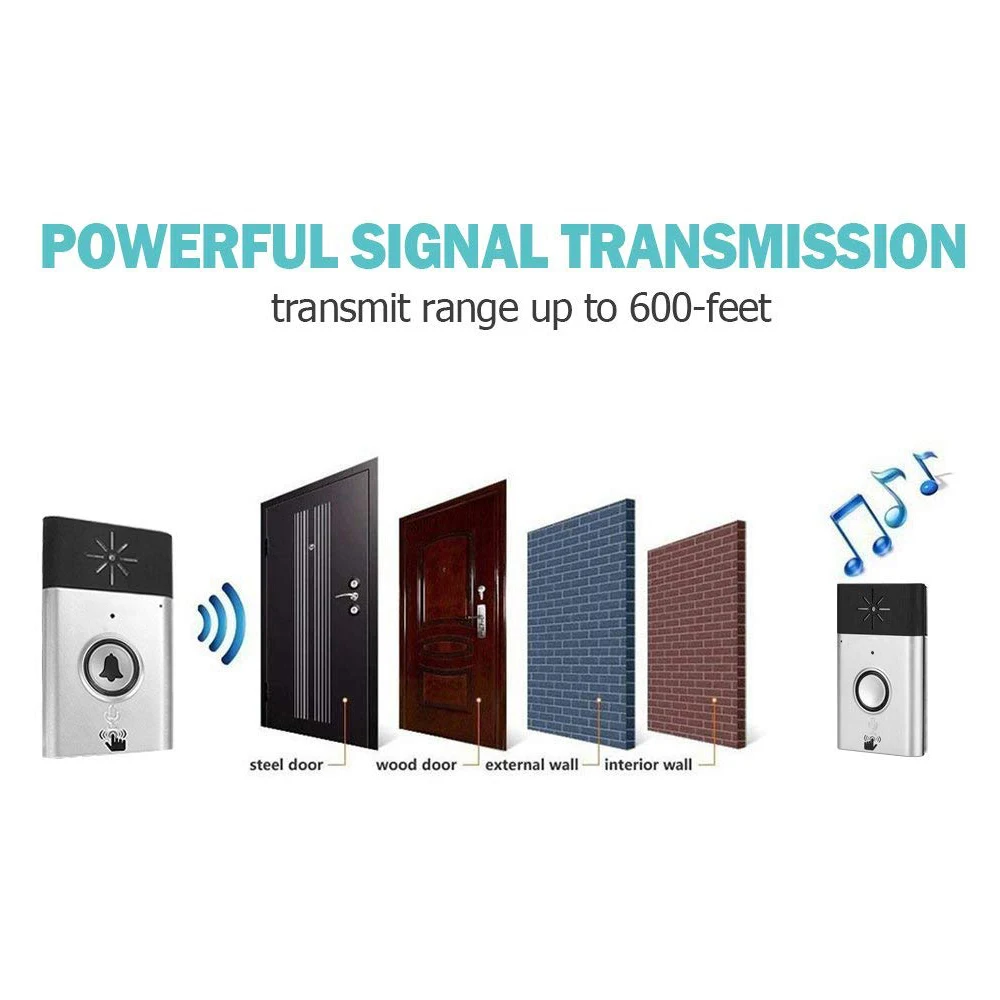

Wireless distance of up to 600 feet - The signal transmission in the house is strong and stable, covering up to 200 M (no obstacles, any blocking).

Easy to install - The doorbell can be attached to the wall with a sticky sticker.

wireless voice intercom door with adjustable speaker, clear voice, can be used as a mobile walkie-talkie.

low power consumption, the standby time of the outdoor clock can last up to 1 month.

JJ00409-00B
