Новый GA-H110-D3A 6gpu 12gpu DDR4 LGA1151 H110-D3A TB250-BTC PR игровой Шахтер материнская

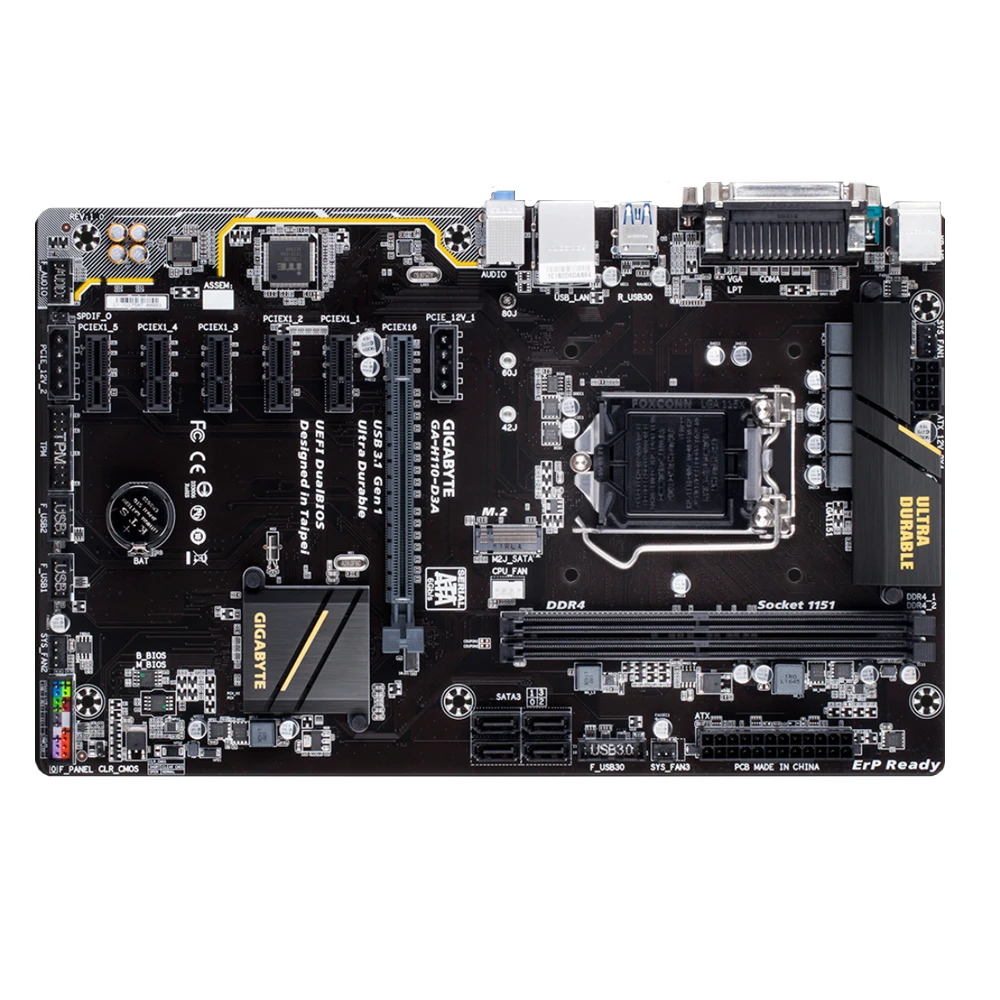

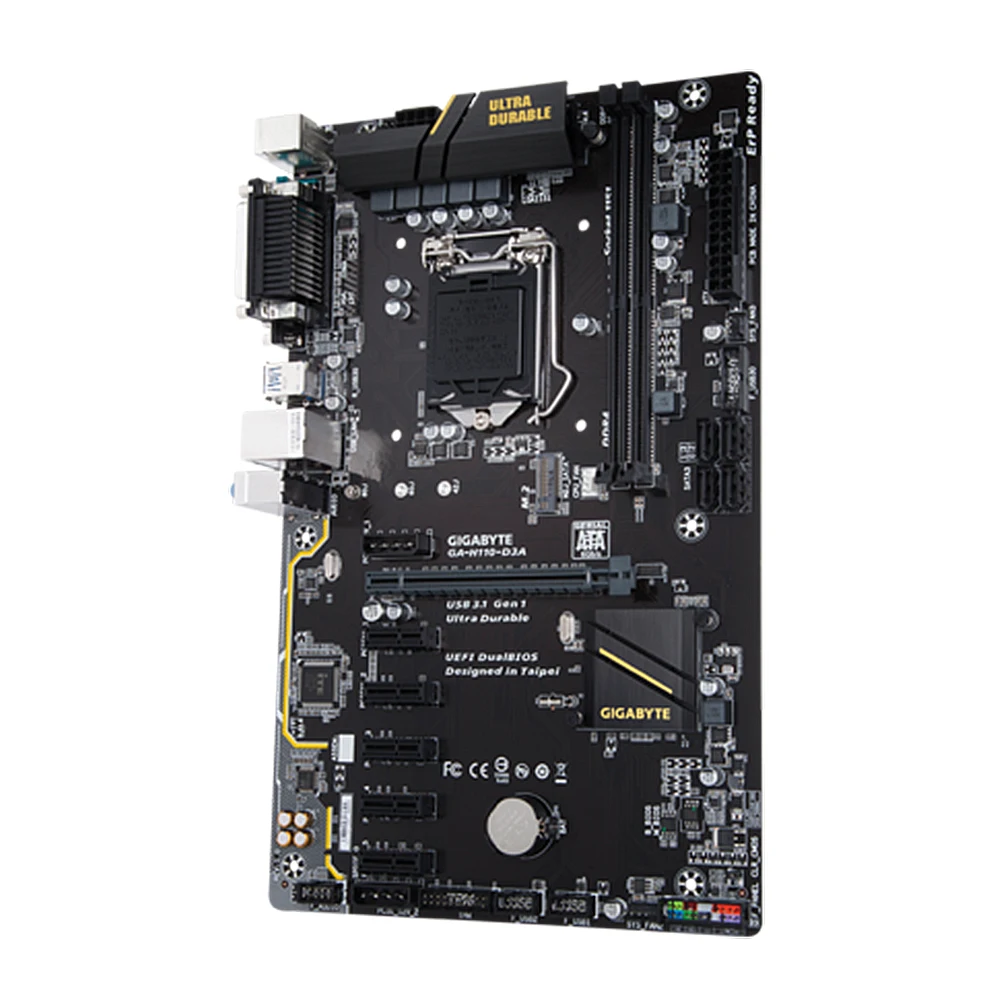

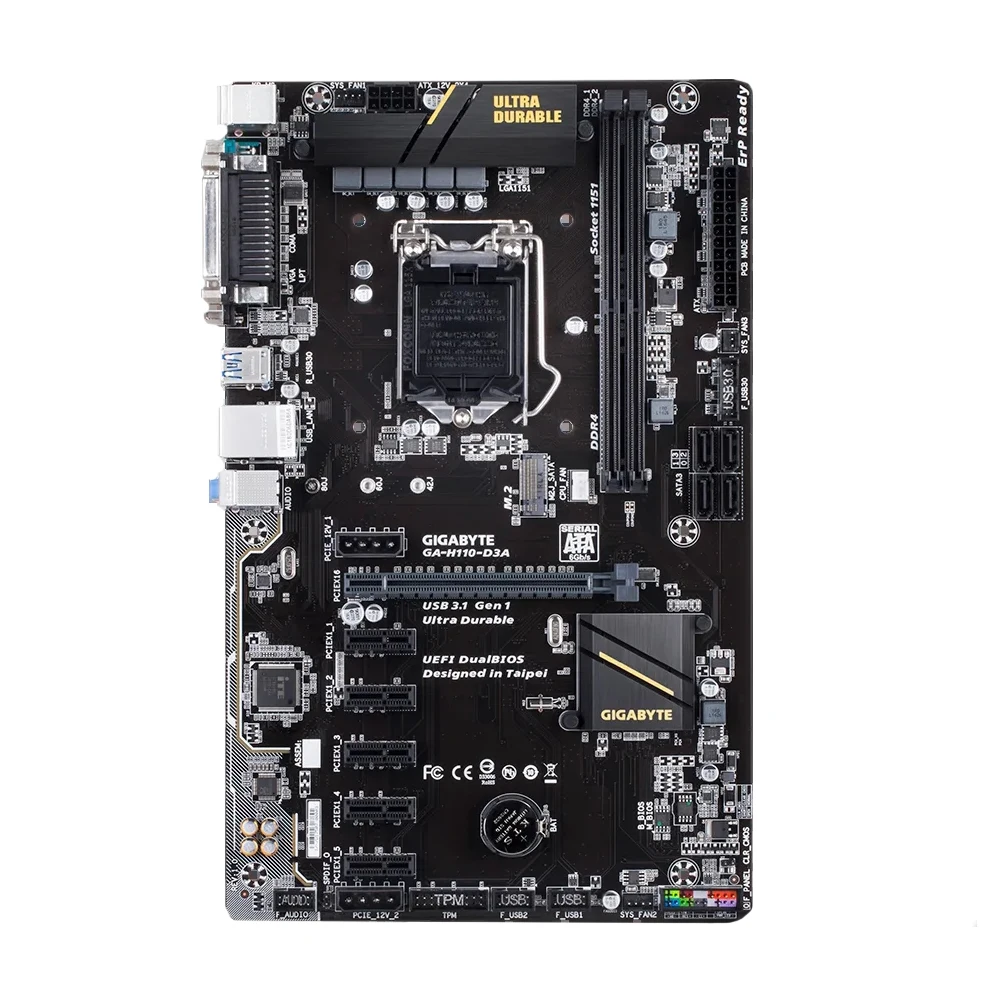

GIGABYTE Intel GA-H110-D3A 32GB DDR4 LGA1151 ATX Desktop Gaming Motherboard

6 PCIe Slots Perfect for Mining

Supports 7th / 6th Generation Intel® Core™ Processors

Dual Channel DDR4, 2 DIMMs

On board M.2 Connector for Fast Data Transfer

8-channel HD Audio with High Quality Audio Capacitors

Audio Noise Guard with LED Trace Path Lighting

Realtek GbE LAN with cFosSpeed Internet Accelerator Software

APP Center Including EasyTune™ and Cloud Station™ Utilities

GIGABYTE UEFI DualBIOS™ Technology

CPU

Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package

L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)

Memory

2 x DDR4 DIMM sockets supporting up to 32 GB of system memory

* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.

Dual channel memory architecture

Support for DDR4 2400/2133 MHz memory modules

Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

* To support 2400 MHz or XMP memory, you must install a 7th generation processor.

(Please refer "Memory Support List" for more information.)

Expansion Slots

1 x PCI Express x16 slot, running at x16

(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)

5 x PCI Express x1 slots

(All of the PCI Express x1 slots conform to PCI Express 2.0 standard.)

* When two or more graphics cards are installed, be sure to connect the power cable from the power supply to the PCIE_12V_1 or PCIE_12V_2 connector to provide sufficient current to the system and prevent damage to the devices.

Storage Interface

Chipset:

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA SSD support)

4 x SATA 6Gb/s connectors

* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

Internal I/O Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

2 x PCIe power connectors

1 x CPU fan header

3 x system fan headers

4 x SATA 6Gb/s connectors

1 x M.2 Socket 3 connector

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x USB 3.1 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module (TPM) header

1 x Clear CMOS jumper

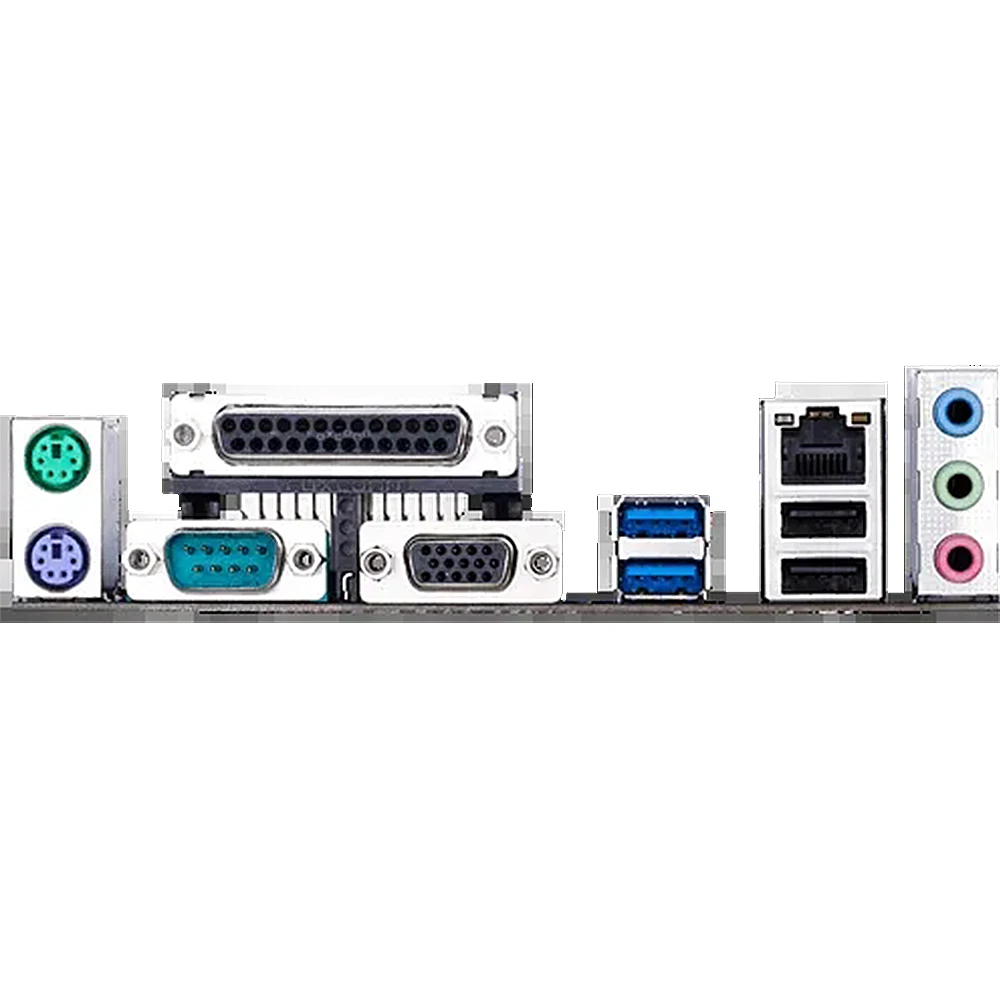

Back Panel Connectors

1 x PS/2 mouse port

1 x PS/2 Keyboard port

1 x parallel port

1 x serial port

1 x D-Sub port

2 x USB 3.1 Gen 1 ports

2 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks (Line In, Line Out, Mic In)

Remark

Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.

Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
