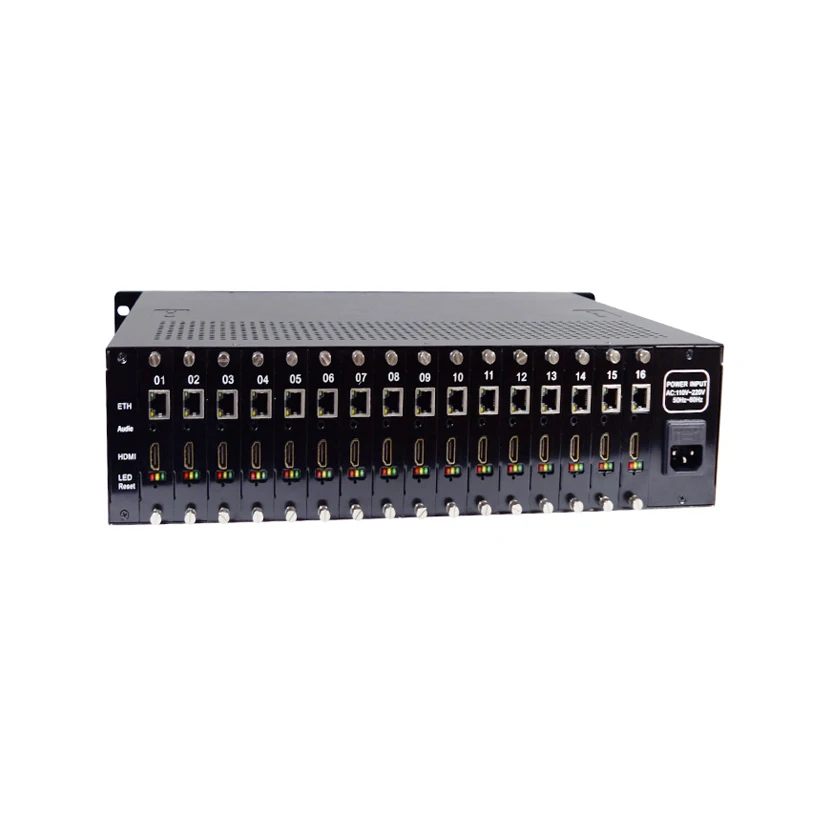

1-16 вход H.265 HDMI кодировщик потока в реальном времени OEM поддерживает

Outline

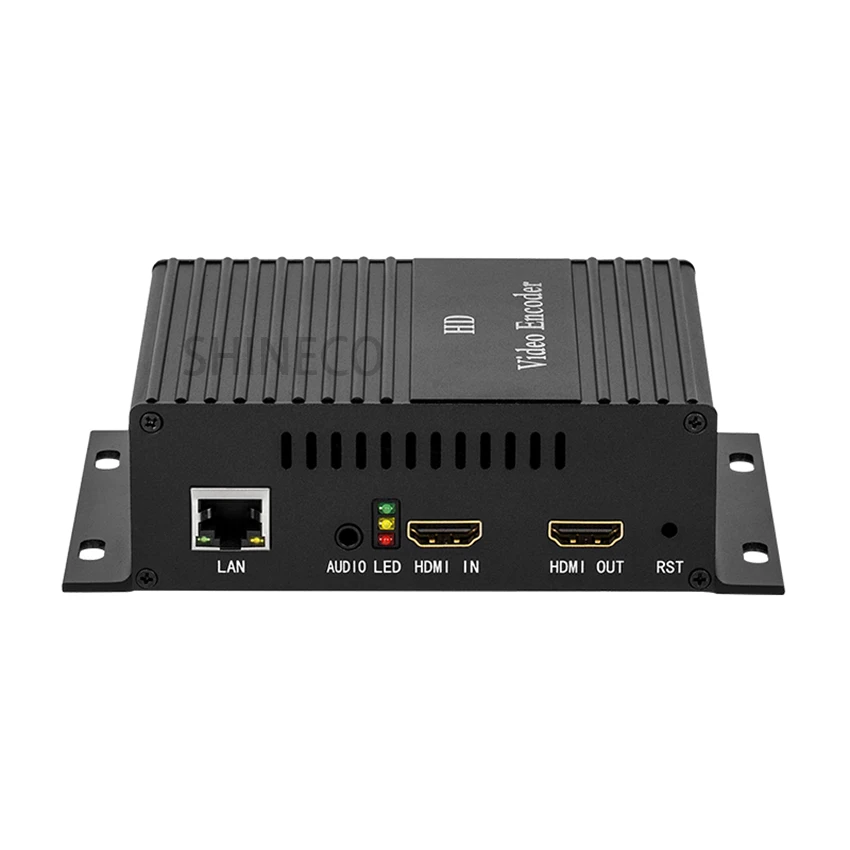

HD HDMI Encoder is a professional audio and video encoding products, which support 1-channel audio and video capture features high-definition HDMI, 1 3.5MM independent audio interface acquisition, dual streaming H.265/ H.264 encoded output format, audio MP3, AAC ,G711 formats. It could be freely adjusted according to the need. The device is highly integrated, cost-effective. Support HTTP / RTSP/ RTMP / UDP/RTP/HLS/Onvif protocols. It is easy to install, plug-play, and there is no computer hardware compatibility issues.

Features

•Support resolution 1920x1080p/1920x1080i/1280x720p/720*576i/720*576p /640*480i (customize)

•Support HDMI input,H.265 The latest architecture

•Supports WINDOWS and LINUX

• Support multiple devices display on a computer at the same time

•Support RTSP/RTMP/HTTP/UDP unicast and multicast protocol (RTMP support adding users and changing passwords),

•Support Main TS stream and the sub TS stream  use in different network protocols for transmission,H.264/H.265

• Encoding level: 1, 2, 3, 4 and 5 (the higher the level ,the larger of the code flow fluctuation ratio )

•Coding Standards BASELINE PROFILE / MAIN PROFILE / HIGH PROFILE, H.265:audio MP3, AAC, sampling rate: 32000,44100, etc., encoded audio bit rate: 48K, 64K, 96K, 128K, 160K, 192K, 256K

•Rate Control CBR / VBR 16KBIT / S ~ 12MBIT / S

•Video packaging: A mode: FFMPEG, B mode: VLC

• Transmission: TCP, UDP, 1000M (RJ45 Duplex network port)

•Support WEB access in Chinese/English, passwords changing, WAN remote management (WEB)

•Support OSD in Chinese/ English, support OSD rolling, images superimposing, support adding LOGO ,Characters and symbols;

 Adjustable coordinates: 1920x1080; The font size resolution: 8 to 72.

•Support DHCP gaining IP automatic ,support One-key recovery, upgrade and remote maintenance

•Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering

•Support build-in or external methods , support left and right sound channel , Support audio gain ,be able to turn volume individually

•Support coding without video signal;

•Complete the setting effect immediately, don’t need to restart

•Support one-key recovery of the default configuration

•Support set-top box decoder

•The low power consumption design

Specification

Advantage

Chengdu Shineco Technology Company is about 11 years experience in Digital TV headend

DVB-C/T/T2/S2/IPTV and DSNG system.

we submitted to support our distributors and clients by means of successful experiences and perfect services.

These added values make our products more worthy.

Shineco Team members are kindly and warmly enough to help you find the best solution for your project and market,

 we work from 9:00 am to 24:00 pm to supply in time service for clients,if you choose us,we believe that we shall achieve

a win-win situation in the future cooperation.
