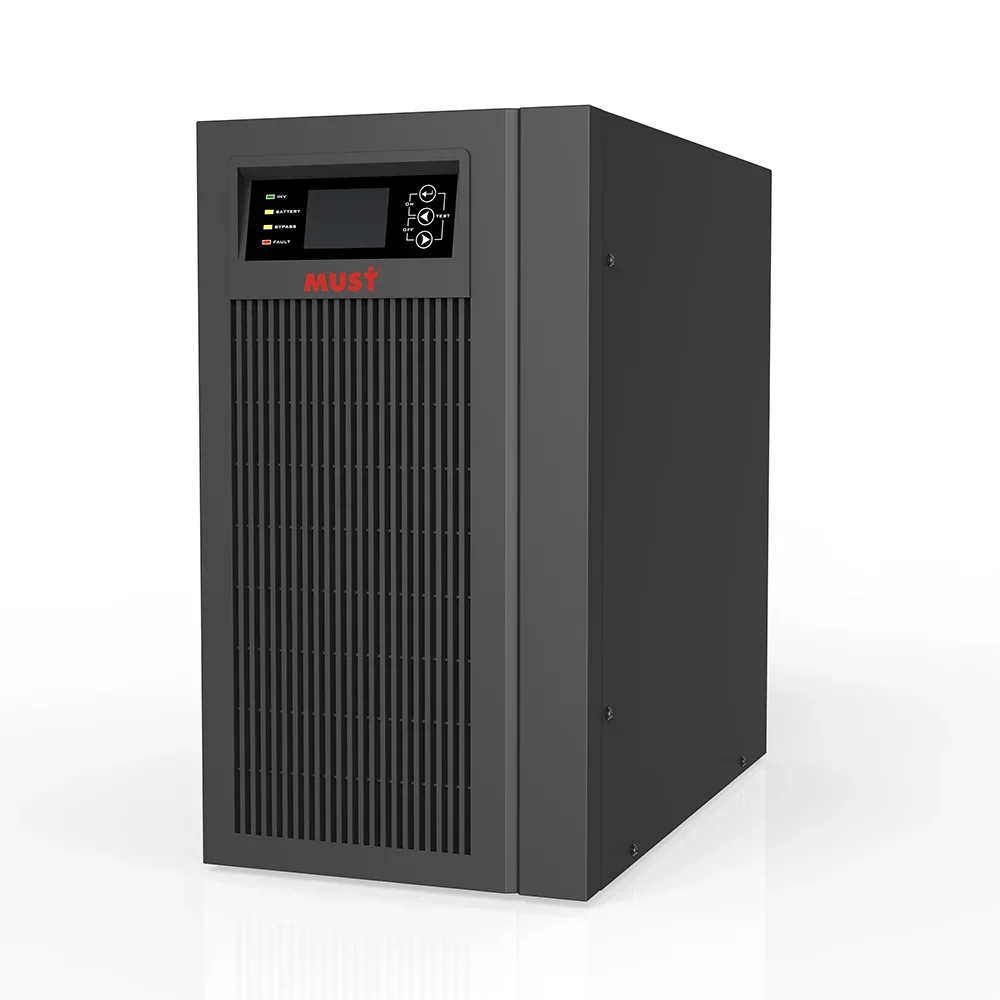

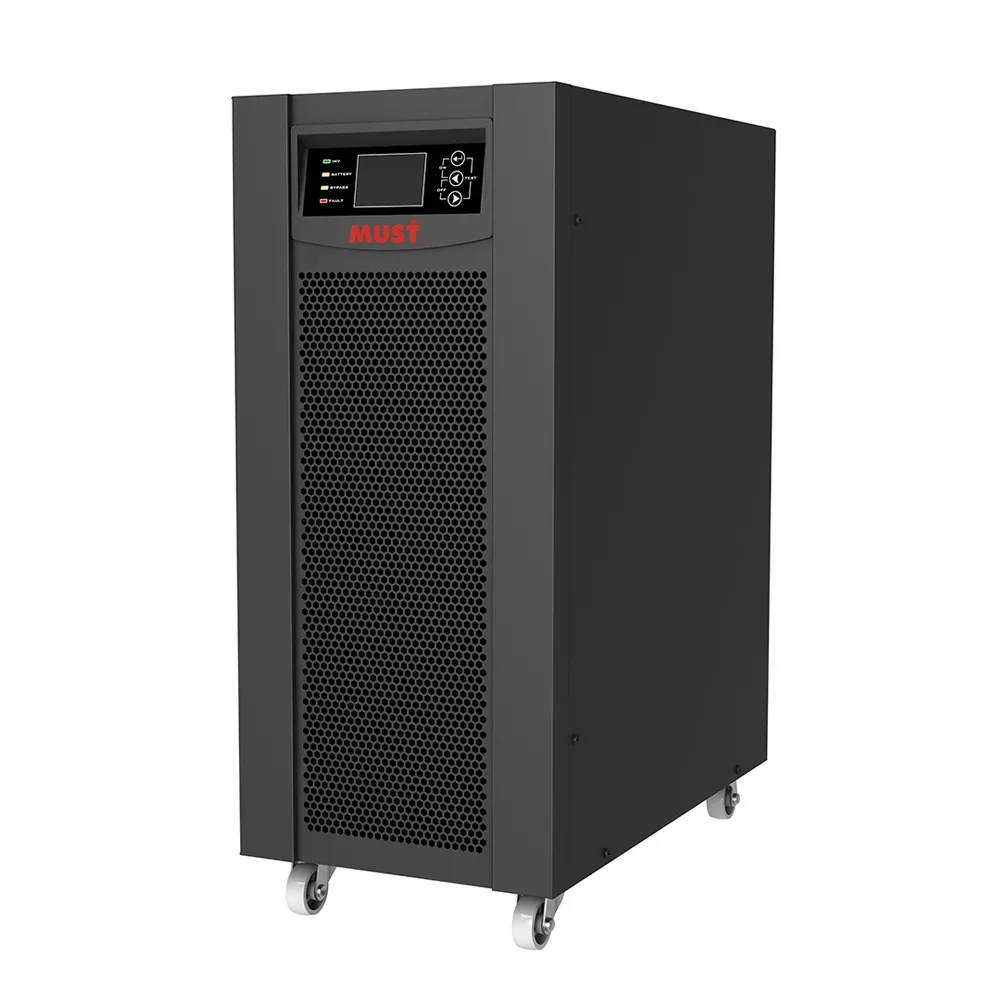

< MUST> EH5500 series  high  frequency 6KVA-10KVA online ups



EH5500 SERIES (6KVA-10KVA)



Features

•

  With double conversion online design, zero output transfer time.


  •


  Adopt DSP digital control, excellent performance indicators, more steady and reliable.


  •


  Adopt active power factor correction technology (PFC), the input power factor is 1, can reduced the pollution to the grid,


  to energy saving and reducing system investment cost.


  •


  Ultra-wide input voltage range , input voltages available 110V instead of turn to battery power.


  •


  With LCD+LED real-time display, UPS operating available for Detection


  •


  With self- detection function, can detect hidden faults of UPS


  •


  Cold start by battery without grid Input.


  •


  Input frequency range 40~70Hz, support various fuel generators


  •


  With AC input over voltage, low voltage protection, output overload protection, short circuit protection, temperature protection, battery low voltage warning protectionand


  battery overcharge protection.


  •


  OOutput power factor 1.0/0.9 for your option. max efficiency reach 95%, reduce loss of UPS.


  •


  With input neutral and live line detection function, avoid the reverse connection of UPS utility input


  •


  When utility cut-off, the UPS discharge battery in the battery mode; when the city power is recovery ,UPS turn on automatically,and charge battery at the same time,


  asunattended function.


  •


  Standard RS232 communication outlet ,connect UPS and computer to realize multifunctional and multi-purpose monitoring and management operations, available SNMP


  card (optional) to UPS remote monitoring function



Technical Specification:

Model	H6K	H6KS	H10K	H10KS
Capacity
Rated Capacity	6KVA/6KW	6KVA/5.4KW	6KVA/6KW	6KVA/5.4KW	10KVA/10KW	10KVA/9KW	10KVA/10KW	10KVA/9KW
PF	1.0	0.9	1.0	0.9	1.0	0.9	1.0	0.9
Input
Input format	L+N+PE
Rated input voltage	208/220/230/240VAC
Voltage range	110~300VAC
Frequency range	50/60±6Hz (Default), ±10Hz (Settable)
Input power factor	≥0.99
Input total harmonic distortion	≤4% inear load
Output
Output format	L+N+PE
Output voltage	208/220/230/240VAC
Output accuracy	±1%
Output frequency	For on-line mode: follow current frequency, battery mode: 50 / 60Hz±0.1%
Output harmonic distortion	≤ 2% linear load; ≤ 4% nonlinear load (PF=0.7)
Overload capacity	AC Mode: 30min@102%~110% Load 10min@110%~130% Load 30s@130%~150% Load 200ms@ >150% Load Battery Mode: 1min@102%~110% Load 10s@110%~130% Load 3s@130%~150% Load 200ms@>150% Load
Switching time
Switch to battery mode	0ms
Switch to bypass	4ms
AC priority mode	Support
Efficiency
AC Mode (Full Load)	Peak efficiency 95.5%,Full load efficiency 95%
Battery Mode (Full Load)	Peak efficiency 95.3%,Full load efficiency 94.8% (20pcs Battery)
Battery
Battery type	Lead Acid Battery
Battery number	7Ah*16	7Ah*12	16/18/20 (adjustable) 16(default )	16/18/20 (adjustable) 16(default )	7Ah*16	7Ah*14	16/18/20 (adjustable) 16(default )	16/18/20 (adjustable) 16(default )
Chaging current	1A (default)	1A (default)	1-12A (adjustable)	1-8A (adjustable)	1A (default)	1A (default)	1-12A (adjustable)	1-8A (adjustable)
Charging mode	Two-stage/three-stage charging
Display
LCD	2×8 PIN/Pitch 2.54mm, support 128-bit segment code, up to 4 buttons + 4 LEDs, can display operating mode / load / input / output, etc.
Interface
RS-232	Support: Windows 2000/2003/XP/Vista/2008/7/Linux/Unix and MAC
USB	Windows Family & MAC
EPO	Support
Intelligent slot (Optional)	SNMP/AS400 Relay Card/RS485
M(Oapintitoennaaln) ce bypass switch	Support
Environmental parameters
Operating ambient temperature	0~40℃
Operating environment humidity	20%~95%(no condensation)
Storage temperature	-15~60℃ (batteries: 0~40℃ )
Altitude	The elevation should not exceed 1000m, 1000m or above, up to 4000 m, reference IEC62040
Noise	≤ 45db
Mechanical Specifications
Dimensions (D*W*H) (mm)	500*250*615	500*240*462		455*190*330	500*250*615	500*240*462		455*190*330
Net weight (kg)	53	42	15	12	53	46.5	15	12

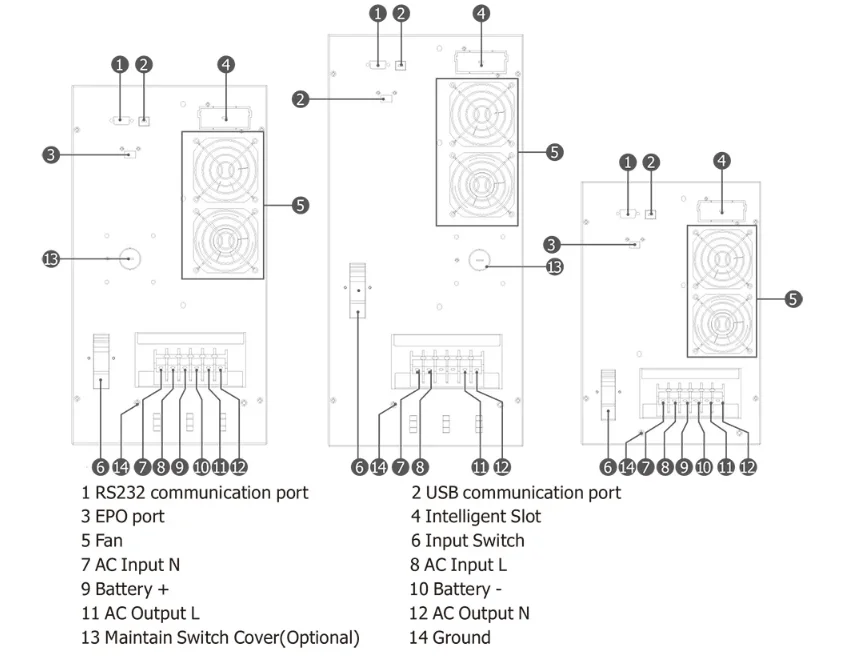

• Product details :
